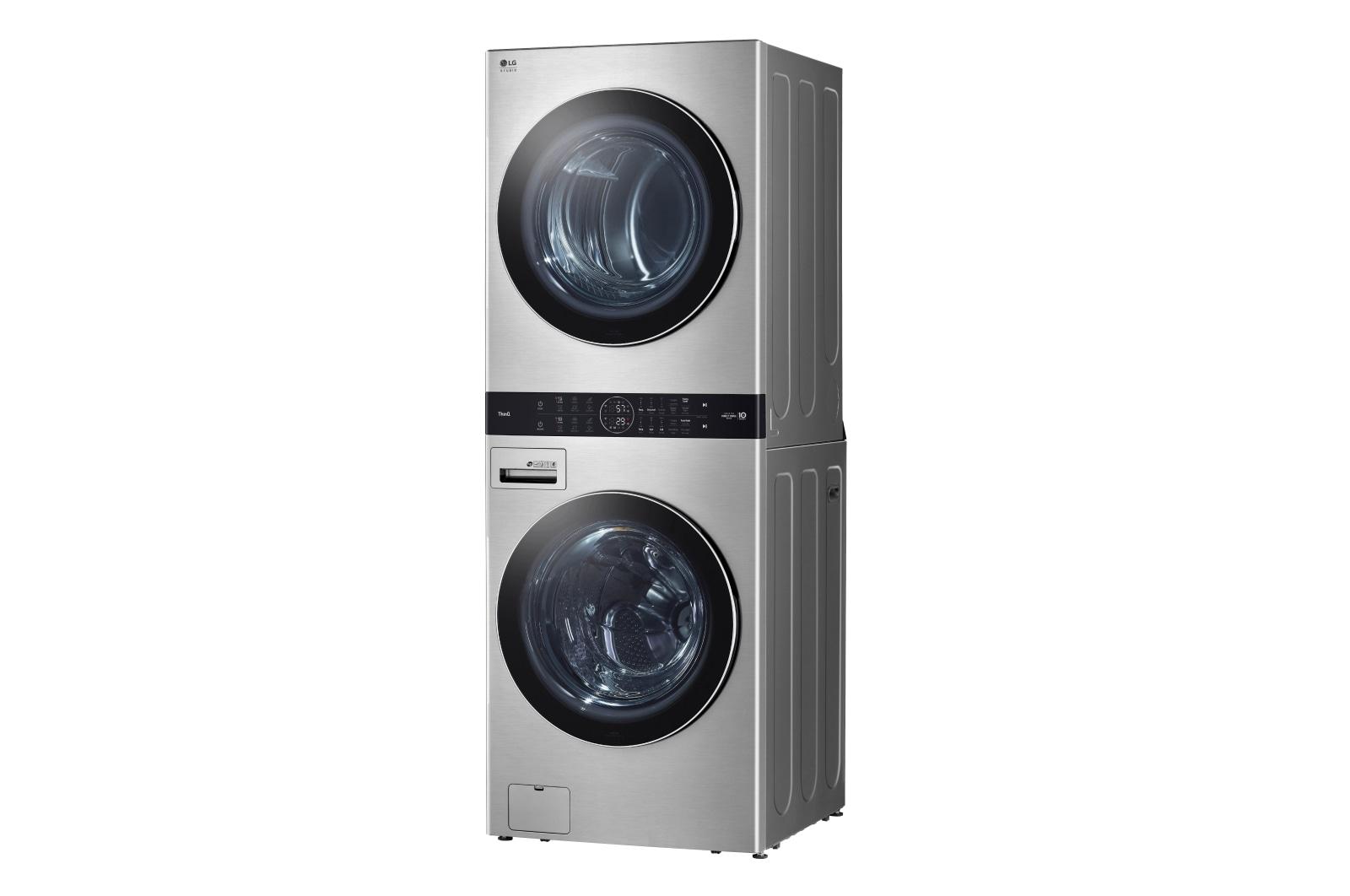

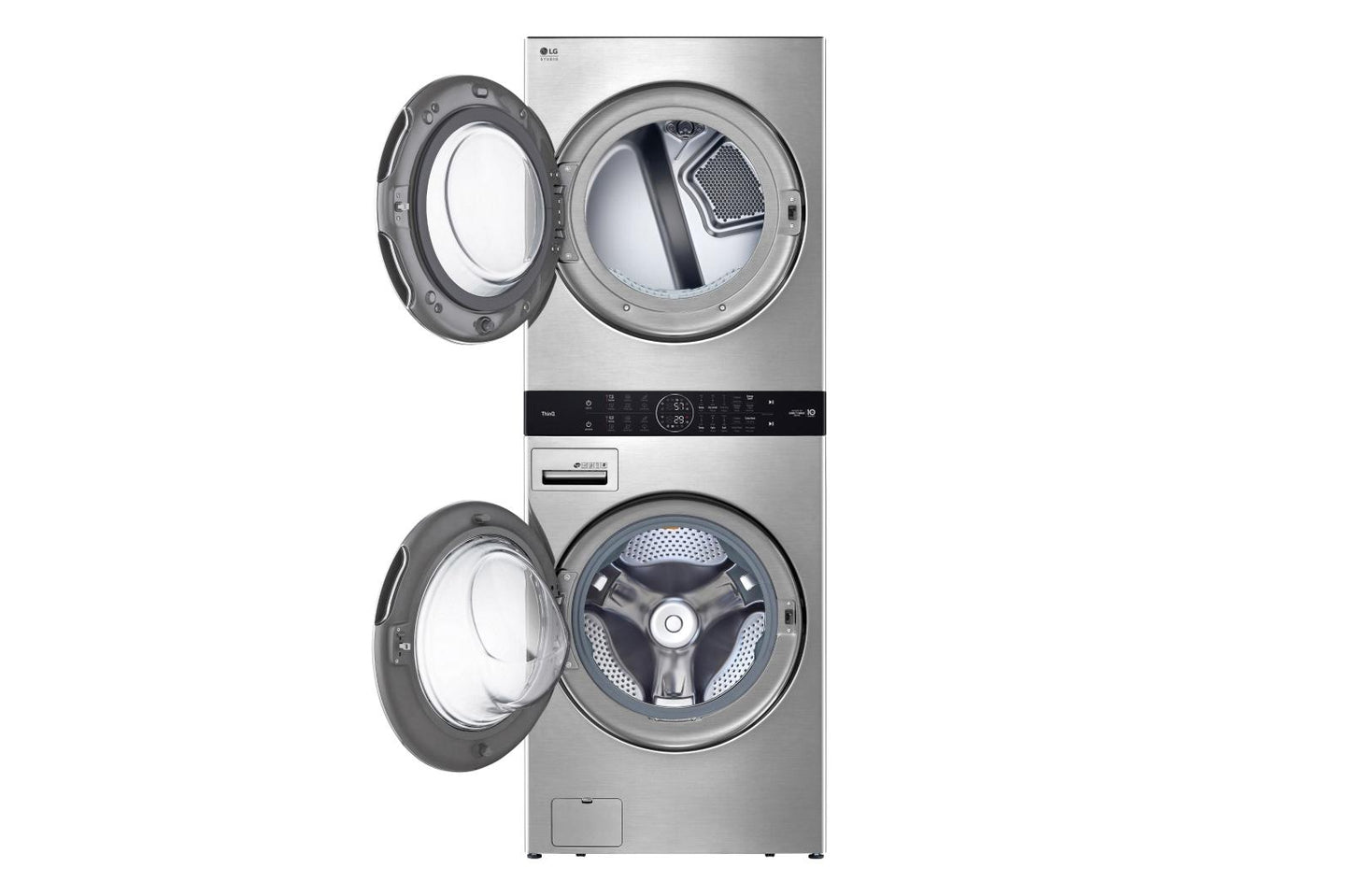

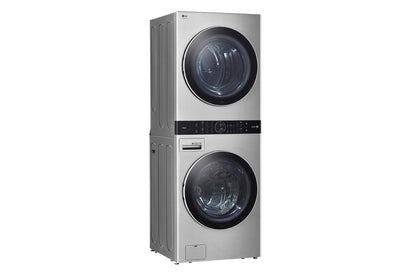

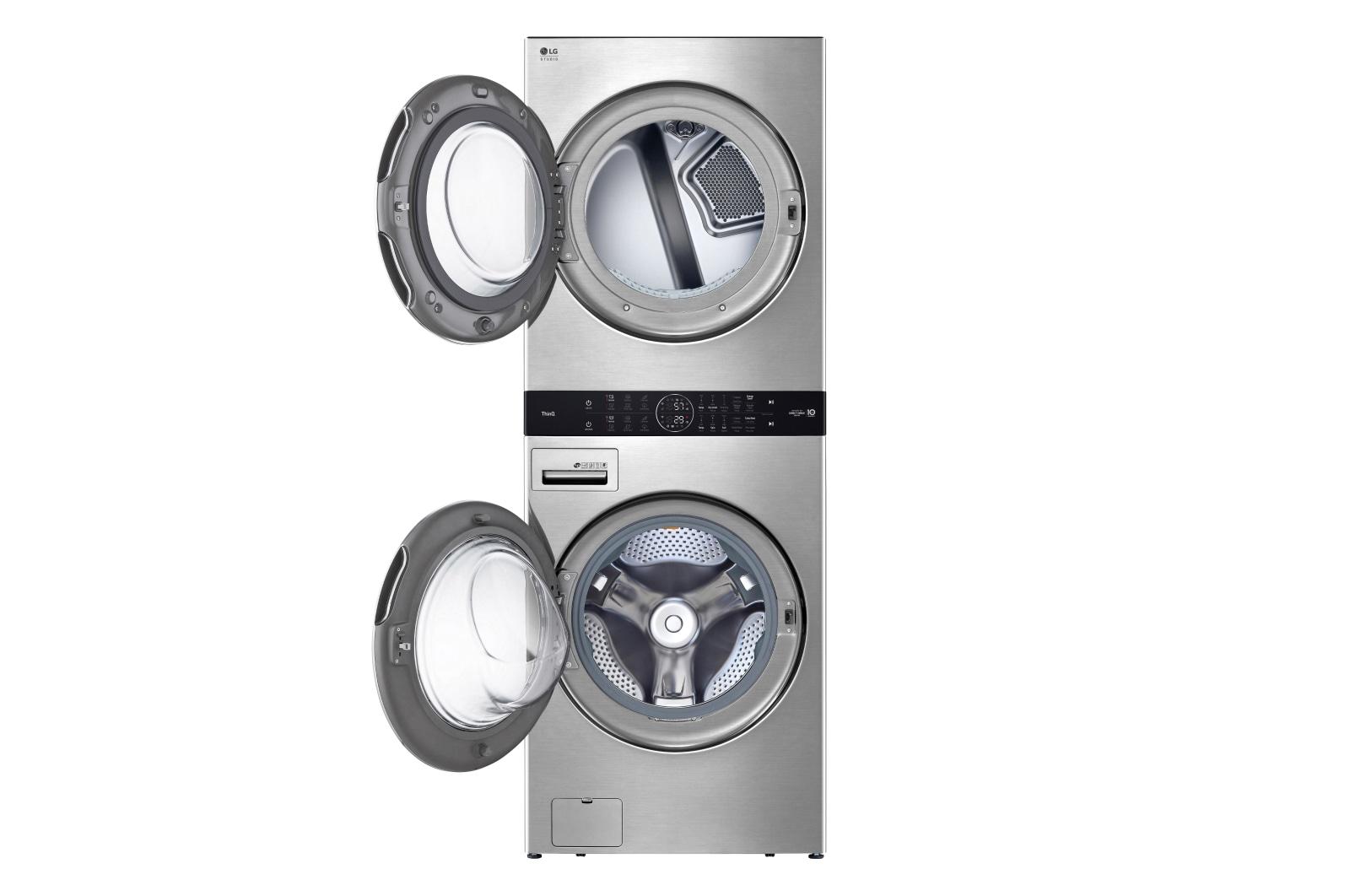

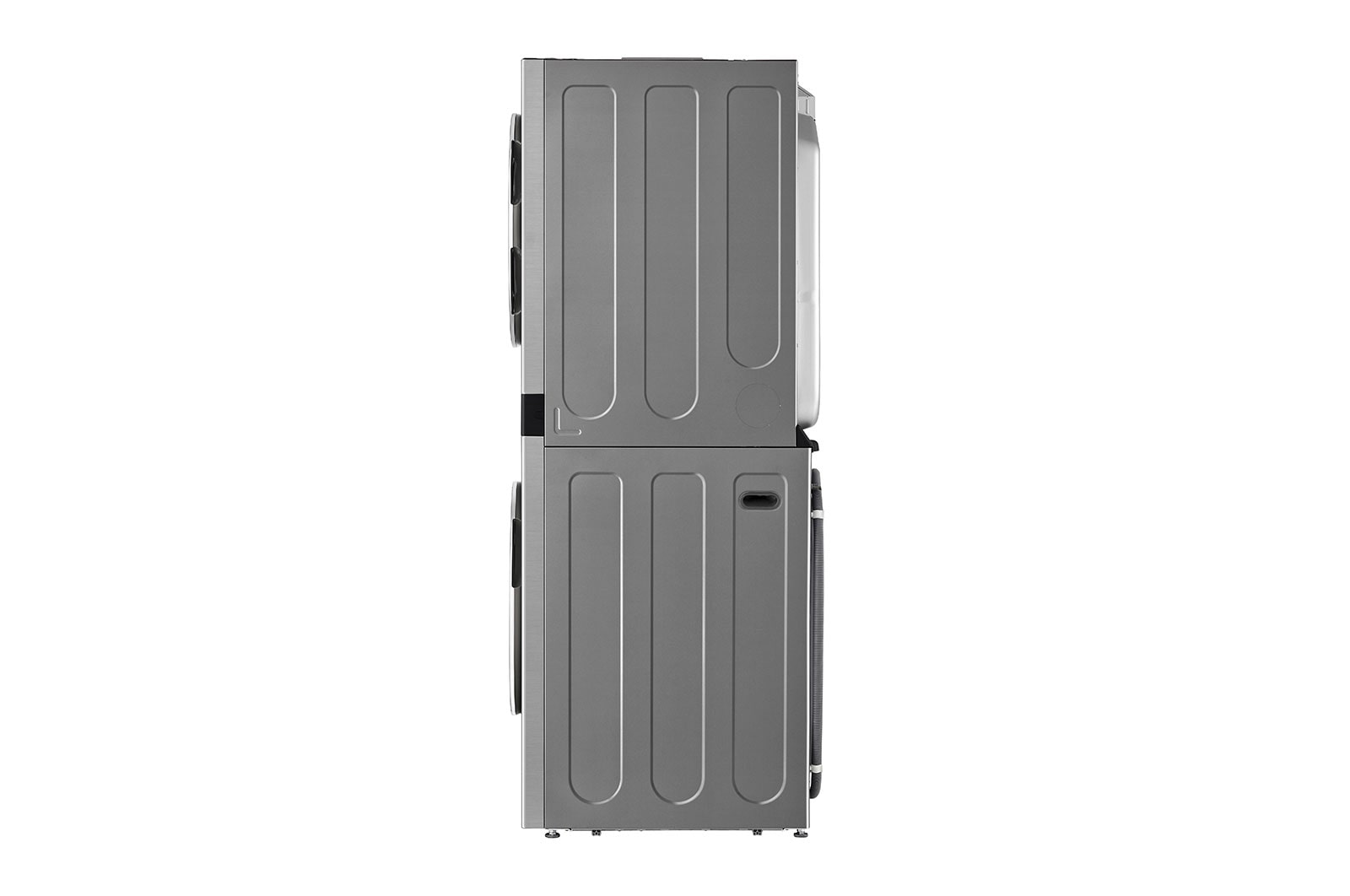

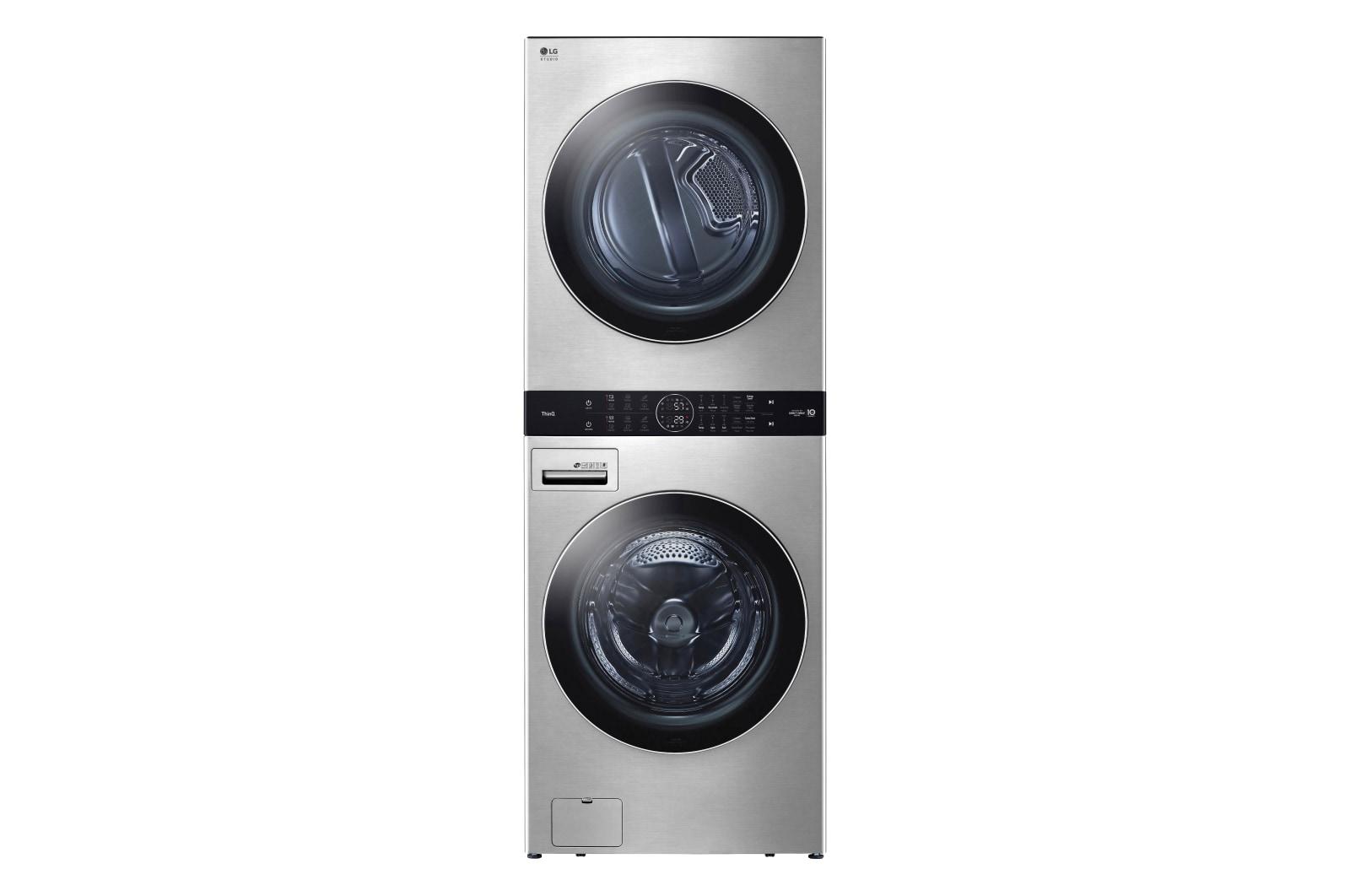

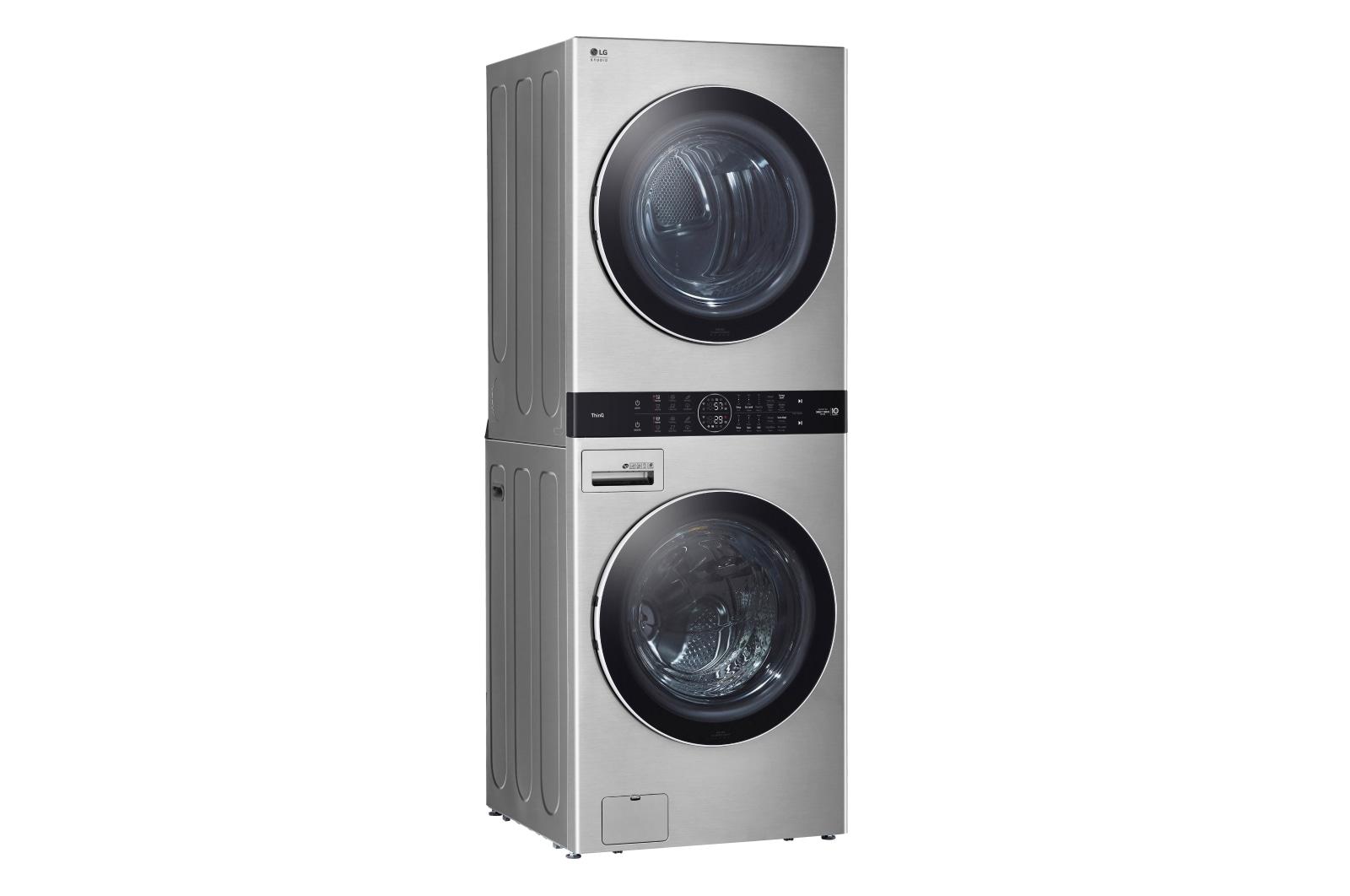

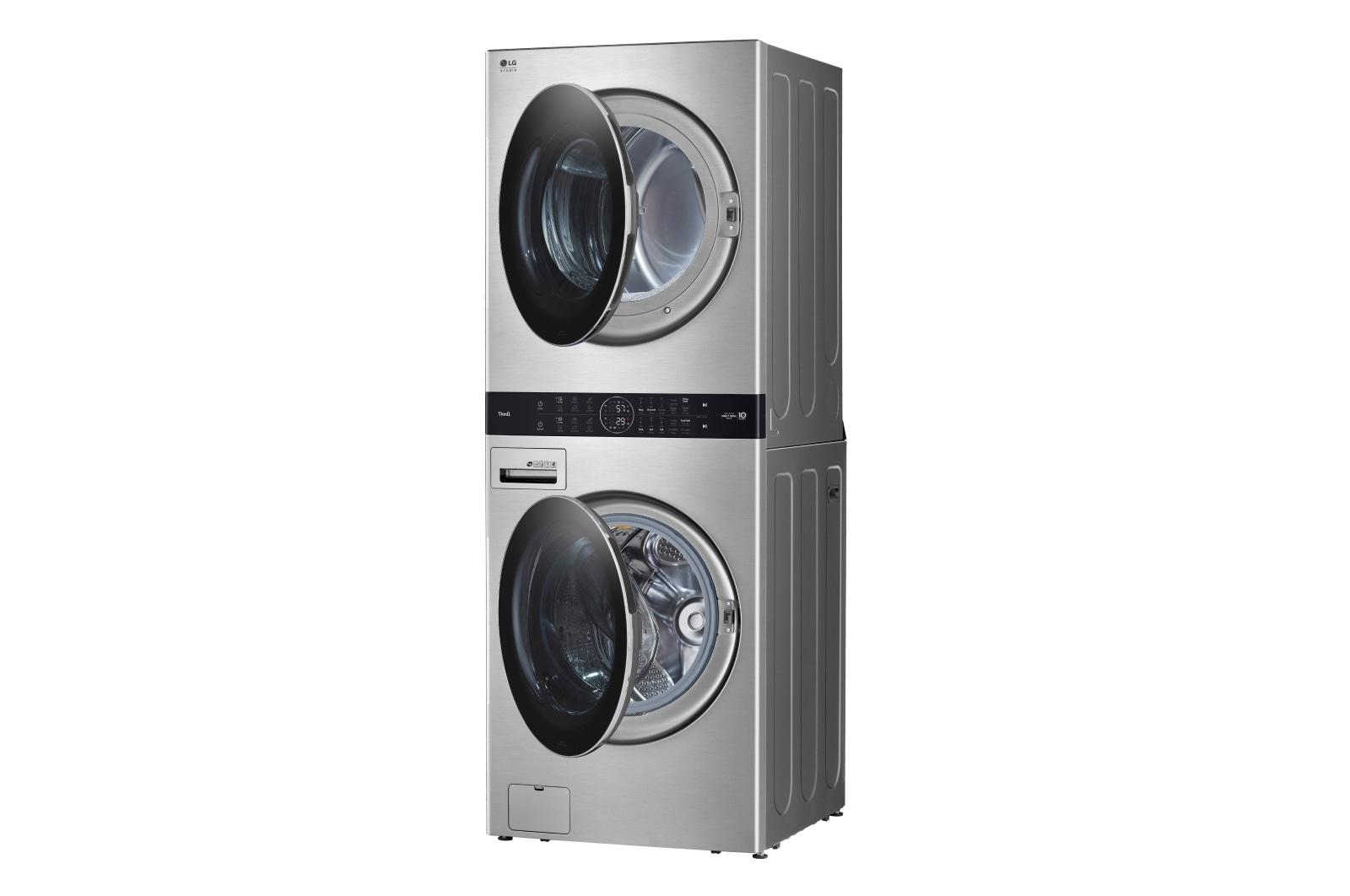

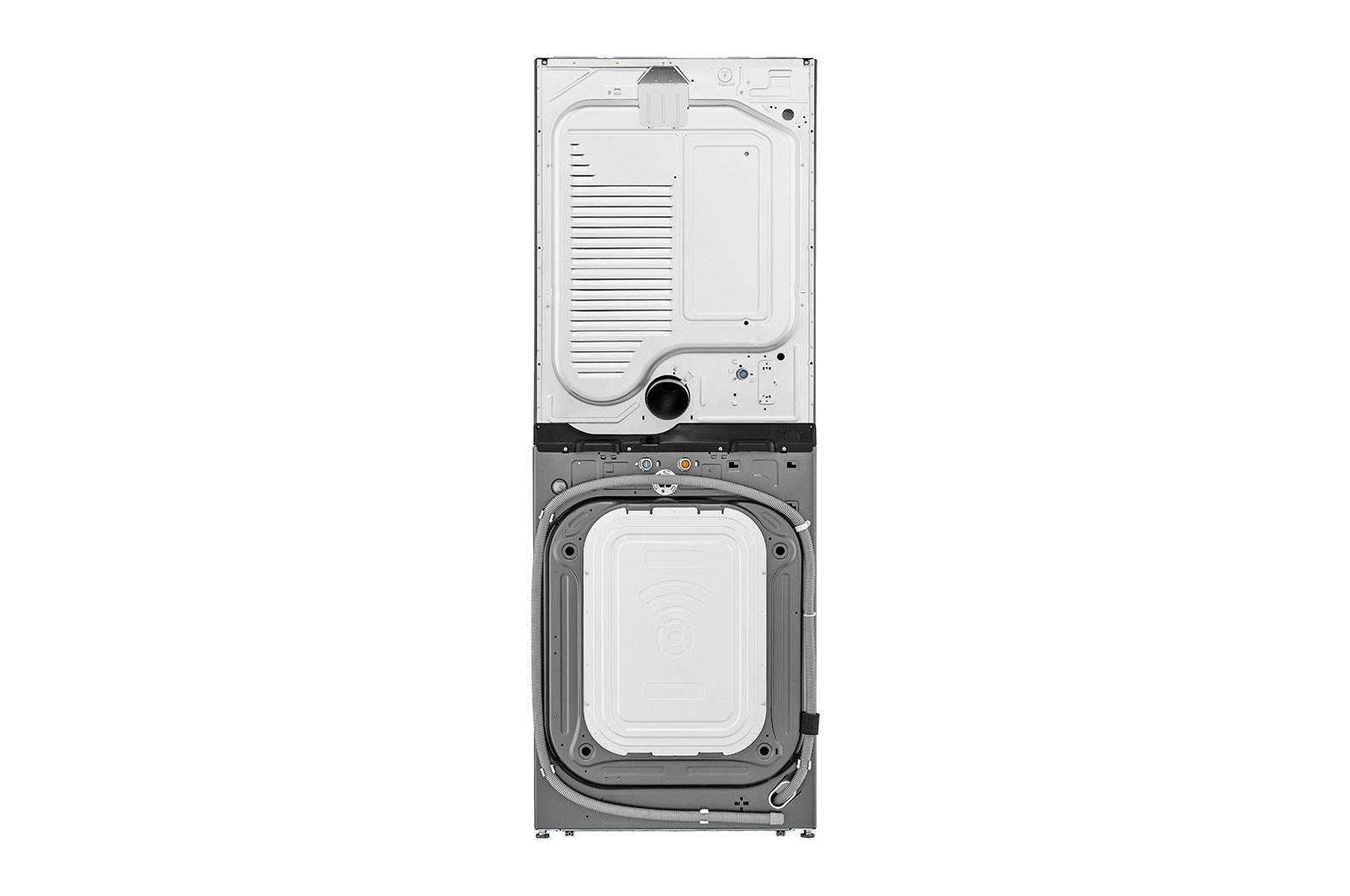

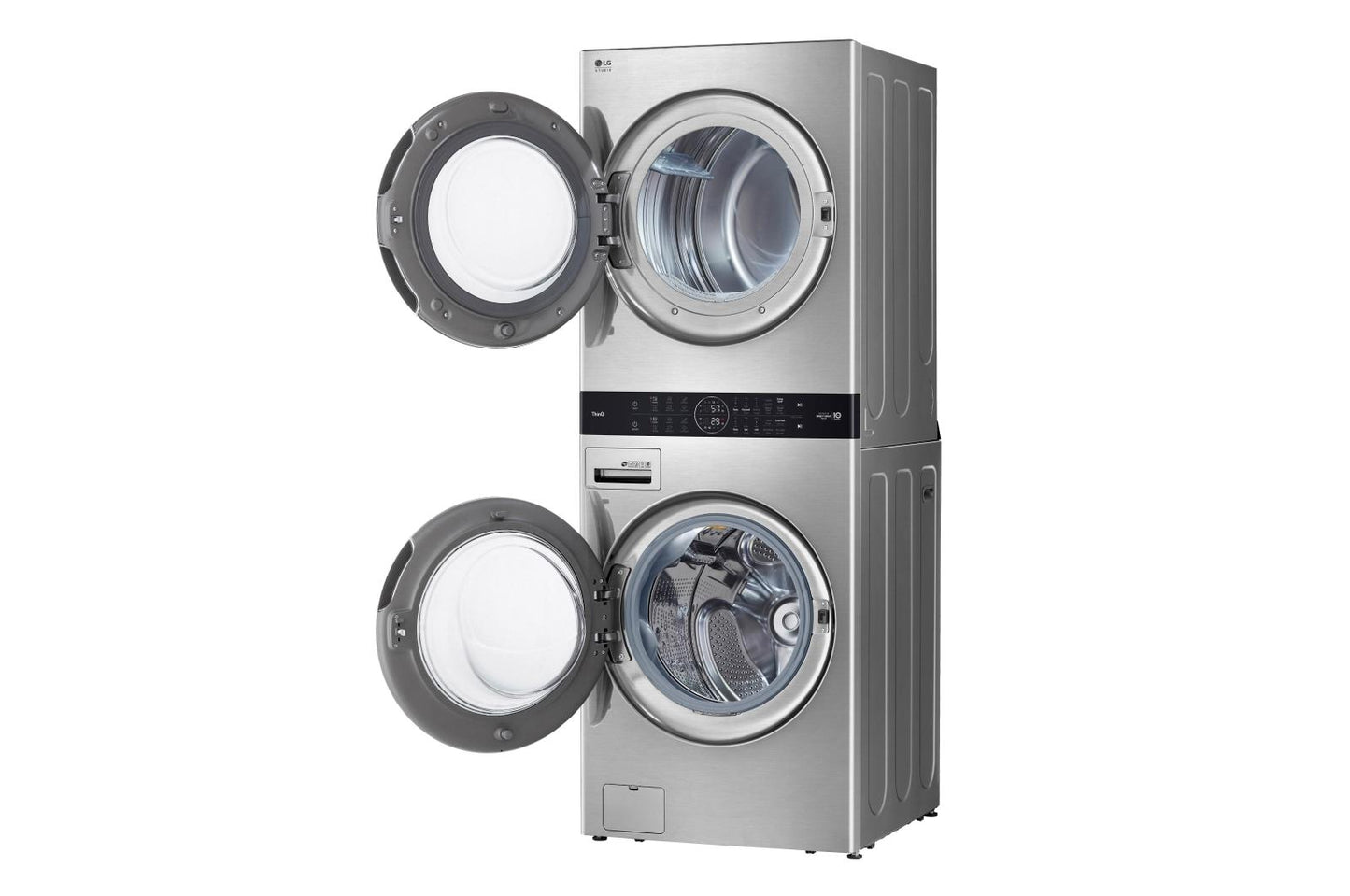

LG STUDIO Single Unit Front Load WashTower™ with Center Control™ 5.0 cu. ft. Washer and 7.4 cu. ft. Gas Dryer WSGX201HNA
Discontinued- Ultra Large Capacity 5.0 cu.ft. Washer and 7.4 cu.ft. Dryer
- Single Unit WashTower™ Design
- Built-In Intelligence - AI Fabric Sensors/Smart Learner/Smart Pairing™
- Advanced Washing & Drying - TurboWash™ 360(degree)/Allergiene™ wash cycle/ TurboSteam™
- ThinQ® Technology with ThinQ Care
- Tempered Glass Doors
Elevate your space and step up your routine with a premium vertical laundry solution that makes laundry feel easy- and look good.
Advanced cleaning within reach

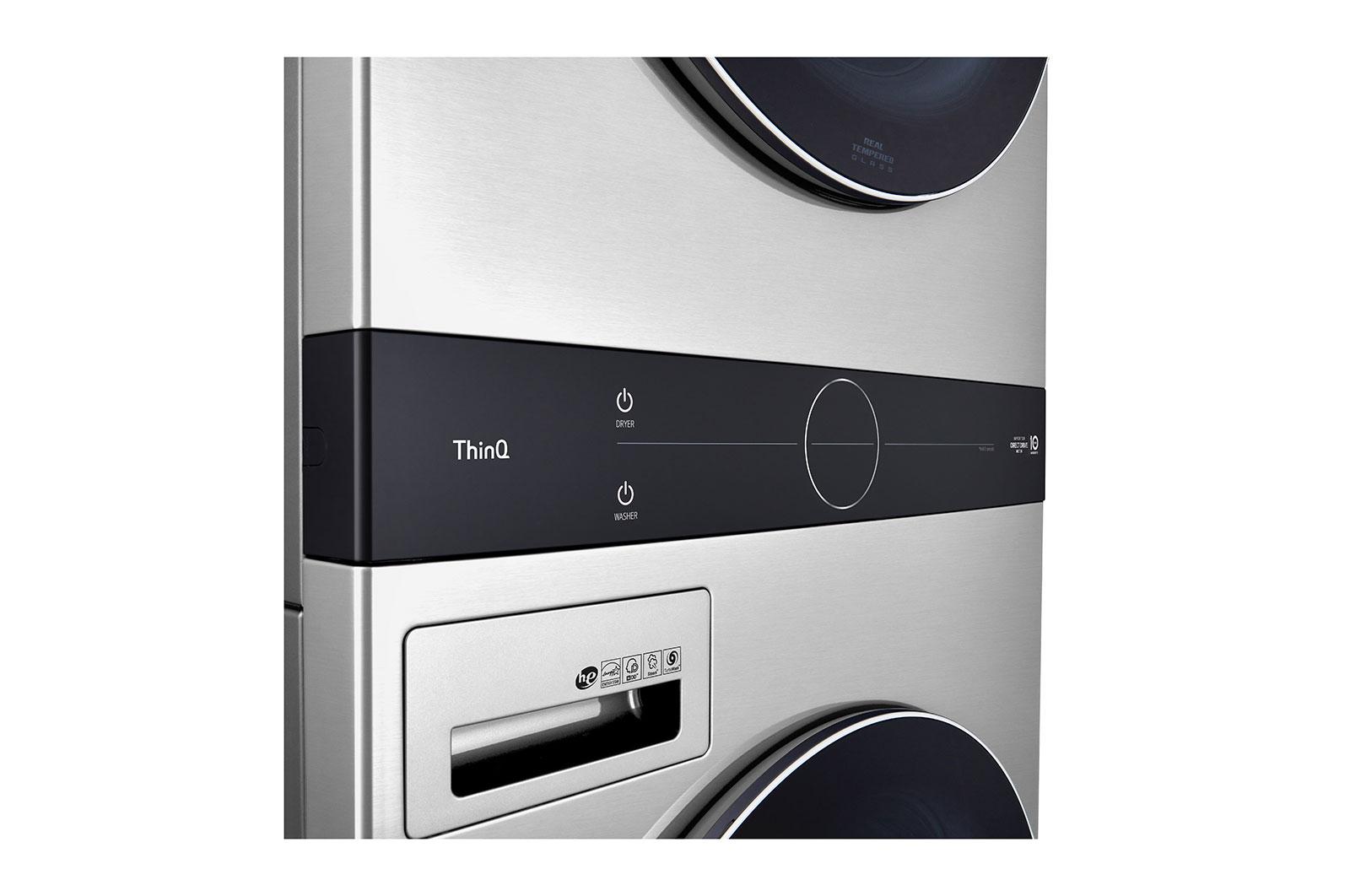

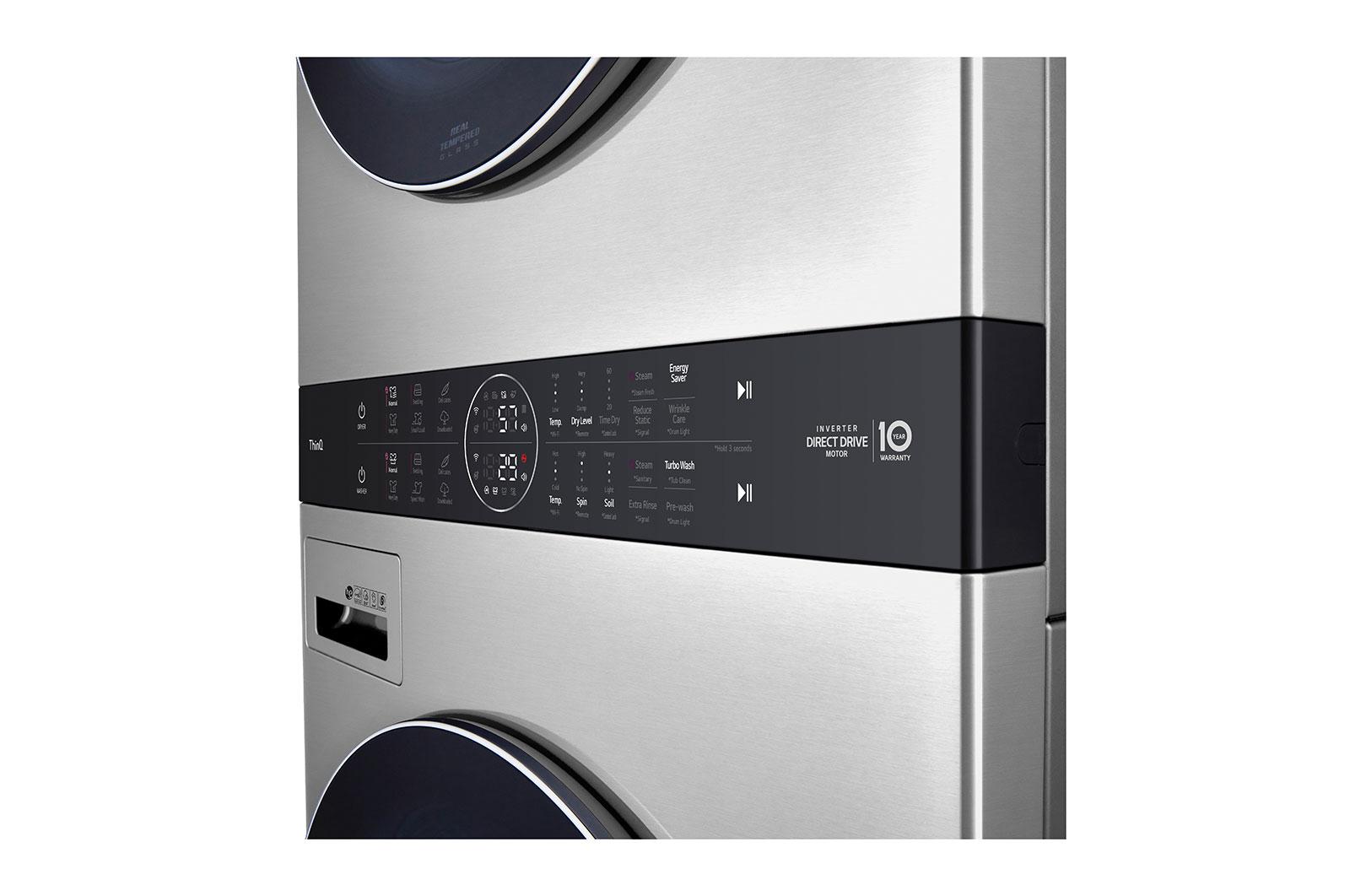

LGs exclusive Center Control™ panel gives easy access to built-in intelligence & advanced cleaning.
The largest capacity yet means you can do less
Beauty meets function with LG STUDIO's large 5.0 cu. ft. washer-so you get more done in fewer loads.
Breathe easy. It's AAFA® Certified.
AAFA-certified LG washers with Allergiene™ use steam to remove over 95%* of pet dander and dust.
Upgrade to the high-end fabric care you deserve
Add LG STUDIO Styler to your space and enjoy the ultimate laundry solution-refresh, deodorize, sanitize and more.
Measure First, Order Right.
Nothing is more frustrating than an appliance that doesn't fit. We'll help you find the right one for your space.
Life's better when your home runs smart
Discover ThinQ Care within the ThinQ app -- proactive smart alerts to keep your appliances running smoothly. Get notifications about usage, maintenance, plus early diagnosis right on your smartphone.*
SUMMARY | |
Series | LG STUDIO |
Type | Single Unit Front Load Washer and Dryer |
Capacity (cu.ft.) : | Washer 5.0 cu. ft./Dryer 7.4 cu. ft. |
Electric Dry Option: | WSEX200HNA |
Color | Noble Steel (N) |
APPEARANCE: | |
Touch Buttons | Yes |
Full Touch Electronic Control Panel with LED Display | Yes |
Unified Center Control | Yes |
WASHER ENERGY: | |
ENERGY STAR® Qualified | Yes |
CEE Tier | Advanced Tier (Tier3) |
IMEF | 3.1 |
IWF | 2.9 |
DRYER ENERGY: | |
ENERGY STAR® Qualified | Yes |
CEF | 3.49 |
WASHER PROGRAMS: | |
No. of Programs | 6 |
Programs | Normal, Bedding, Delicates, Heavy Duty, Speed Wash, Downloaded |
DRYER PROGRAMS | |
No. of Dryer Programs: | 6 |
Programs | Normal, Bedding, Delicates, Heavy Duty, Small Load, Downloaded |
WASHER OPTIONS: | |
No. of Options | 13 (Include 3 basic options) |
Options | TurboWash®, Steam, Extra Rinse, Pre-wash, Sanitary*, Tub Clean*, Drum Light*, Control Lock*, Signal*, Wi-Fi*/Remote Start* |
DRYER OPTIONS: | |
No. of Options | 12 (Include 3 basic options) |
Options | Wrinkle Care, Steam, Reduce Static, Energy Saver, Steam Fresh*, Drum Light*, Control Lock*, Signal*, Wi-Fi*/Remote Start* |
WASHER DETAILS: | |
No. of Wash/Rinse Temps | 5 |
Wash/Rinse Temps | Hot, Warm/Hot, Warm, Cold/Warm, Cold |
No. of Spin Speeds | 5 |
Spin Speeds | High, Medium/High, Medium, Low, No Spin |
Max RPM | 1300 |
Water Levels | Load Sensing |
No. of Soil Levels | 5 |
DRYER DETAILS: | |
Temperature Settings | High, Medium/High, Medium, Low/Medium, Low |
Drying Levels | Very, More, Normal, Less, Damp |
Manual Dry Times | 60min., 50min., 40min., 30min., 20min. |
WASHER FABRIC CARE FEATURES: | |
AI DD™ | Yes |
TurboWash™ 360 Technology | Yes |
Steam Technology | Yes |
Allergiene™ Cycle | Yes (Cloud cycle) |
Sanitary Cycle | Yes |
SenseClean™ System | Yes |
DRYER FABRIC CARE FEATURES: | |
AI Sensor Dry™ | Yes |
Sensor Dry | Yes |
Precise Temperature Control with Variable Heater | Yes |
Steam Technology | Yes (TurboSteam™) |
WASHER CONVENIENCE FEATURES: | |
TrueBalance™ Anti-Vibration System | Yes |

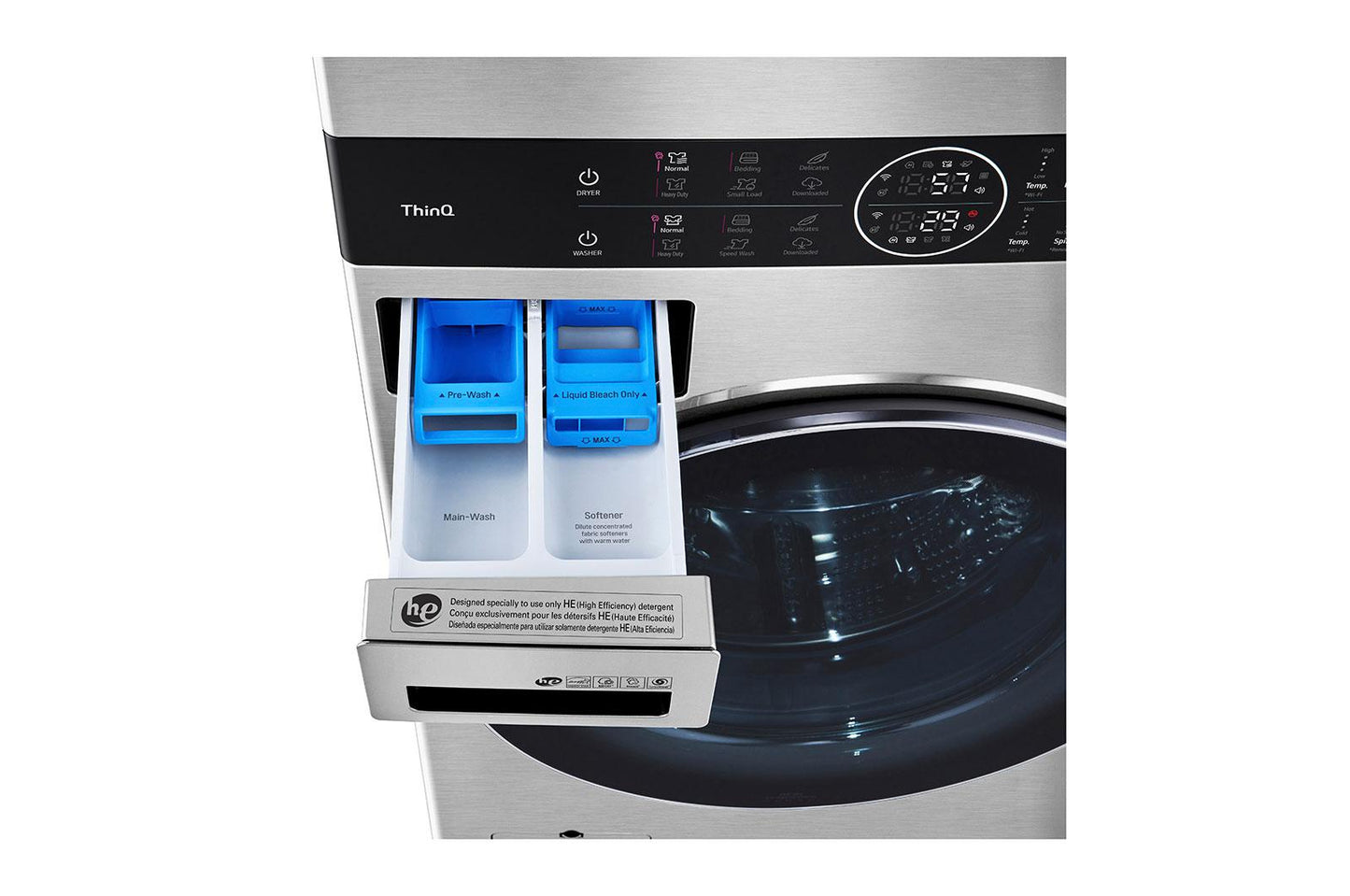

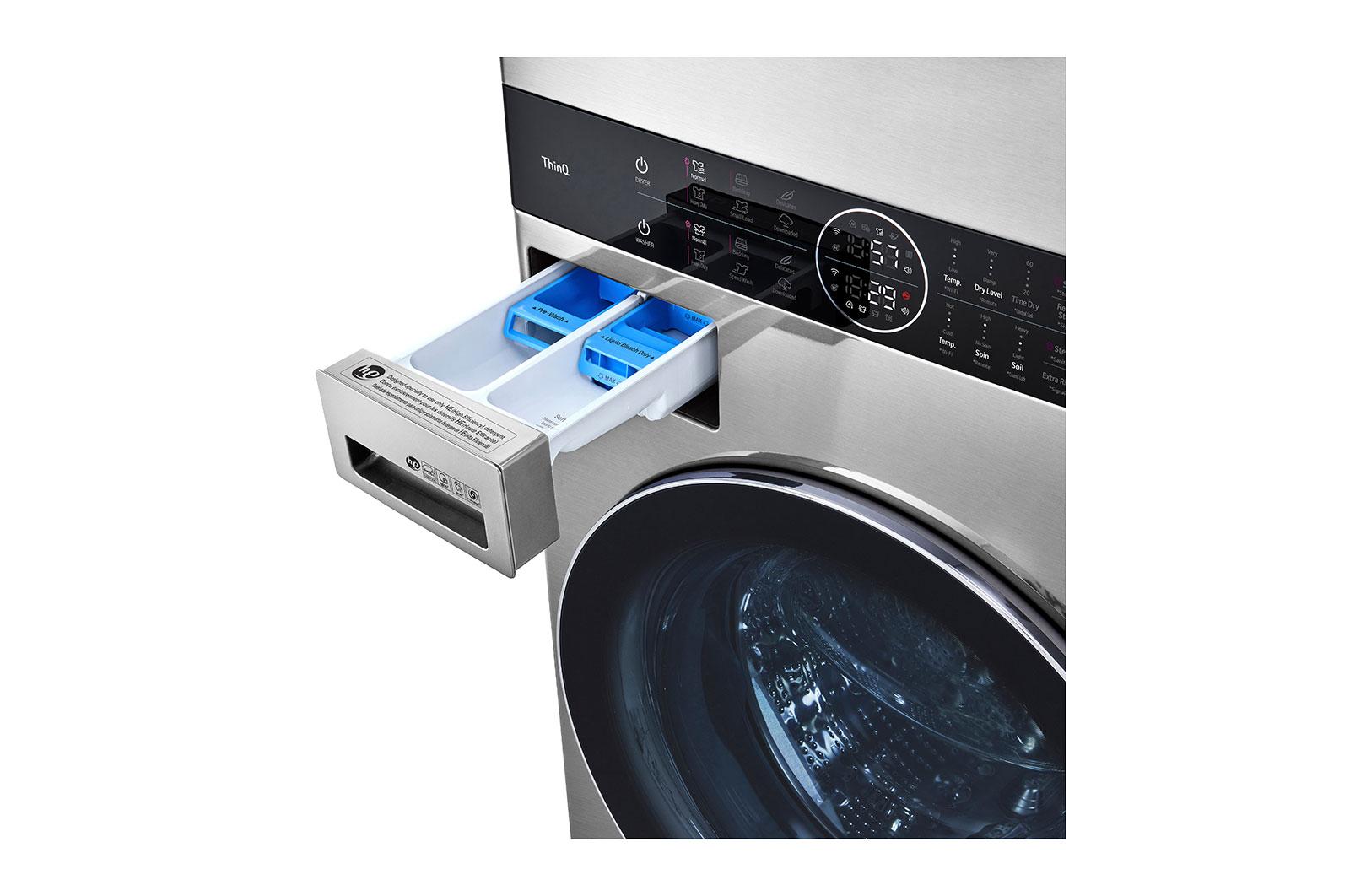

4 Tray Dispenser | Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener |
LoDecibel™ Quiet Operation | Yes |
End of Cycle Signal | Yes |
LoadSense | Yes |
Control Lock | Yes |
Auto Suds Removal | Yes |
Leveling Legs | 4 Adjustable Legs |
Easy Loading TilTub™ | Yes |
Drum Light | Yes |
Remaining Time Display/Status Indicator (s) | Yes |
DRYER CONVENIENCE FEATURES: | |
3 Minute Installation Check | Yes |
LoDecibel™ Quiet Operation | Yes |
End of Cycle Signal | Yes |
Drum Light | Yes |
FlowSense™ Duct Clogging Indicator | Yes |
Wrinkle Care Option | Yes |
Control Lock | Yes |
Venting Option | 2 Way Venting |
4 Adjustable Legs | Yes |
Remaining Time Display/Status Indicator (s) | Yes |
WASHER THINQ® TECHNOLOGY: | |
SmartDiagnosis™ (v3.0) | Yes |
Wi-Fi | Yes |
Remote start and cycle monitor | Yes |
Energy Monitoring | Yes |
Smart Learner | Yes |
Smart Pairing | Yes |
PCC | Yes |
Tub Clean Coach | Yes |
DRYER THINQ® TECHNOLOGY: | |
SmartDiagnosis™ (v3.0) | Yes |
Wi-Fi | Yes |
Remote start and cycle monitor | Yes |
Energy Monitoring | Yes |
Smart Learner | Yes |
Smart Pairing | Yes |
PCC | Yes |
MOTOR: | |
Motor Type | Inverter Direct Drive Motor |
Axis | Horizontal |
WASHER MATERIALS AND FINISHES: | |

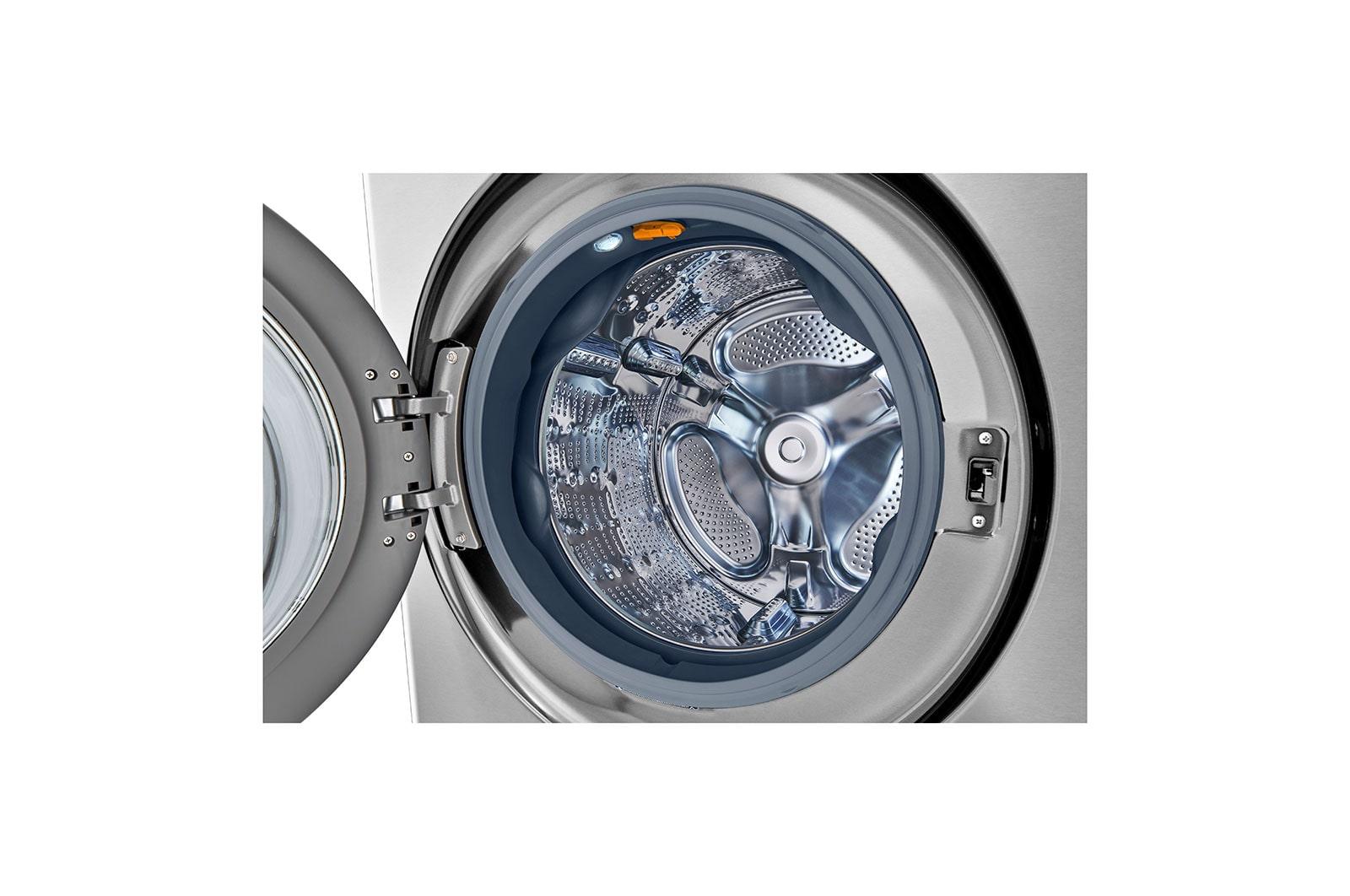

NeveRust™ Stainless Steel Drum | Yes |
Cabinet | PCM |
Control Panel | Plastic |
Top Plate | Steel |
Door / Rim | Large Circle Chrome Rim |
Door Cover | Tinted Round Tempered Glass |
All Available Colors | Noble Steel (N) |
DRYER MATERIALS AND FINISHES: | |

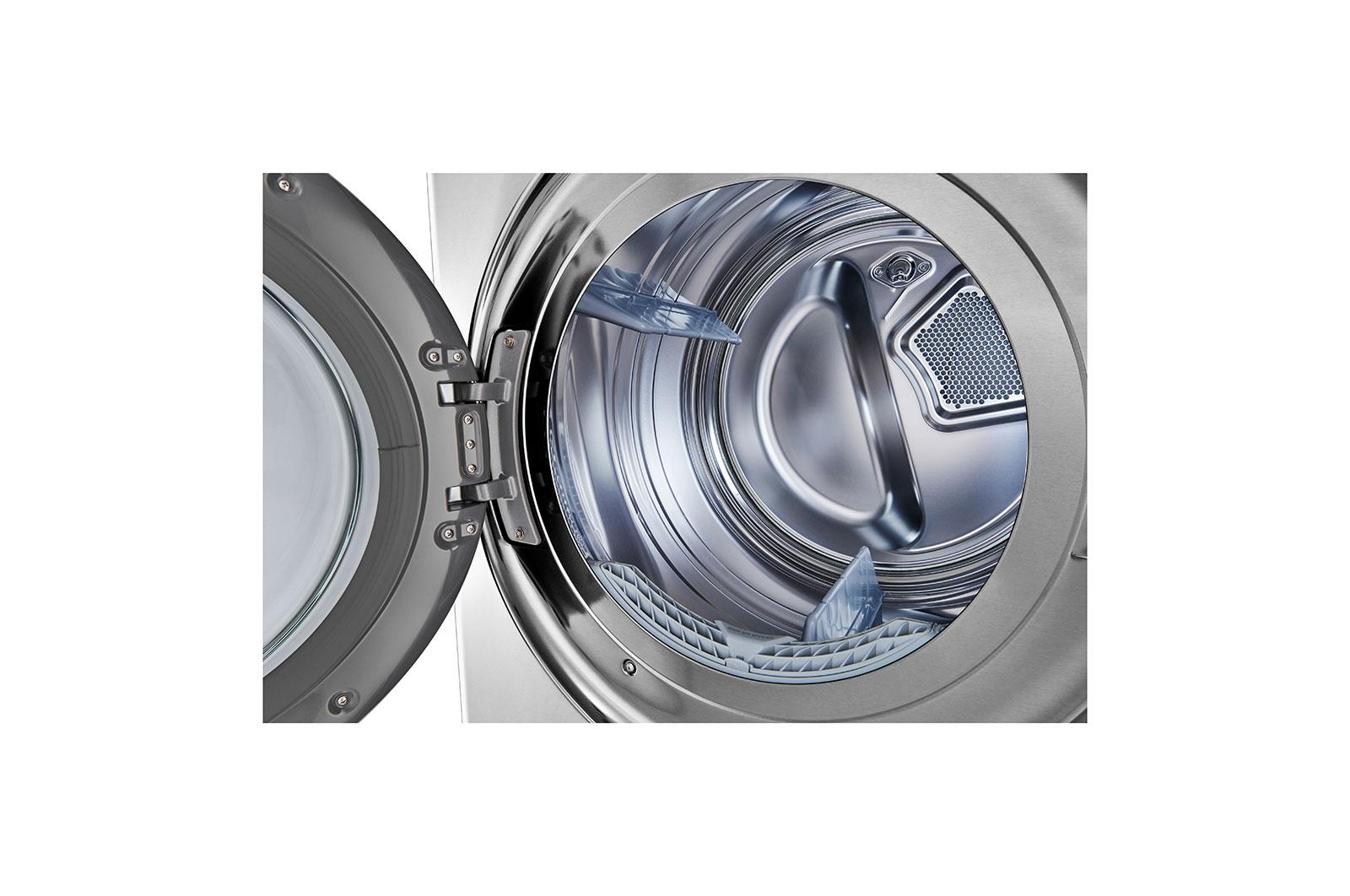

NeveRust™ Stainless Steel Drum | Yes |
Drum Rear | Stainless Steel |
Door / Rim | Large Circle Chrome Rim |
Door Cover | Tinted Round Tempered Glass |
All Available Colors | Noble Steel (N) |
CERTIFICATION | |
AAFA | Yes (Allergiene cycle) |
Intertek | Yes (Sanitary cycle) |
WASHER POWER SOURCE: | |
Ratings | CSA & UL Listed |
Electrical Requirements | 120V, 10 Amps |
Type | Electric |
DRYER POWER SOURCE: | |
Ratings | CSA & UL Listed |
Electrical Requirements | 120V, 15 Amps |
Type | Gas |
BTU Rating | 10,000 Feet |
DRYER OPTIONS/ACCESSORIES: | |
LP Conversion Kit | 383EEL3002D |
Side Venting Kit | 3911EZ9131X |
Rack | Yes |
DIMENSIONS | |
Product (WxHxD, inch): | 27" x 74 3/8" x 32 3/4" |
Depth with Door Open | (58" D with door open) |
Carton (WxHxD) | 30 1/16" x 79 11/32" x 33 23/32" |
Weight (Product/Carton) | 336 lbs/371 lbs |
WASHER LIMITED WARRANTY: | |
Parts and Labor | 2 Years |
Direct Drive Motor | 10 Years |
Drum | 3 Years |
DRYER LIMITED WARRANTY: | |
Parts and Labor | 2 Years |
Drum | 3 Years |
UPC CODES: | |
UPC | 195174000601 |
