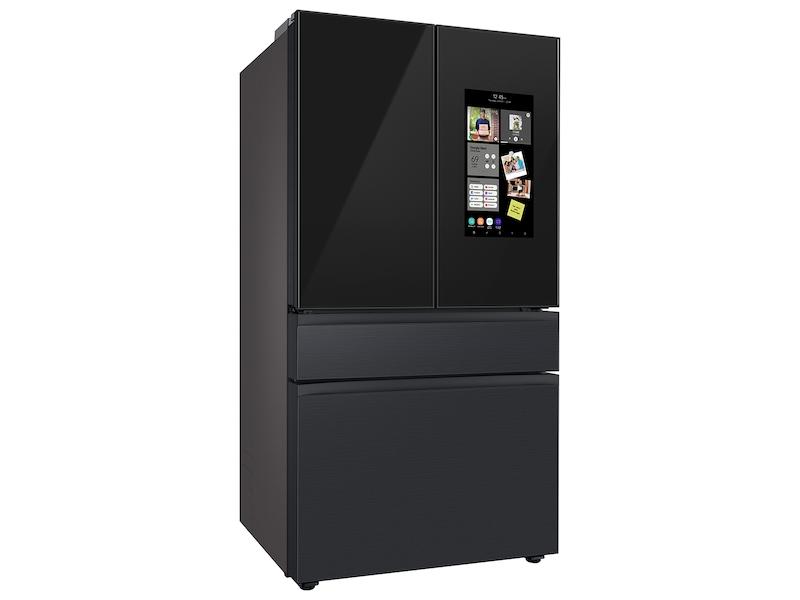

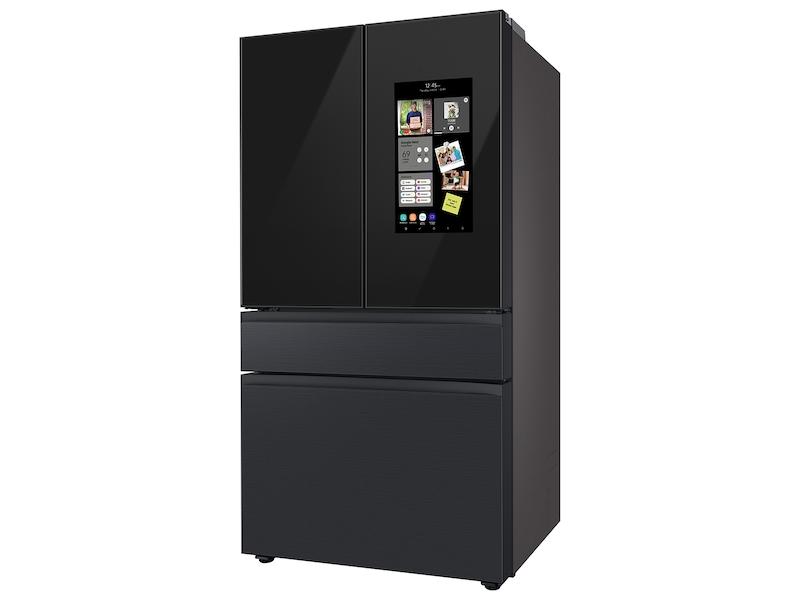

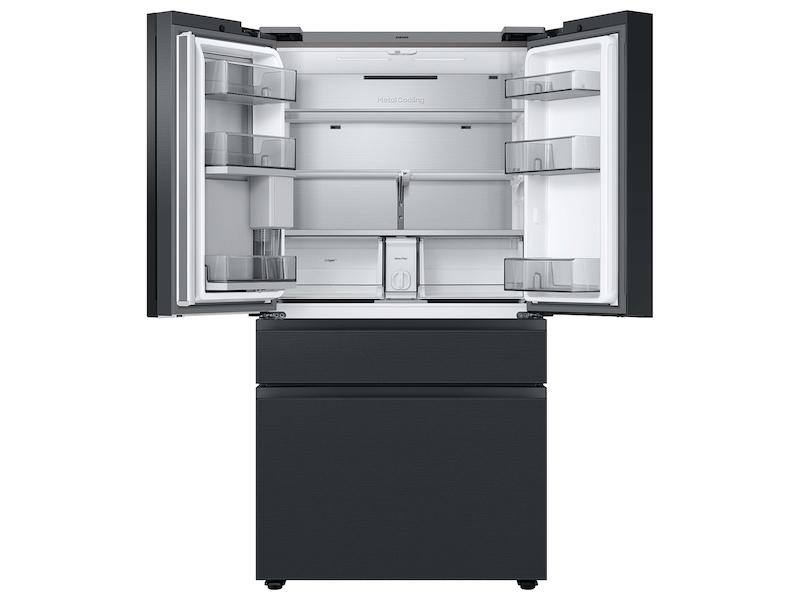

Samsung RF23BB89008MAA Bespoke 4-Door French Door Refrigerator (23 cu. ft.) - with Top Left and Family Hub™ Panel in Charcoal Glass - and Matte Black Steel Middle and Bottom Panels RF23BB89008MAA
Discontinued
- Counter Depth 4-Door French Door Refrigerator with customizable and changeable door panels available in a variety of colors and finishes featuring Samsung's Family Hub™ which lets you see inside your refrigerator, manage your family's calendars, stream music, see who's at the front door and much more, all right from your fridge. It also features the Beverage Center with both a water dispenser and AutoFill Water Pitcher. Plus a Dual Ice Maker with cubed ice and Ice Bites™.
Customize the design of your refrigerator with changeable door panels. Choose from a variety of colors and two finishes to create a space that fits your style.

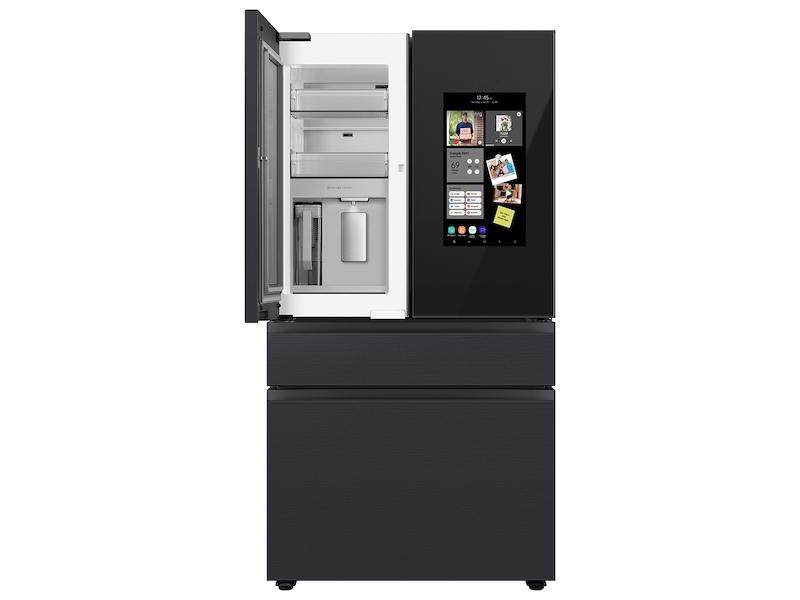

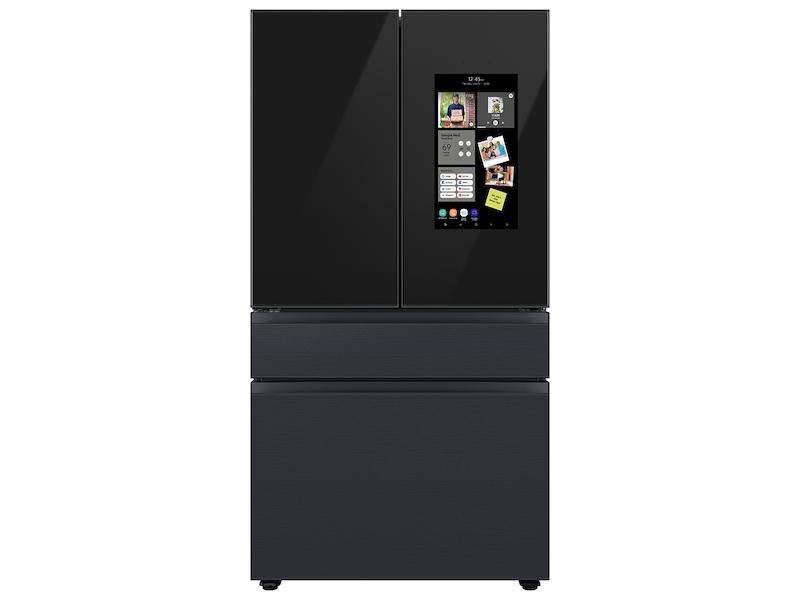

Family Hub™
Family Hub™ lets you see inside your refrigerator, manage your family's calendars, stream music, see who's at the front door and much more, all right from your fridge.

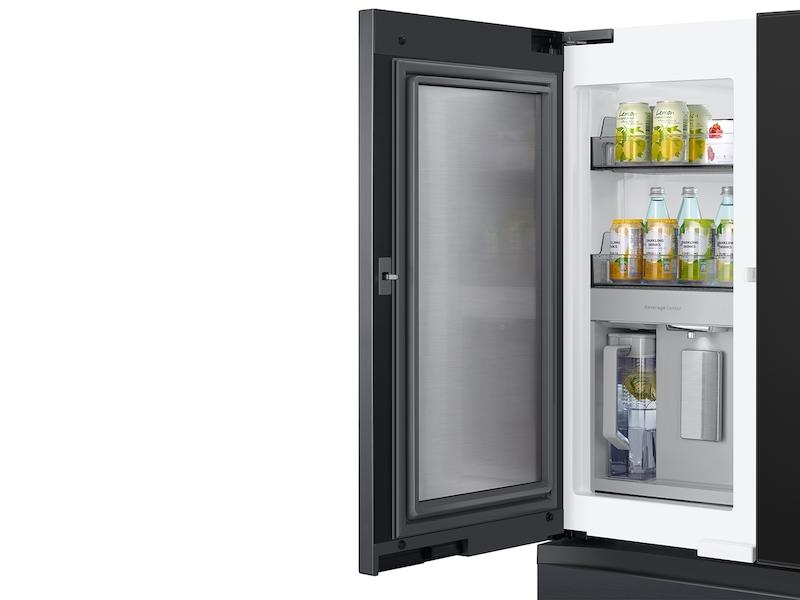

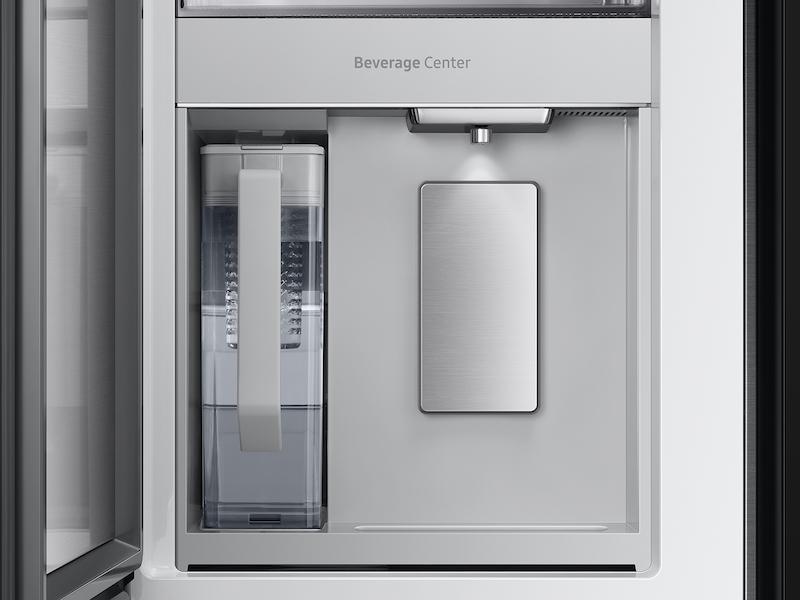

Press or Pour - Water Two Ways
Quick access to refreshingly cool, filtered water two ways. Choose from an internal dispenser or a built-in pitcher that automatically refills, with the option to infuse with a flavor.

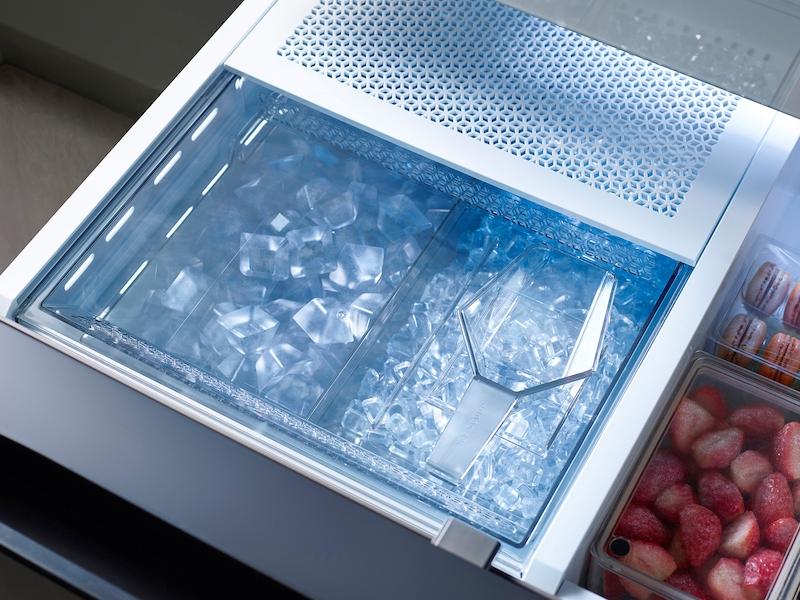

Ice your way
Enjoy your favorite beverage with your choice of ice. Select from cubed ice or Ice Bites™ that chill your drink faster.

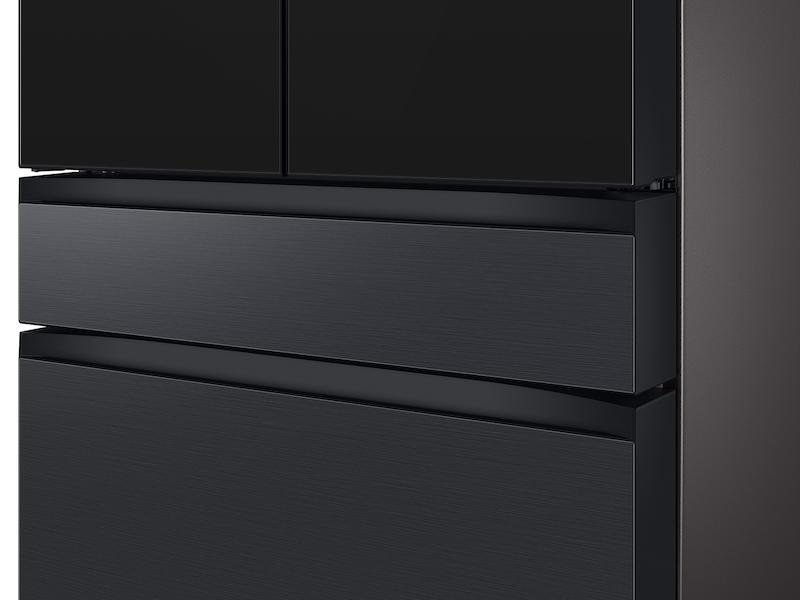

Customize your middle drawer temperature
The FlexZone™ Drawer is customizable with 5 different temperature settings. From refrigerator to soft freeze, this middle drawer can store everything from fruit and vegetables to your favorite meat & seafood.
Designed for a modern look
Flat Panel door design with easy-to-open recessed handles blends into your kitchen to give you a modern look.
Keep your fruits and vegetables fresh
Two large drawers that are perfect for storing fruits and vegetables.

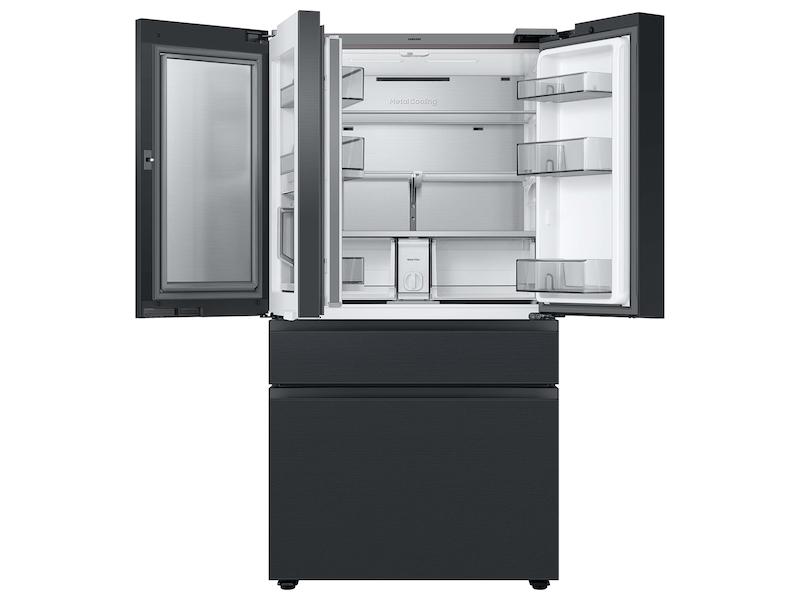

Twin Cooling Plus
Independent fridge and freezer controls keep food fresher longer.
Consistent Temperature
The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.
Stay connected anywhere, anytime Wi-Fi
Use the Samsung SmartThings App* on your smartphone to control the temperature of your refrigerator and monitor it remotely.
Measure for a perfect fit
BESPOKE 4-Door French Door Refrigerators have unique height and depth dimensions. Measure your installation clearances and view specifications to ensure it will fit your space.
| Key Features | |
| BESPOKE | Yes |
| Space Max Technology™ | Yes |
| Family Hub™ | Yes |
| Food Showcase | Yes |
| Metal Cooling | Yes |
| Ice Maker | Yes |
| Dual Ice Maker | Yes |
| Beverage Center™ | Yes |
| FlexZone™ | Yes |
| Internal Camera | Yes |
| Wi-Fi Connectivity | Yes |
| Ice/Water Dispenser | Beverage Center |
| ENERGY STAR® Certified | Yes |
| Standard Features | |
| 8 inch LCD Screen with Apps | Yes |
| FlexZone Drawer | Yes |
| High-Efficiency LED Lighting | Yes |
| Cooling System | Twin Cooling & Metal Cooling |
| Surround Air Flow | Yes |
| Shelves | 4 |
| Gallon Bins | Yes |
| EZ-Open Handle™ | Yes |
| Auto Pull Out™ Upper Freezer Drawer | Yes |
| 2-Minute Door Alarm | Yes |
| Beverage Station | Yes |
| Concealed Hinges | Yes |
| CoolTight Door | Yes |
| Child Lock | Yes |
| Filter Indicator | Yes |
| Water Filter | HAF-QIN/EXP |
| Multi Air Flow | Yes |
| Refrigerant | RF600a |
| Slide-n-Go Shelves | Yes |
| Speaker | Yes |
| Wi-Fi Connectivity | Yes |
| Twin Cooling Plus® | Yes |
| Adjustable Shelves | Yes |
| Modern Look Design | Yes |
| Internal Filtered Water and Ice Dispenser | Beverage Center |
| Flat Doors w/ Smooth Finish | Glass |
| Refrigerator Design | |
| Type | 4 Door French Door |
| Color | Charcoal Glass Top, Matte Black Steel Middle, Matte Black Steel Bottom |
| Free Standing | Yes |
| Number of Doors | 4 |
| Refrigerator Features | |

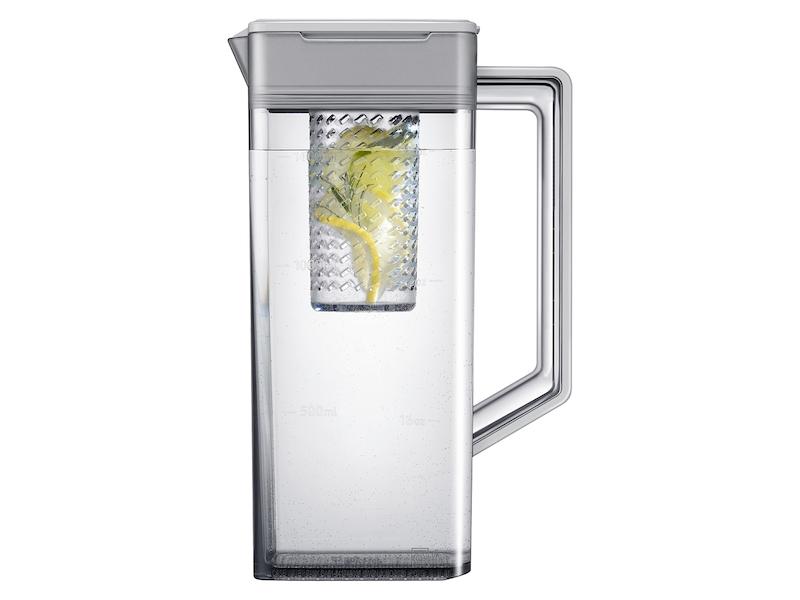

| AutoFill Water Pitcher | Yes |
| Gallon Bins | Yes |
| Gallon Door Bins | Yes |
| Total Bins | 6 |
| CoolSelect Zone™ | Yes |
| Drawers | Yes |
| Fixed Shelves | Yes |
| Foldable Slide-in Shelf | Yes |
| Interior Light | Surface Lighting |
| Internal Filtered Water Dispenser | Beverage Center |
| Shelves | 4 |
| Slide-In Shelf | Yes |
| Spill proof shelves | Yes |
| Fingerprint Resistant Finish | Yes |
| Automatic Ice Maker | Yes |
| Showcase Door | Yes |
| FlexZone Drawer | |
| Total Capacity (cu. ft.) | 2.5 |
| Temperature Zones | 23 / -5 (Soft Freeze) 30 / -1 (Meat Fish) 34 / 1 (Beverage) 37 / 3 (Deli) 41 / 5 (Wine) |
| Freezer Features | |
| Total Ice Capacity (lbs.) | 7.3 |
| EZ-Open Handle™ | Yes |
| Drawer Divider | Yes |
| Auto Pull Out™ Upper Freezer Drawer | Yes |
| Built-In Automatic Icemaker | Yes |
| Cubed and Crushed Ice | Cubed and Ice Bites |
| Icemaker | Yes |
| Interior Light | Yes |
| Freezer Box | Yes |
| Family Hub Features | |
| Window Size | 39.57" |
| Window Material | Glass |
| Display Size | 21.5" |
| Display Resolution | Full HD (1920*1080) |
| Display Touch Type | Capacitive |
| Processor | 1.8GHz Quad |
| RAM | 3GB |
| Flash Memory | 16GB |
| Connectivity | Wireless Combo |
| Operating System | Tizen 6.0 |
| Speaker | 10W |
| Mic | 2ea |
| Camera | 2Mpixel x 3ea |
| USB Port | 1ea |
| Power | |
| Energy Consumption | 618 kWh/yr |
| Volt/Amps | 115 V / 3.5 A |
| Capacity | |
| Total Capacity (cu. ft.) | 22.5 |
| Refrigerator Capacity (cu. ft.) | 13.2 |
| Freezer Capacity (cu. ft.) | 6.8 |
| Dimensions | |
| Product Dimensions with Hinges, Handles and Door | 35 3 /4" x 70" x 28 3/4" |
| Product Dimensions without Hinges and Door | 35 3 /4" x 68 7/8" x 24" |
| Shipping Dimensions | 38 1/4" x 75 3/4" x 30 5/8" |
| Net Depth with Door Handle | 28.75" |
| Net Height with Hinge | 70" |
| Net Height without Hinge | 68 7/8" |
| Net Depth w/o Door Handle | 28 3/4" |
| Depth without Door (in) | 24" |
| Width | 35 3/4" |
| Height | 70" |
| Weight | |
| Product Weight (lbs.) | 343.9 |
| Shipping Weight (lbs.) | 366 |
| Warranty | |
| 5 Years | Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Part and Five (5) years Labor on Digital Inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing) |
| 10 Years | Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Part and Five (5) years Labor on Digital Inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing) |
