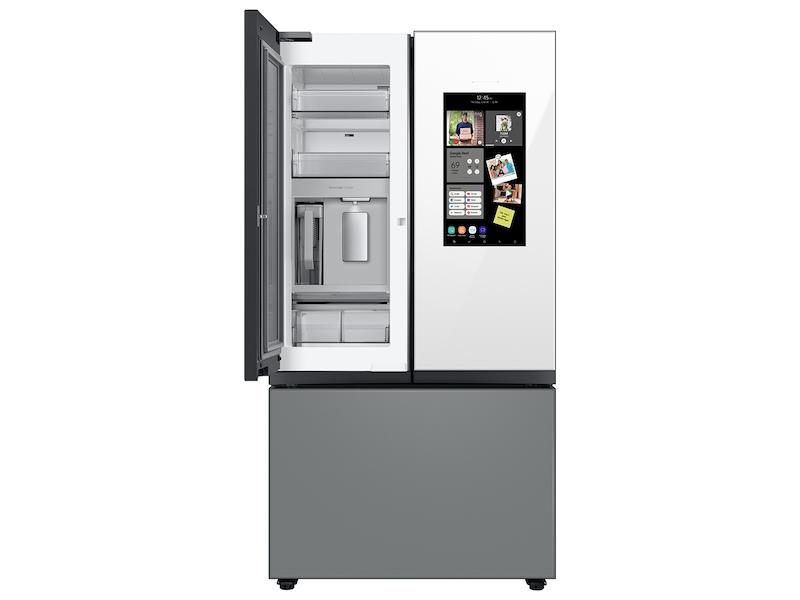

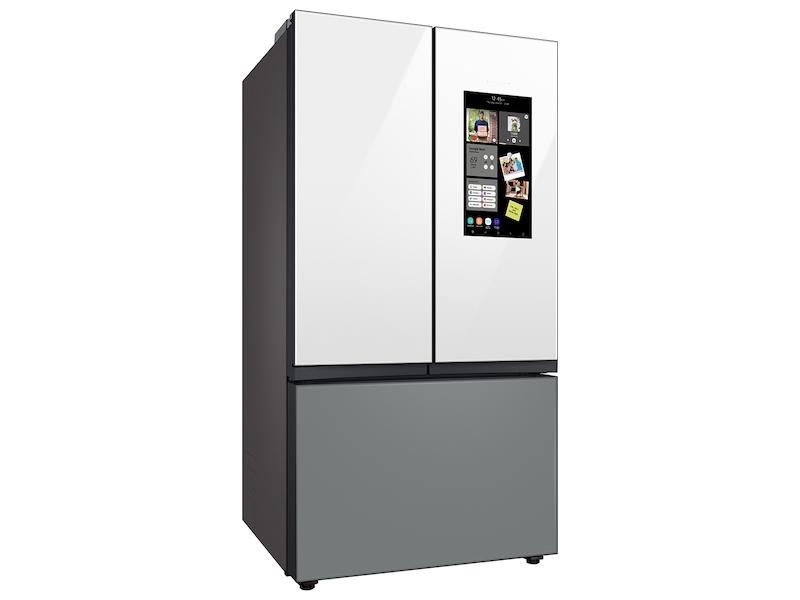

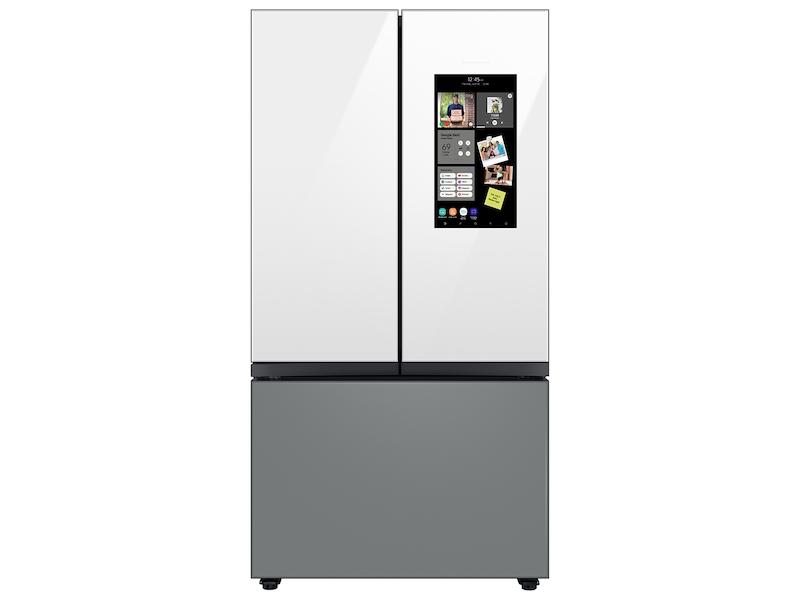

Samsung RF30BB69006MAA Bespoke 3-Door French Door Refrigerator (30 cu. ft.) - with Top Left and Family Hub™ Panel in White Glass - and Matte Grey Glass Bottom Door Panel RF30BB69006MAA
- Extra-large capacity 3-Door French Door Refrigerator with customizable and changeable door panels available in a variety of colors and finishes featuring Family Hub™. Samsung's Family Hub™ lets you see inside your refrigerator, manage your family's calendars, stream music, see who's at the front door and much more, all right from your fridge. It also features the Beverage Center™ with both a water dispenser and AutoFill Water Pitcher. Plus a Dual Ice Maker with cubed ice and Ice Bites™.
Customize the design of your refrigerator with changeable door panels. Choose from a variety of colors and two finishes to create a space that fits your style.
Family Hub™
Samsung's Family Hub™ refrigerator helps you connect to what's most important: your family and home. Family Hub™ lets you see inside your refrigerator, manage your family's calendars, stream music, see who's at the front door and much more, all right from your fridge.

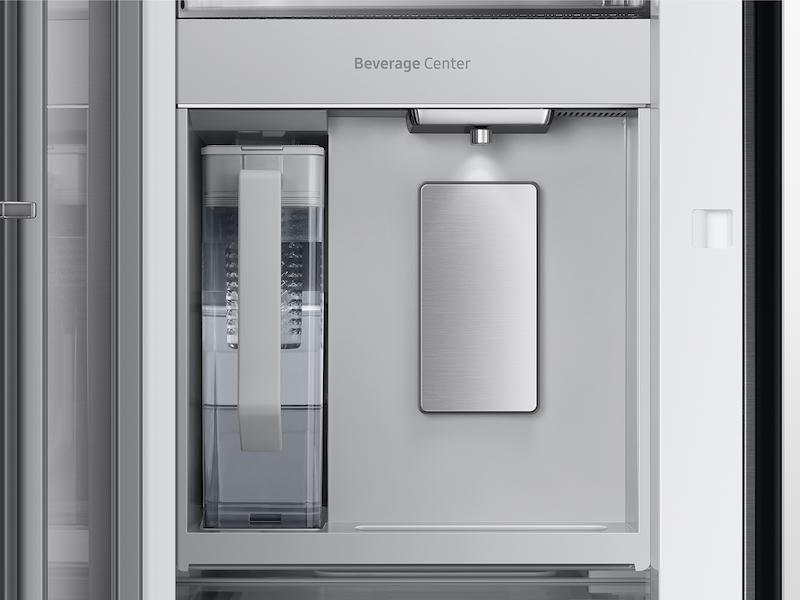

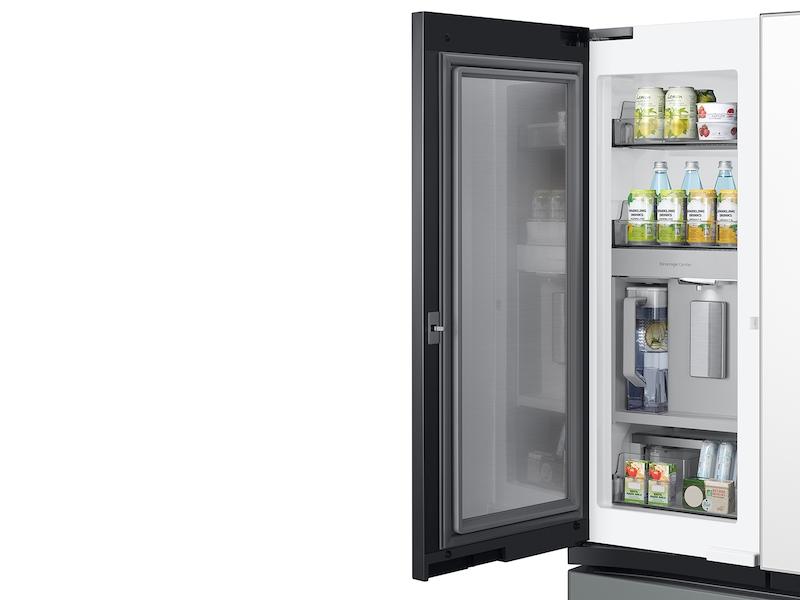

Press or Pour - Water Two Ways
Quick access to refreshingly cool, filtered water two ways. Choose from an internal dispenser or a built-in pitcher that automatically refills, with the option to infuse with a flavor.

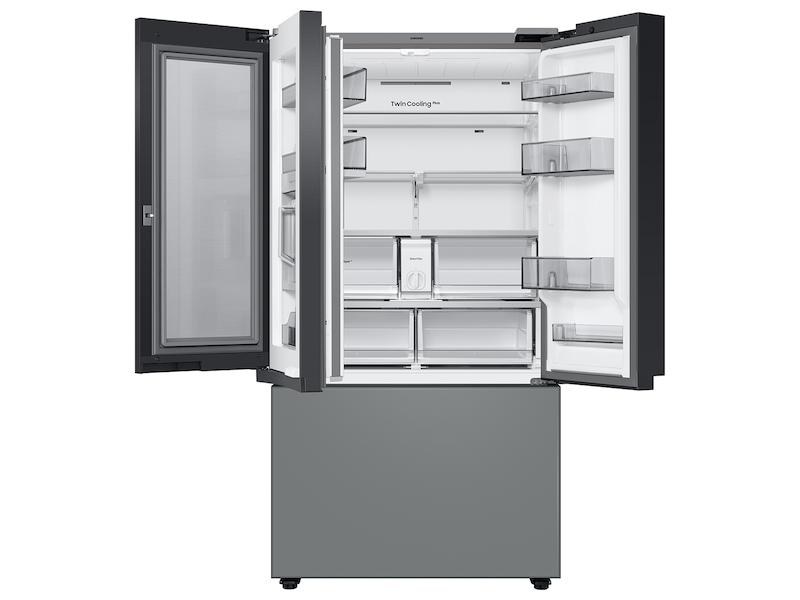

More space, more ways to stay organized
With 30 cu. ft. of capacity, this spacious refrigerator is designed for convenience, offering flexibility and organization to store and access all your favorite foods with ease.

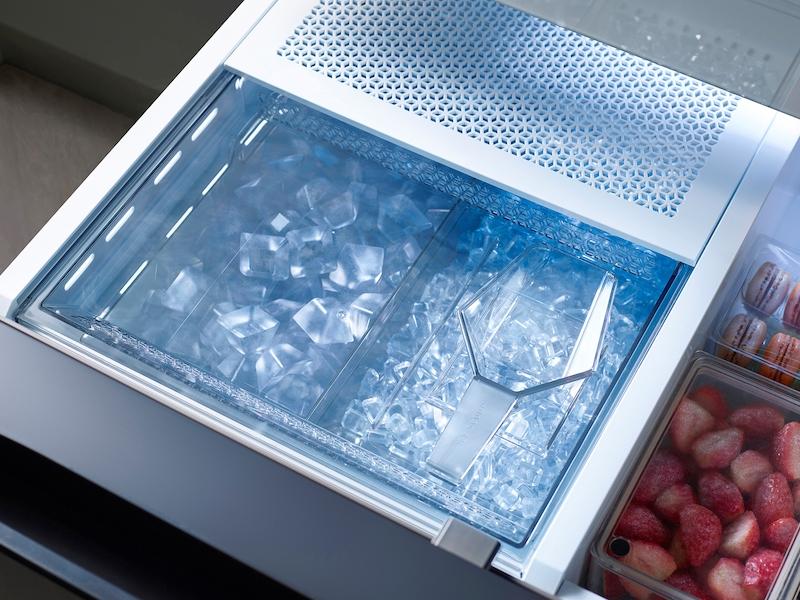

Ice your way
Enjoy your favorite beverage with your choice of ice. Select from cubed ice or Ice Bites™ that chill your drink faster.

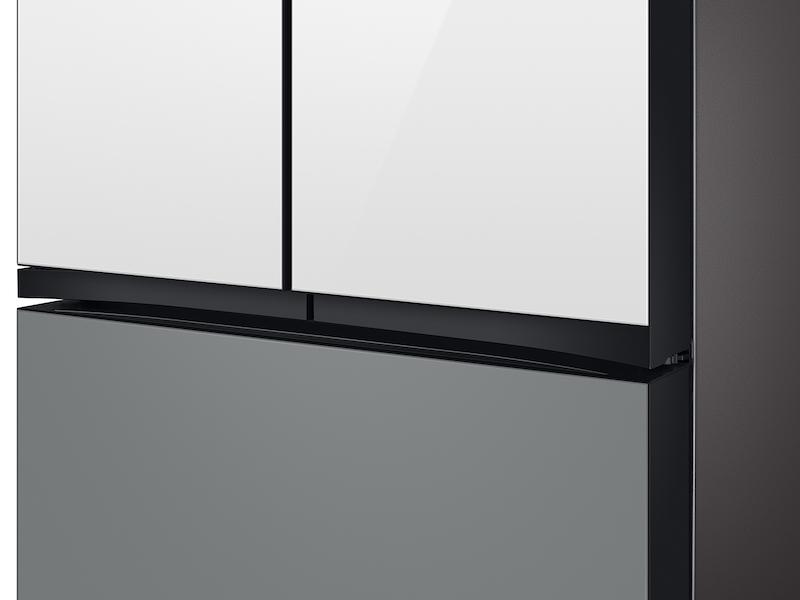

Designed for a modern look
Flat Panel door design with easy-to-open recessed handles blends into your kitchen to give you a modern look.

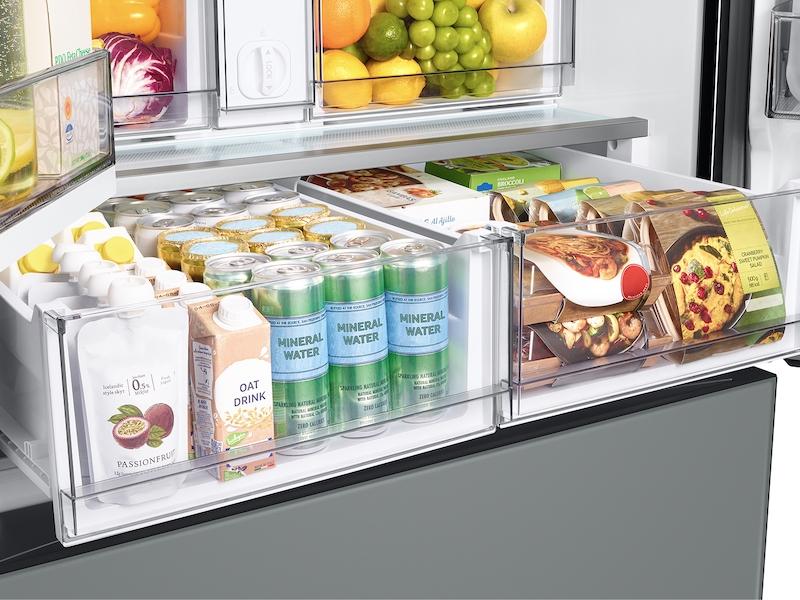

Separate pantry drawers for more storage
Two separate drawers that let you store more deli items, meat, poultry, and fish, including large-sized items.
Keep your fruits and vegetables fresh
Two large drawers that are perfect for storing fruits and vegetables.
Twin Cooling Plus™
Independent fridge and freezer controls keep food fresher longer.
Stay connected anywhere, anytime Wi-Fi
Use the Samsung SmartThings App* on your smartphone to control the temperature of your refrigerator and monitor it remotely.
Measure for a perfect fit
BESPOKE 3-Door French Door Refrigerators have unique height and depth dimensions. Measure your installation clearances and view specifications to ensure it will fit your space.
| Key Features | |
| BESPOKE | Yes |
| Space Max Technology™ | Yes |
| Family Hub™ | Yes |
| Food Showcase | Yes |
| Ice Maker | Yes |
| Dual Ice Maker | Yes |
| Beverage Center™ | Yes |
| Internal Camera | Yes |
| Wi-Fi Connectivity | Yes |
| Ice/Water Dispenser | Beverage Center |
| ENERGY STAR® Certified | Yes |
| Standard Features | |
| 8 inch LCD Screen with Apps | Yes |
| High-Efficiency LED Lighting | Yes |
| Cooling System | Twin Cooling |
| Surround Air Flow | Yes |
| Shelves | 4 |
| Gallon Bins | Yes |
| EZ-Open Handle™ | Yes |
| Auto Pull Out™ Upper Freezer Drawer | Yes |
| Concealed Hinges | Yes |
| CoolTight Door | Yes |
| Filter Indicator | Yes |
| Water Filter | HAF-QIN/EXP |
| Multi Air Flow | Yes |
| Refrigerant | RF600a |
| Slide-n-Go Shelves | Yes |
| Speaker | Yes |
| Wi-Fi Connectivity | Yes |
| Twin Cooling Plus® | Yes |
| Adjustable Shelves | Yes |
| Modern Look Design | Yes |
| Modern Design Non-Dispense | Yes |
| High-Efficiency LED Lighting | Yes |
| Internal Filtered Water and Ice Dispenser | Beverage Center |
| Flat Doors w/ Smooth Finish | Glass/Steel |
| Big Pantry | Yes |
| Refrigerator Design | |
| Type | 3 Door French Door |
| Color | Charcoal Glass / Matte Black Steel |
| Free Standing | Yes |
| Number of Doors | 3 |
| Depth | 34 1/4" |
| Refrigerator Features | |
| AutoFill Water Pitcher | Yes |
| Gallon Bins | Yes |
| Gallon Door Bins | Yes |
| Total Bins | 8 |
| CoolSelect Pantry™ | Yes |
| Drawers | Yes |
| Deli Drawer | Yes |
| Fixed Shelves | Yes |
| Foldable Slide-in Shelf | Yes |
| Interior Light | Surface lighting |
| Internal Filtered Water Dispenser | Beverage Center |
| Shelves | 4 |
| Slide-In Shelf | Yes |
| Spill proof shelves | Yes |
| Fingerprint Resistant Finish | Yes |
| Automatic Ice Maker | Yes |
| Showcase Door | Yes |
| FlexZone Drawer | |
| Total Capacity (cu. ft.) | 29.8 cu.ft |
| Freezer Features | |
| Total Ice Capacity (lbs.) | 9.9 |
| EZ-Open Handle™ | Yes |
| Drawer Divider | Yes |
| Auto Pull Out™ Upper Freezer Drawer | Yes |
| Built-In Automatic Icemaker | Yes |
| Cubed and Crushed Ice | Cubed and Ice Bites |
| Icemaker | Yes |
| Interior Light | Yes |
| Freezer Box | Yes |
| Family Hub Features | |
| Window Size | 45.7" |
| Window Material | Glass |
| Display Size | 21.5" |
| Display Resolution | Full HD (1920*1080) |
| Display Touch Type | Capacitive |
| Processor | 1.8GHz Quad |
| RAM | 3GB |
| Flash Memory | 16GB |
| Connectivity | Wireless Combo |
| Operating System | Tizen 6.0 |
| Speaker | 10W |
| Mic | 2ea |
| Camera | 2Mpixel x 3ea |
| USB Port | 1ea |
| Power | |
| Energy Consumption | 693 kWh/yr |
| Volt/Amps | 115 V / 3.5 A |
| Capacity | |
| Total Capacity (cu. ft.) | 29.8 cu. ft. |
| Refrigerator Capacity (cu. ft.) | 20.8 cu. ft. |
| Freezer Capacity (cu. ft.) | 9 cu. ft. |
| Dimensions | |
| Product Dimensions with Hinges, Handles and Door | 35 6/8" x 70" x 34" 1/4" |
| Product Dimensions without Hinges and Door | 35 6/8" x 68 7/8" x 24" |
| Product Dimensions with Door with Handles | 35 3/4 (W) x 70" (H) x 34 1/4" (D) |
| Product Dimensions with Door without Handles | 35 3/4 (W) x 70" (H) x 34 1/4" (D) |
| Shipping Dimensions | 38 1/4" (W) x 75 3/4" (H) x 36 1/4" (D) |
| Net Height with Hinge | 70" |
| Net Height without Hinge | 68 7/8" |
| Net Depth w/o Door Handle | 34 1/4" |
| Depth without Door (in) | 29 3/8" |
| Width | 35 3/4" |
| Height | 70" |
| Weight | |
| Product Weight (lbs.) | 346.1 lbs |
| Shipping Weight (lbs.) | 370.4 lbs |
| Warranty | |
| 5 Years | Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Part and Five (5) years Labor on Digital Inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing) |
| 10 Years | Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Part and Five (5) years Labor on Digital Inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing) |
