SHARP SMD2430MS
Authorized Reseller

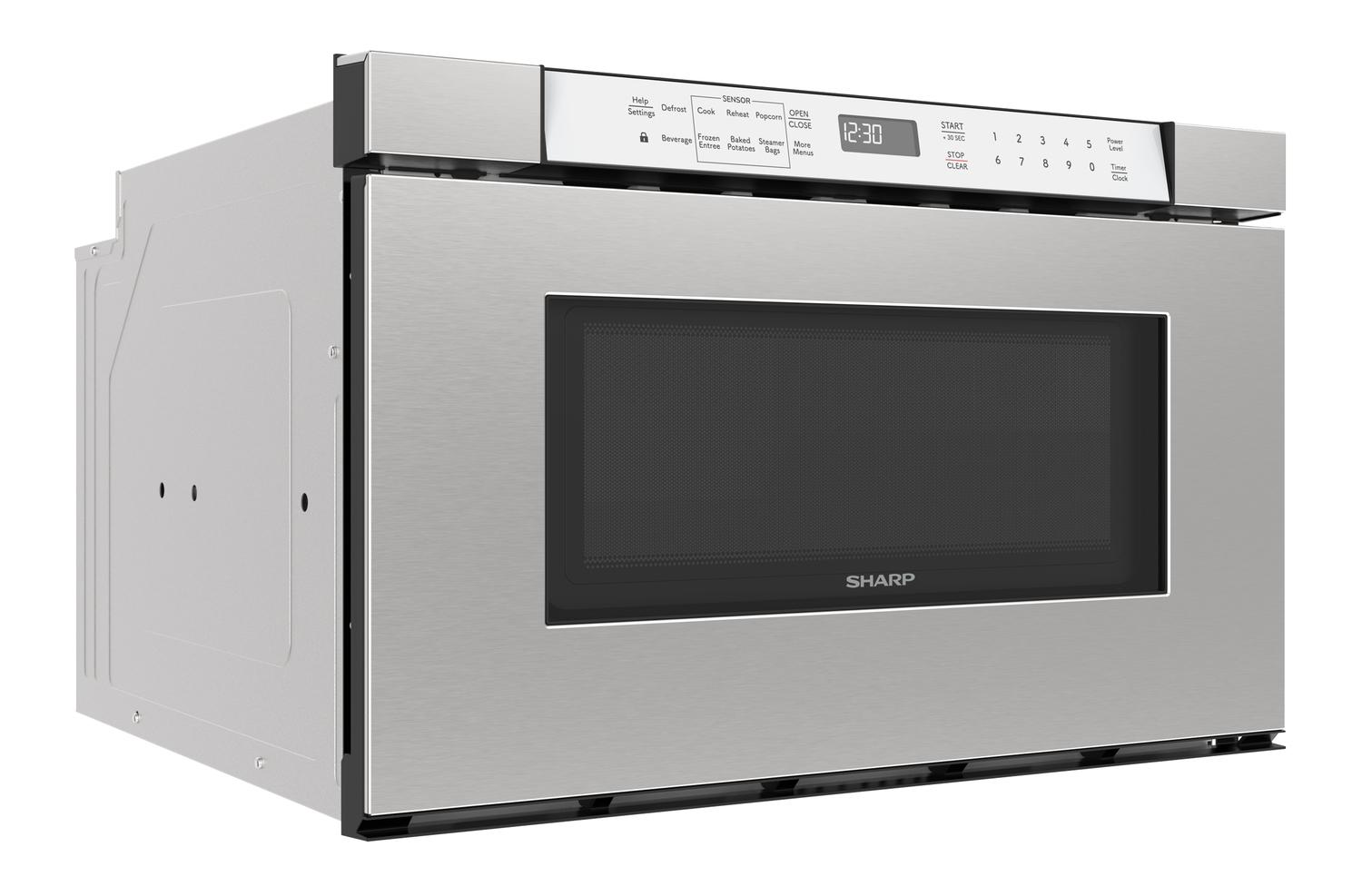

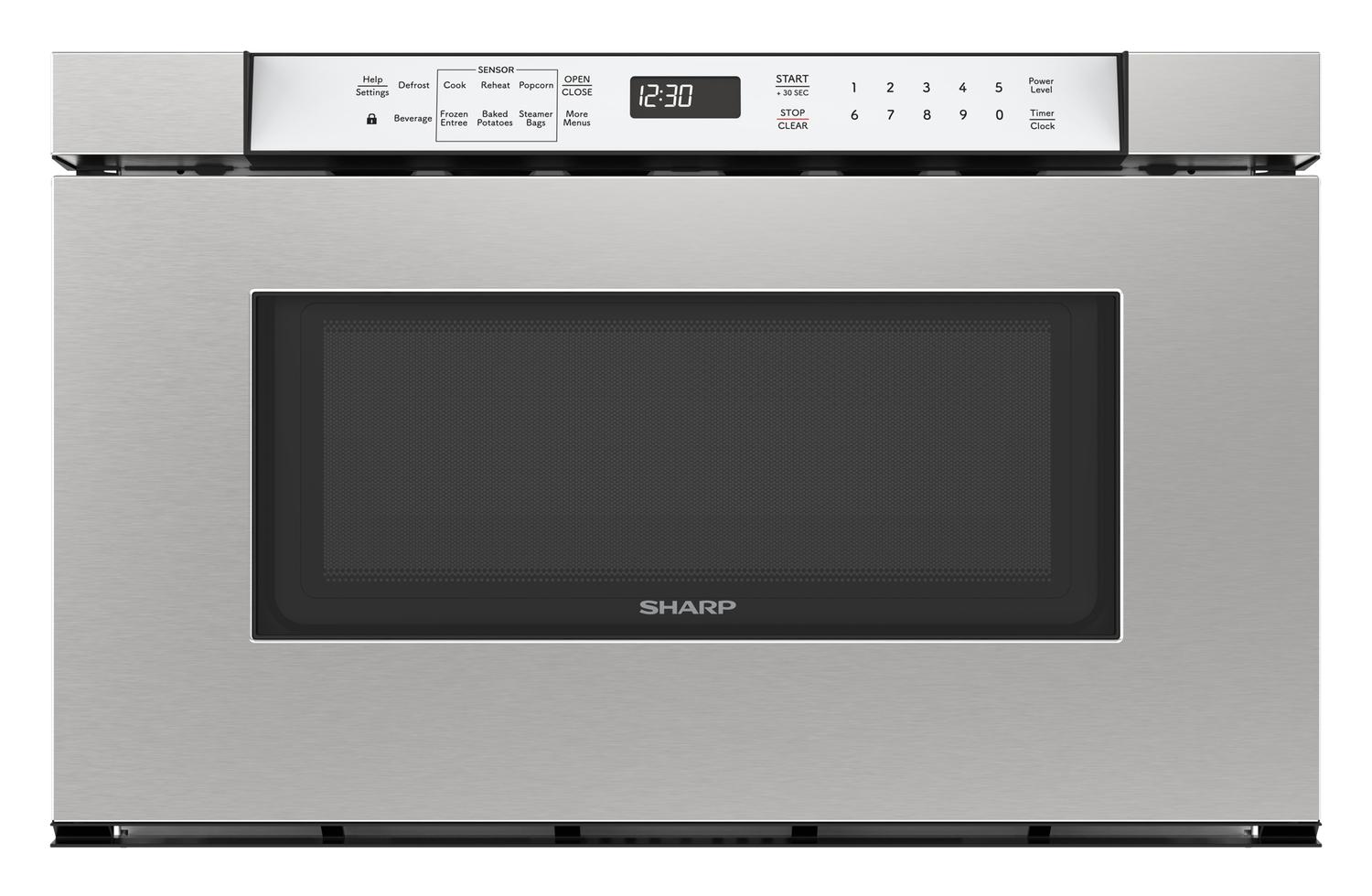

SMD2430MS Sharp 24 in. 1.2 cu. ft. Built-In Microwave Drawer™ Oven in Stainless Steel

SMD2430MS Sharp 24 in. 1.2 cu. ft. Built-In Microwave Drawer™ Oven in Stainless Steel

Regular price $1,300.00
Regular price Sale price $1,300.00
Sale Sold out
Waiting for Stock

Check Delivery:

View full details

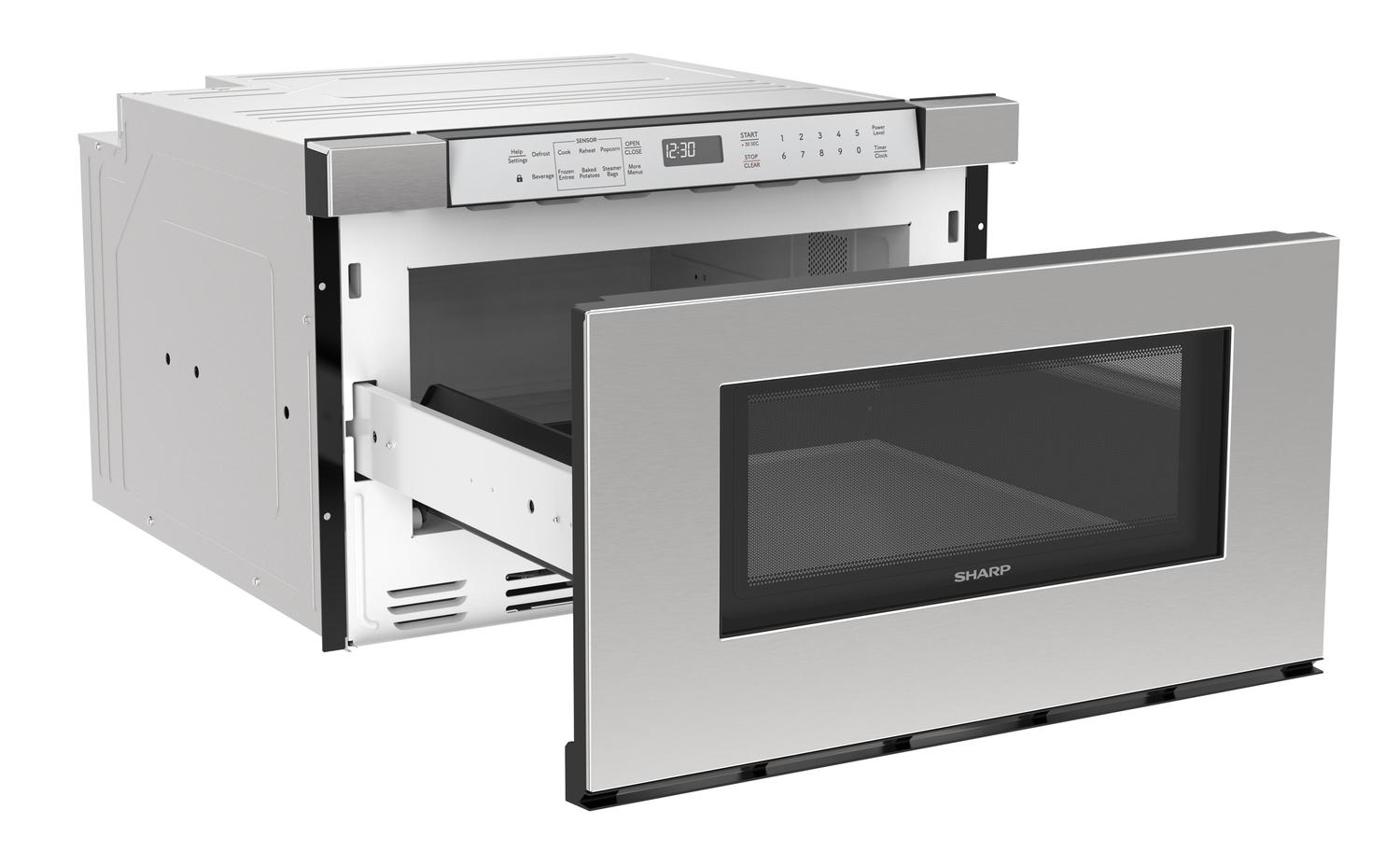

  • Automatic Drawer System, Opens with a Press of a Button and Gently Closes with a Soft Nudge

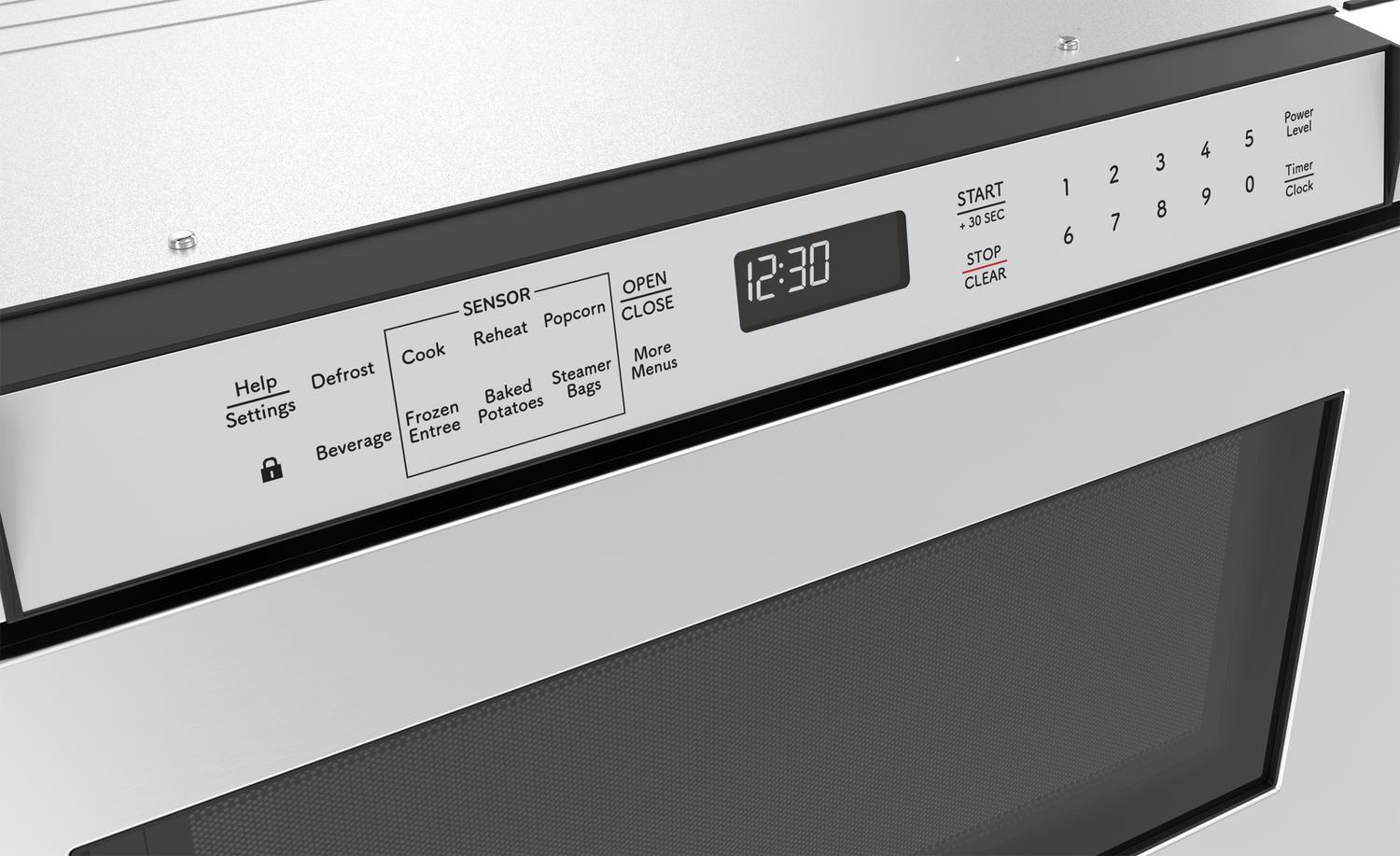

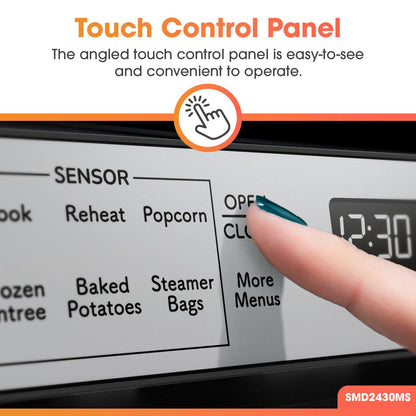

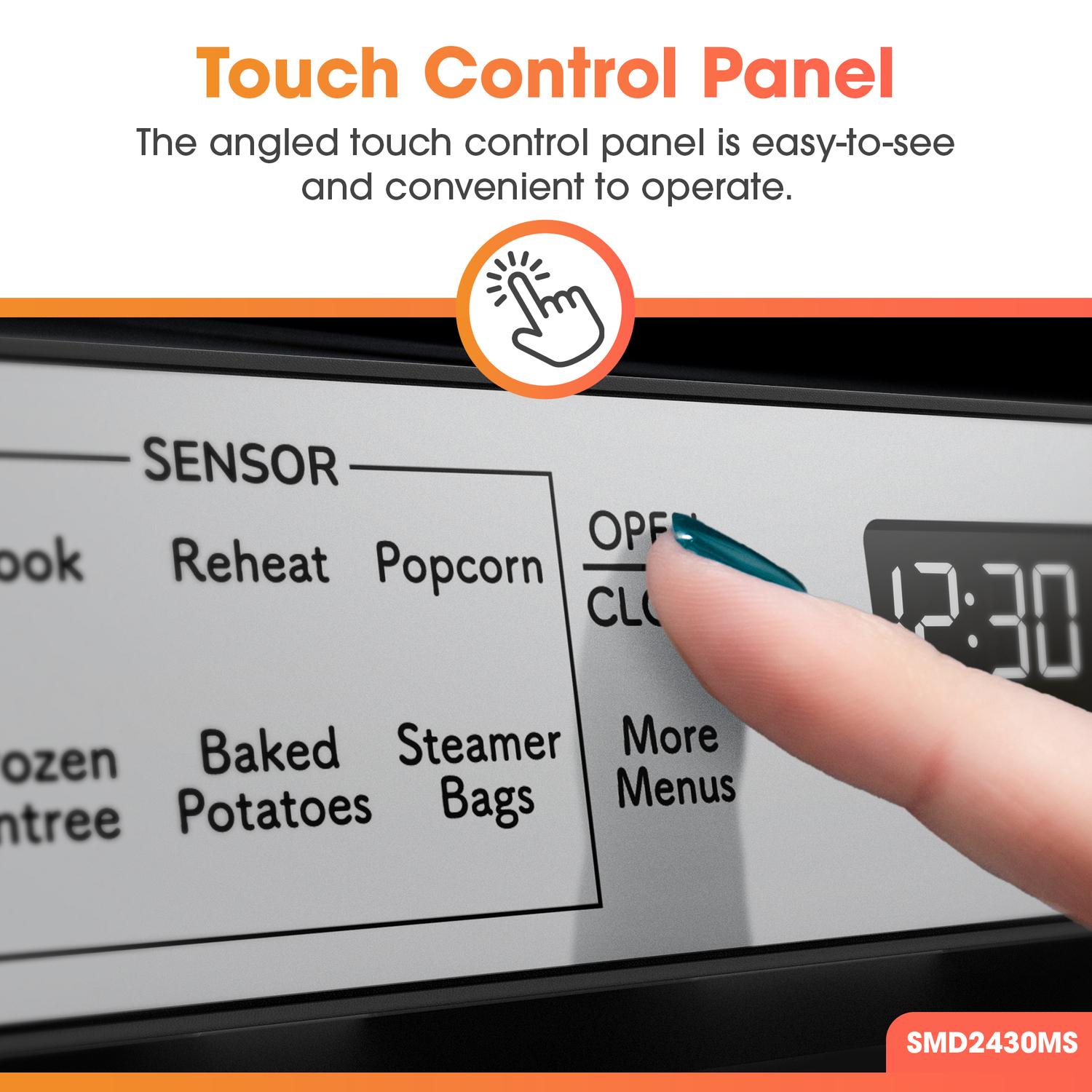

  • Sleek Silver, Angled Control Panel for Easy-to-Use Operation
  • Sensor Cook ® Technology Helps Take the Guesswork out of Cooking and Defrosting by Sensing the Food s Moisture
  • 16 by 16 Spacious Design for Accommodating Platters, Casseroles, and Serving Bowls

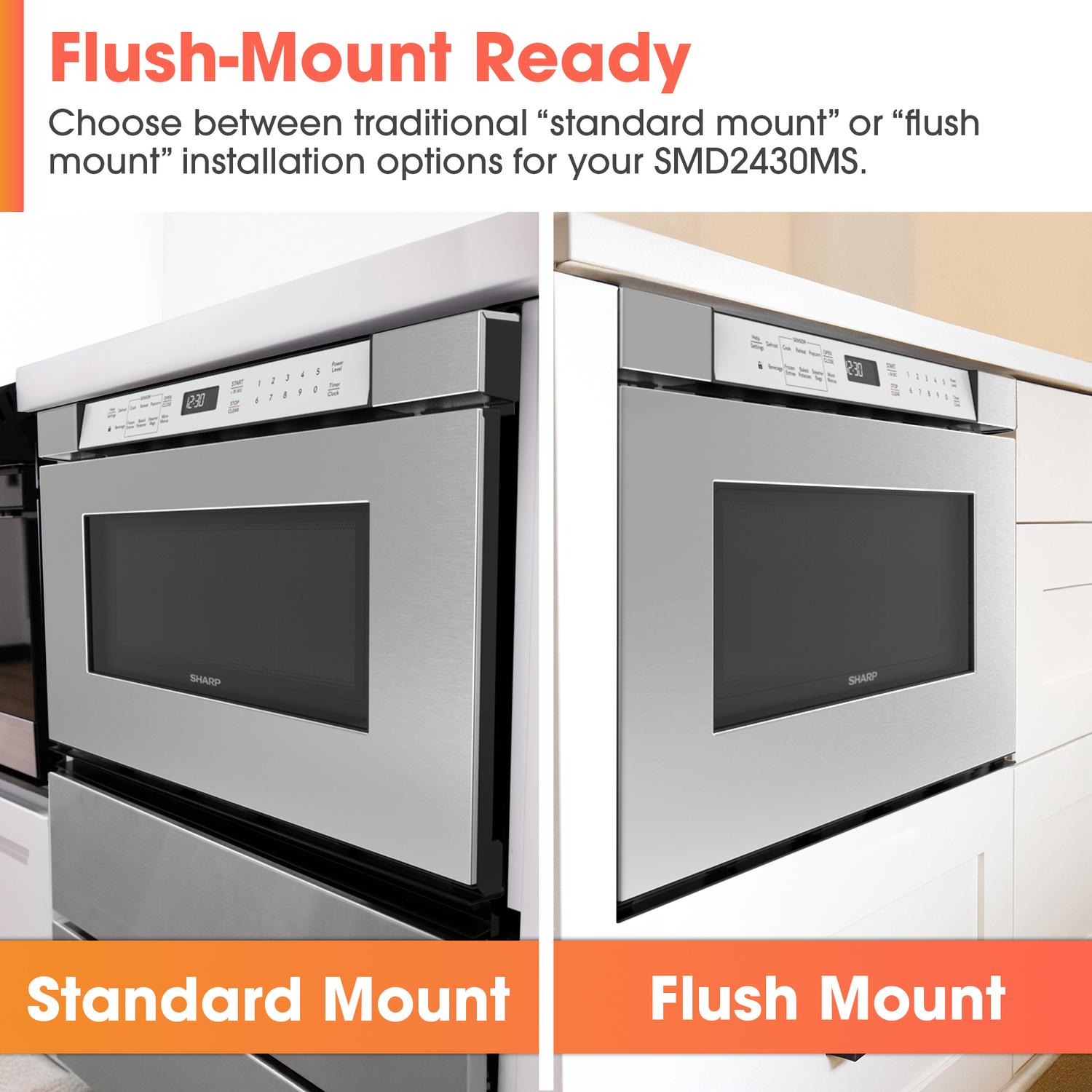

  • Flush-Mount Ready with Built-In Airflow Control
  • Designed with ADA Compliance in Mind, the Under-Counter Design Provides Flexibility to Fit Practically Any Lifestyle

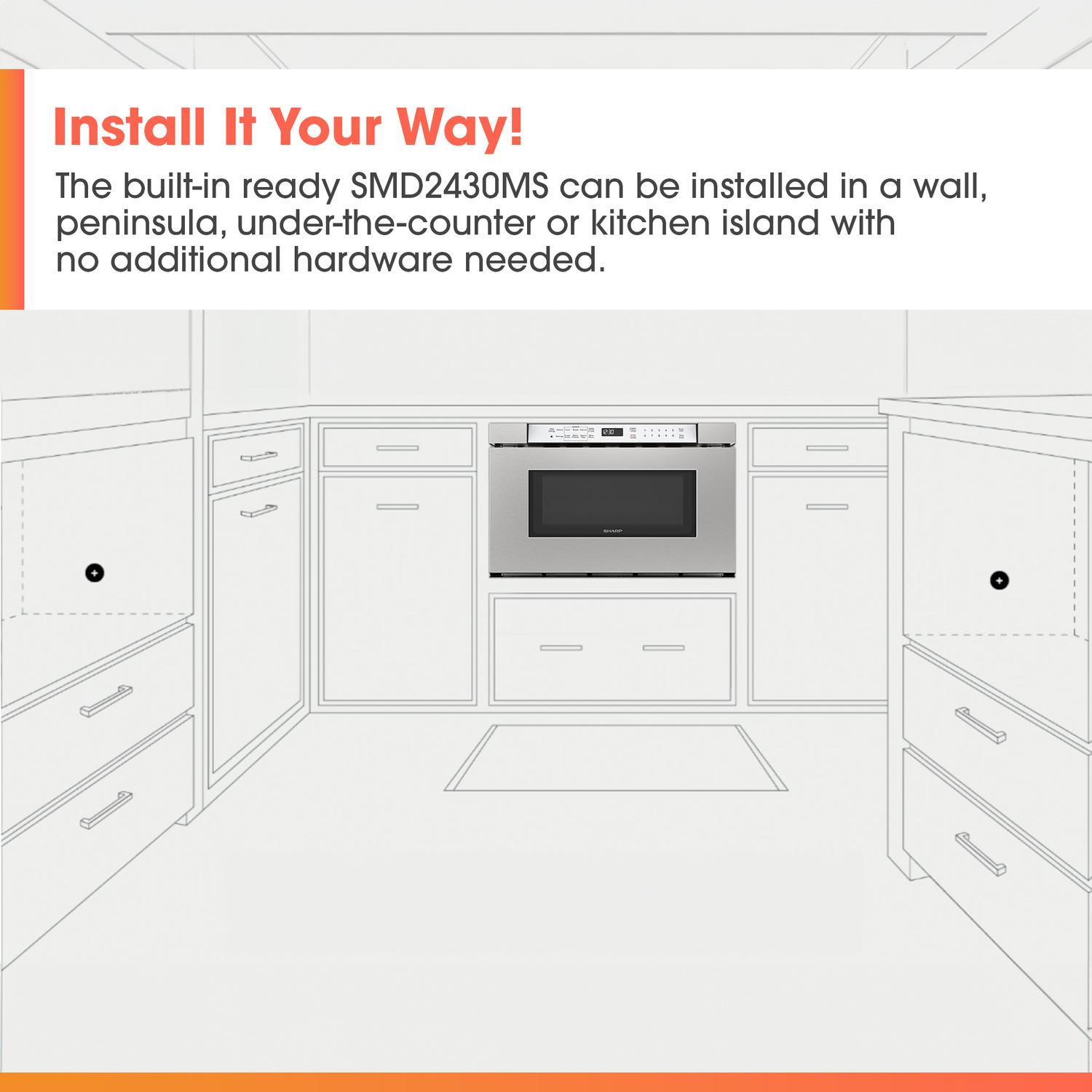

  • Install into an Island, Peninsula, Standard Cabinetry, or Beneath Other 24 in. Built-in Appliances

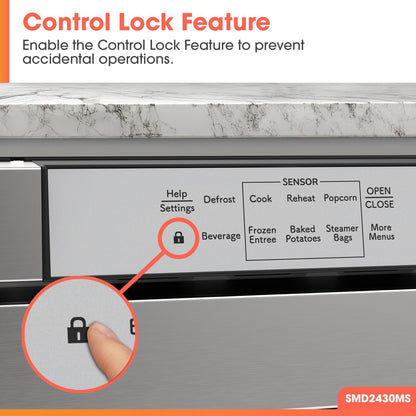

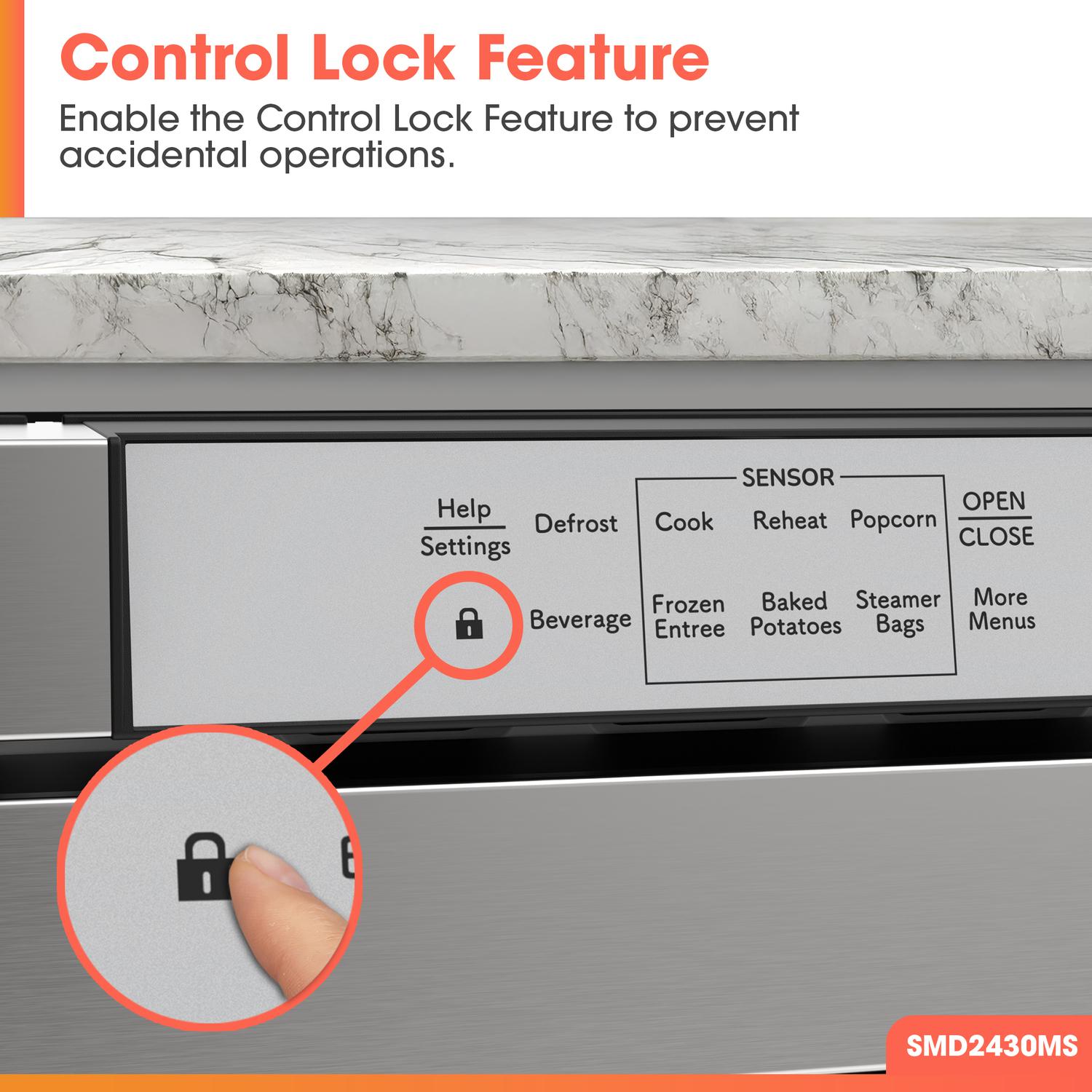

  • Control Lock to Prevent Accidental Operation by Children and While Cleaning

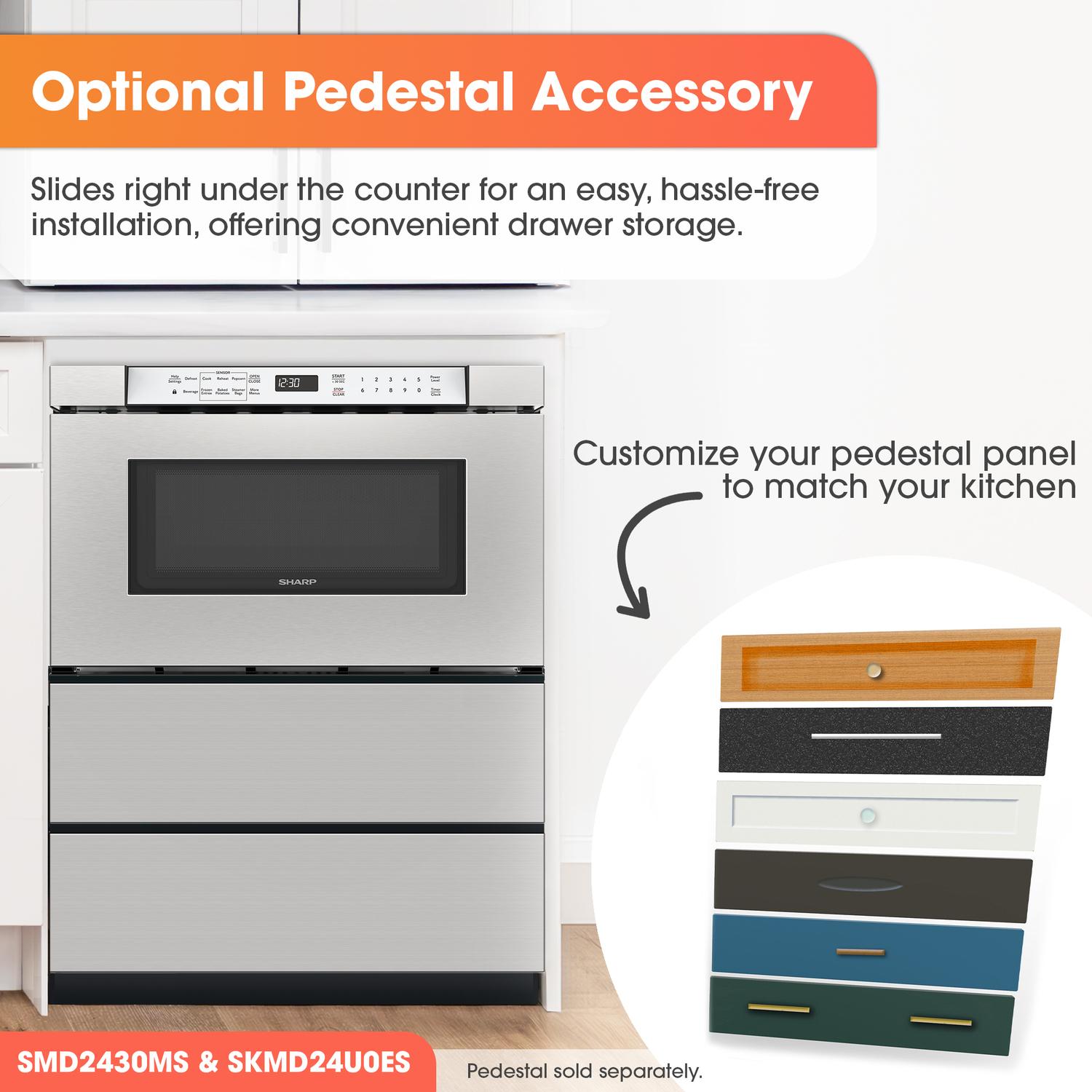

  • Optional Pedestal Accessory ( SKMD24U0ES ) for Easy Installation
  • Extended Warranty

The Sharp SMD2430MS 24 in. Microwave Drawer™ Oven is the perfect blend of convenience, intuitive design, and accessibility, boasting a spacious 1.2 cu. ft. capacity and 950 Watts of cooking power. Utilize built-in Sensor Cook® Technology and cook with confidence, helping take the guesswork out of cooking and defrosting by sensing the food s moisture and automatically setting the ideal cooking time. With easy-to-use defrost menu options, meal prep becomes simpler and more efficient.

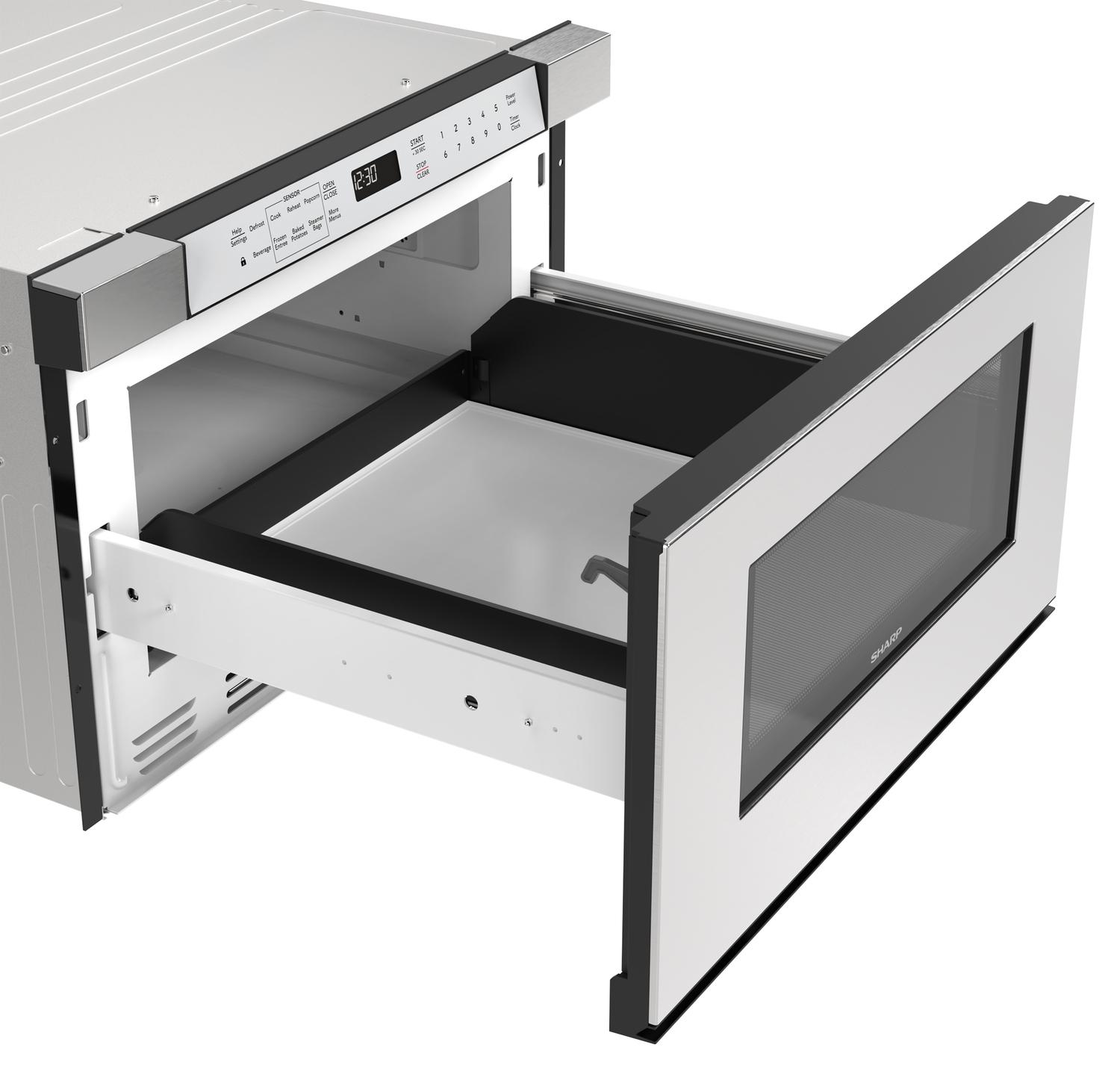

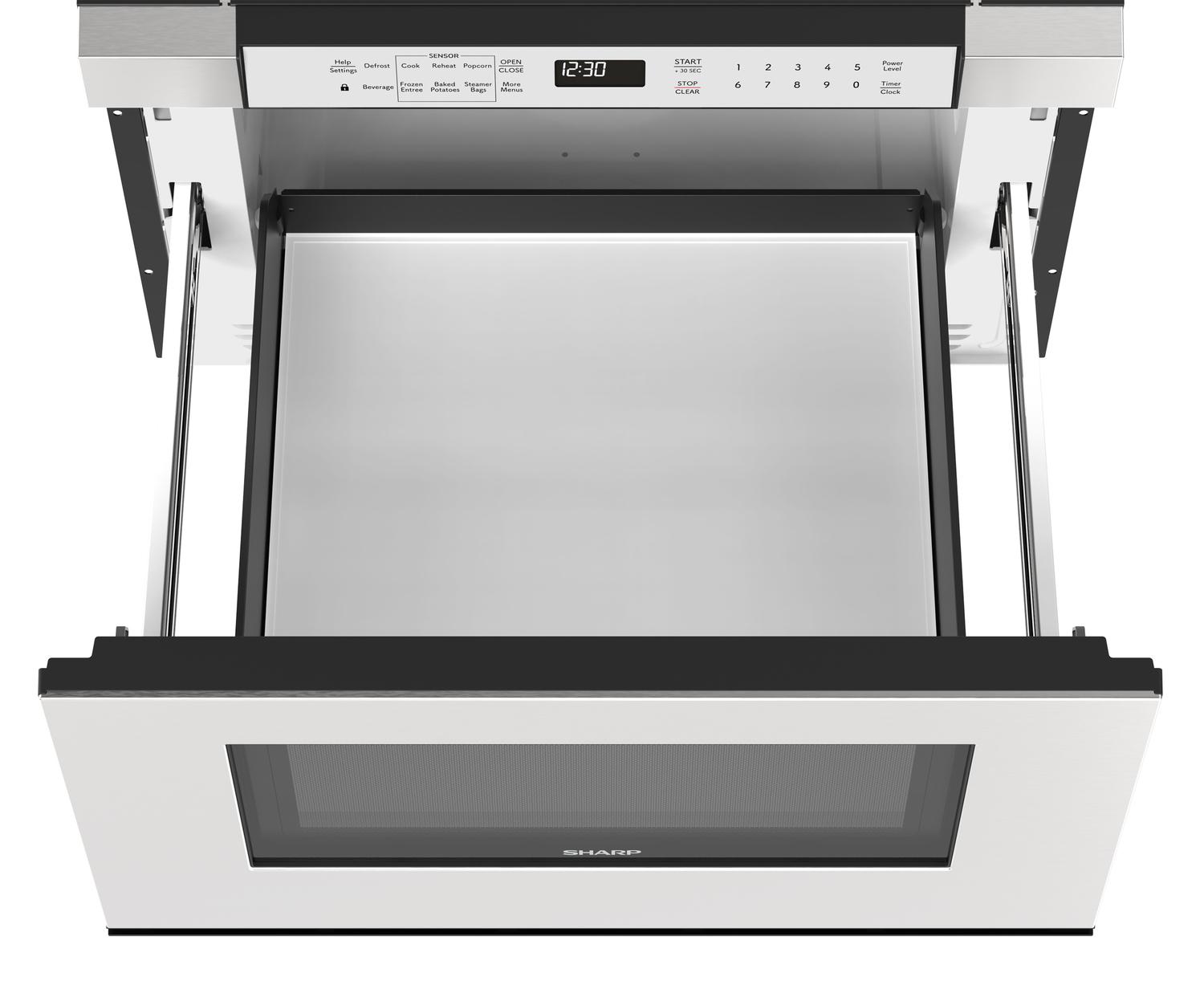

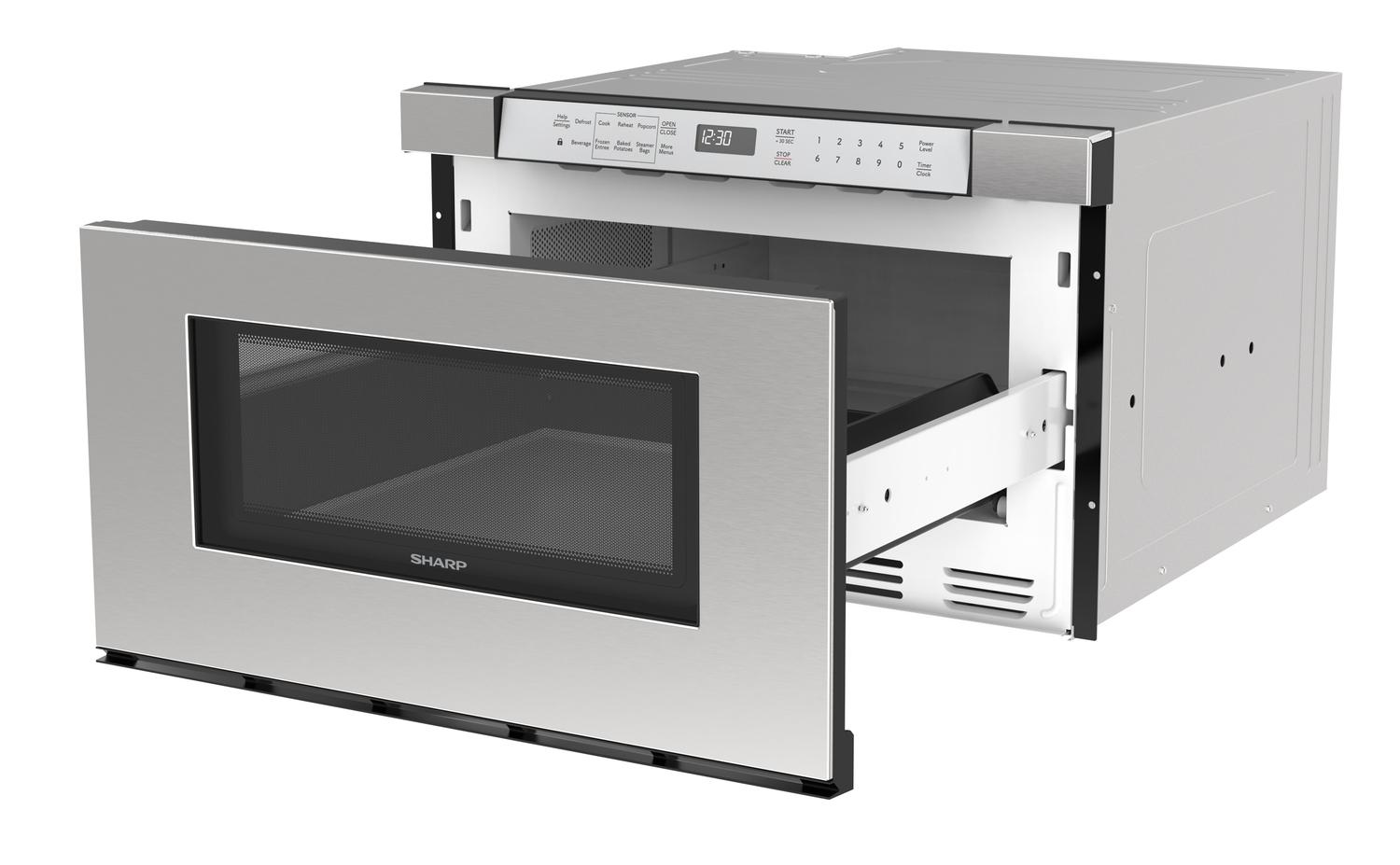

The Automatic Drawer System ensures a smooth, mess-free close with the touch of a button or a gentle nudge. Inside, the spacious 16 by 16 interior easily accommodates large platters, casseroles, and serving bowls, making it a practical solution for busy households. The control panel is purposefully angled for easy-to-use operation. Audible signals can be turned on or off, and the control panel can be locked down to prevent accidental operation by small children and while cleaning. With a bright interior light and viewing window you can easily monitor your cooking creations. Best of all the flat interior design makes cleanup a breeze.

Finished in stainless steel with a sleek silver control panel, this appliance adds a modern and clean look to any kitchen. The Built-In Airflow venting allows for either traditional proud mount installation or flush mounting for a streamlined finish without the need of additional trim kits or vent deflectors. Install into an island, peninsula, standard cabinetry, beneath other 24-in. built-in appliances, or utilize the optional pedestal accessory to slide into a standard dishwasher cutout for a built-in look, without the need for custom cabinetry. Engineered with ADA compliance in mind, the under-counter design provides flexibility to fit almost any lifestyle.

With a modern style and impressive features, the Sharp SMD2430MS 24 in. Microwave Drawer™ Oven is the perfect solution for your kitchen.

Browse our full range of Sharp microwave drawer ovens to find the right model for your home.

FEATURES
Finish Stainless Steel
Drawer Opening Automatic Door Open / Close Button
Width 24
Capacity (cu. ft.) 1.2
Output Power 950 watts
Interior Light Incandescent
Open / Close Yes
Start / +30 sec Yes
Stop / Clear Yes
Power Level 11
Timer / Clock Yes
Control Lock Yes
Help / Settings Yes
Demo Mode Yes
End of Cooking Reminder Yes
CONTROL PANEL
Control Panel Location Center/Top
Control Panel Type Membrane
Display Type LCD 7-Segment
Display Color White on Black Background
COOKING / MENU PRESETS
Popcorn Yes, Sensor
Reheat Yes, Sensor
Sensor Cook Quick Fresh Vegetables, Longer Fresh Vegetables, Frozen Vegetables, Sweet Potatoes, Ground Meat, Fish/Seafood, White Rice, Brown Rice
Frozen Entrée Yes, Sensor
Baked Potatoes Yes, Sensor
Steamer Bags Yes, Sensor
Defrost Ground Meat, Steaks/Chops, Boneless Poultry, Bone-In Poultry, Roast, Casserole or Soup
More Menus Melt Butter, Melt Chocolate, Soften Ice Cream, Soften Cream Cheese, Warm Syrup, Warm Dessert Toppings, Fresh Rolls/Muffins, Frozen Rolls/Muffins, Keep Warm
ADDITIONAL FEATURES
Flush Mount Ready Yes
OPTIONAL ACCESSORY
Product Name Drawer Under-the-Counter Pedestal
Model SKMD24U0ES
Color Stainless Steel or Custom Panel Ready
UPC 074000620865
ADDITIONAL SPECIFICATIONS
Power Source 120V, 60HZ / 15A / 1.67 KW
DIMENSIONS & WEIGHT (in./lbs.) (w x h x d)
Cavity Interior Dimensions 17-5/16 x 7-1/8 x 16-9/16

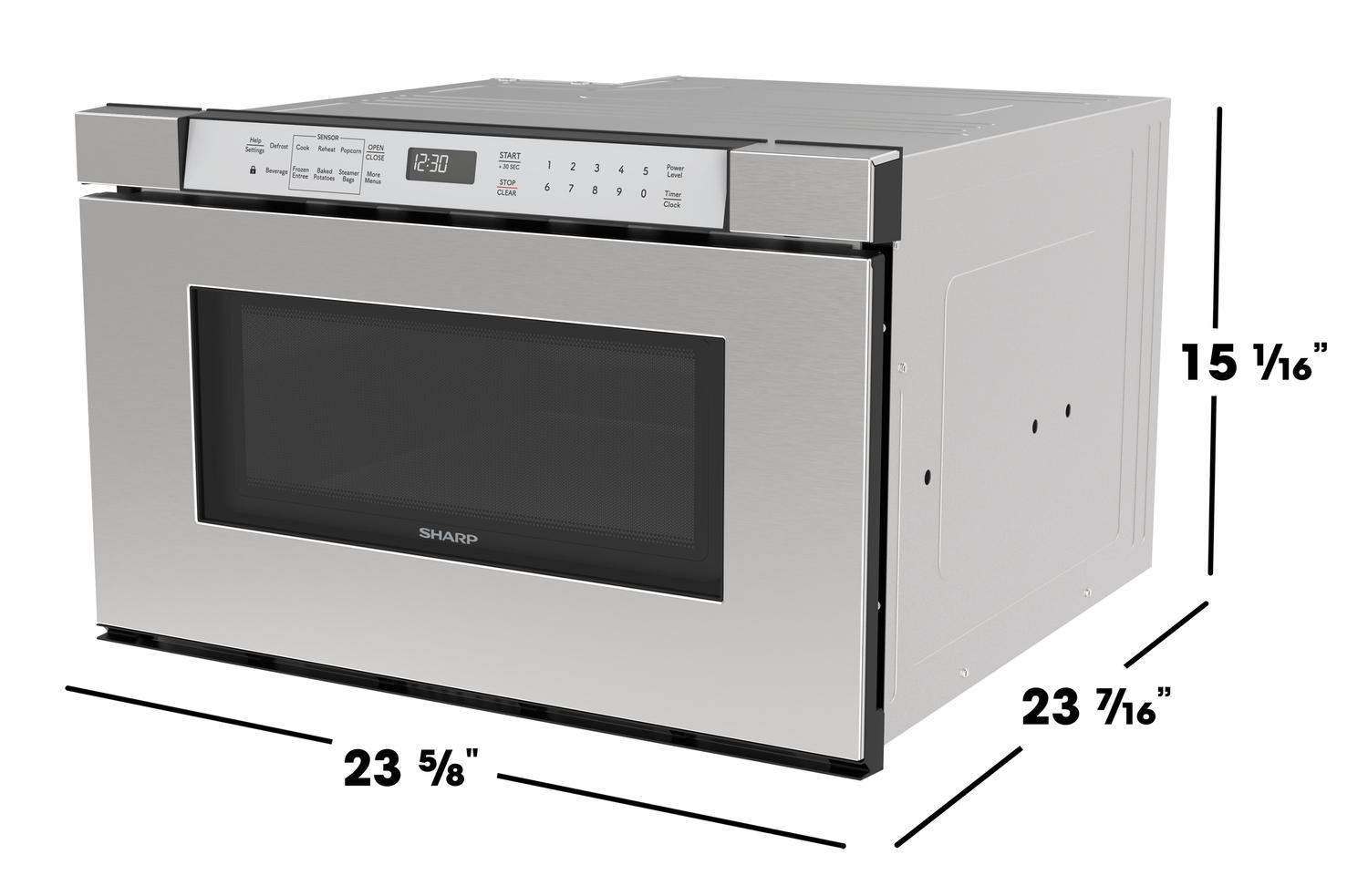

Product Dimensions 23-5/8 x 15-1/16 x 23-7/16
Shipping Dimensions 27-3/4 x 21-3/4 x 29-1/4
Standard Mount Cutout Dimensions 22-1/8 x 14-13/16 x 23-1/2
Flush Mount Cutout Dimensions 23-7/8 x 15-5/16 x 23-1/2
Product Weight / Shipping Weight 72.0 lbs. / 83.6 lbs.
Warranty/UPC
Parts 1 Year (In Home-Limited)
Labor 1 Year (In Home-Limited)
Magnetron Tube 4 Years total (Parts Only)
UPC 074000623026
