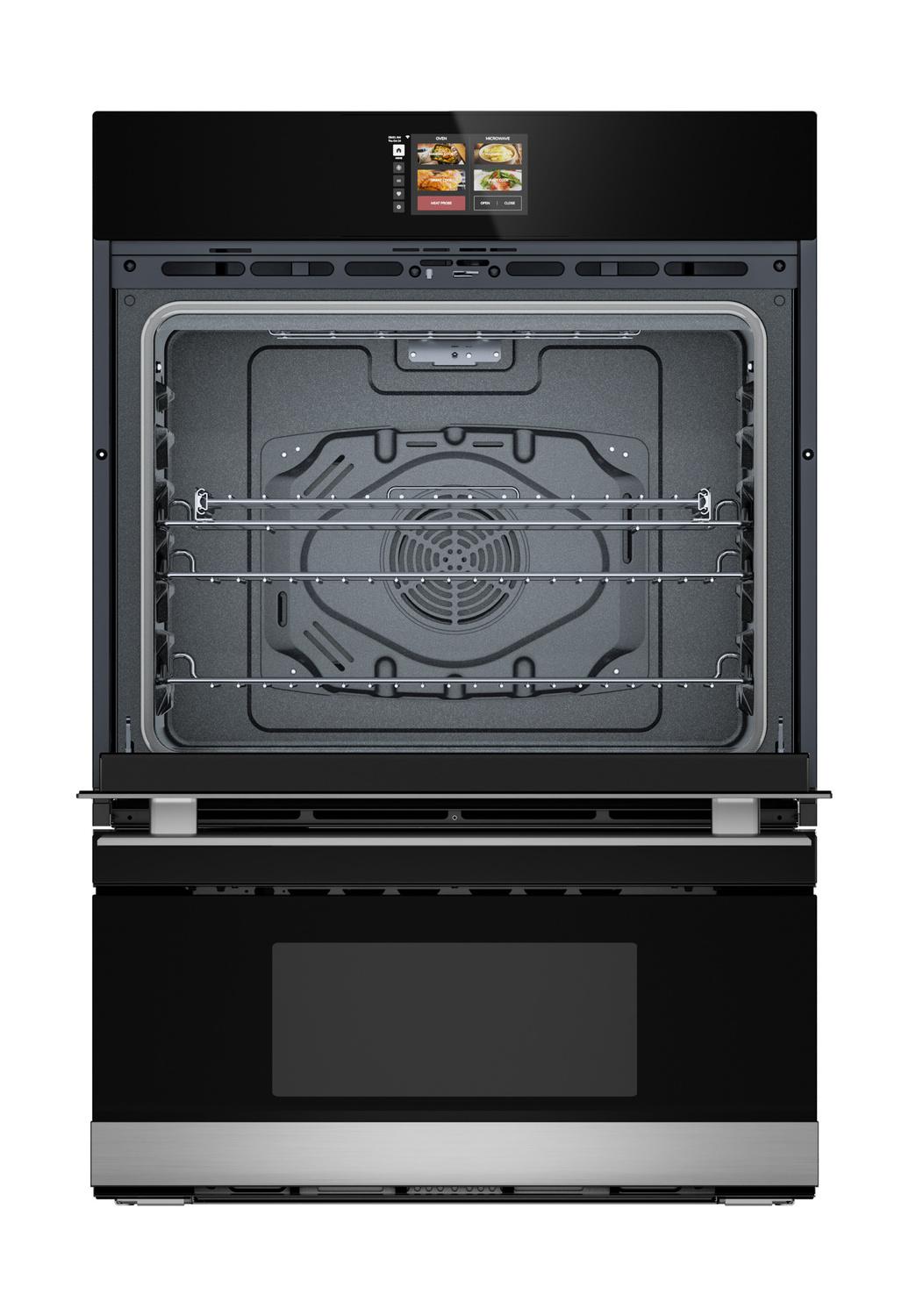

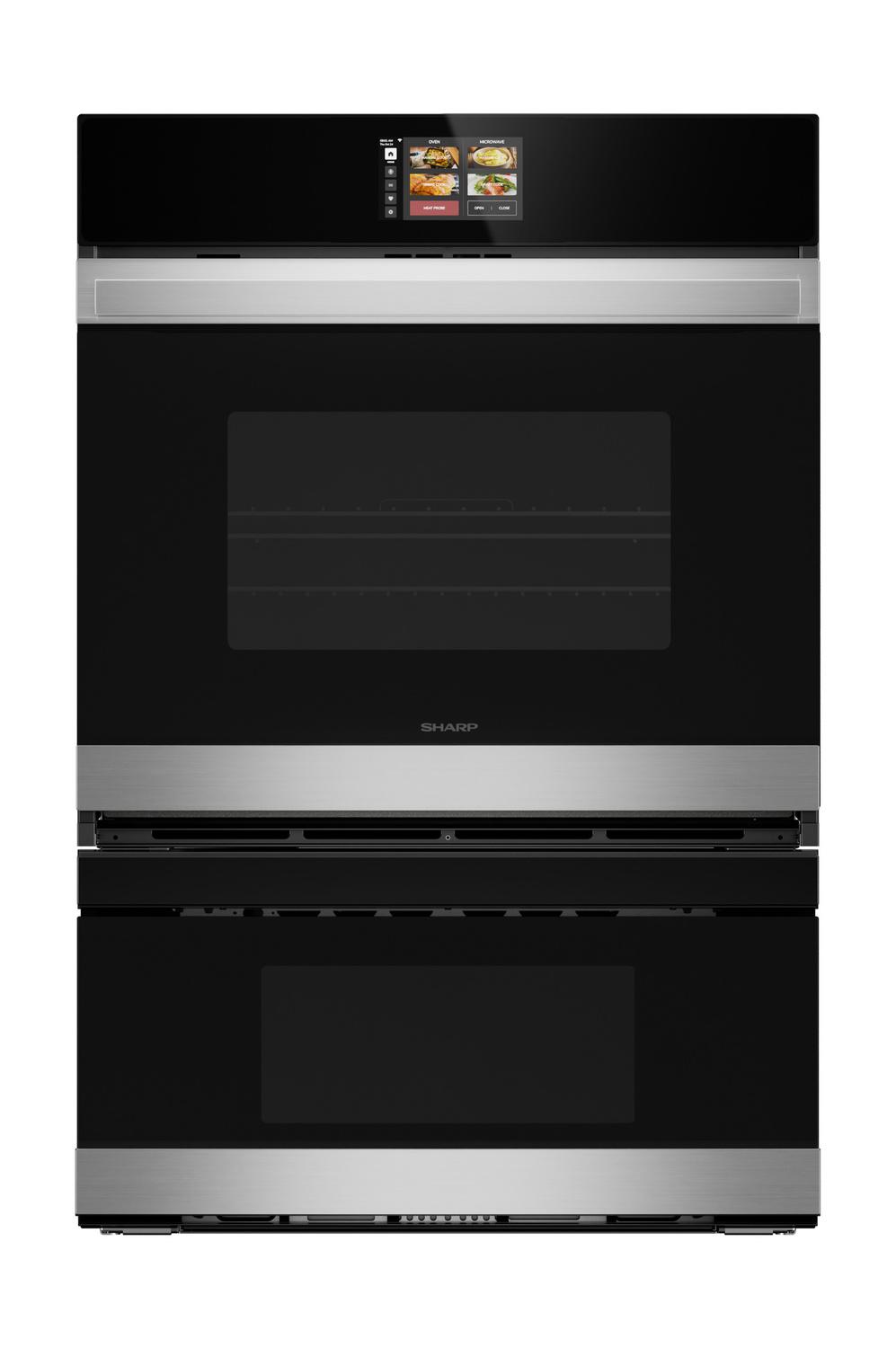

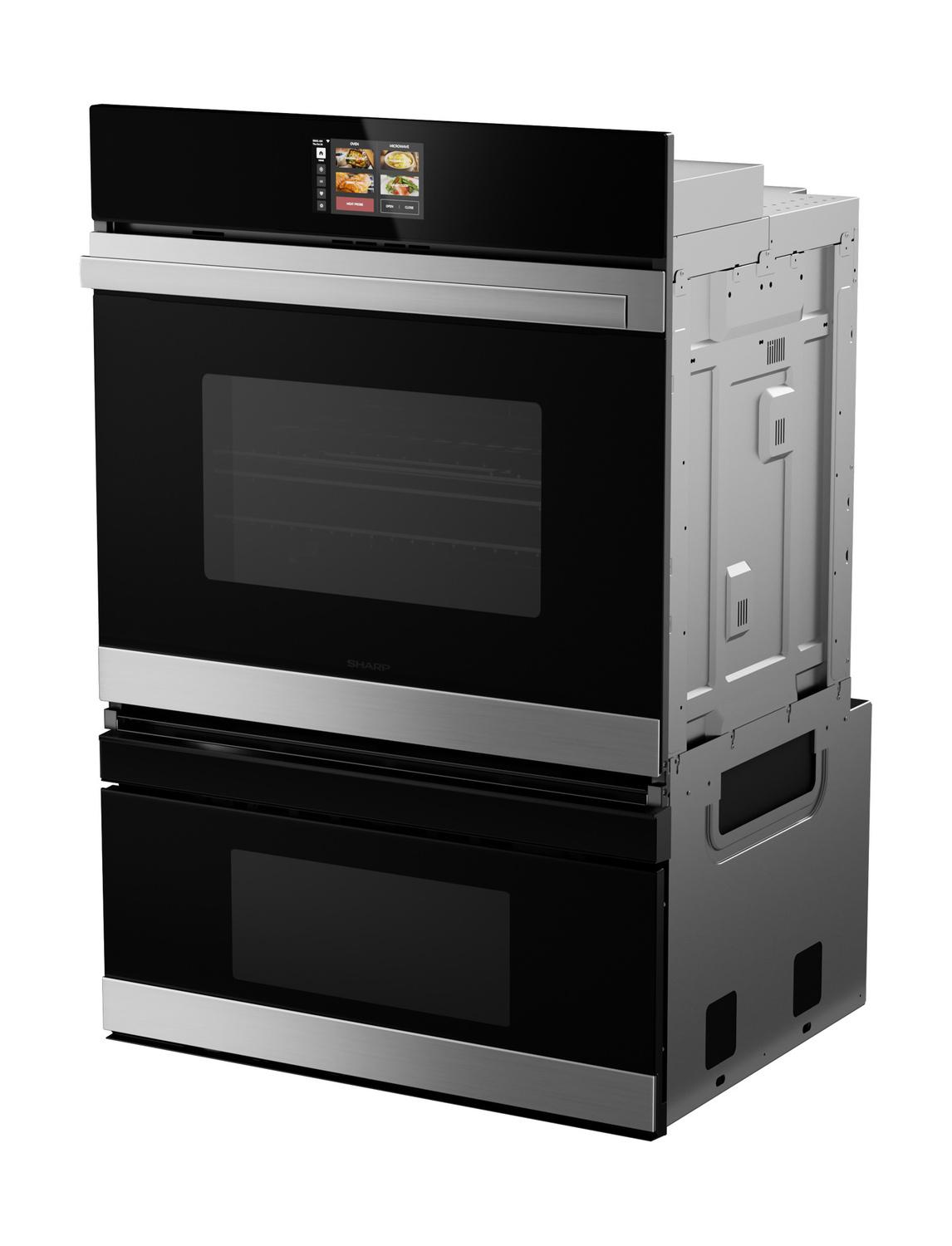

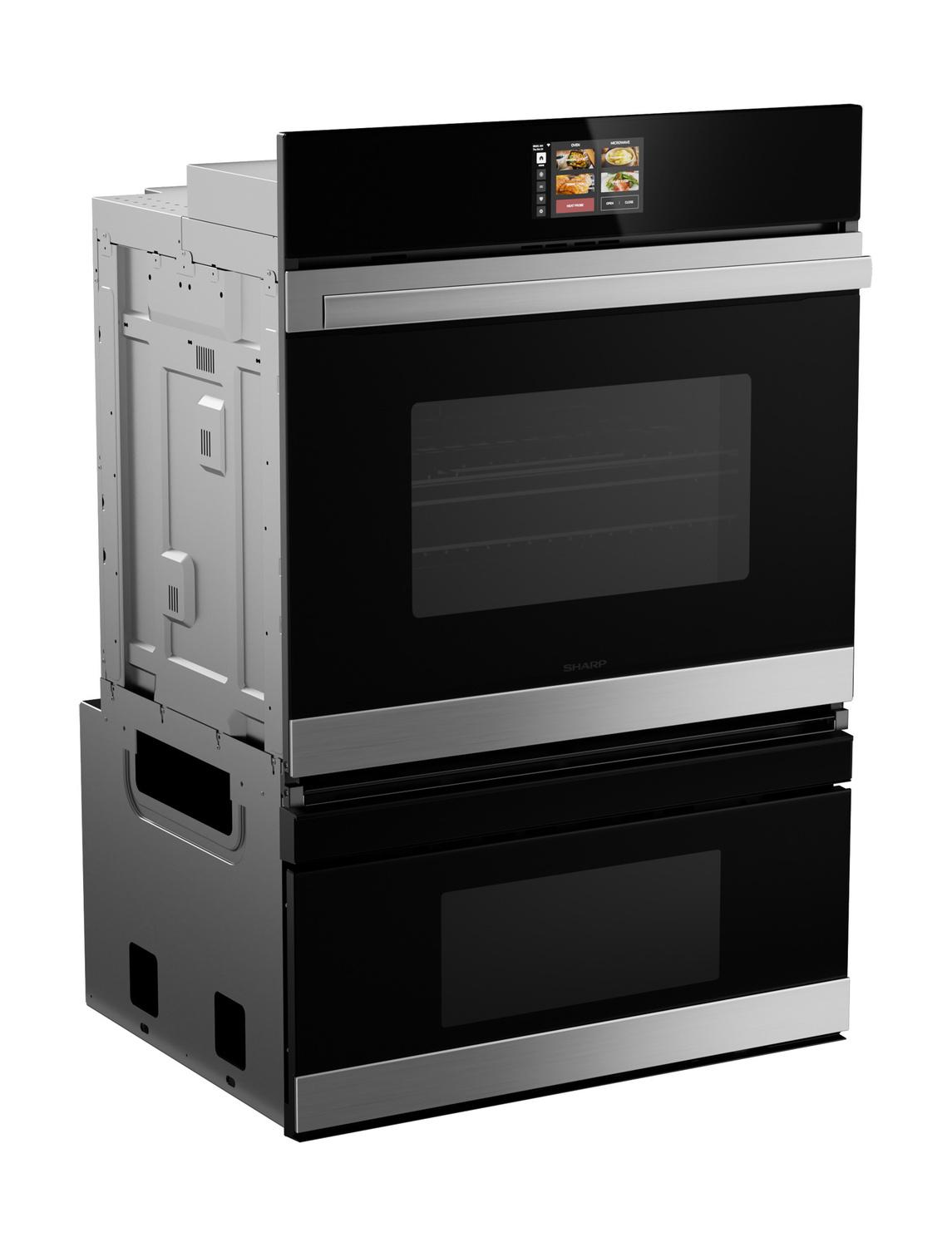

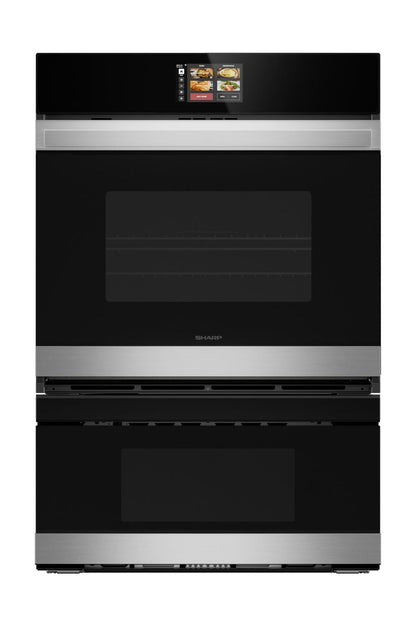

Sharp SWB3085HS 30 in. Smart Convection Wall Oven with Microwave Drawer Oven SWB3085HS











- The First Smart Convection Wall Oven with Microwave Drawer™ Oven that Works with Alexa 1
- Full Color 7 in. LCD Touch Glass Display Controls with Smart and Easy Operation
- Space-Saving Combination Appliance in a Single Cutout

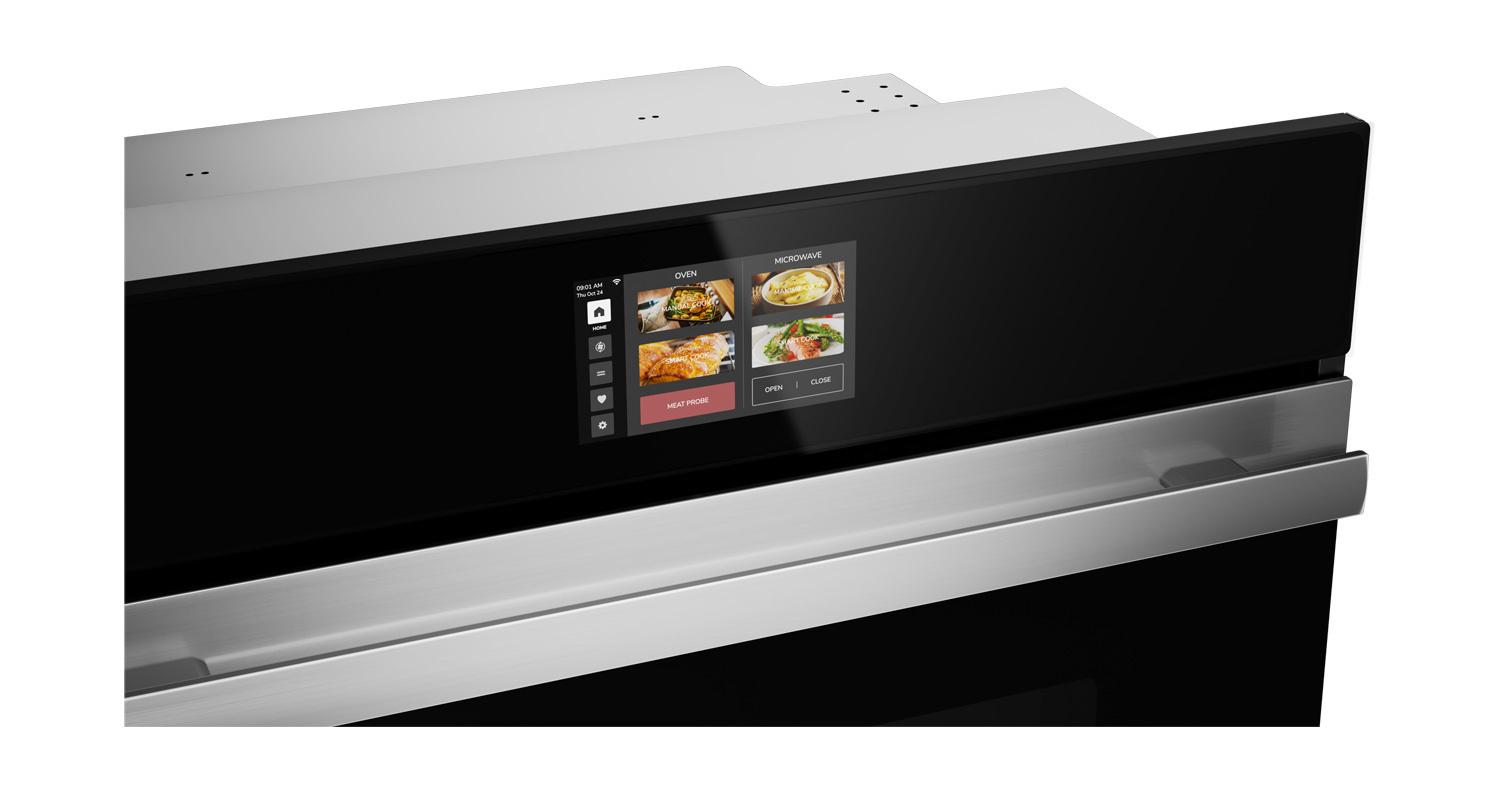

- Large, Full Color, Touch Glass Control Panel for Both Ovens

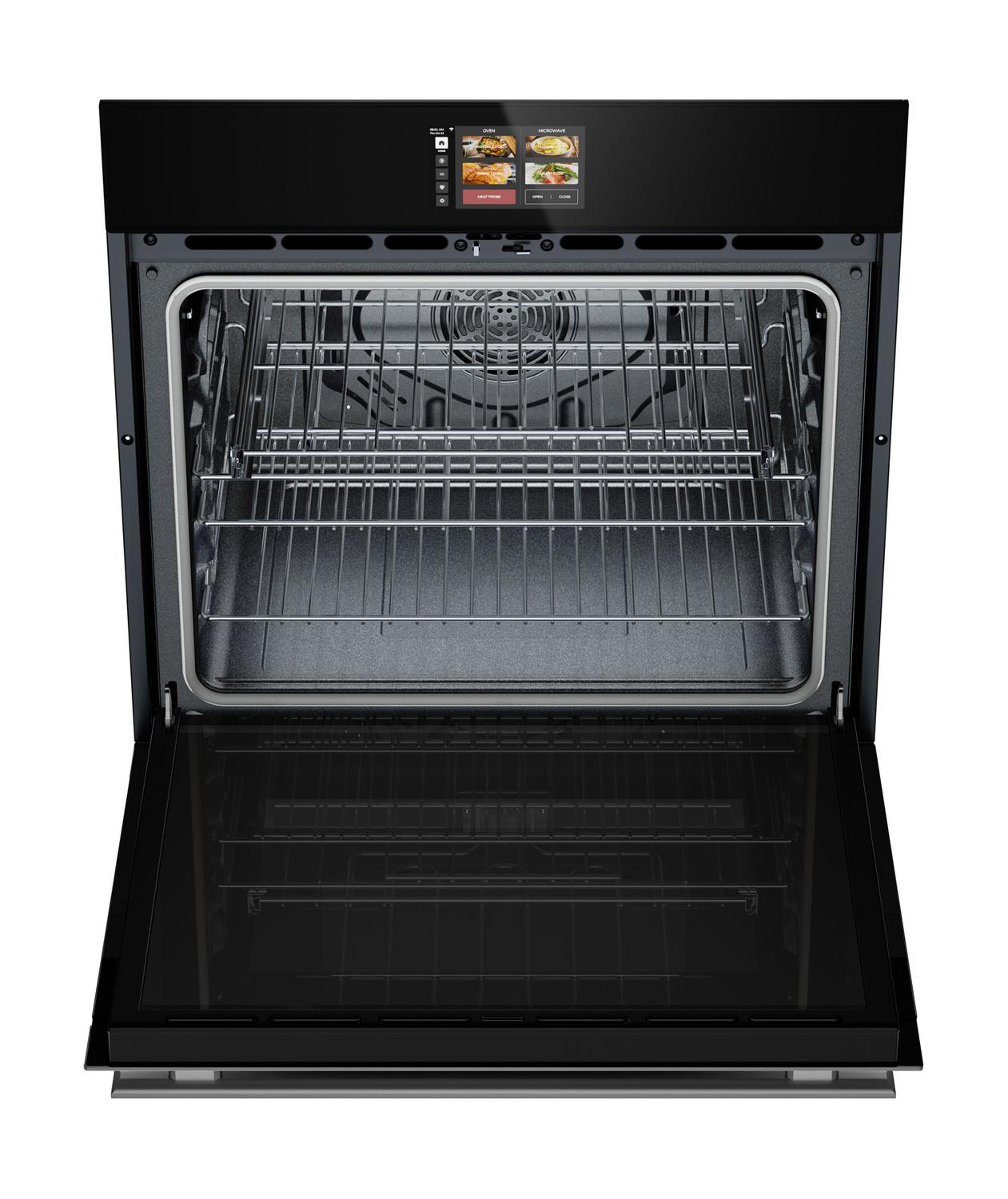

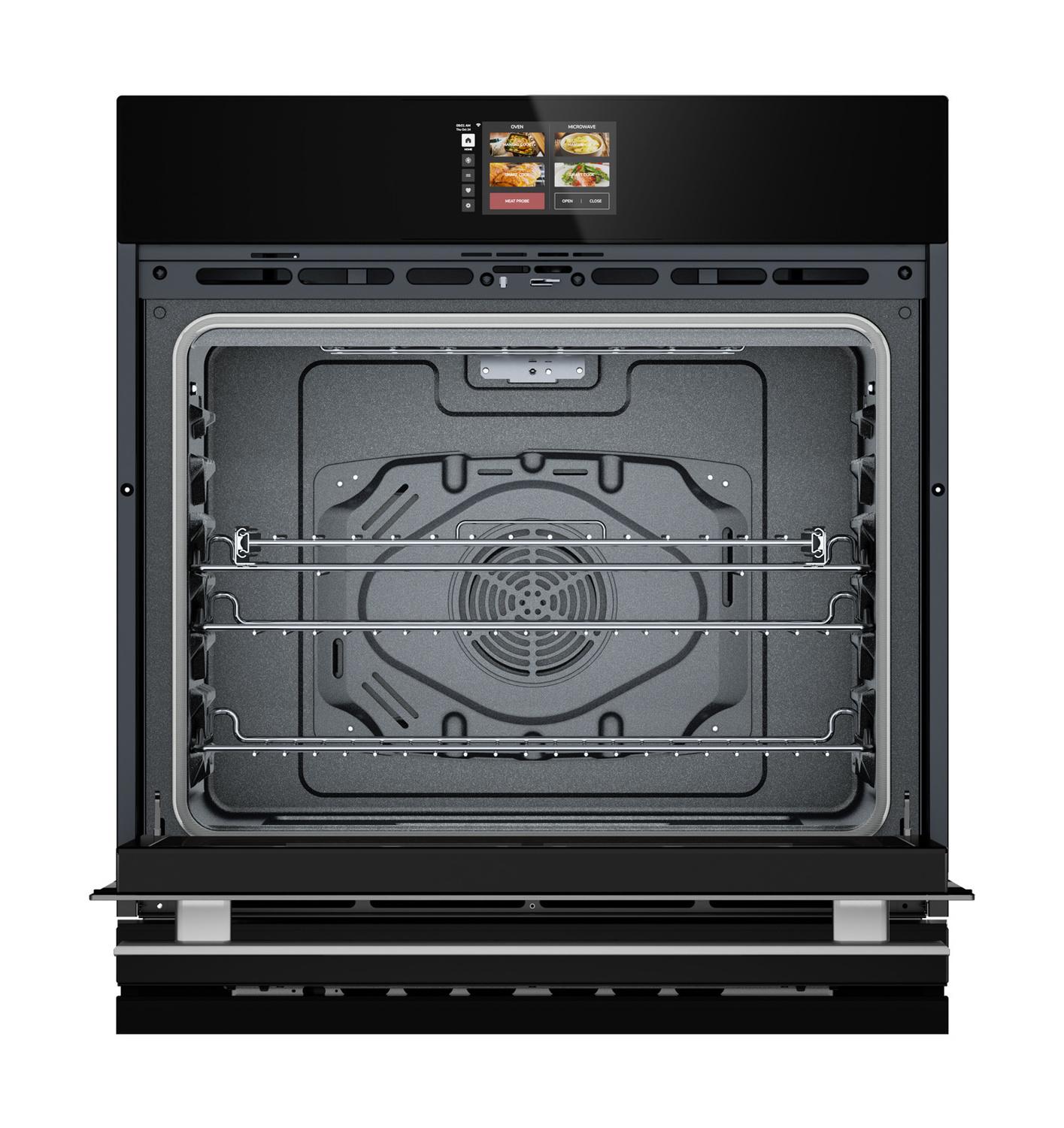

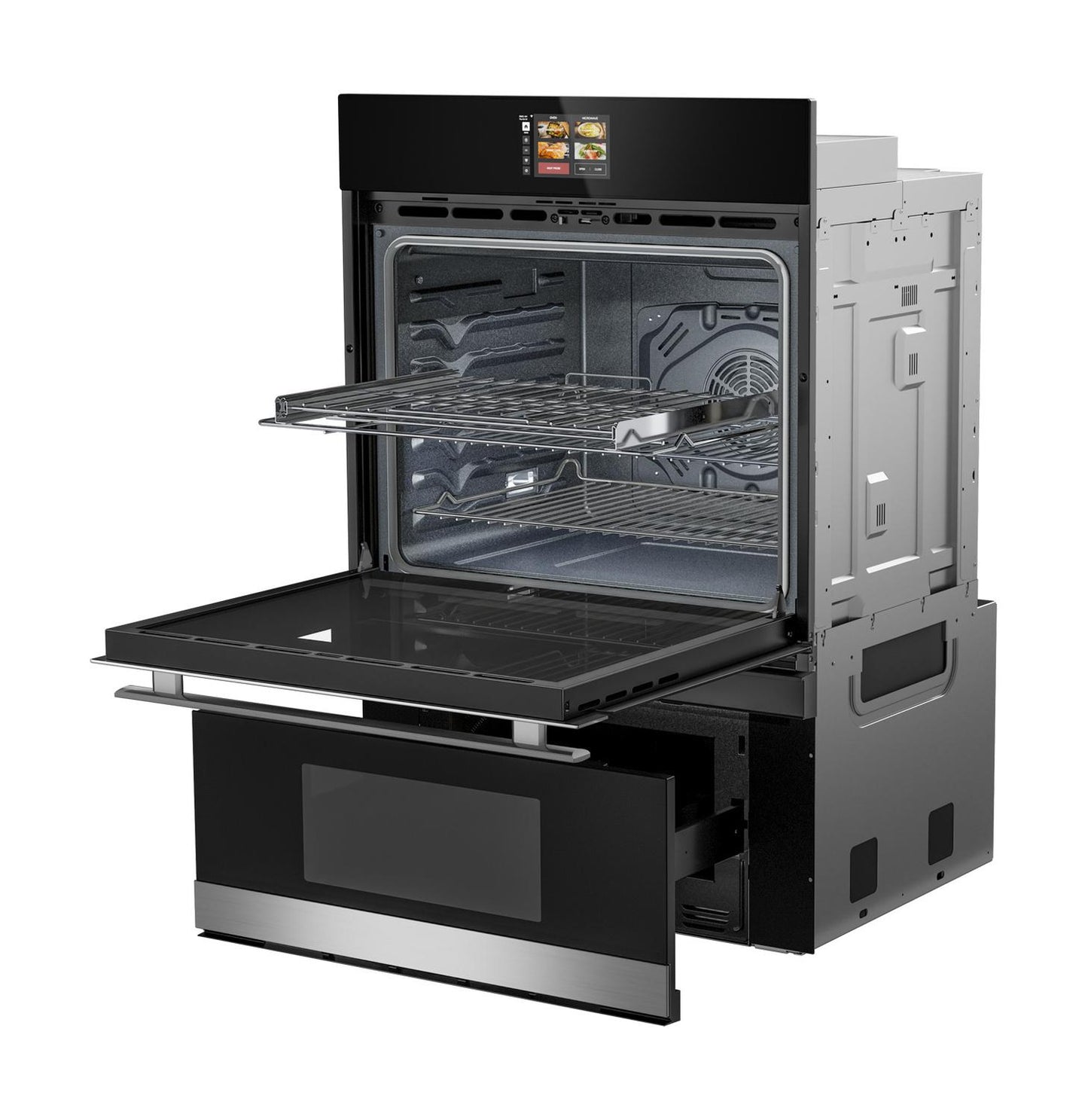

- 5.0 cu. ft. True European Convection Wall Oven and Soft-Close Door

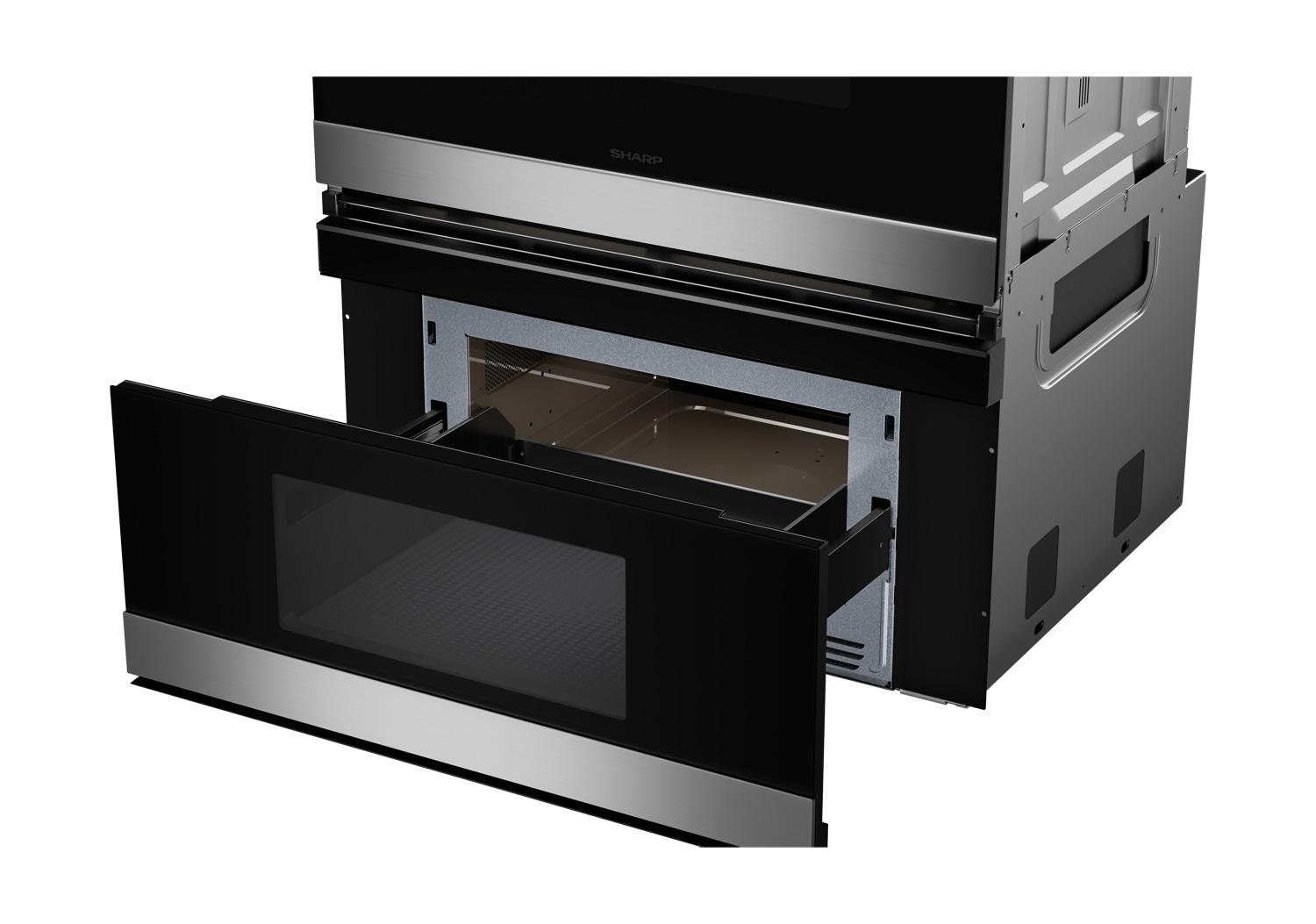

- 1.2 cu. ft. Microwave Drawer™ Oven with Automatic Drawer System
- Extended Warranty
Enjoy the best of both worlds with the Sharp dynamic duo of luxury. The SWB3085HS combines our Easy-Wave Open, Smart Microwave Drawer oven with our True European Convection Wall Oven with Soft-Close into one beautiful, modern, and convenient cooking center for your home.

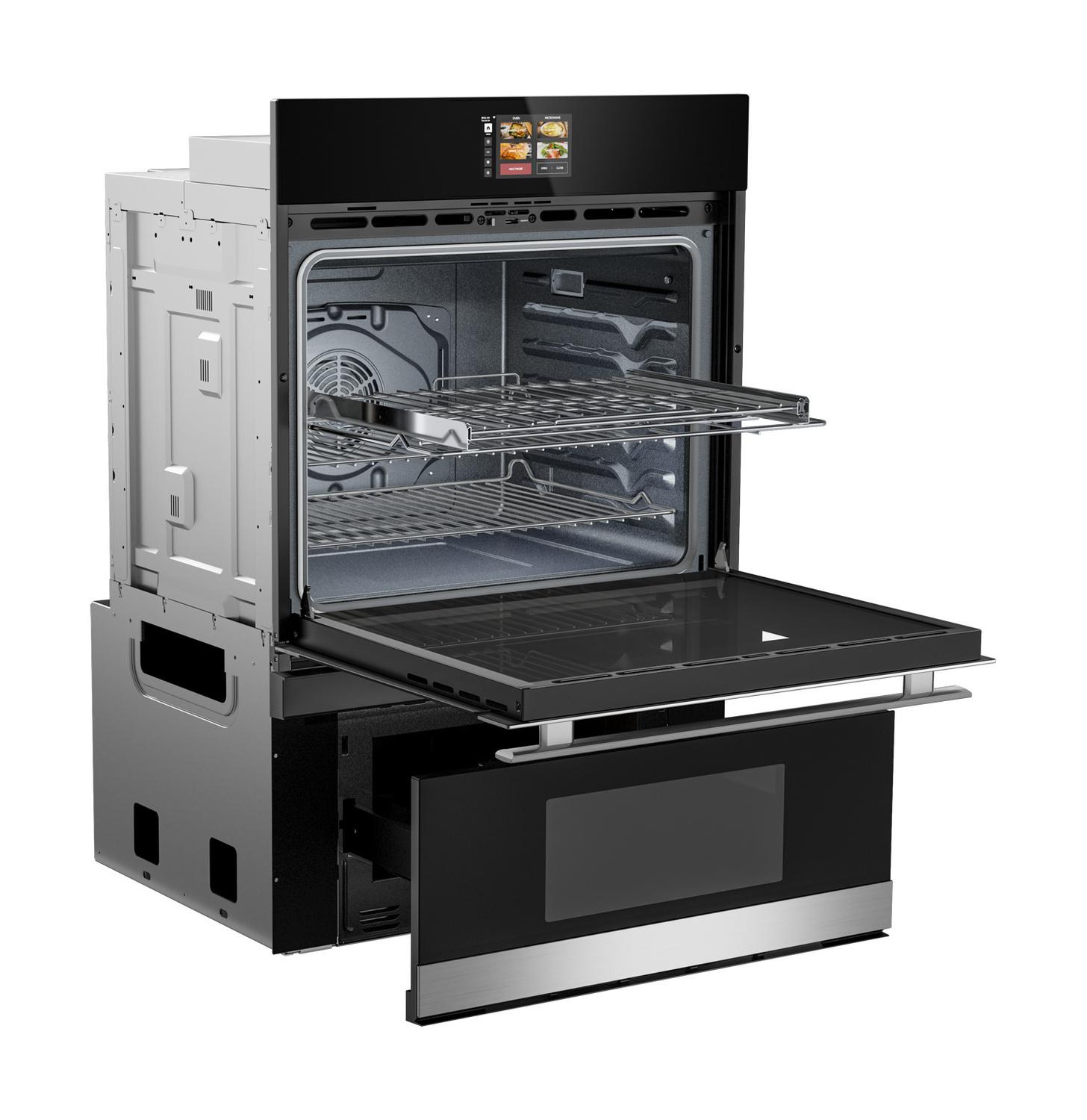

This innovative combination appliance was designed with convenience and comfort in mind. Ergonomically designed for your modern home, the SWB3085HS is a perfectly aligned Wall Oven at counter height and Microwave Drawer Oven with below the counter access. Using a single cutout and electrical connection, the seamless design of the SWB3085HS is a sleek and elegant addition to any home.

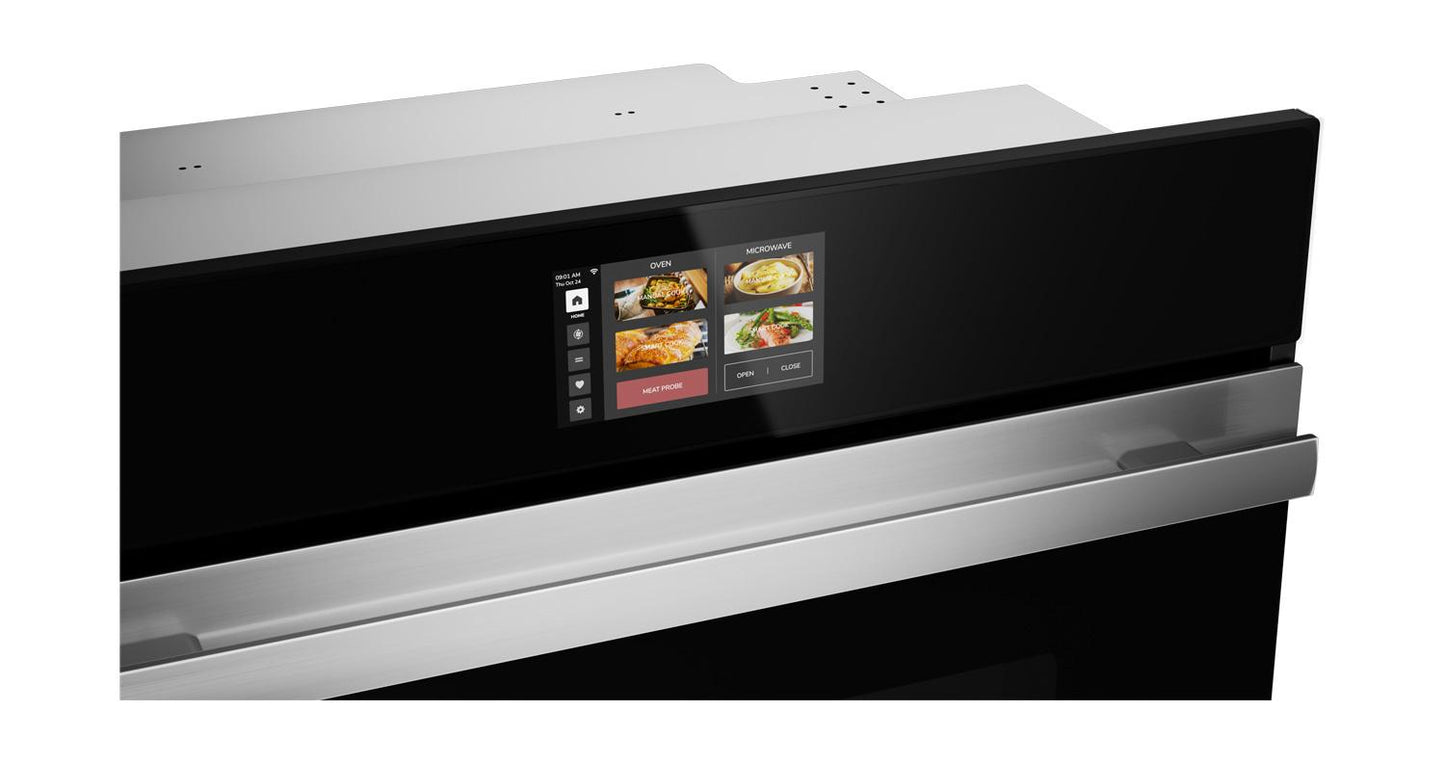

The SWB3085HS shares a single, simple-to-use, full-color touch screen control panel. It also Works with Alexa for Hands-Free Cooking with Over 150 Alexa Voice Commands. Get cooking more quickly with the Sharp Smart Cook feature where you can choose from some of the most popular foods and recipes. You even have the ability to save up to 30 of your favorite menu items and cook times for easier access.
Continue to learn more about the elements of this innovative combination kitchen appliance from Sharp!
WALL OVEN SPECIFICATIONS | |
CONFIGURATION | |
Finish | Stainless Steel, Edge-to-Edge Black Glass |
Width | 30 |
Capacity (cu. ft.) | 5.0 cu. ft. |
Standard Rack | 2 Chrome |
Glide Rack | 1 Chrome |
Door Type | Soft-Close Door |
Embossed / Ladder Rack Mounting | Embossed |
Rack Positions | 6 |
Interior Oven Finish | Gray Porcelain |
Interior Lights | Halogen |
COOKING FEATURES | |
Meat Temperature Probe | Yes |
Standard Thermal | Yes |
Thermal Bake | Yes, Hidden Bake, 6 pass, 2200W |
Thermal Grill | Yes 8 pass, 3600W |
True European Convection | Yes, 2500W |
Convection Bake | Yes |
Convection Roast | Yes |
Convection Grill | Yes |
Air Fry | Yes |
Warm | Yes |
Preset Smart Cook | Yes, 45 Menu Items |
CONTROL PANEL | |
Control Location | Top Front |
Display Type & Style | TFT Display, 7 |
Display Font and Background | Full Color |
FEATURES | |
Time Cook | Yes |
Delay Cook | Yes |
Sabbath Mode | Yes |
Display Instructions | Yes |
12 Hour Shut Down | Yes |
Oven Self-Clean | Yes |
Oven Light - On / Off | Yes |
Oven ON Indicator | Yes |
Temperature | Fahrenheit / Celsius |
Removable Door | Yes |
Auto Convection Conversion | Yes |
SETTINGS | |
Kitchen Timer | Yes |
Control Lock | Yes |
Standby Mode | Yes, Auto Display Off / Simply Standby / Dynamic Standby |
Screen Brightness Adjustment | Yes |
Date & Time | Yes, 12 / 24 Hour Clock |
Demo Mode | Yes |
Audible Signal On / Off | Yes |
End of Cooking Reminder On / Off | Yes |
Tone Sound Selection | Yes, 2 |
MICROWAVE DRAWER™ OVEN SPECIFICATIONS | |
FEATURES | |
Finish | Stainless Steel, Black Glass |
Drawer Opening | |
Width | 30 |
Capacity | 1.2 cu. ft. |
Microwave Output Power | 950W |
Interior Oven Finish | Gray |
Interior Light | LED |
Open / Close | Yes |
Start / +30 Sec | Yes |
Stop / Clear | Yes |
Power Levels | 11 |
Microwave ON Indicator | Yes |
COOKING / MENU PRESETS | |
Popcorn | Sensor |
Reheat | Sensor |
Defrost Settings | Ground Meat, Steaks/Chops, Boneless Poultry, Bone-in Poultry, Roast, Casserole or Soup |
Sensor Cook | Baked Potatoes, Sweet Potatoes, Fish/Seafood, Brown Rice, White Rice, Quick Fresh Vegetables, Longer Fresh Vegetables, Steamer Bags, Frozen Vegetables, Ground Meat, Frozen Entrées |
Melt, Soft & Warm Options | Butter, Chocolate, Ice Cream, Cream Cheese, Syrup, Dessert Topping |
Other Menus | Beverage Reheat, Hot Water, Hot Cereal |
ADDITIONAL FEATURES | |
Favorites | Yes, 30 Menu Items (15 Upper Oven, 15 Lower Microwave) |
Works with Alexa | Yes, Upper Oven & Lower Microwave |
Bluetooth and Wi-Fi Connectivity | Yes |
Oven Floor | Glass |
ADDITIONAL SPECIFICATIONS | |
Power Source | 240v 60Hz, 40A |
Agency Certification | ETL |
DIMENSIONS & WEIGHT (in. / lbs.) (w x h x d) | |
Product Dimensions | 29-15/16 |
Shipping Dimensions | 33 |
Product Weight / Shipping Weight | 243 lbs. / 297 lbs. |
Standard Mount Cutout Dimensions | 28-11/16 |
WARRANTY / UPC | |
Parts | 1 Year |
Labor | 1 Year |
Magnetron Tube | 4 years (parts only) |
UPC | 074000621695 |
