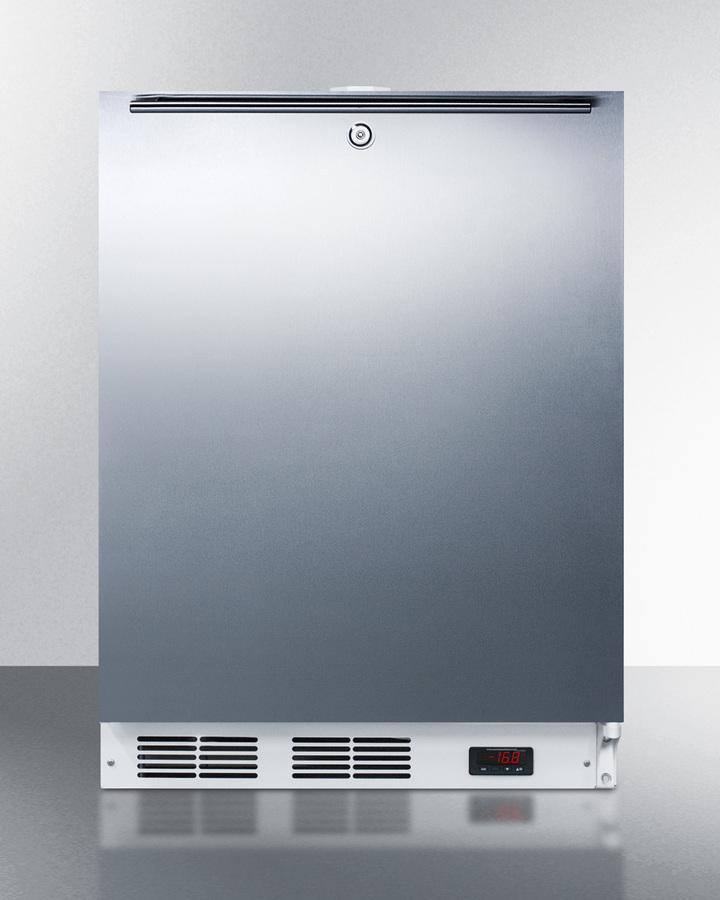

Summit ACF48WSSHHADA 24" Wide Built-in All-freezer, ADA Compliant ACF48WSSHHADA
Summit ACF48WSSHHADA 24" Wide Built-in All-freezer, ADA Compliant
- 32" high to fit under lower ADA compliant counters
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Front-breathing system allows the unit to be used built-in
- Low maintenance design ensures no frost buildup inside the unit
- Electronic controls located in the exterior kickplate for precise temperature management
- User-reversible door swing for added flexibility
- Thin 14mm diameter on stainless steel handle set horizontally across the door
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Includes two slide-out shelves made from durable steel
- Secure three-pronged cord for added unit safety
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Pair with the FF7LBISSHHADA to create a matching set
- Quality design ensures efficiently insulated interior
- Allows the unit to be used freestanding
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- Environmentally friendly design without ozone-damaging chemicals
Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter. At 24" wide and 32" high, the ACF48WSSHHADA is ideally sized for many institutional settings complying with ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The door includes a factory installed keyed lock for added security. This model comes with a white cabinet and reversible stainless steel wrapped door with a horizontally mounted pro handle. It includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas. Full frost-free operation ensures low maintenance operation, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves. Made in the USA, the ACF48WSSHHADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBISSHHADA all-refrigerator.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101051741 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Steel |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.2 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Temperature Range | -5 to 10 F/-20 to -12 C |
