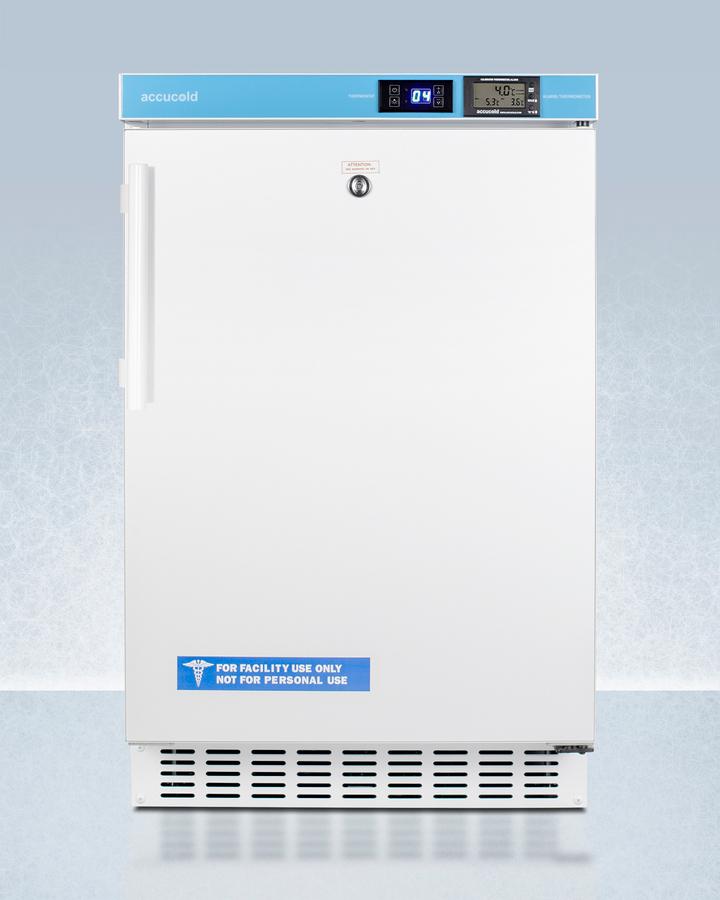

Summit ACR45LCAL 20" Wide Built-in Pharmacy All-refrigerator, ADA Compliant ACR45LCAL

SKU/Model #: ACR45LCAL
Summit ACR45LCAL 20" Wide Built-in Pharmacy All-refrigerator, ADA Compliant
Authorized Reseller
SKU/Model #: ACR45LCAL
Summit ACR45LCAL 20" Wide Built-in Pharmacy All-refrigerator, ADA Compliant
Free Shipping
$1,098.00
List Price:
Instant Savings:
  • Purpose-built to meet the recommendations of the CDC and VFC for reliable vaccine storage
  • Sized just under 32" high to allow installation under lower ADA compliant counters
  • Front-breathing system allows the unit to be installed under cabinets with minimum clearance
  • Full 2.65 cu.ft. capacity inside conveniently slim footprint
  • Audible alarm sounds if the interior temperature rises or falls out of set range
  • Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
  • Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records
  • Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
  • Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
  • Keyed lock conveniently located towards the top of the door for added security (2 keys included)
  • No-frost operation for minimum user maintenance
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Secure three-pronged cord for added unit safety in high traffic areas
  • Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
  • Attractively illuminates the interior in a gentle white hue for easy viewing
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • User-reversible door swing makes it easy to adjust to your setting as needed
  • Quality design ensures efficiently insulated interior
  • Space-saving convenience with easier cleanability
  • Unit will retain its last settings when power is restored in the event of power loss
  • Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
  • Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Side-mounted handle for user convenience (not required to operate the unit)
  • Allows the unit to be used freestanding
  • Pair with the frost-free ACF33LCAL for a matching set
  • Environmentally friendly design with no ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Accucold s Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters. The ACR45LCAL all-refrigerator is sized at just under 32" high. It features a front-breathing design for built-in installation under lower ADA compliant counters, with a fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops. For optimum temperature management, the ACR45L features an external control panel, allowing users to adjust and monitor the temperature without opening the door. A pre-installed NIST certified thermometer is calibrated in our own ISO/IEC 17025:2017 accredited laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC and VFC). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed and a certificate of calibration for your facility's records. Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view. At just under 20" wide, the ACR45LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line. Note: Accucold's Pharmaceutical Series refrigerators have been tested to operate within 2.5 C of the temperature set point and are intended for a wide variety of healthcare storage applications, including vaccines, specimens, pharmaceuticals, and other medical, biological, life science, and industrial materials. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For units with a +/-1 C variation, see Accucold s Performance Series.
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.5" (80 cm)
Nominal Width 20.0" (51 cm)
Width 19.5" (50 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 23.63" (60 cm)
Depth with door at 90° 41.0" (104 cm)
Capacity 2.65 cu.ft. (75 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 79.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076027
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2 to 8 C
Dimensions
Interior Height 21.25" (54 cm)
Interior Width 15.0" (38 cm)
Interior Depth 16.13" (41 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 15.0" (38 cm)
Compressor Step Depth 4.75" (12 cm)
