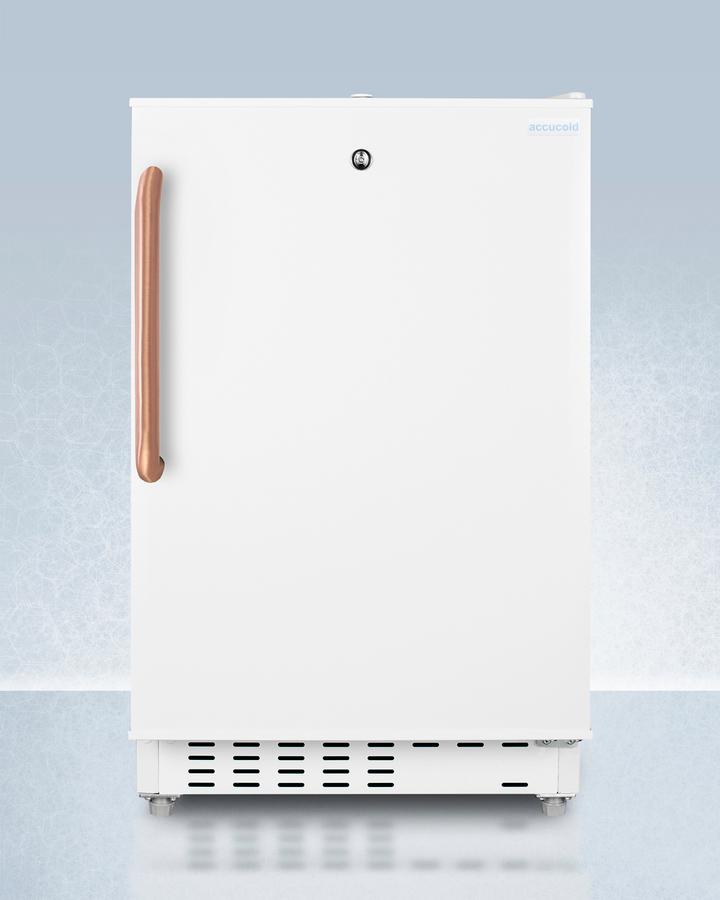

Summit ADA302RFZTBC 20" Wide Built-in Refrigerator-freezer, ADA Compliant ADA302RFZTBC
Summit ADA302RFZTBC 20" Wide Built-in Refrigerator-freezer, ADA Compliant
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Three removable door racks for additional storage of bottles and other taller items
- Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
- Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies
- Static cooling system for added efficiency
- Dial thermostat located inside for easy temperature management
- Removable clear crisper drawer
- Space-saving design that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Front-located LED light ensures entire interior is lit when door opens
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZTBC is a refrigerator-freezer designed for use in settings complying with ADA guidelines. The ADA302RFZTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The door is 3" thick to ensure proper insulation and unit efficiency. This unit comes with a right angle cord to allow for added placement options without added depth. The ADA302RFZTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience. Inside, the ADA302RFZTBC features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing. With its compact size and convenient features, the ADA302RFZTBC is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer. Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
Overview | |
Height of Cabinet | 31.75" (81 cm) |
Height to Hinge Cap | 32.0" (81 cm) |
Width | 19.75" (50 cm) |
Width with Door Open | 20.25" (51 cm) |
Depth | 22.5" (57 cm) |
Depth with Handle | 25.0" (64 cm) |
Depth with door at 90° | 40.25" (102 cm) |
Capacity | 2.68 cu.ft. (76 L) |
Defrost Type | Manual |
Door | White |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 259.0kWh/year |
Amps | 1.1 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 65.0 lbs. (29 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101076898 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 17.5" (44 cm) |
Refrigerator - Interior Width | 16.25" (41 cm) |
Refrigerator - Interior Depth | 17.0" (43 cm) |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 3 |
Refrigerator - Full Door Shelves | 3 |
Refrigerator - Temperature Range | 35-46 F |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 0.92 oz. |
Freezer - Interior Height | 5.75" (15 cm) |
Freezer - Interior Width | 16.25" (41 cm) |
Freezer - Interior Depth | 11.25" (29 cm) |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 2 |
Compressor Step Height | 6.25" (16 cm) |
Compressor Step Width | 16.25" (41 cm) |
Compressor Step Depth | 6.0" (15 cm) |
