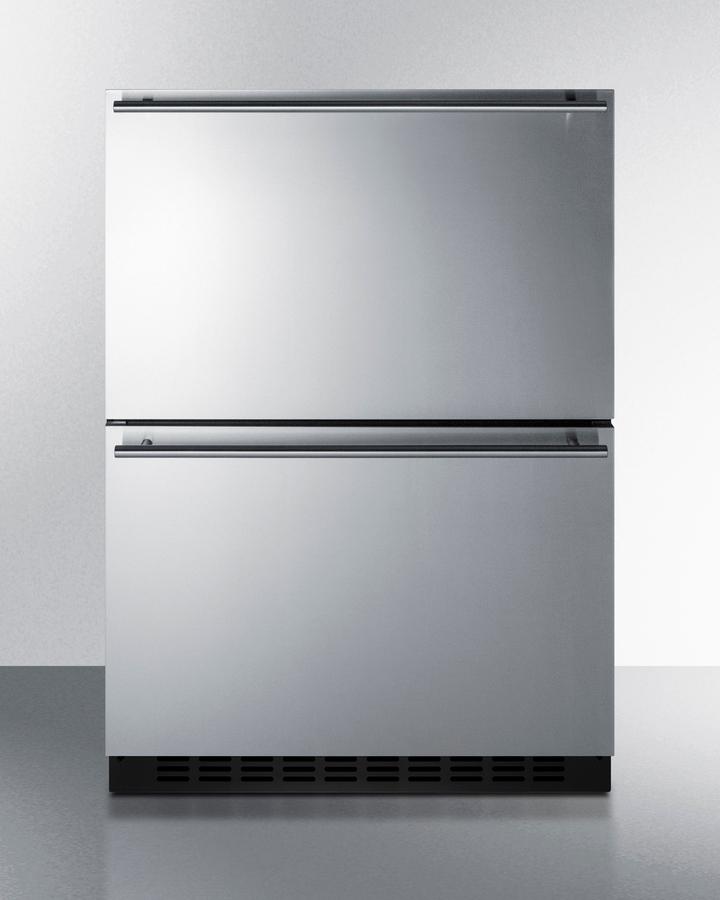

Summit ADRF244 24" Wide 2-drawer Refrigerator-freezer, ADA Compliant ADRF244

Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADRF244 is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The fully finished black cabinet and stainless steel drawer fronts feature weatherproof construction for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADRF244 has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRF244 is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless options for ADA compliant undercounter spaces.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.88" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	23.88" (61 cm)
Depth with door at 90°	34.25" (87 cm)
Capacity	3.32 cu.ft. (94 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	370.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079578
Refrigerator-Freezer
Door Swing	Drawer
Interior Light	Yes
Refrigerator - Interior Height	8.0" (20 cm)
Refrigerator - Interior Width	17.0" (43 cm)
Refrigerator - Interior Depth	14.5" (37 cm)
Refrigerator - Temperature Range	36°F to 43°F
Freezer - Interior Height	8.0" (20 cm)
Freezer - Interior Width	17.0" (43 cm)
Freezer - Interior Depth	14.5" (37 cm)
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.38 oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs	4
Freezer - Temperature Range	-11°F to 11°F
Compressor Step Height	4.0" (10 cm)
Compressor Step Width	17.0" (43 cm)
Compressor Step Depth	3.5" (9 cm)
Sabbath Mode	Yes
Sound Level	34.6 dB
