Summit AFS23MLLH 23 CU.FT. Upright Pharmacy Freezer AFS23MLLH

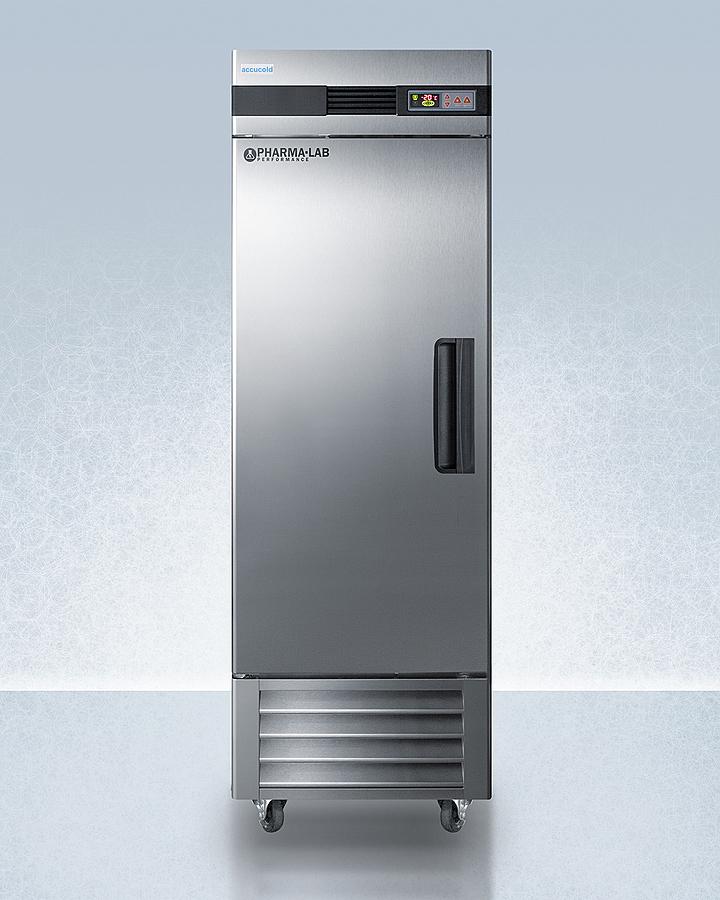

Summit AFS23MLLH 23 CU.FT. Upright Pharmacy Freezer
- Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
- Interior is pre-set to -25 C, with an adjustable control range from -30 to -15 C
- Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
- Top-mounted commercial fan ensures rapid temperature recovery
- Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Closes to save energy but will remain open when the door is opened at a 90 angle for easier loading
- Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
- Ships with a set of casters (2 locking) for easy mobility as needed
- Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Control panel provides a readout of the low and high temperatures in 15 minute increments
- Keyed lock conveniently located towards the top of the door for added security (2 keys included)
- Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
- Energy efficient LED lighting with internal on/off switch
- 23 cubic feet of storage space inside
- In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
- Quality door gaskets ensure a tight seal for energy savings and improved performance
- Space-saving design that ensures easier cleanup
- 2 years parts and labor/5 years compressor
- Commercial construction meeting UL commercial listing standards
- For the same unit with the door opening from the other side, see the AFS23ML
- Pair with ARS23ML for a matching set in stainless steel
- Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications. The AFS23ML is a 23 cu.ft. all-freezer with an adjustable control range from -30 to -15 C. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder. Inside, the AFS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display. The AFS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90 for easier loading. This unit has a left hand door swing. For the same model with the door opening from the other side, see the AFS23ML. Designed with hydrocarbon refrigerant, the AFS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS23ML. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
| Overview | |
| Nominal Height | 84.0" (213 cm) |
| Height of Cabinet | 83.75" (213 cm) |
| Nominal Width | 28.0" (71 cm) |
| Width | 27.5" (70 cm) |
| Nominal Depth | 31.0" (79 cm) |
| Depth | 31.0" (79 cm) |
| Depth with Handle | 32.75" (83 cm) |
| Depth with door at 90° | 56.5" (144 cm) |
| Capacity | 23.0 cu.ft. (651 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 8.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 273.0 lbs. (124 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101066738 |
| Freezer | |
| Door Swing | LHD |
| Reversible | No |
| Interior Height | 51.5" (131 cm) |
| Interior Width | 23.5" (60 cm) |
| Interior Depth | 27.0" (69 cm) |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R290 |
| Refrigerant Amount | 3.5 oz. |
| Wheels | 4 |
| Temperature Range | -30 to -15 C |
| Sound Level | 39 dB |
