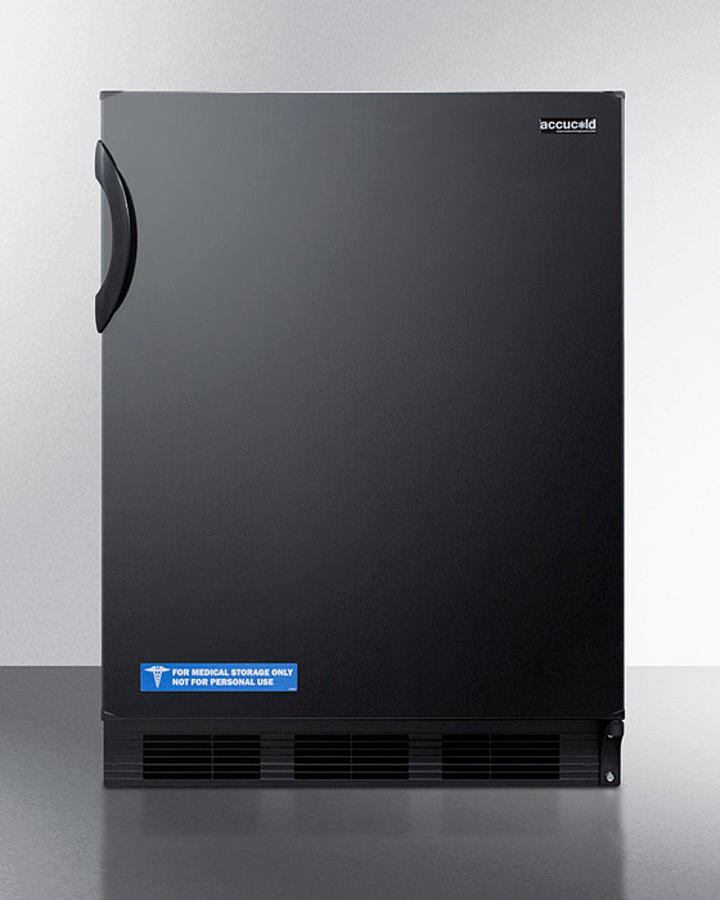

Summit AL652BK 24" Wide Refrigerator-freezer, ADA Compliant AL652BK
Summit AL652BK 24" Wide Refrigerator-freezer, ADA Compliant
- 32" height for use in settings complying with ADA guidelines for lower counter height
- Allows the unit to be used freestanding
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Dial thermostat located inside for easy temperature management
- Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Store tall bottles and condiments right on the door for convenient access
- Automatically illuminates when you open the door
- User-reversible door swing for added flexibility
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The AL650 Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines. At 32" high, the AL652BK is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a black exterior finish and a user-reversible door swing. Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable glass shelves, a clear crisper, and automatic interior lighting. The AL652BK has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650 Series. For built-in undercounter applications, see the CT663BKBIADA. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
Overview | |
Nominal Height | 32.0" (81 cm) |
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.63" (60 cm) |
Nominal Depth | 24.0" (61 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 24.5" (62 cm) |
Depth with door at 90° | 45.38" (115 cm) |
Capacity | 5.1 cu.ft. (144 L) |
Defrost Type | Cycle |
Door | Black |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.2 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101068244 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Yes |
Adjustable Shelves | Yes |
Crisper Qty | 1 |
Crisper Finish | Transparent |
Crisper Cover | Glass |
Interior Light | Yes |
Refrigerator - Interior Height | 19.5" (50 cm) |
Refrigerator - Interior Width | 20.5" (52 cm) |
Refrigerator - Interior Depth | 17.0" (43 cm) |
Refrigerator - Shelf Type | Glass |
Refrigerator - Shelf Qty | 3 |
Refrigerator - Full Door Shelves | 3 |
Freezer - Interior Height | 5.0" (13 cm) |
Freezer - Interior Width | 19.0" (48 cm) |
Freezer - Interior Depth | 11.5" (29 cm) |
Thermostat Type | Dial |
Refrigerant Type | R600a |
Refrigerant Amount | 0.92 oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Level Legs | 2 |
Compressor Step Height | 7.0" (18 cm) |
Compressor Step Width | 20.5" (52 cm) |
Compressor Step Depth | 5.0" (13 cm) |
