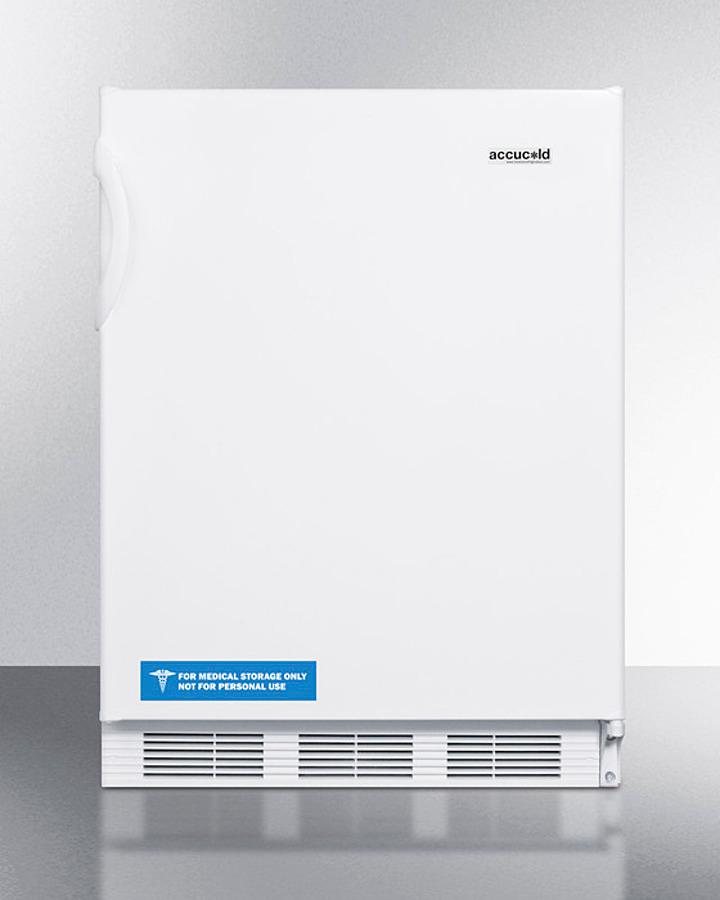

Summit AL750WBI 24" Wide Built-in All-refrigerator, ADA Compliant AL750WBI
Summit AL750WBI 24" Wide Built-in All-refrigerator, ADA Compliant
- 32 inch height fits under standard ADA counters
- Less than 24 inches wide with a full 5.5 c.f. capacity
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Allows the unit to be used freestanding
- User-reversible door swing for added flexibility
- Reduced user maintenance with automatic defrost operation
- Cold wall design with hidden evaporator and seamless interior
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- An easy-to-clean flat liner accepts large trays
- Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Dial thermostat located inside for easy temperature management
- Environmentally friendly design without ozone-damaging chemicals
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters. The AL750WBI is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white exterior and user-reversible door swing. Inside, the AL750WBI utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial. For more finish options, browse the entire AL750BI Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101071763 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
