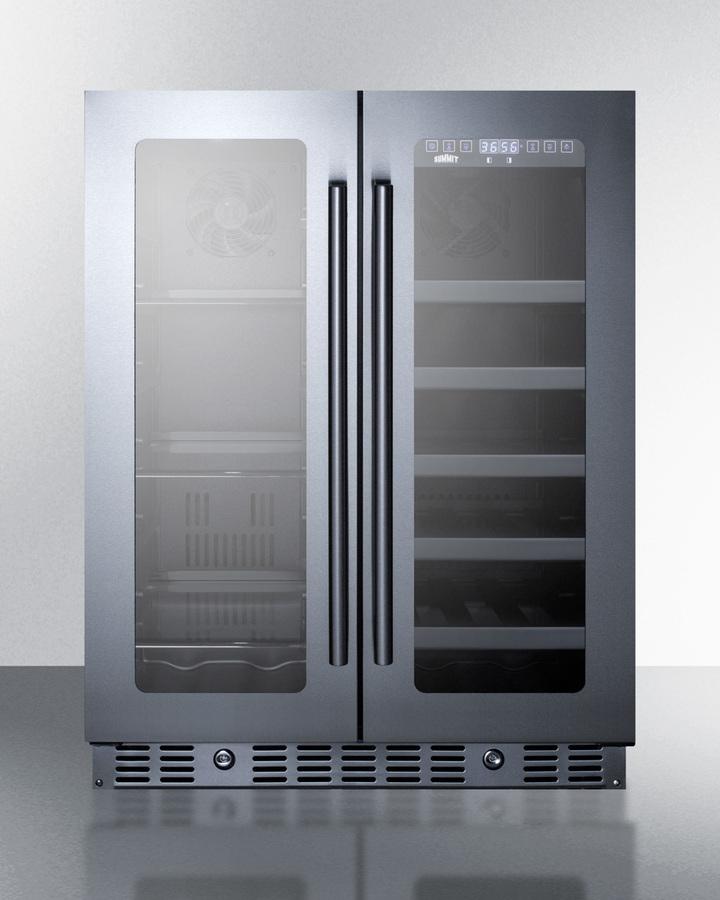

Summit ALFD24WBV 24" Built-in Wine/beverage Center, ADA Compliant ALFD24WBV
Summit ALFD24WBV 24" Built-in Wine/beverage Center, ADA Compliant
- Sized at just 32" high for installation under lower ADA compliant counters
- Make the best use of space by installing your appliance under the counter
- Leveling legs can raise the unit to up to 33.5" for more standardized counters
- Glass is framed by seamless 304 grade stainless steel
- Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
- Independent zones let you store beverages in the left compartment and wine in the right
- Each door includes a keyed lock for optional security
- Wine zone includes size adjustable wooden shelves in a modern jet black finish
- Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
- Attractive and energy efficient LED lighting offers an elegant presentation
- Reduced user maintenance with automatic defrost operation
- Internal fans ensure both interiors are evenly cooled from top to bottom
- Two side-by-side doors with French door opening
- Completes the professional look down to the toe kick
- Audibly alerts if the interior temperature rises out of the recommended wine storage range
- Audible alarm will sound if the doors are left ajar for over 60 seconds
- Allows you to disable certain electrical functions for up to 48 hours for periods of observance
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space saving design with easier cleanability
- Door hinge adds no additional height, making it easier to install under a counter
- Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
- Allows the unit to be used freestanding
- Environmentally friendly design does not contain ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design. Sized with a convenient 24" footprint, the ALFD24WBV is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The ALFD24WBV features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43 F temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72 F. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance. With its unique design and advanced features, the ALFD24WBV offers versatile storage for any undercounter space. Additional ADA compliant choices are available in Summit's line. Browse our website for more information.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 33.0" (84 cm) |
| Capacity | 4.6 cu.ft. (130 L) |
| Bottles | 21 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101058580 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | French |
| Reversible | No |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Glass and Wood |
| Shelf Qty | 8 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.38" (64 cm) |
| Interior Width 1 | 8.38" (21 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 8.38" (21 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | Beverage zone: 36 to 43°F; Wine zone: 41 to 72 F |
| Interior Height 2 | 25.38" (64 cm) |
| Interior Width 2 | 8.38" (21 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
