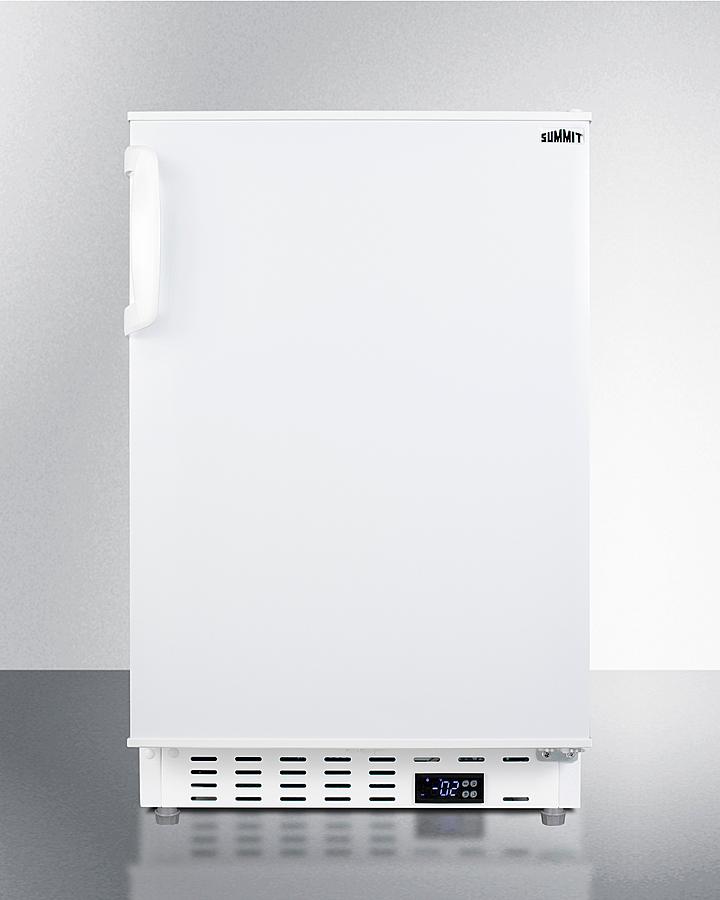

Summit ALFZ36 20" Wide Built-in All-freezer, ADA Compliant ALFZ36

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ36 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ36 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 20" wide, the ALFZ36 is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46W all-refrigerator. Additional choices are available in stainless steel and panel-ready exterior finishes.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Nominal Width	20.0" (51 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.68 cu.ft. (76 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	266.0kWh/year
Amps	0.6
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063041
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	23.75" (60 cm)
Interior Width	14.5" (37 cm)
Interior Depth	17.0" (43 cm)
Shelf Type	Wire
Shelf Qty	3
Full Door Shelves	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.83 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Wheels	2
Compressor Step Height	5.75" (15 cm)
Compressor Step Width	14.5" (37 cm)
Compressor Step Depth	6.0" (15 cm)
Temperature Range	-13 to 5 F
Sound Level	33.1 dB
