Summit ARG3PVADA305AFSTACK 20" Wide Vaccine Refrigerator/freezer Combination ARG3PVADA305AFSTACK

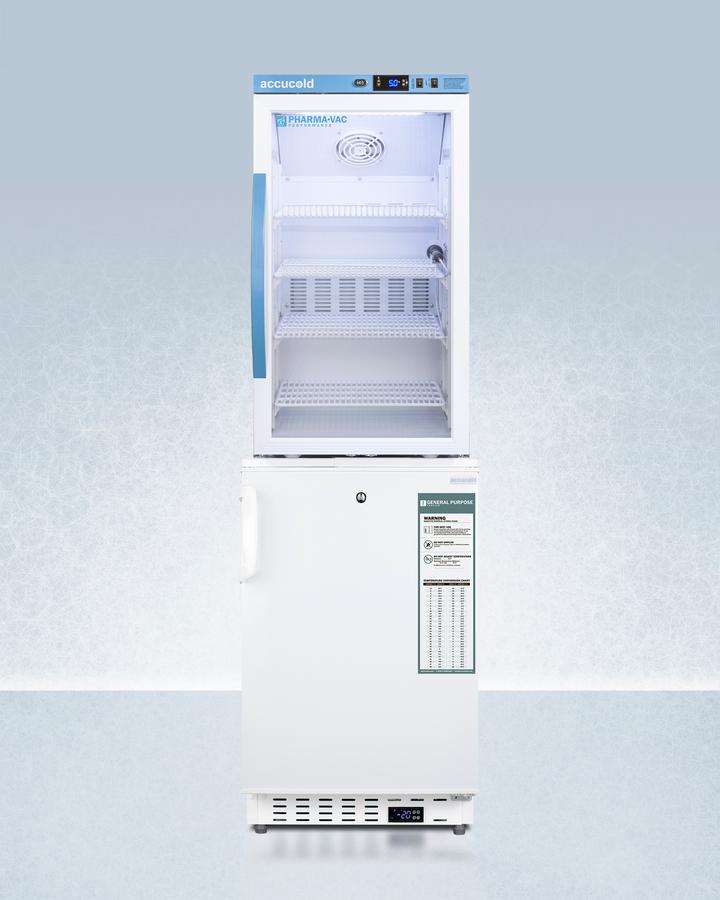

Summit ARG3PVADA305AFSTACK 20" Wide Vaccine Refrigerator/freezer Combination
- Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
- Unit ships in three boxes for customer to install the StackRack on the bottom freezer and place and secure the refrigerator on top
- The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Intuitive controls let you adjust the interior temperature between +2 to +8 C (refrigerator) and -25 to -15 C (freezer)
- Powder-coated handle with naturally occurring silver ions to help reduce germ spread
- Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Static cooling system for reduced temperature fluctuations
- Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
- Alarm will sound if the door is left ajar for over 4 minutes (refrigerator) or 1 minute (freezer)
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Interior design of both units conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Provides a full display of stored contents
- Battery-powered alarm sounds if the power connection is interrupted
- Audible and visual alarm warns if the sensor is disrupted
- Control panel requires password entry to adjust the parameters beyond the set point
- Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Control panel provides a readout of the low and high temperatures in 15 minute increments
- Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
- Designed to accommodate a variety of sizes for flexible storage
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Refrigerator & freezer have pre-installed hospital grade cords with 'green dot' plugs for added safety in high traffic areas
- Energy efficient LED lighting with internal on/off switch
- Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
- Temperature remains more stable with a static cooling system
- Space-saving design that offers easier cleanability
- Quality door gaskets ensure a tight seal for energy savings and improved performance of each unit
- 2 years parts and labor/5 years compressor
- Using environmentally friendly hydrocarbons refrigerants for a greener footprint
- Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
- Compatible with Pyxis®, Omnicell®, and AcuDose RX®
- Environmentally friendly design without ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines. Sized at just 20" wide, the ARG3PV-ADA305AFSTACK combines the 3 cu. ft. ARG3PV auto defrost vaccine refrigerator with ADA305AF 2.47 cu. ft. manual defrost vaccine freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. Refrigerator ARG3PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8 C. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. Inside, the ARG3PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the ADA305AF, a -25 C vaccine freezer that utilizes manual defrost operation. The freezer has 3" thick door for efficient insulation, and a flat door liner, as recommended by the CDC, to ensure users don't store sensitive materials on the door. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit is also equipped with high/low temperature and open door alarms, as well as an access port to accept additional monitoring equipment. Both units include front-mounted keyed locks, powerful magnetic gaskets to ensure a positive seal, and hospital grade cords with 'green dot' plugs for added safety in high traffic areas. The refrigerator has a self-closing door. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
Overview | |
Height of Cabinet | 66.0" (168 cm) |
Width | 19.75" (50 cm) |
Width with Door Open | 20.25" (51 cm) |
Depth | 22.5" (57 cm) |
Depth with Handle | 24.38" (62 cm) |
Depth with door at 90° | 40.0" (102 cm) |
Capacity | 5.47 cu.ft. (155 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.7 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 151.0 lbs. (68 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101078625 |
Refrigerator-Freezer | |
Door Swing | RHD |
Reversible | Factory Reversible |
Adjustable Shelves | Yes |
Interior Drawers | Yes |
Drawer Qty | 3 |
Interior Light | Yes |
Refrigerator - Interior Height | 28.38" (72 cm) |
Refrigerator - Interior Width | 15.25" (39 cm) |
Refrigerator - Interior Depth | 11.75" (30 cm) |
Refrigerator - Capacity | 3.0 cu.ft |
Refrigerator - Shelf Type | Wire |
Refrigerator - Shelf Qty | 4 |
Refrigerator - Temperature Range | 2 to 8°C |
Refrigerator - Refrigerant Type | R600a |
Refrigerator - Refrigerant Amount | 1.06 oz. |
Freezer - Interior Height | 23.75" (60 cm) |
Freezer - Interior Width | 14.5" (37 cm) |
Freezer - Interior Depth | 17.0" (43 cm) |
Freezer - Capacity | 2.47 cu.ft |
Freezer - Shelf Type | Drawers |
Freezer - Shelf Qty | 3 |
Thermostat Type | Digital |
Fan Type | Interior |
Level Legs | 2 |
Freezer - Temperature Range | -25° to -15°C |
Freezer - Refrigerant Type | R600a |
Freezer - Refrigerant Amount | 1.34 oz. |
