Summit ARS32PVBIADAAFZ2PVBIADASTACKLHD 20" Wide Performance Series All-refrigerator/all-freezer Combination ARS32PVBIADAAFZ2PVBIADASTACKLHD

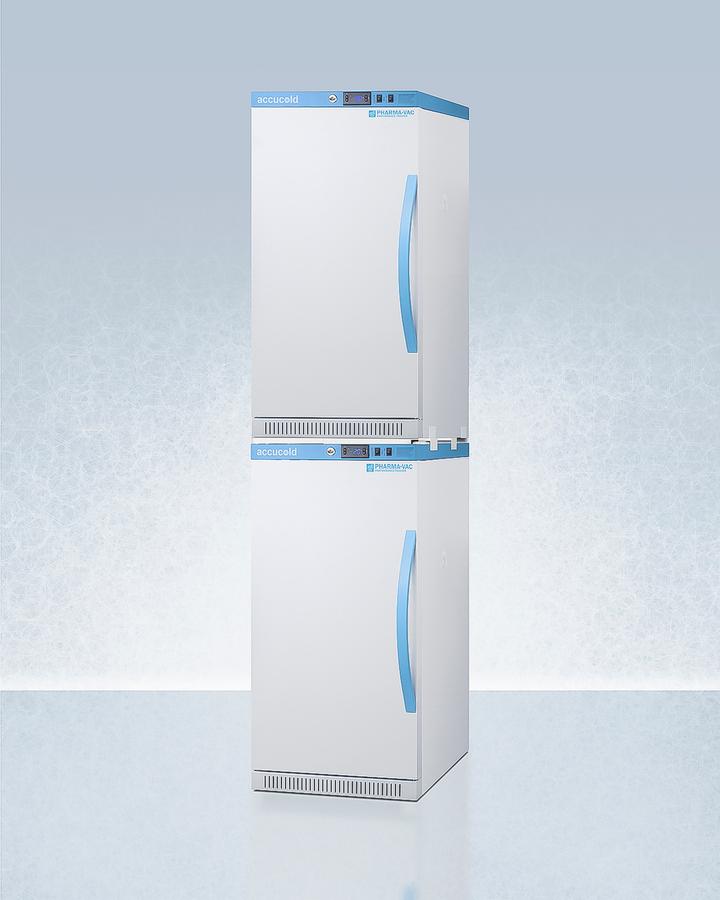

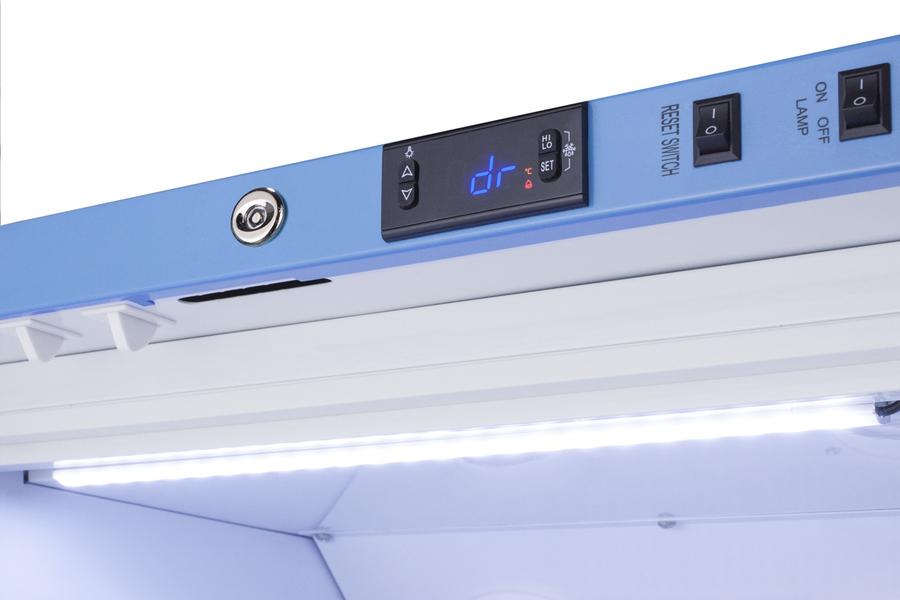

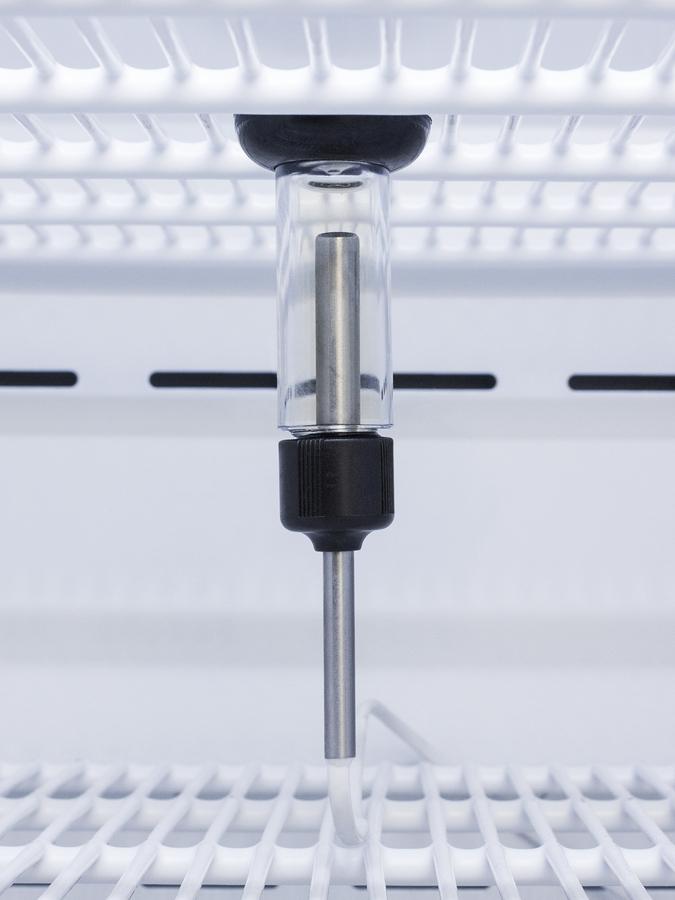

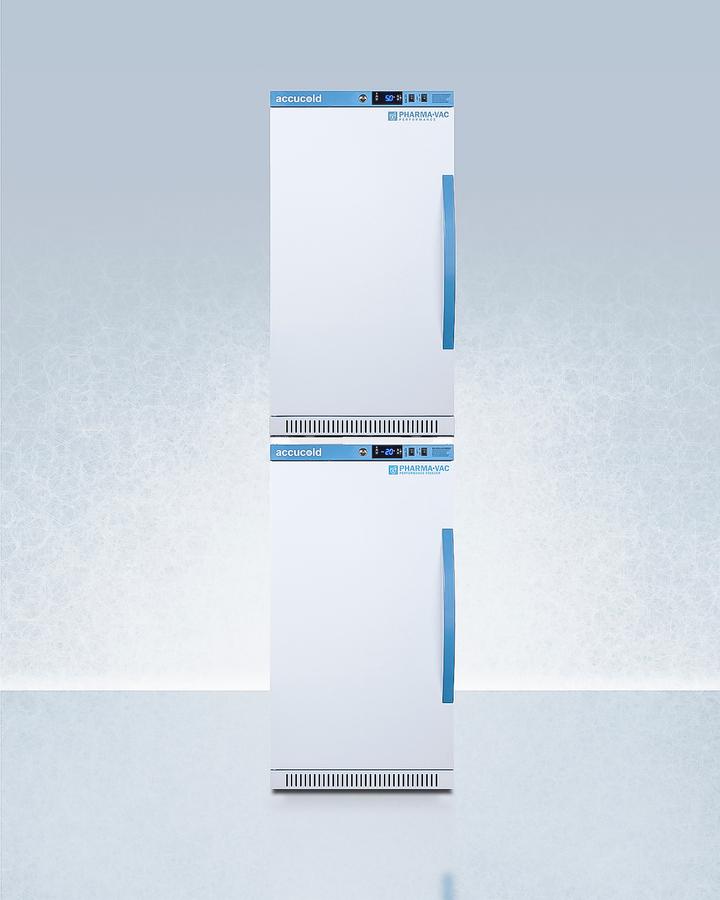

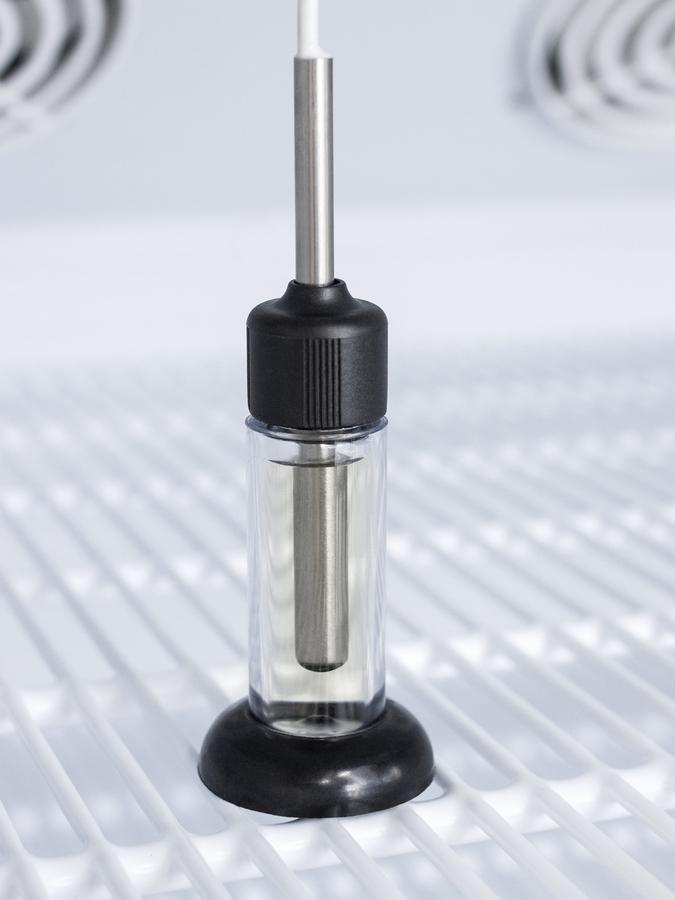

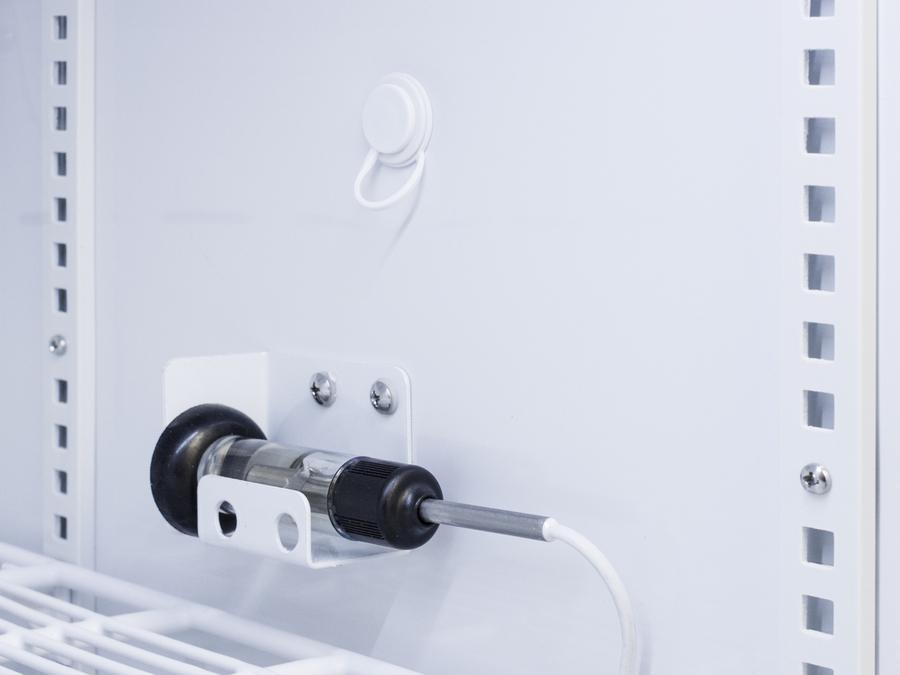

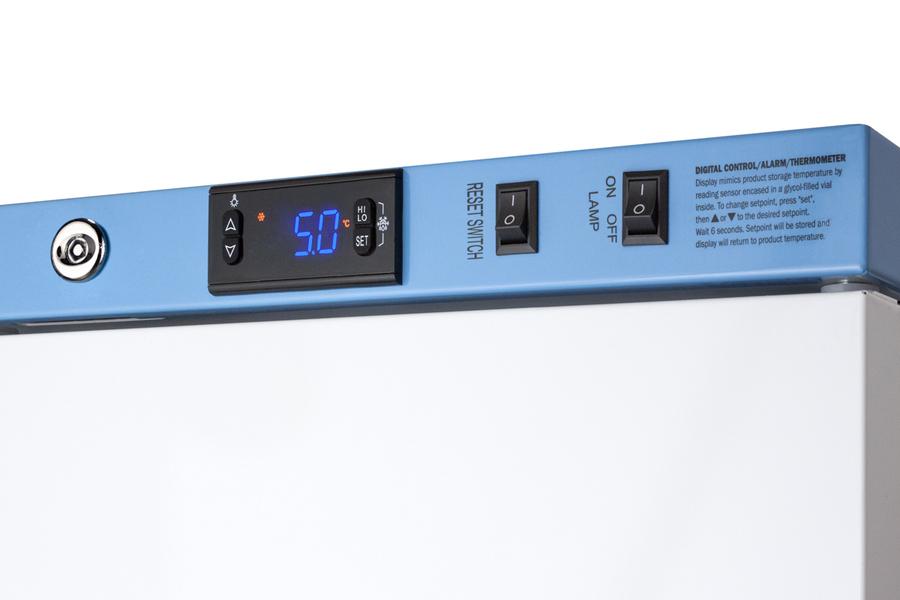

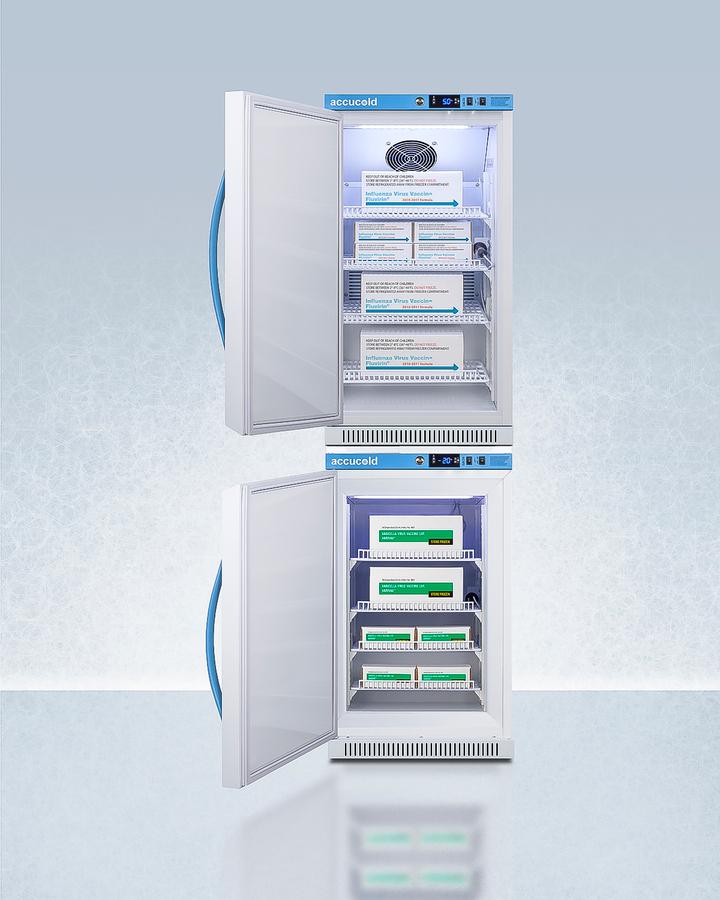

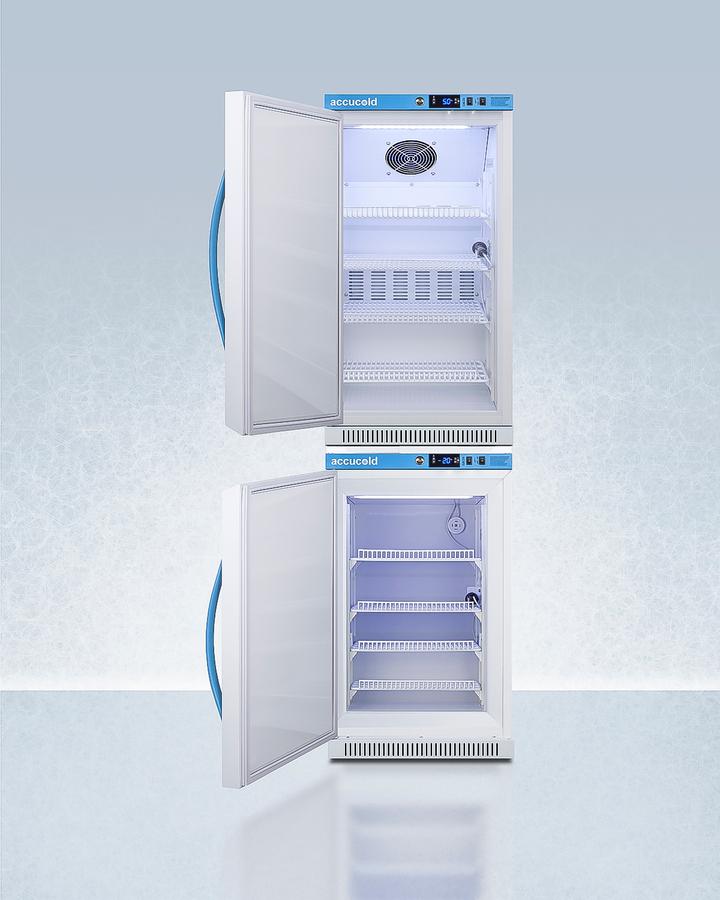

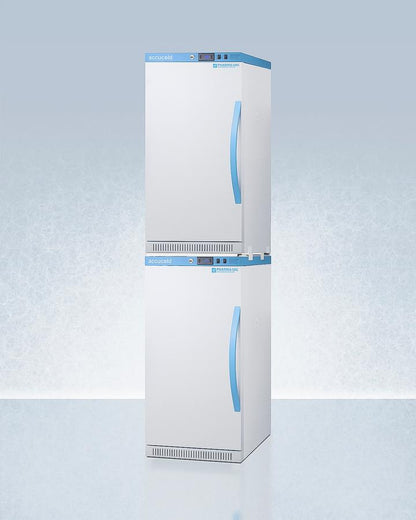

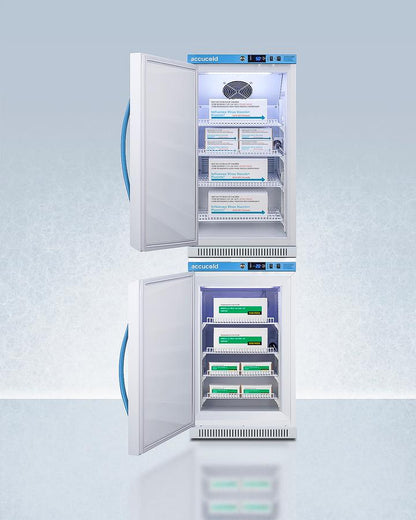

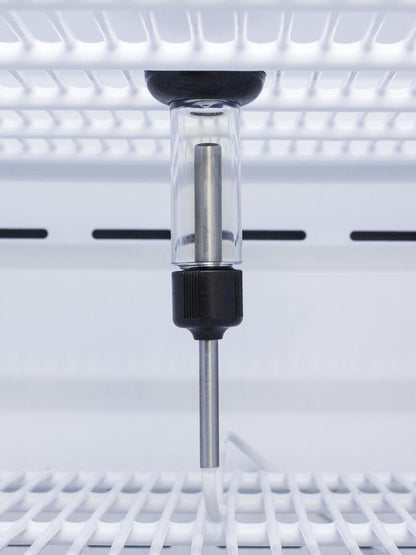

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC guidelines. Sized just under 20" wide, the ARS32PVBIADA-AFZ2PVBIADASTACK combines the 2.83 cu.ft. ARS32PVBIADALHD auto defrost all-refrigerator with AFZ5PVBIADALHD all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. Both units come with a left hand door swing. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8 C; freezer range: -30 to -10 C). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units' interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARS32PVBIADA refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the AFZ2PVBIADA, our Performance Series 2.47 cu.ft. all-freezer that utilizes static manual defrost operation. The freezer includes four adjustable plastic-coated wire shelves for flexible storage. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Overview
Nominal Height	64.0" (163 cm)
Height of Cabinet	64.0" (163 cm)
Nominal Width	20.0" (51 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	41.25" (105 cm)
Capacity	5.3 cu.ft. (150 L)
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
UPC	761101104119
Refrigerator-Freezer
Door Swing	LHD
Reversible	No
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	24.0" (61 cm)
Refrigerator - Interior Width	16.0" (41 cm)
Refrigerator - Interior Depth	15.0" (38 cm)
Refrigerator - Capacity	2.83 cu.ft

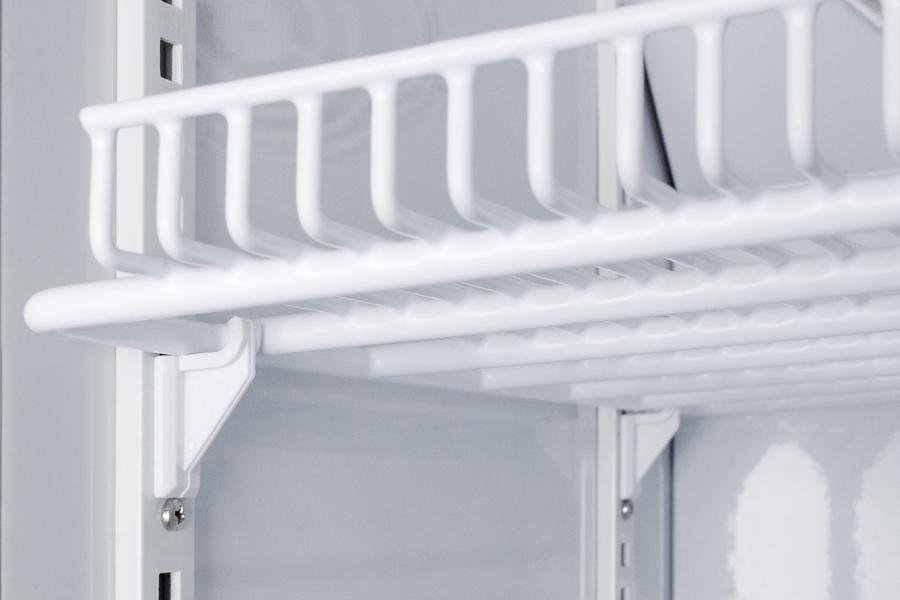

Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	4
Refrigerator - Temperature Range	2 to 8 C
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	1.41 oz.
Freezer - Interior Height	22.0" (56 cm)
Freezer - Interior Width	14.25" (36 cm)
Freezer - Interior Depth	15.5" (39 cm)
Freezer - Capacity	2.47 cu.ft
Freezer - Shelf Type	Wire
Freezer - Shelf Qty	4
Thermostat Type	Digital
Fan Type	Interior
Freezer - Temperature Range	-30 to -10 C
Freezer - Refrigerant Type	R290a
Freezer - Refrigerant Amount	1.31 oz.
