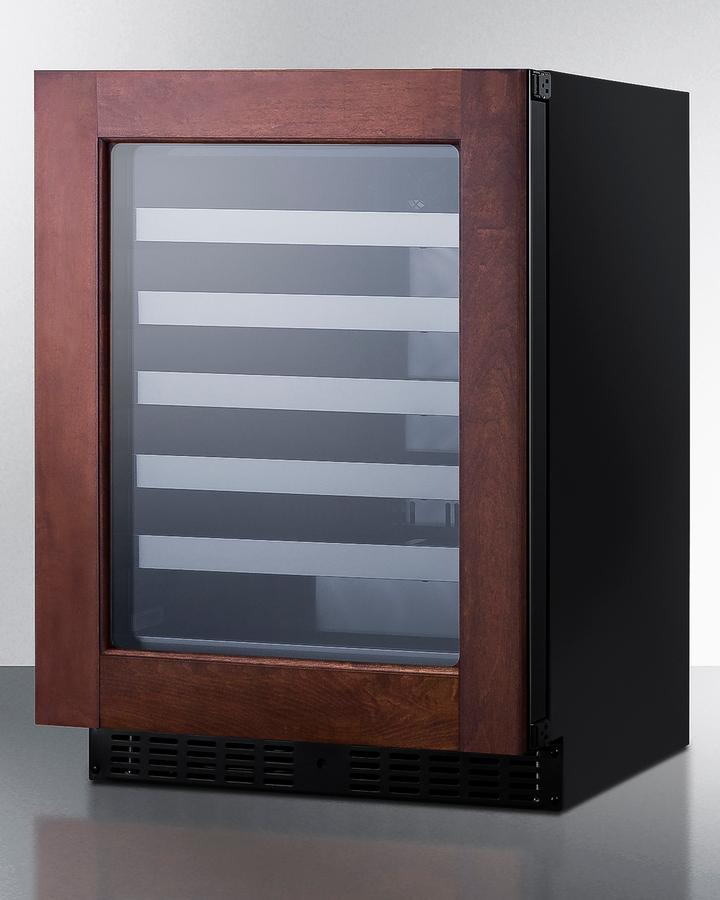

Summit ASDW2412PNR 24" Wide Built-in Wine Cellar, ADA Compliant (panel Not Included) ASDW2412PNR
Summit ASDW2412PNR 24" Wide Built-in Wine Cellar, ADA Compliant (panel Not Included)
- Single zone wine cooler for residential or commercial cold storage
- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- 32" height allows easy installation under lower ADA compliant counters
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Front-breathing design lets you make the best use of space by installing your appliance under the counter

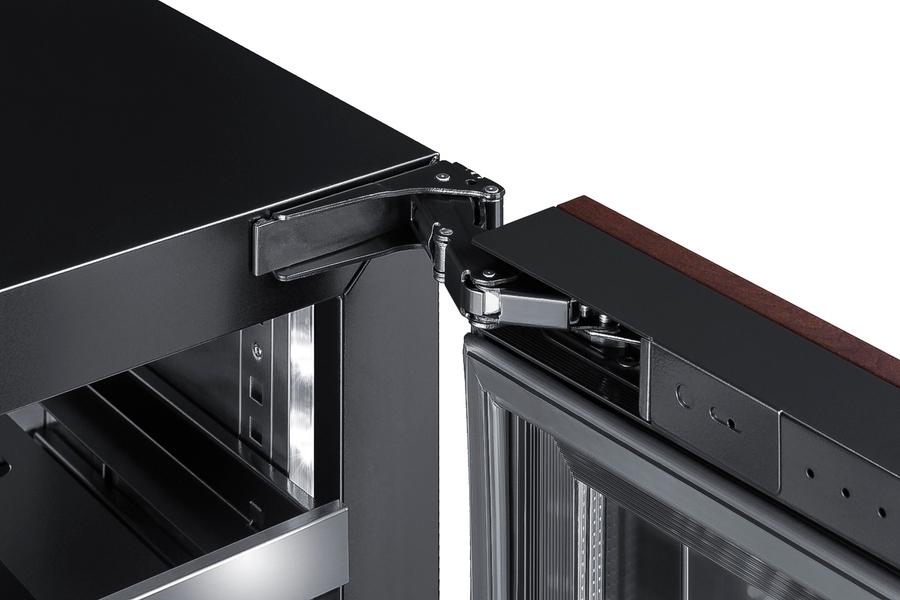

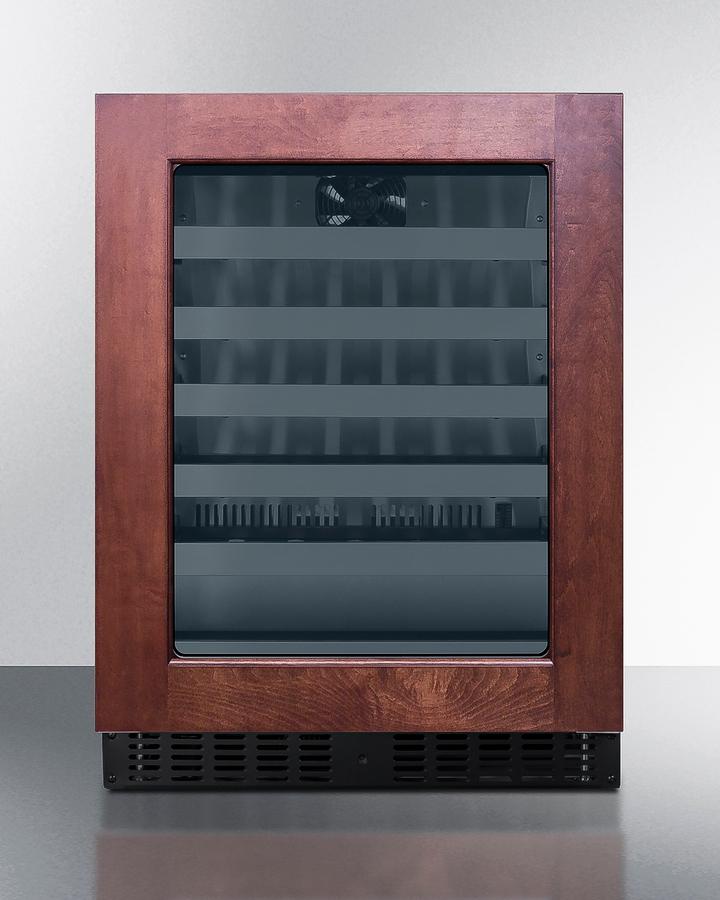

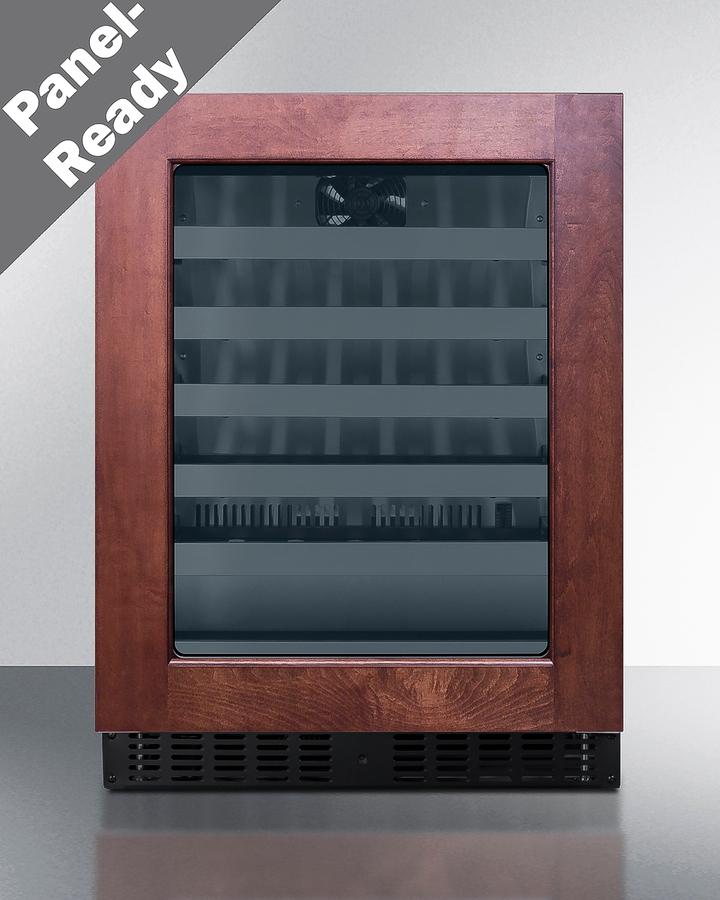

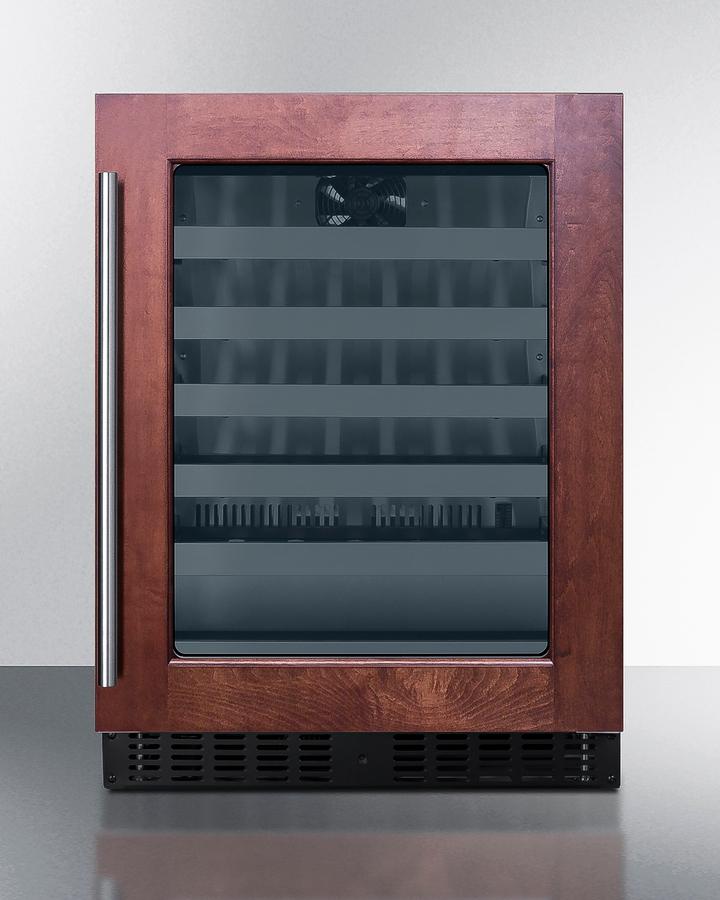

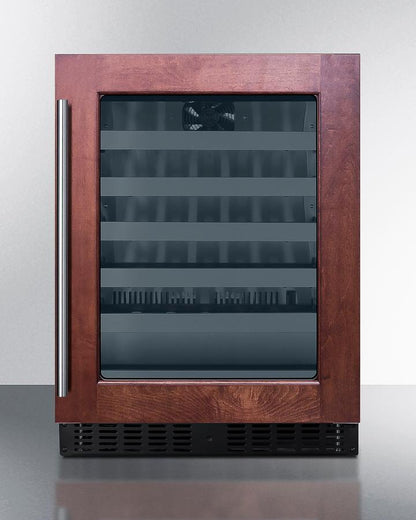

- European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
- Elegant design offers a clear but protected view of your interior
- Glass is framed by with a flush one-piece stainless steel trim for an elevated look
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Keyed lock for a secure interior (2 keys included)

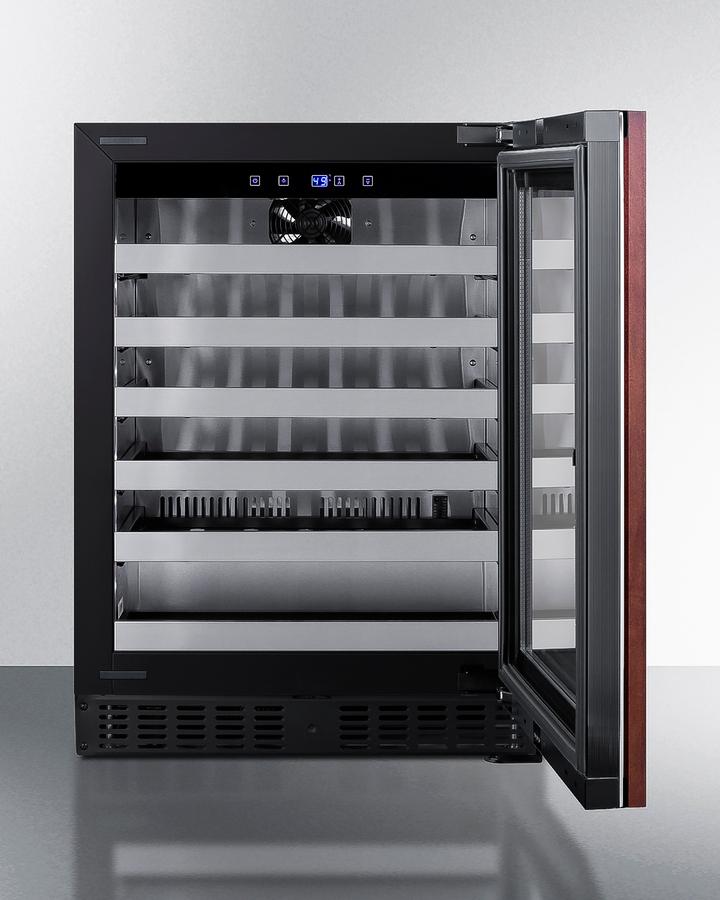

- Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

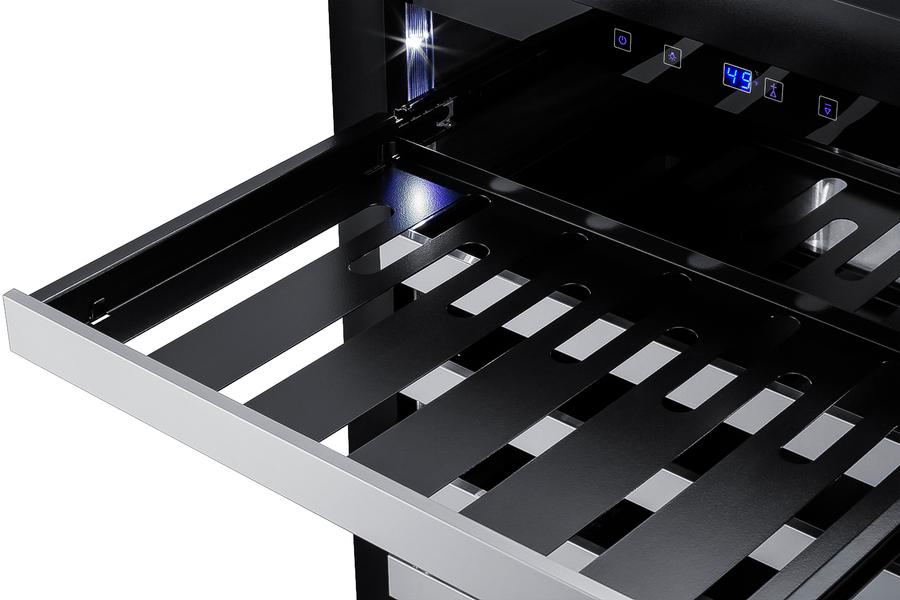

- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

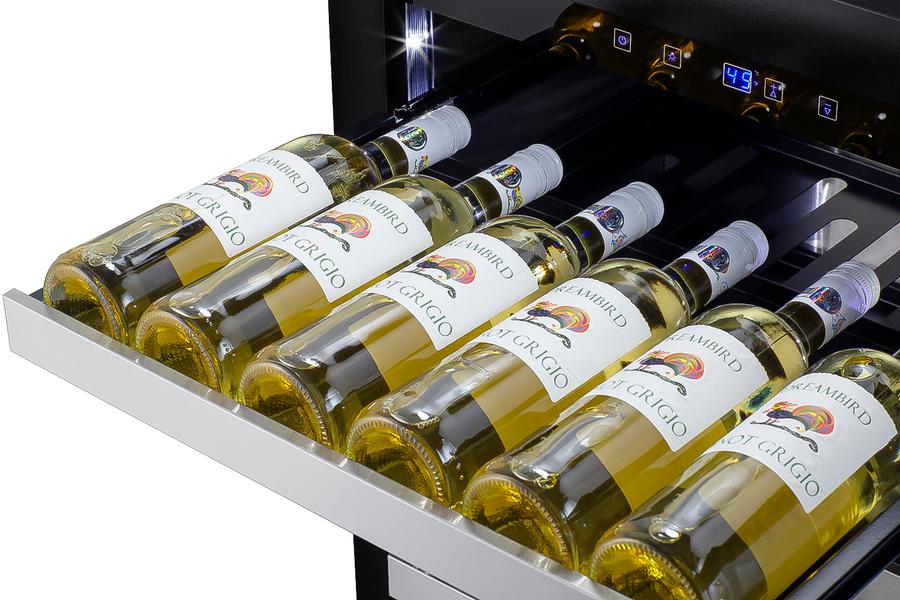

- Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

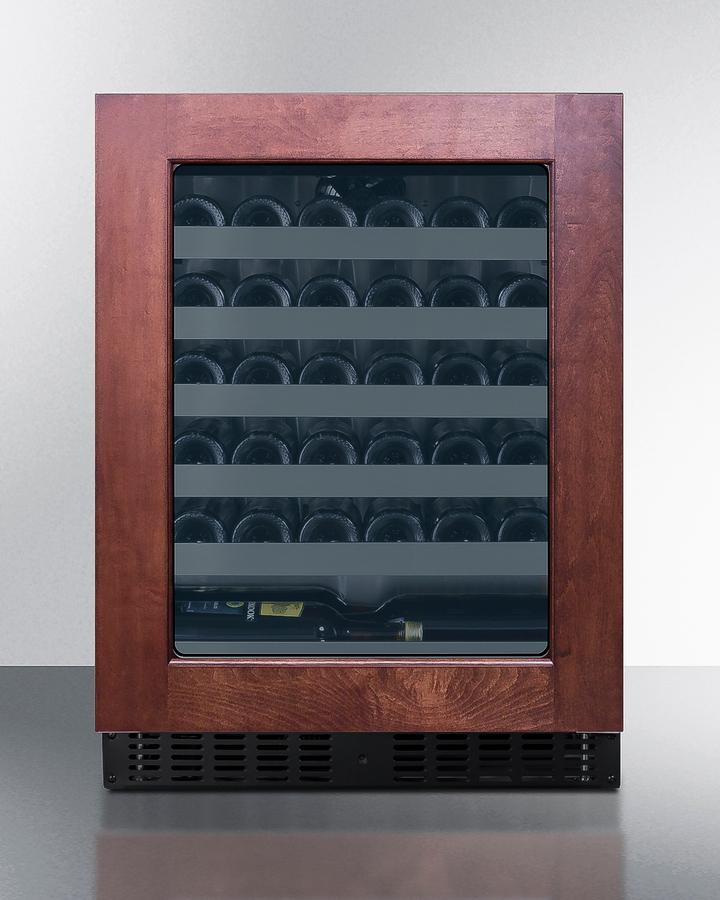

- 33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
- No-frost operation for minimum user maintenance
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils that offers easier cleanability
- Smoother opening and a better fit with an integrated European hinge
- User-reversible door swing for added flexibility
- Allows the unit to be used freestanding
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

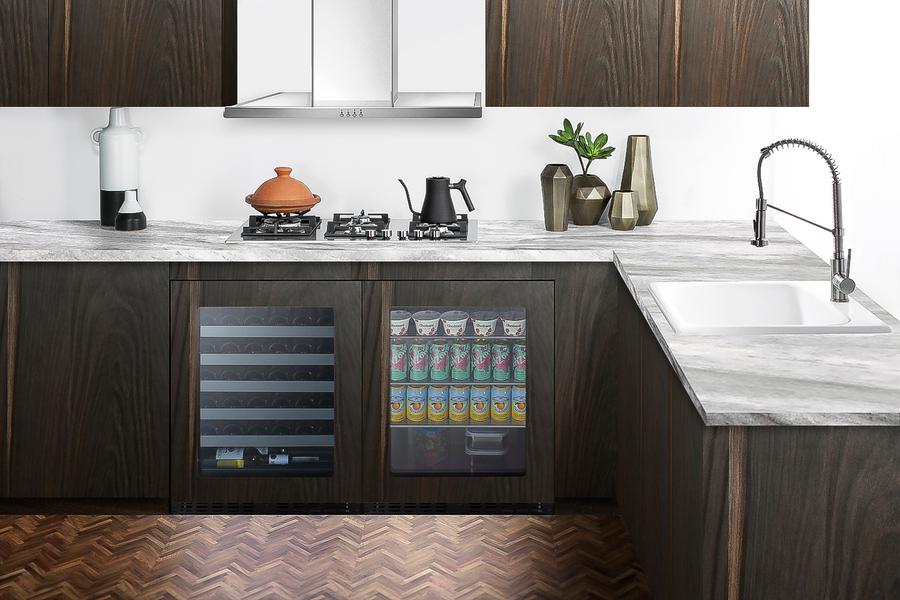

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW2412PNR is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW2412PNR features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW2412PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.
| Overview | |

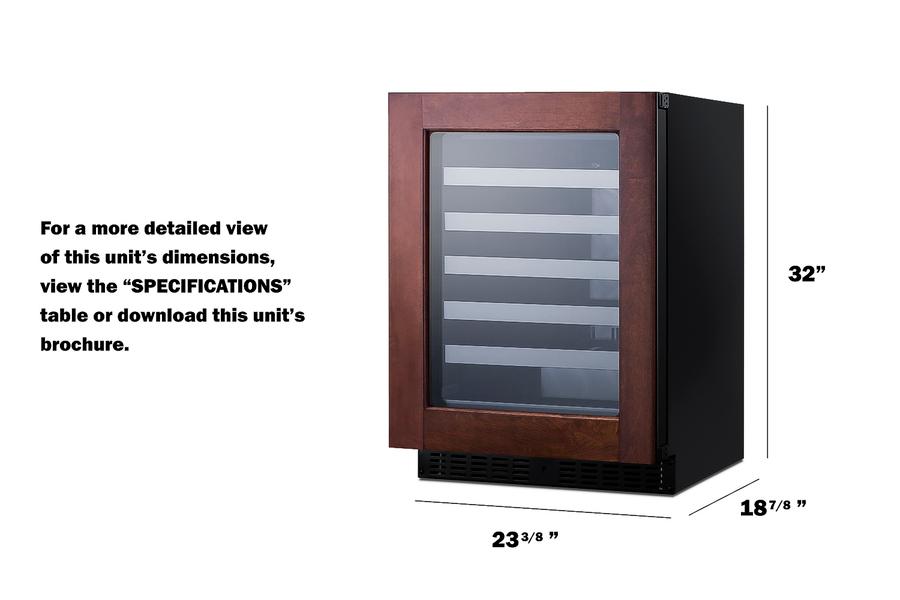

| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101104195 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 24.25" (62 cm) |
| Interior Width 1 | 19.5" (50 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 64 F |
| Sabbath Mode | Yes |
