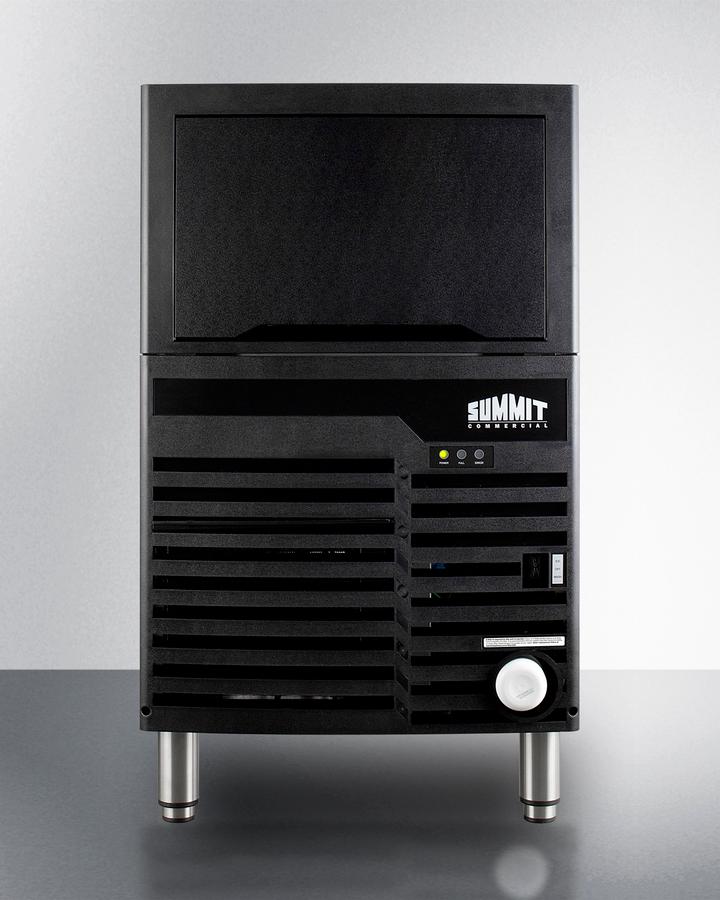

Summit BIM100 100 Lb. Commercial Icemaker BIM100

Summit Commercial brings powerful performance and user-friendly convenience in an under the counter design with the BIM100 commercially approved icemaker. Made for Summit in South Korea, the BIM100 is ETL-S listed to NSF-12 standards for use in commercial applications. This unit features a fully finished stainless steel cabinet and jet black front with a slide-up lid. It can be built-in under counters or used freestanding, with a front-breathing air-cooled system to prevent overheating. The BIM100 produces up to 100 lbs. of clear dice style ice cubes per day. The interior can store up to 27 lbs. to help meet the needs of high traffic commercial environments, with an automatic sensor to prevent overproduction. This unit has a 30" high cabinet and ships with a 4-piece set of 4.5" high commercial legs to raise the unit off the floor to a more standard counter height. All controls are conveniently located in front, with a removable mesh filter to make it easy to remove dust buildup from affecting the condenser. We also include an ice scoop for serving convenience. The BIM100 is designed to operate quietly. It comes equipped with an internal wash setting for simple maintenance, and a 7.5" long power cord for flexible placement. This unit has a sealed back in stainless steel for added space savings and easier cleanup. It utilizes a gravity drain system and requires professional installation (drain size: 3/4"; water supply/inlet size: 3/8"). The BIM100 ships with an included water purification filter to ensure better tasting ice. This filter is required in order to operate the unit and will need to be replaced every six months (timing may vary based on the quality of your water). To order a replacement set, visit summitappliance.com/filter100. With its high capacity output and slim-fitting design, the BIM100 is ideal for bars, restaurants, cafes, office spaces, and similar environments seeking a professional icemaker in a durable design.

Overview
Nominal Height	35.0" (89 cm)
Height of Cabinet	34.5" (88 cm)
Nominal Width	21.0" (53 cm)
Width	20.5" (52 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.25" (57 cm)
Defrost Type	Automatic
Door	Black
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	3.75
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101066080
Icemaker
Door Swing	Lift-Up
Height Adjustable	Yes
Drain Required	Yes
Daily Ice Production	100.0 lbs. (45 kg)
Ice Storage Capacity	27.0 lbs. (12 kg)
Ice Shape	Cube
Size of Cube	1" x 1"
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	8.5 oz.
High Side PSI	190.0
Low Side PSI	133.0
Interior Height	10.25" (26 cm)
Interior Width	18.0" (46 cm)
Interior Depth	17.0" (43 cm)
Level Legs	4
