Summit 12 Lb. Drain-free Outdoor Icemaker, ADA Compliant BIM24OSBASE32

SKU/Model #: BIM24OSBASE32 Discontinued
Summit 12 Lb. Drain-free Outdoor Icemaker, ADA Compliant
Authorized Reseller
SKU/Model #: BIM24OSBASE32
Summit 12 Lb. Drain-free Outdoor Icemaker, ADA Compliant
Free Shipping
$2,590.00
List Price:
Instant Savings:
  • 32 inch height fits under standard ADA counters
  • Weatherproof design rated safe for outdoor operation
  • Make the best use of space by installing your appliance under the counter and flush with other cabinets
  • Allows the unit to be used freestanding
  • Durable exterior with lasting elegance
  • A curved stainless steel handle provides generous room for a comfortable grip
  • Ice maintains solid crescent shape longer in cold storage bin
  • No exposed electrical components
  • Stainless steel base includes drawer
  • Environmentally friendly design without ozone-damaging chemicals

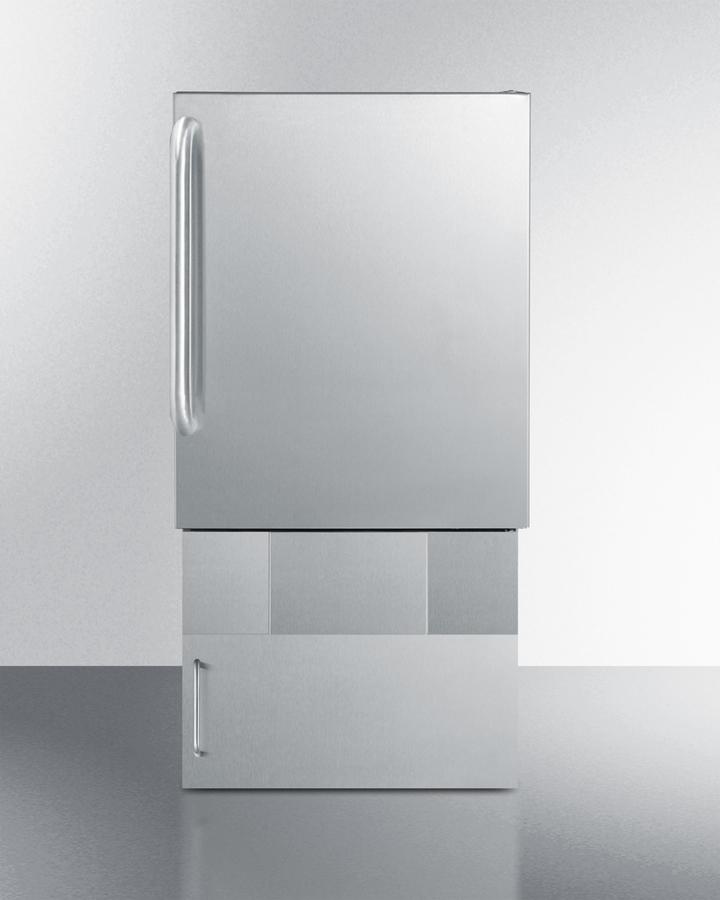

SUMMIT brings a convenient freeze to the outdoors with the BIM24OSBase32, a compact icemaker with U.L. approval for outdoor use and sized to fit under ADA compliant counters. Fully wrapped in 304 grade stainless steel, the BIM24OSBase32 is designed to stand up to nature with elegant style. The weatherproof design includes a completely sealed back that protects all electrical components and SUMMIT's integrated Ground Fault Circuit Interrupter (GFCI) adds an extra level of protection and automatically resets the unit in the event of power failure. The BIM24OSBase32 is designed for built-in installation under lower counters but can also function freestanding. It is mounted on a lower base that raises the unit height to be adjustable between 32" and 32 1/2" high. This stainless steel cabinet offers convenient options for storing icemaker accessories and other outdoor utensils inside the drawer. The BIM24OSBase32 can produce up to 12 lbs. of crescent shaped cubes in a day cycle, storing it in a carefully insulated storage bin. Operation does not require a drain. Our signature 12" towel bar handle completes the package.
Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 15.13" (38 cm)
Depth 20.63" (52 cm)
Depth with Handle 23.13" (59 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101038742
Icemaker
Door Swing RHD
Reversible No
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 0.63 oz.
High Side PSI 250.0
Low Side PSI 110.0
Interior Height 11.75" (30 cm)
Interior Width 10.0" (25 cm)
Interior Depth 13.0" (33 cm)
Level Legs 2
