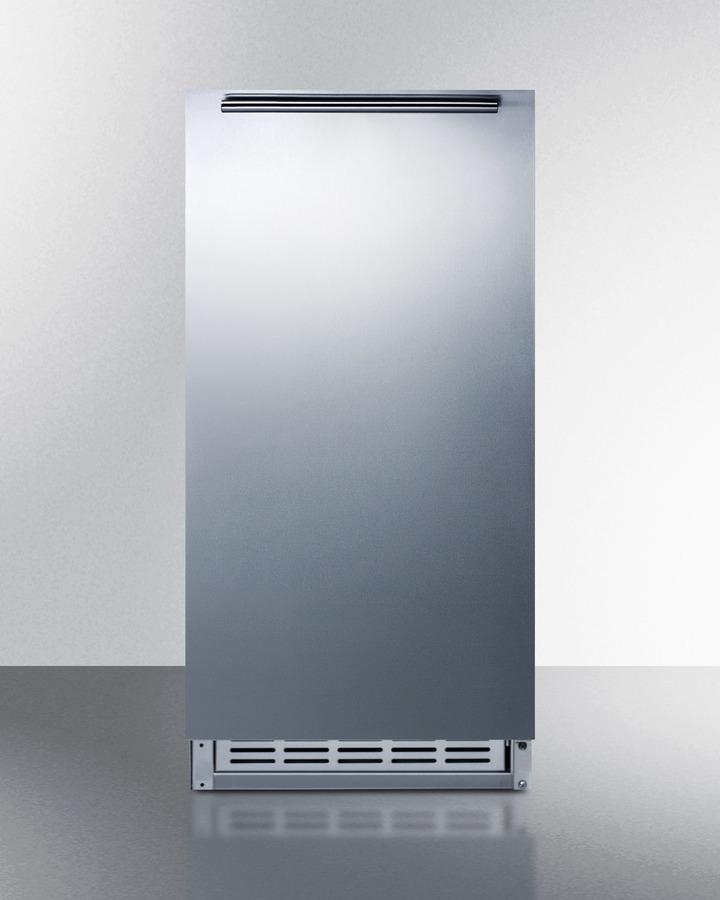

12 Lb. Drain-free Icemaker, ADA Compliant BIM25H32

SKU/Model #: BIM25H32 Discontinued
12 Lb. Drain-free Icemaker, ADA Compliant
Authorized Reseller
SKU/Model #: BIM25H32
12 Lb. Drain-free Icemaker, ADA Compliant
Free Shipping
$1,727.07
List Price:
Instant Savings:
  • 32 1/4" height allows installation under lower ADA compliant counters
  • Convenient design allows more flexibility in positioning the unit
  • Make the best use of space by installing your icemaker under the counter and flush with other cabinets
  • Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
  • Sleek handle in brushed stainless steel is horizontally mounted for a modern look
  • Produces and stores up to 12 pounds of ice per day cycle
  • Bucket can be removed for fast and easy cleaning
  • Ice stays solid longer in this cold-protected bin
  • Includes lower compartment for storing non-refrigerated items
  • User-reversible design allows you to change the door swing to better accommodate your setup
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
  • Large plastic ice scoop included for your convenience
  • Flush design with no exposed coils for easier cleanup
  • Rear-mounted drain for easier cleaning
  • Allows the icemaker to be used freestanding
  • Environmentally friendly design without ozone-damaging chemicals
SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel. Sized at just 15 1/8" wide, the BIM25H32 features a front-breathing design for built-in installation, but also has a fully finished cabinet to allow freestanding use. At 32" high, this unit is specially sized to fit under lower ADA compliant counters. The cabinet and user-reversible door are wrapped in 304 grade stainless steel for professional style built to last, with a sleek handle mounted horizontally to finish the look. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation. Inside, the BIM25H32 can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H32 ships with a connection hose. Other hardware should be supplied by your plumber. With its complete stainless steel construction and low maintenance design, the BIM25H32 is a great way to finish any undercounter kitchen space.
Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 15.18" (39 cm)
Depth 21.0" (53 cm)
Depth with Handle 22.25" (57 cm)
Depth with door at 90° 34.0" (86 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101058467
Icemaker
Door Swing RHD
Reversible Yes
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 0.63 oz.
High Side PSI 250.0
Low Side PSI 110.0
Interior Height 11.5" (29 cm)
Interior Width 10.0" (25 cm)
Interior Depth 12.63" (32 cm)
Level Legs 4
