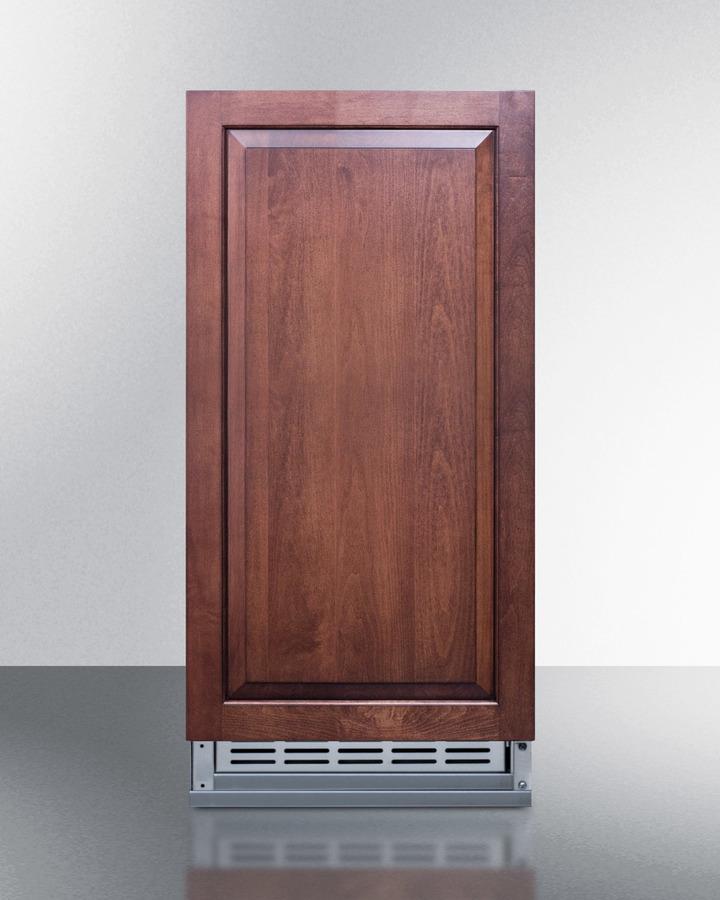

12 Lb. Drain-free Icemaker (panel Not Included) BIM25H34IF

SKU/Model #: BIM25H34IF Discontinued
12 Lb. Drain-free Icemaker (panel Not Included)
Authorized Reseller
SKU/Model #: BIM25H34IF
12 Lb. Drain-free Icemaker (panel Not Included)
Free Shipping
$2,006.07
List Price:
Instant Savings:
  • Convenient design allows more flexibility in positioning the unit
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 28 1/2" H x 15 3/8" W)
  • Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
  • Produces and stores up to 12 pounds of ice per day cycle
  • Bucket can be removed for fast and easy cleaning
  • Includes lower compartment for storing non-refrigerated items
  • Ice stays solid longer in this cold-protected bin
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
  • Large plastic ice scoop included for your convenience
  • Flush design with no exposed coils for easier cleanup
  • Rear-mounted drain for easier cleaning
  • Allows the icemaker to be used freestanding
  • Unit ships with right hand door swing. For a left hand door swing, order with the "LHD" option
  • Environmentally friendly design without ozone-damaging chemicals
SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel. Sized at just 15 3/8" wide, the BIM25H34IF features a front-breathing design for built-in installation, but also has a fully finished stainless steel wrapped cabinet to allow freestanding use. The door is equipped with an integrated stainless steel frame designed to accept overlay panels (sized 28 1/2" H x 15 3/8" W), allowing you to create a custom look that blends into your existing cabinetry. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation. Inside, the BIM25H34IF can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H34IF ships with a connection hose. Other hardware should be supplied by your plumber. With its complete stainless steel construction and low maintenance design, the BIM25H34IF is a great way to finish any undercounter kitchen space.
Overview
Height of Cabinet 34.0" (86 cm)
Height to Hinge Cap 34.25" (87 cm)
Width 15.38" (39 cm)
Depth 21.0" (53 cm)
Depth with door at 90° 34.0" (86 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059419
Icemaker
Door Swing RHD
Reversible Factory Reversible
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 0.63 oz.
High Side PSI 250.0
Low Side PSI 110.0
Interior Height 11.5" (29 cm)
Interior Width 10.0" (25 cm)
Interior Depth 12.63" (32 cm)
Level Legs 2
