Summit BIM44GADA Built-in 50 Lb. Clear Icemaker, ADA Compliant BIM44GADA
Summit BIM44GADA Built-in 50 Lb. Clear Icemaker, ADA Compliant
- 32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")
- Efficient performance for commercial use
- NSF listed for use in commercial establishments
- Internal pump allows more flexibility in placing the unit
- Simplify appliance care by letting your icemaker defrost itself
- Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
- Make the best use of space by installing your icemaker under the counter
- Professional styling with lasting durability
- A curved handle in brushed stainless steel offers an easy grip
- Allows the icemaker to be used as a freestanding model
- Ice stays solid longer in this cold-protected bin
- Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
- Included for your convenience
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

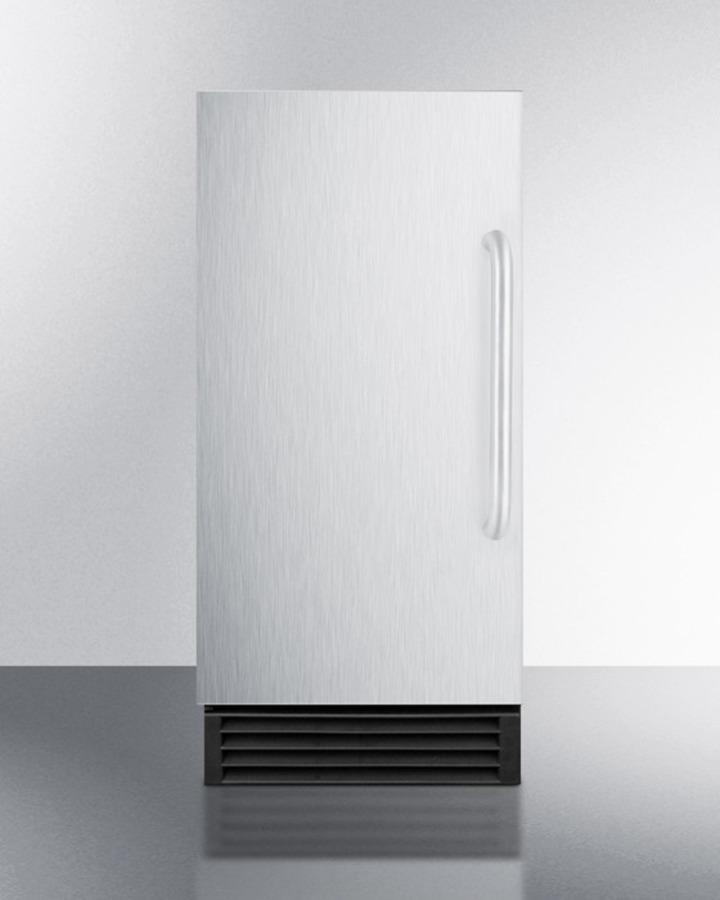

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters. Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts. This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. Note: the hinge cover reaches 32 9/16", so if installing under a counter, we recommend notching out added space. The BIM44GADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop. The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included. This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.38" (82 cm) |
| Height to Hinge Cap | 32.56" (83 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.5" (37 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 36.75" (93 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | NSF |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101021959 |
| Icemaker | |
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
