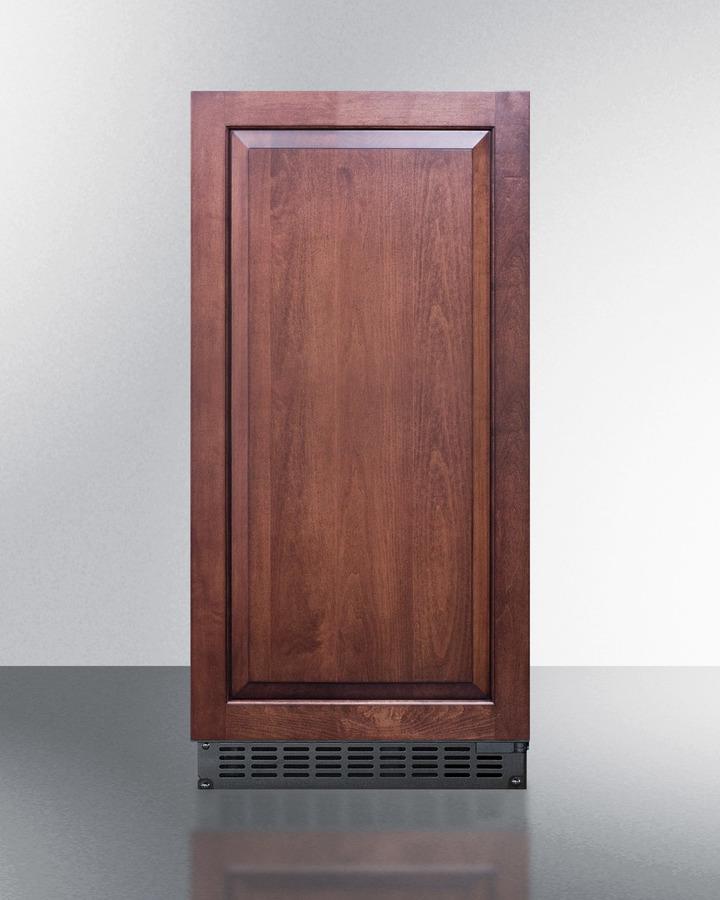

Summit BIM68OSPUMPIF 62 Lb. Clear Outdoor/indoor Icemaker (panel Not Included) BIM68OSPUMPIF

Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location. Sized at 15" wide, the BIM68OSPUMPIF features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The door is designed with a powerful magnetic gasket to ensure proper insulation. An integrated stainless steel door frame is designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry decor (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick). The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet lets the unit be used freestanding. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup. The BIM68OSPUMPIF produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 62 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior. Designed and manufactured for us in South Korea, the BIM68OSPUMPIF is ETL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Height to Hinge Cap	33.63" (85 cm)
Nominal Width	15.0" (38 cm)
Width	14.88" (38 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.63" (57 cm)
Depth with door at 90°	37.25" (95 cm)
Capacity	0.98 cu.ft. (28 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	4.0
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061795
Icemaker
Door Swing	RHD
Reversible	Factory Reversible
Daily Ice Production	62.0 lbs. (28 kg)
Ice Storage Capacity	26.0 lbs. (12 kg)
Size of Cube	1 1/4" H x 1 1/8" W x 1 1/8" D
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	7.4 oz.
High Side PSI	210.0
Low Side PSI	105.0
Interior Height	12.75" (32 cm)
Interior Width	12.75" (32 cm)
Interior Depth	9.25" (23 cm)
Level Legs	4
