Summit CALDERAMN35I Turnkey Caldera Kitchen

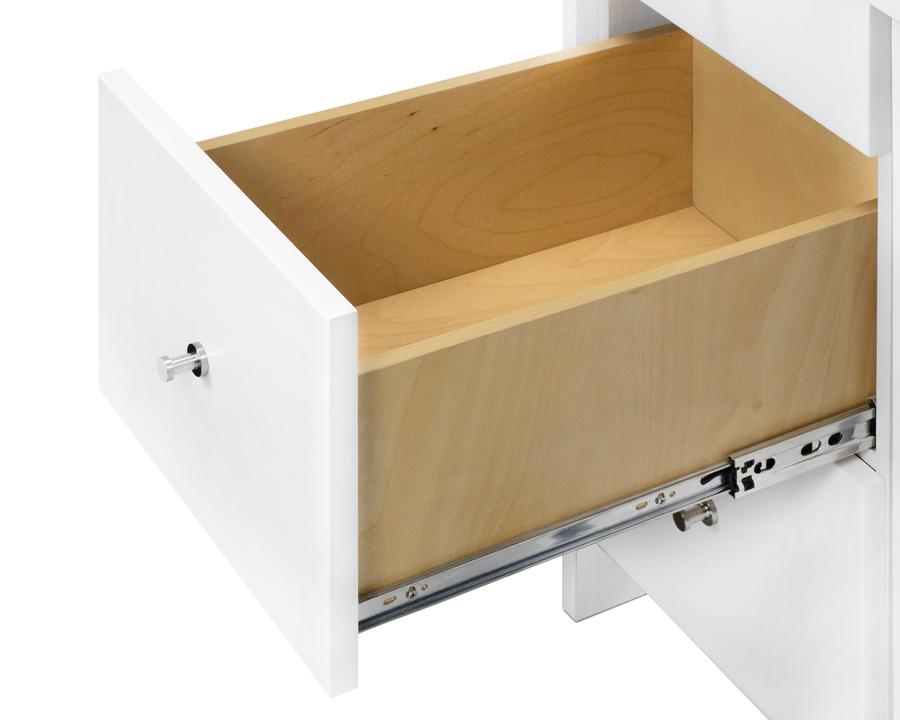

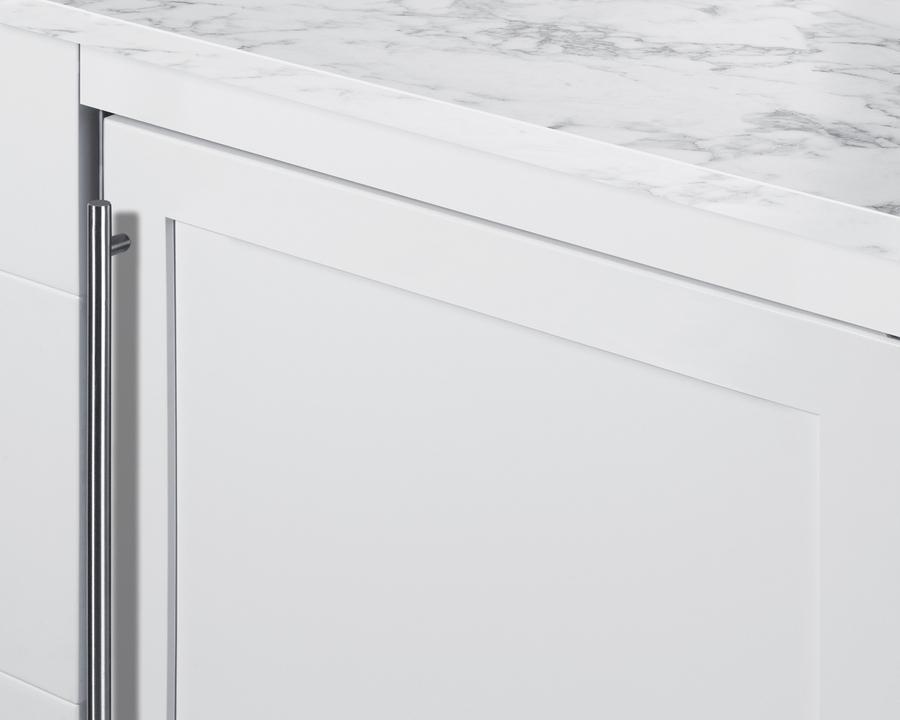

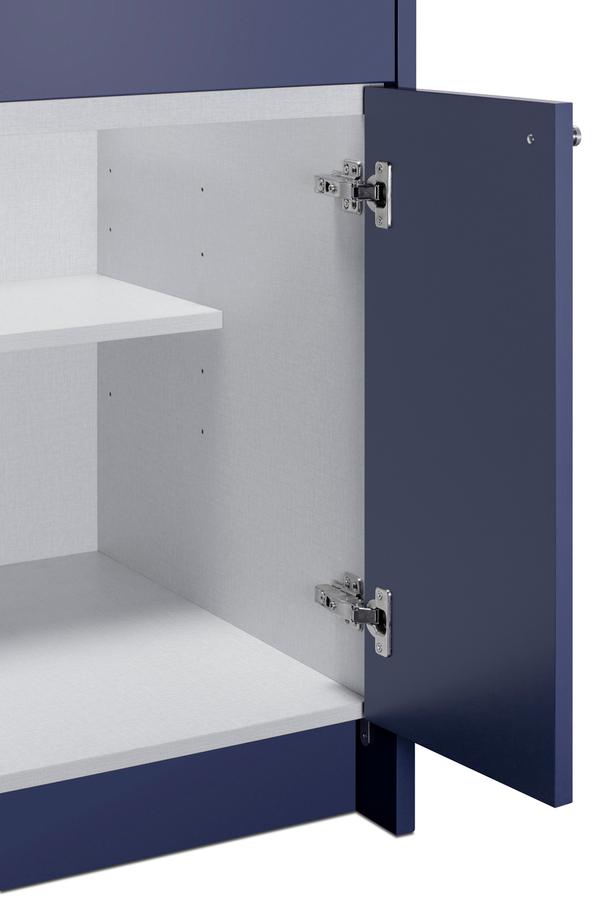

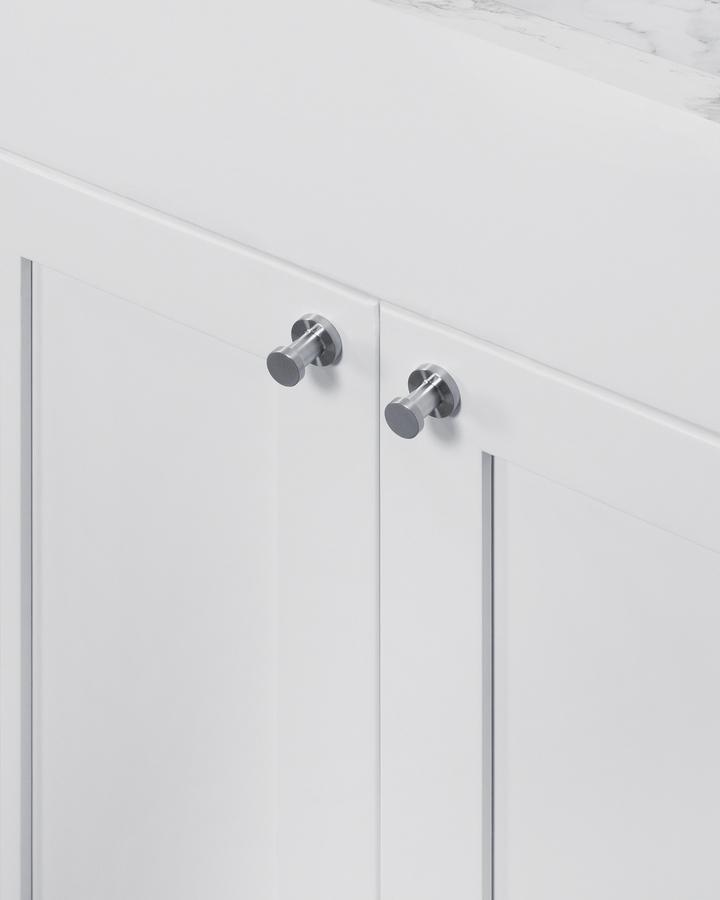

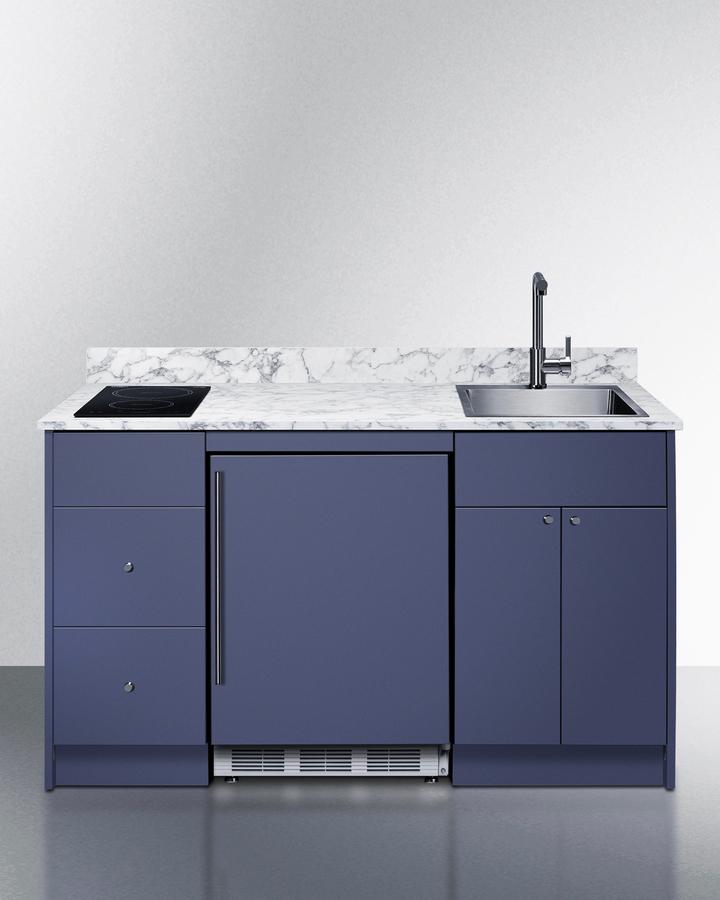

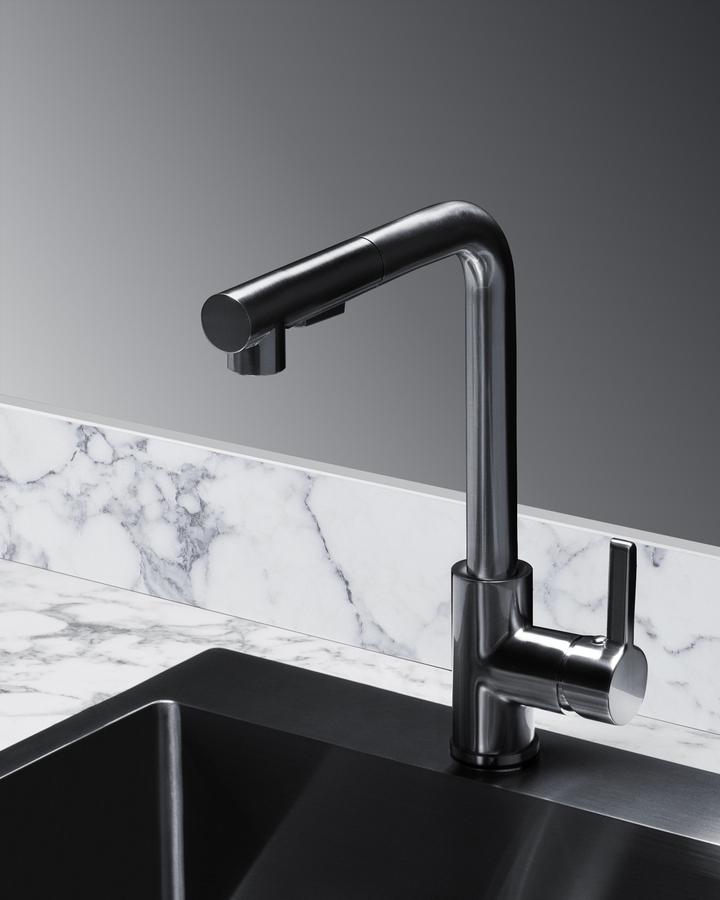

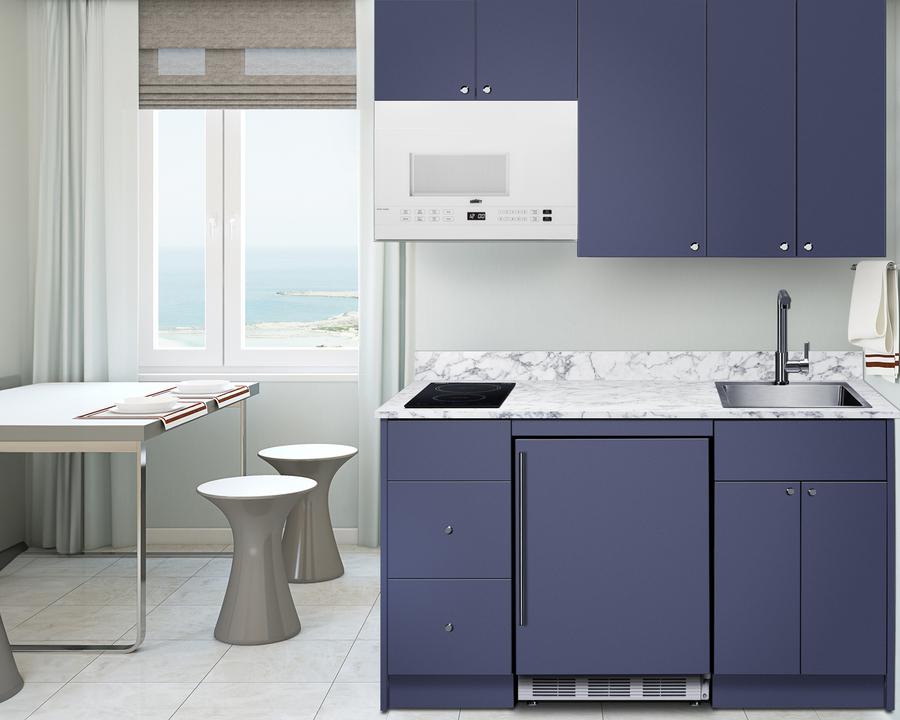

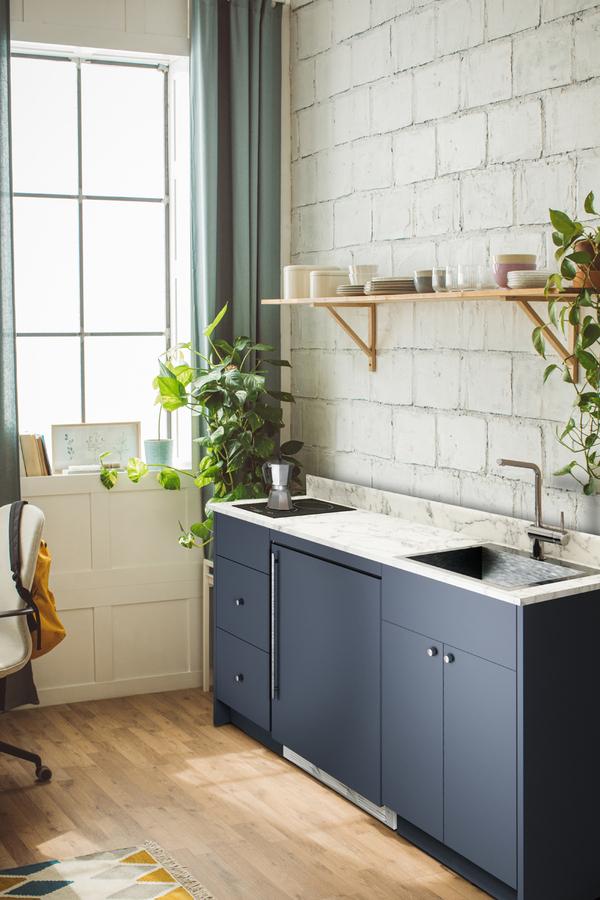

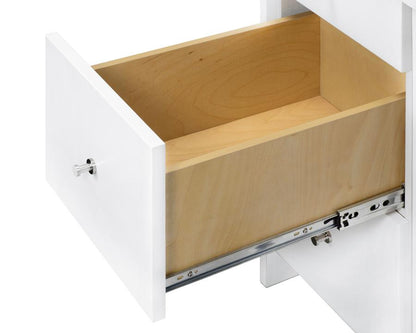

Summit's Turnkey Kitchens & Bars feature pre-installed cabinetry and matching appliances to bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and hospitality settings. The Caldera is a 63" wide kitchenette in a midnight navy finish. It features hardwood construction and a countertop made from a water-resistant laminate material with a marble look, with a pre-installed 2-burner induction cooktop included. We include a stainless steel sink with faucet and 5 cu.ft. refrigerator-freezer for food storage. For dry storage, this model has a two-door cabinet and two soft-close drawers. We also supply the door knobs in an attractive brushed nickel finish. The cabinetry comes in a modern slab style. For this unit with the sink located on the left side, see model CALDERAMN35ISINKL. Model CALDERAMN35I includes Summit's CT661WIF, a 24" wide ENERGY STAR certified refrigerator-freezer that utilizes automatic defrost operation in the fresh food section and manual defrost operation in the freezer to ensure items stay frozen. Inside, the CT661WIF includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is kept under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The door comes with a pre-installed stainless steel handle and wood panel to seamlessly blend into the cabinet. This kitchenette also features Summit's SINC2B115, an ENERGY STAR certified 12" wide 2-zone induction cooktop. The pre-installed cord includes a 3-prong NEMA 5-15P plug for fast setup. The surface is made of jet black glass for a contemporary look that's easier to clean. The rear 1800W element is sized at 8 1/4", while the front element is 1/4" wide and 1300W . POWER NOTE: Due to the 115V operation, a power management function limits the overall output to 1800W. The CALDERAMN35I is shipped in two boxes on one pallet. Setup involves unpacking the unit and setting into place. A professional can install the sink and connect your plumbing. Then slide the refrigerator into the cabinetry, plug into a standard 115V outlet, plug the cooktop into a separate outlet, and enjoy your new kitchen. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 67.5" W x 29.5" D. Unpackaged, the final product dimensions are 35.75" H x 62.5" W x 25.5" D. With its classic design, standard height, and easy plug-and-play setup, the CALDERAMN35I is the perfect solution to complete any home bar or hospitality space. For this unit in a classic white finish, see model CALDERAWH35I. For this unit in an ADA-compliant height, see model CALDERAMN33I. Summit s Turnkey collection also features fully assembled dry bars and wet bars designed for easy and elegant beverage service. Explore the entire Turnkey Kitchens & Bars collection at summitappliance.com

Overview
Height of Cabinet	35.75" (91 cm)
Width	62.5" (159 cm)
Depth	25.75" (65 cm)
Depth with door at 90°	47.88" (122 cm)
Defrost Type	Cycle
Door	Glass
Cabinet	Blue
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	16.2
Voltage/Frequency	115 V AC/60 Hz
Weight	355.0 lbs. (161 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101153889
Kitchenette
Refrigerator Included	CT661WIF
Refrigerator Door Swing	RHD
Reversible	No
Adjustable Shelves	Yes
Shelf Type	Glass and Scalloped
Shelf Qty	2
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Full Door Shelves	3
Wine Bottle Shelving	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0

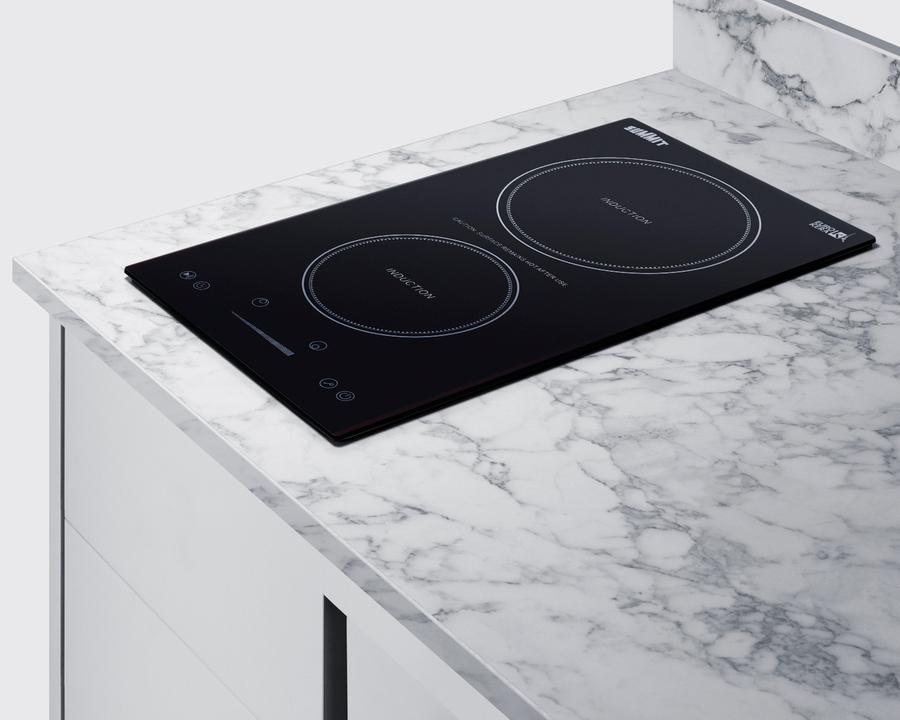

Cooking Type	Induction
Number of Burners	2
Cooktop Controls	Digital
Sink Height	7.0" (18 cm)
Sink Width	16.0" (41 cm)
Sink Depth	17.63" (45 cm)
