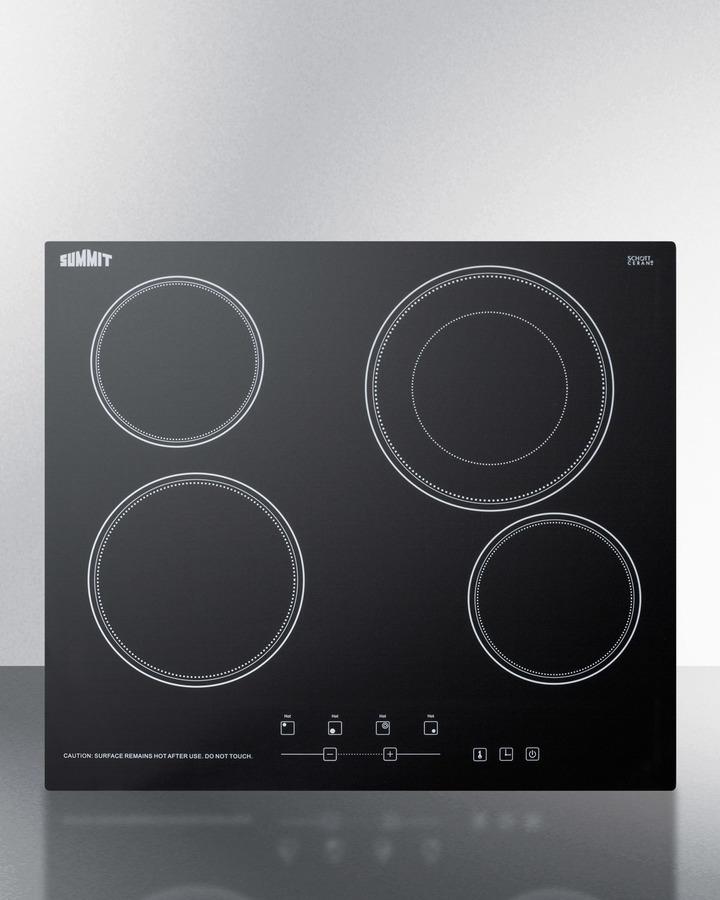

Summit CR4B23T5B 24" Wide 230v 4-burner Radiant Cooktop CR4B23T5B
Summit CR4B23T5B 24" Wide 230v 4-burner Radiant Cooktop
- Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
- Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
- Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
- Front right and rear left burners are 5.5" in diameter to meet most cooking needs
- Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware
- Easy operation with a digital control panel and digital display
- Select and adjust your heating levels at the touch of a button
- Allows you to program either burner to heat at a specified level for up to 99 minutes
- Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
- Fits counter cutout sizes that are 22" wide by 19.5" deep
- Upfront controls meet ADA guidelines for easier accessibilty
- Safety feature lets you lock the cooktop to prevent unsupervised heating
- If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
- If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
- Requires professional hardwired installation to 230V power supply
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
| Overview | |
| Height of Cabinet | 2.0" (5 cm) |
| Width | 23.25" (59 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 30.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 20.0 lbs. (9 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101053257 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 4 |
| Controls | Digital |
| Countertop Cutout Height | 3.2" (8 cm) |
| Countertop Cutout Width | 22.0" (56 cm) |
| Countertop Cutout Depth | 19.5" (50 cm) |
| Element #1 Size | 5.5" (14 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 8.1" (21 cm) |
| Element #2 Wattage | 2200.0 |
| Element #3 Size | 5.5" (14 cm) |
| Element #3 Wattage | 1200.0 |
| Element #4 Size | 7.0" (18 cm) |
| Element #4 Wattage | 1800.0 |
| Power Cord Included | No |
