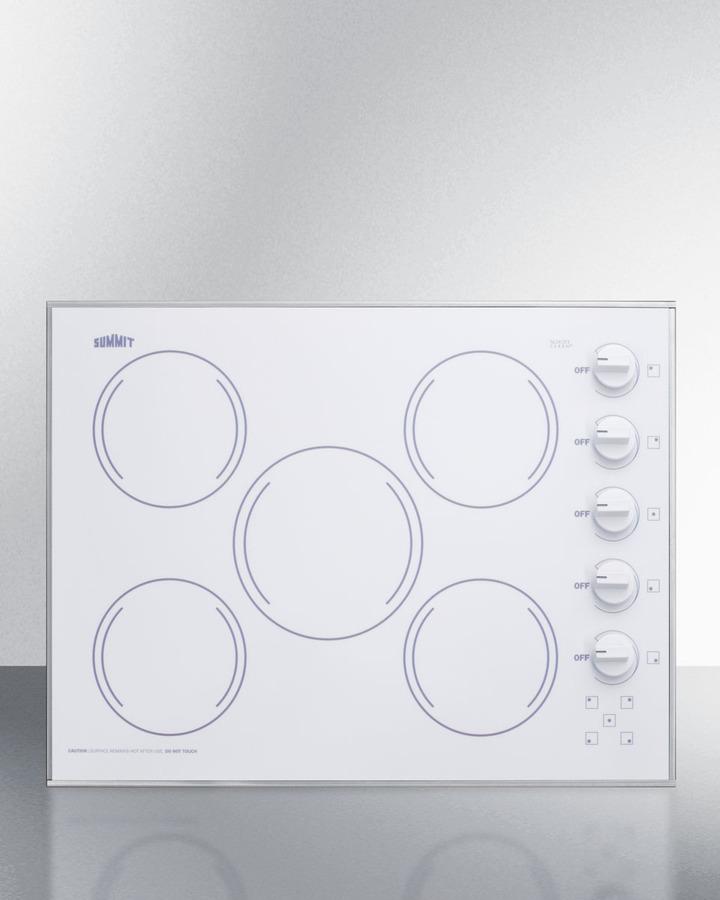

Summit CR5B274W 27" Wide 230v 5-burner Radiant Cooktop CR5B274W

SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements. The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish to complete the look. Each burner includes an indicator light. The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep. Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR5B273B.

Overview
Nominal Height	3.13" (8 cm)
Height of Cabinet	3.13" (8 cm)
Nominal Width	27.0" (69 cm)
Width	27.0" (69 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	25.0
Voltage/Frequency	230 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
UPC	761101060330
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	5
Controls	Dial
Countertop Cutout Width	25.25" (64 cm)
Countertop Cutout Depth	18.75" (48 cm)
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	1800.0
Element #2 Size	6.5" (17 cm)
Element #2 Wattage	1200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	1200.0
Element #4 Size	6.5" (17 cm)
Element #4 Wattage	1200.0
Element #5 Size	6.5" (17 cm)
Element #5 Wattage	1200.0
Power Cord Included	No
