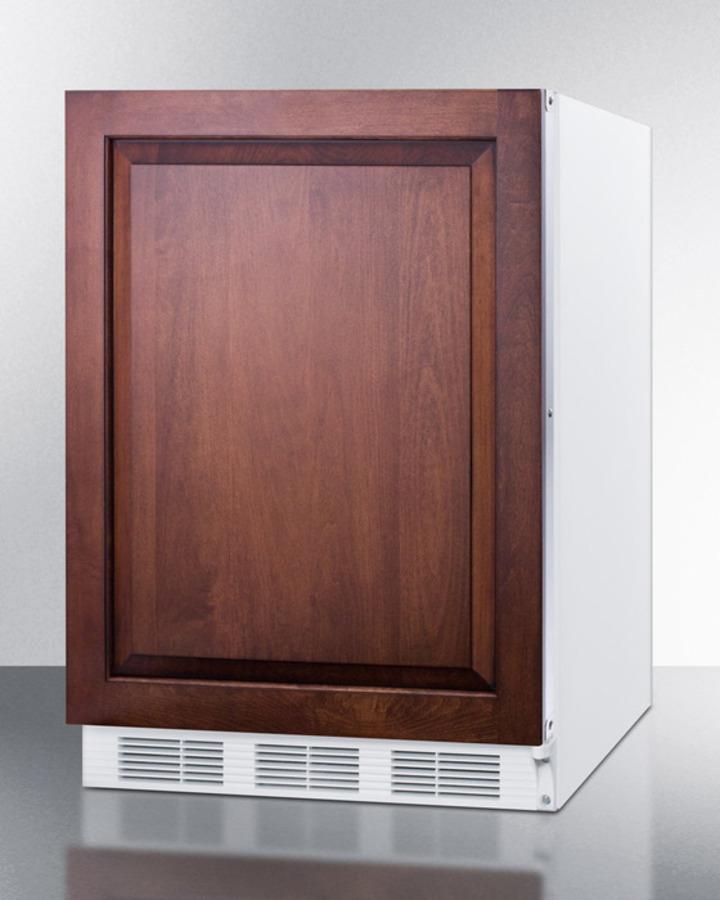

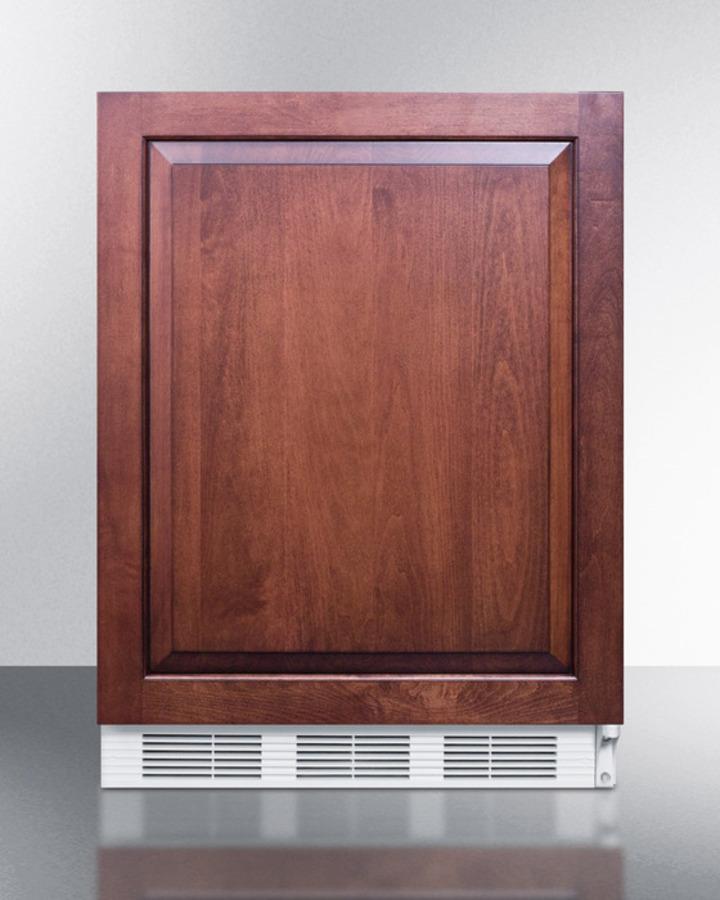

Summit CT661WIF 24" Wide Refrigerator-freezer (panel Not Included)
Summit CT661WIF 24" Wide Refrigerator-freezer (panel Not Included)
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
- European-made collection for recessed installation featuring large capacity interiors, ENERGY STAR certified performances, and versatile style
- Full capacity for both refrigerated and frozen foods, designed and manufactured in Europe for residential use
- Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
- Get the longest life and best taste out of produce by storing greens in lower slide drawer
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Automatically illuminates when the door is opened
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior
- Dial thermostat located inside for easy temperature management
- Adjustable legs allow the unit to be sized from 32 1/2" to 34" high
- Environmentally friendly design does not contain ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

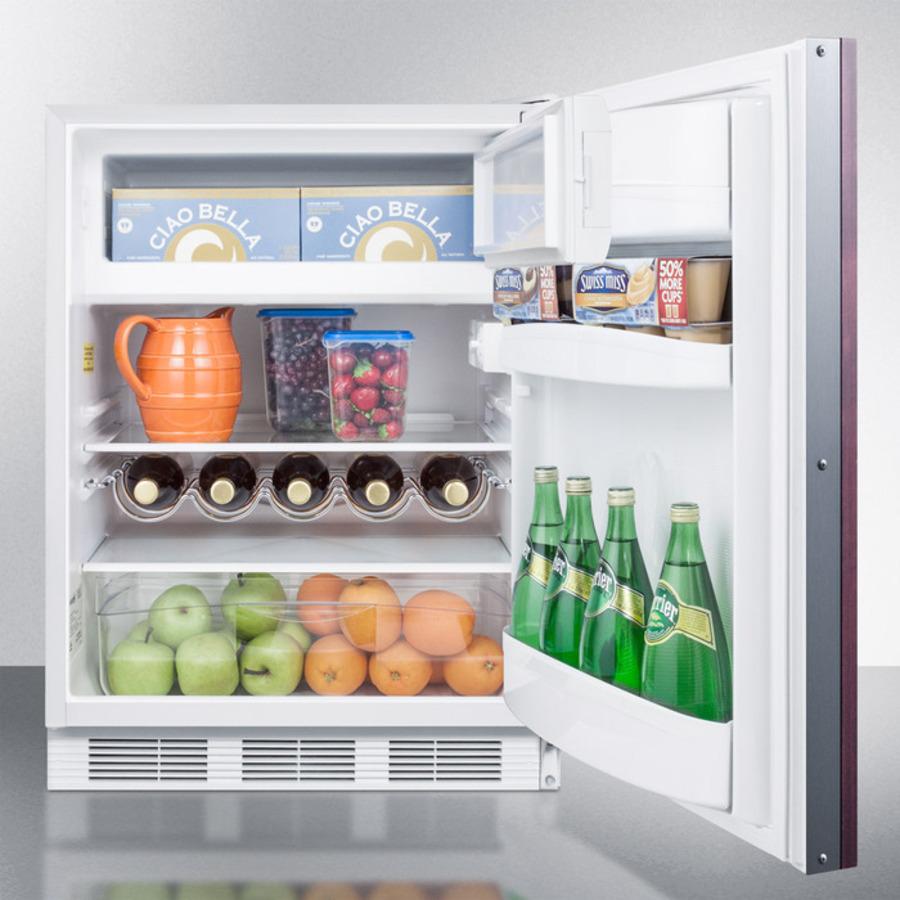

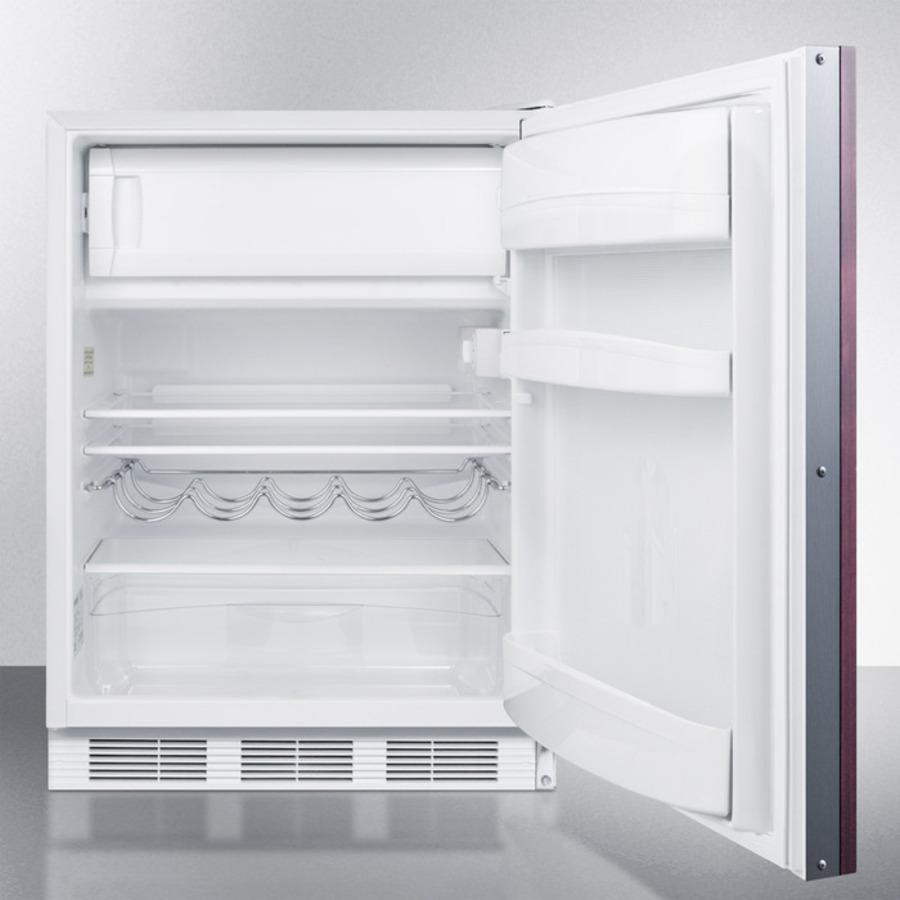

Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, ADA height choices that offer the largest capacity in the industry for recessed installation in 24" openings. Sized with a 24 footprint, the ENERGY STAR certified CT661WIF refrigerator-freezer offer a generous 5 cu.ft. storage capacity, larger than many units in this size class. This unit comes in a white exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle. Inside, the CT661WIF features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The CT661WIF is UL listed for residential use. With its large capacity and user-friendly features, this unit is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in ADA compliant height. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
| Overview | |
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.25" (84 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.04 cu.ft. (143 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 330.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108988 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 18.0" (46 cm) |
| Refrigerator - Interior Width | 21.0" (53 cm) |
| Refrigerator - Interior Depth | 18.0" (46 cm) |
| Refrigerator - Capacity | 4.5 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.25" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Freezer - Capacity | 0.6 cu.ft |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 4 |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
