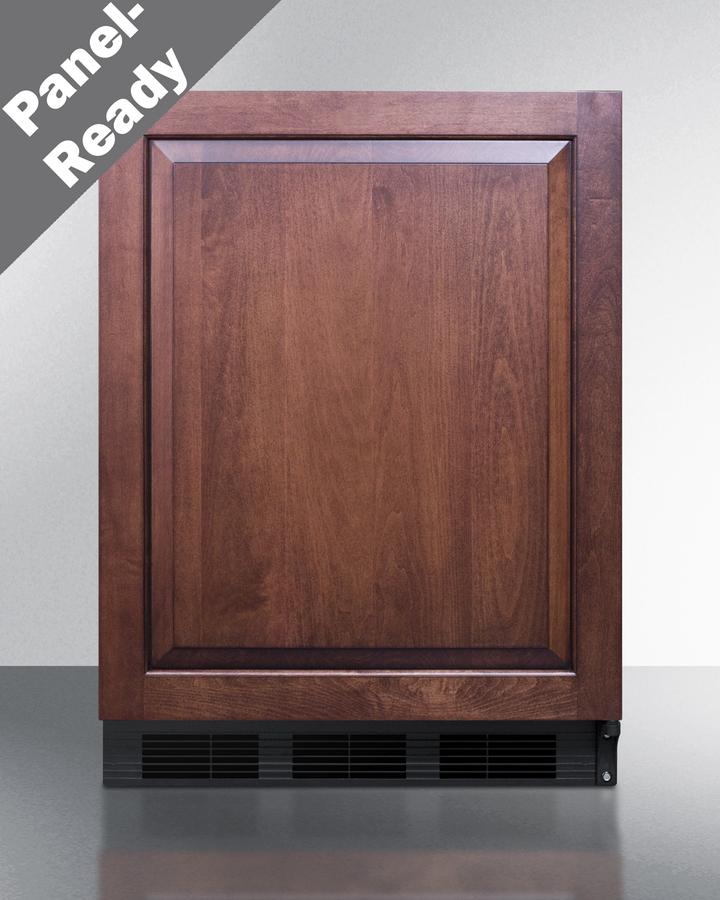

Summit 24" Wide Built-in Refrigerator-freezer, ADA Compliant (panel Not Included) CT663BKBIIFADA

SKU/Model #: CT663BKBIIFADA
Summit 24" Wide Built-in Refrigerator-freezer, ADA Compliant (panel Not Included)
Authorized Reseller
SKU/Model #: CT663BKBIIFADA
Summit 24" Wide Built-in Refrigerator-freezer, ADA Compliant (panel Not Included)
In Stock!
Free Shipping
$1,735.00
List Price:
Instant Savings:
Additional 10% Savings In Cart
When Will I Get My Order?

Product Details

  • 32" high to fit under lower ADA compliant counters
  • Less than 24" wide with a generous storage capacity
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
  • Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
  • Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Store tall bottles and condiments right on the door for convenient access
  • Removable scalloped wine shelf is included to store champagne and wine bottles
  • Get the longest life and best taste out of produce by storing greens in a bottom crisper
  • Automatically illuminates when you open the door
  • Cold wall design with hidden evaporator creates a seamless, easy to clean interior
  • Dial thermostat located inside for easy temperature management
  • Allows the unit to be used freestanding
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Environmentally friendly design with no ozone-damaging chemicals

SUMMIT brings quality and value under the counter with the industry s largest collection of ADA compliant built-in refrigeration. The CT663BBIADA Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage under lower ADA counters. Sized with a 24 footprint, the CT663BKBIIFADA refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, larger than many units in this size class. The 32 height and front-breathing design makes it ideal for installation under lower counters complying with ADA guidelines for height restriction. The fully finished cabinet also enables freestanding use. This unit comes in a black exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle. Inside, the CT663BKBIIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. These models include automatic interior lighting and an adjustable dial thermostat. With its ideal dimensions and user-friendly features, the CT663BKBIIFADA is the perfect refrigerator-freezer for any ADA compliant setting in need of versatile storage under the counter. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 365.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068558
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 18.0" (46 cm)
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior Depth 18.0" (46 cm)
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
