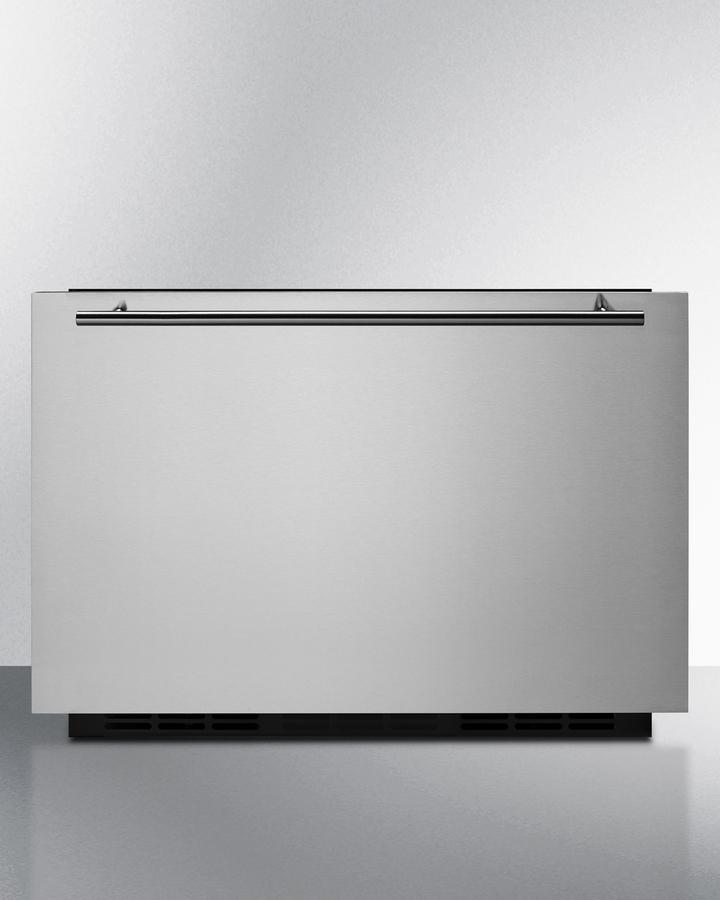

Summit FF1DSS24 24" Wide Built-in Drawer Refrigerator FF1DSS24

Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use. The FF1DSS24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. Its front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The cabinet is sized at 21.5" wide, with an oversized pre-installed stainless steel front drawer panel to cover traditional 24" wide openings. The drawer front can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (recommended panel dimensions: 15.6" H x 21.4-24" W at 3/4" maximum thickness). Inside, the FF1DSS24 has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to easily accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the FF1DSS24 is the perfect cooling compartment or beverage holder in home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 21" wide spaces, see the FF1DSS. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

Overview
Nominal Height	18.0" (46 cm)
Height of Cabinet	17.75" (45 cm)
Nominal Width	24.0" (61 cm)
Width	23.5" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.88" (58 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	36.13" (92 cm)
Capacity	1.6 cu.ft. (45 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	273.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	63.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101081519
Refrigerator Features
Sabbath Mode	Yes
Door Swing	Drawer
Reversible	No
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.78oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43 F
Sound Level	33.3 dB
Dimensions
Interior Height	13.0" (33 cm)
Interior Width	16.0" (41 cm)
Interior Depth	11.5" (29 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	16.0" (41 cm)
Compressor Step Depth	1.0" (3 cm)
