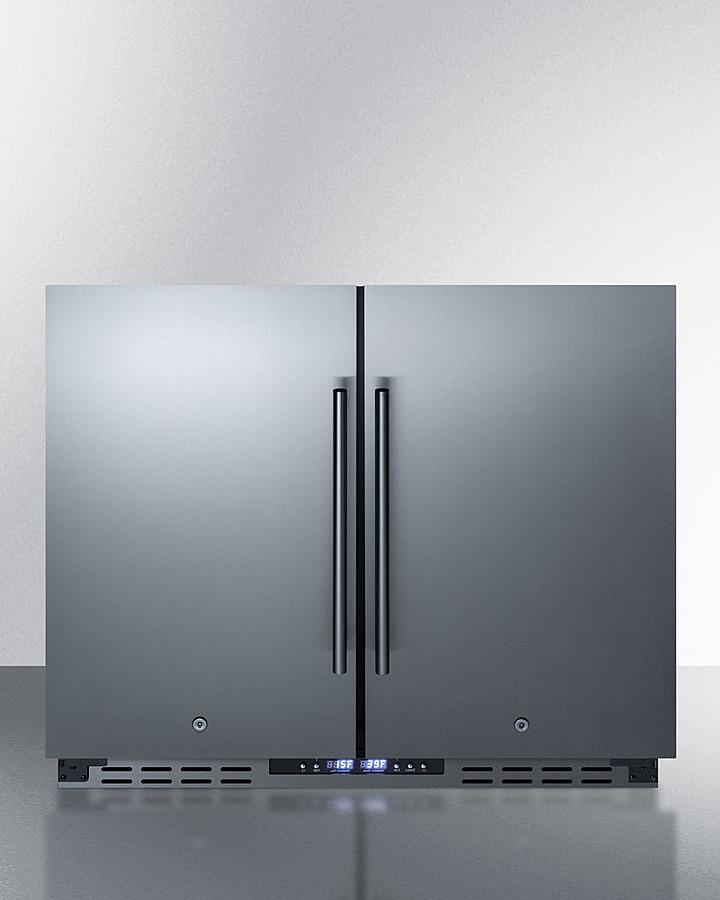

Summit FFRF36ADA 36" Wide Built-in Refrigerator-freezer, ADA Compliant FFRF36ADA

SUMMIT brings quality and value under the counter with the industry s largest collection of ADA compliant built-in refrigeration. The FFRF36ADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. This unit features a jet black cabinet and stainless steel doors complete with pro style handles. Both sections include factory-installed keyed locks for added security. Digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings. Inside, the FFRF36ADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves, with five placement options for optimal storage options and proper cold air circulation. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button. The FFRF36ADA is sized at 31 1/2 inches high to fit under lower ADA compliant counters. For this unit with panel ready doors, see the FFRF36IFADA. NOTE: Due to its larger commercial design, the FFRF36ADA requires an additional 5/8" of width for each door to open to a full 90 . If placing this unit against a right angle wall, be sure to accommodate this extra space.

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.5" (80 cm)
Nominal Width	36.0" (91 cm)
Width	35.5" (90 cm)
Width with Door Open	36.75" (93 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.25" (62 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	40.0" (102 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	504.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063324
Refrigerator-Freezer
Door Swing	French
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	23.5" (60 cm)
Refrigerator - Interior Width	12.75" (32 cm)
Refrigerator - Interior Depth	16.75" (43 cm)
Refrigerator - Capacity	2.9 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Temperature Range	36°F to 46°F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	1.59 oz.
Freezer - Interior Height	23.5" (60 cm)
Freezer - Interior Width	12.75" (32 cm)
Freezer - Interior Depth	16.75" (43 cm)
Freezer - Capacity	2.9 cu.ft
Freezer - Shelf Type	Chrome
Freezer - Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.59 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	2
Freezer - Temperature Range	-22°F to 46°F
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.25" (11 cm)
