Authorized Reseller

Summit 22" Wide All-freezer FS603SSVH

SKU/Model #: FS603SSVH
Summit 22" Wide All-freezer
Authorized Reseller
SKU/Model #: FS603SSVH
Summit 22" Wide All-freezer
Summit 22" Wide All-freezer
Summit 22" Wide All-freezer
Summit 22" Wide All-freezer
$724.00
List Price:
Instant Savings:

Product Details

  • Just 22 inches wide for easy placement in any small location
  • Allows the unit to be used freestanding
  • Durable design with lasting elegance
  • Thin 14mm diameter on vertical stainless steel handle
  • No temperature fluctuations with a manual defrost system that keeps the cold inside
  • Fixed shelves accommodate large items
  • Three racks for added storage options
  • Manage the interior temperature with ease and accuracy
  • Environmentally friendly design without ozone-damaging chemicals

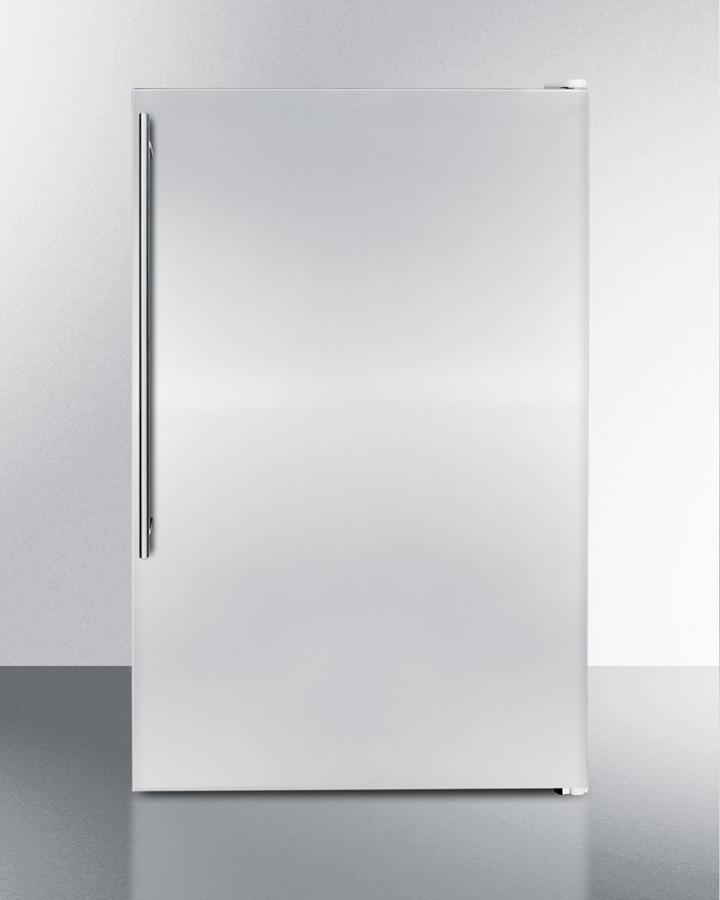

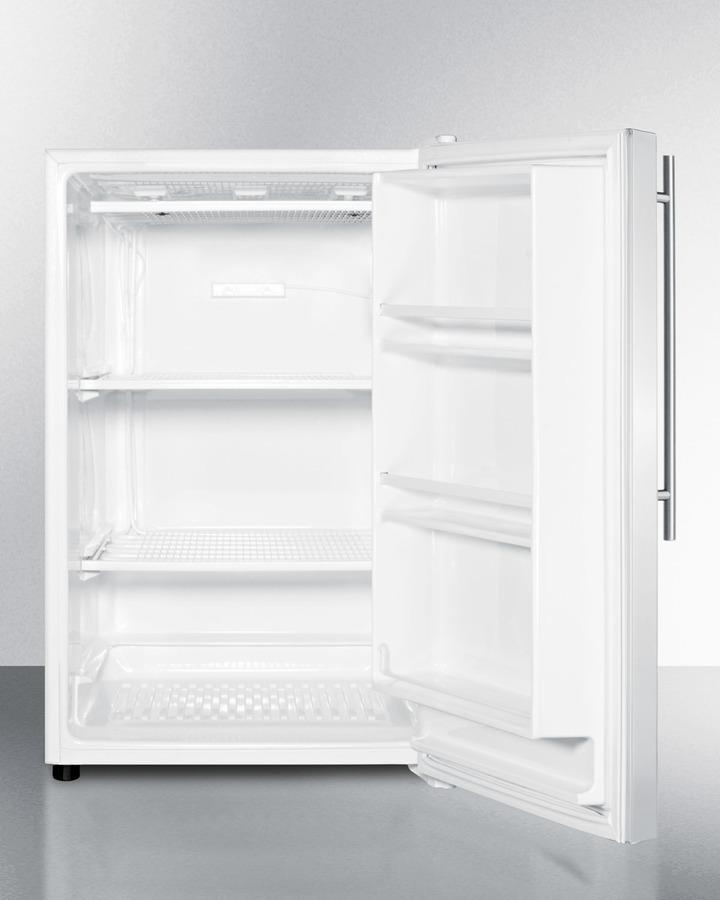

Perfect for homes with extra storage needs, the 22" wide FS603SSVH is one of the industry's only household freezers with a full 5 cu.ft. capacity. This manual defrost unit includes two fixed shelves with cooling coils to ensure an optimum performance. Door racks offer convenient storage. This unit comes in a textured white cabinet finish, with a 304 grade stainless steel wrapped door and sleek professional handle. It is designed for freestanding use. The white cabinet is fitted with a fully wrapped 304 grade stainless steel door, with a sleek stainless steel handle completing the modern look.

Overview
Height of Cabinet 33.13" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 21.38" (54 cm)
Depth 25.75" (65 cm)
Depth with Handle 26.76" (68 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 301.0kWh/year
Amps 1.1
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101049274
Freezer
Door Swing RHD
Reversible No
Interior Height 29.5" (75 cm)
Interior Width 18.63" (47 cm)
Interior Depth 19.0" (48 cm)
Shelf Type Wire
Shelf Qty 2
Full Door Shelves 3
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.5 oz.
High Side PSI 235.0
Low Side PSI 130.0
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 4.0" (10 cm)
