Summit HC24WW 24" Under Cabinet Convertible Range Hood HC24WW
Summit HC24WW 24" Under Cabinet Convertible Range Hood
- Low profile design offers classic style to finish your kitchen
- Sized for use over 24 inch cooking surfaces (additional sizes available)
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Matte finish in white suits any kitchen space
- Ships pre-set for recirculating mode but can be converted in a few simple steps
- Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
- Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
- Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user
- Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods
- High and low setting to allow proper ventilation of your kitchen as needed
- Designed to hold a standard incandescent light bulb with easy installation and no tools required

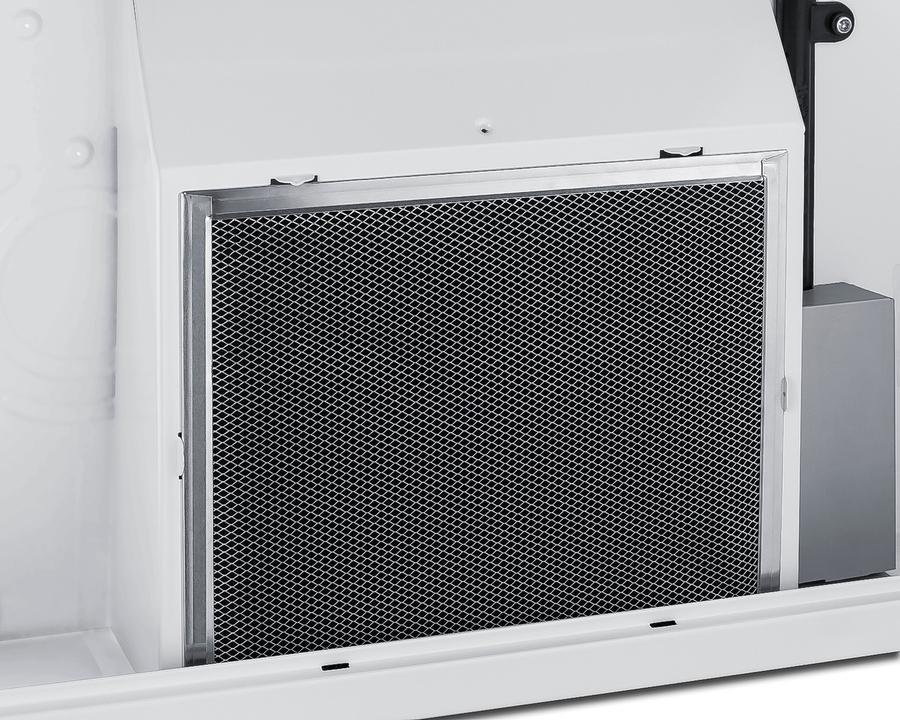

- Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
- Snap-in design allows you to easily remove the filter for fast replacing as needed
- Front-located on/off and high/low switches make it easy to manage the light and fan
- Designed to be hard-wired by a licensed professional
- TAA compliant
Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space. Model HC24WW is a 24" wide range hood ideal for apartments and other smaller kitchens. It comes in a clean white finish constructed from 21 gauge galvanized steel for a clean look and durable design. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.
| Overview | |
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.5" (14 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.88" (61 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 12.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101087092 |
| Range Hood | |
| Installation | Under Cabinet |
| Venting | Convertible |
| Controls | Dial |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 270.0 CFM |
| Sone Rating | 6 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
