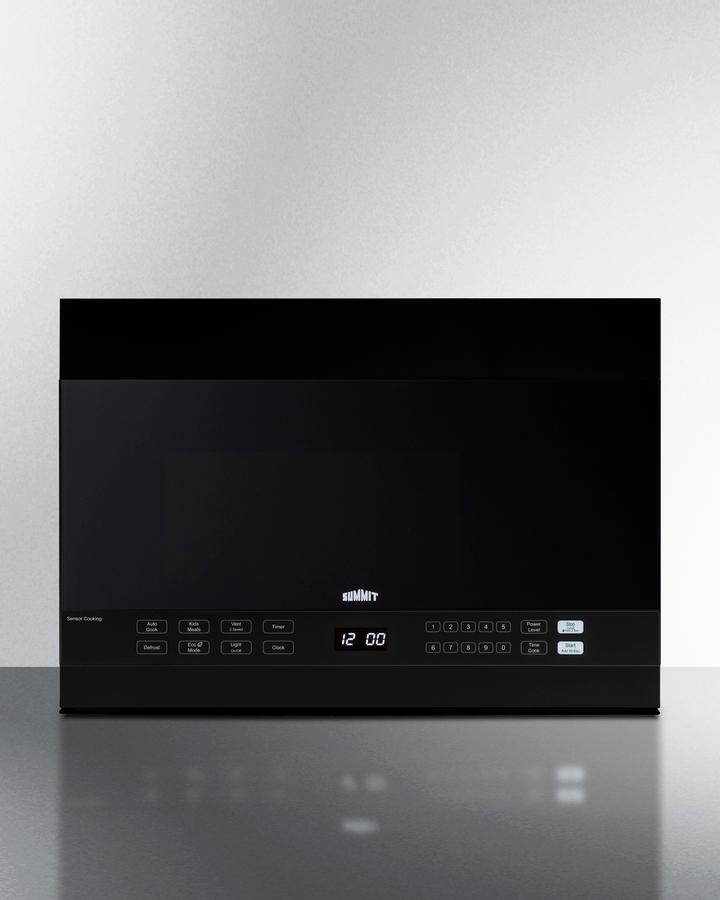

Summit MHOTR242B 24" Wide Over-the-range Microwave MHOTR242B

Summit's selection of microwave ovens offer complete cooking power in slim, stylish designs, ideal for smaller kitchens. The MHOTR242B is a 24" wide over-the-range microwave designed for simple one-touch cooking and effective ventilation. Its all-black exterior and white interior provides for an elegant look with easy cleanability, while a small window affords the opportunity to keep watch of your cooking. A side pocket handle offers a more streamlined look to complement any kitchen style. Inside, the MHOTR242B offers a full 1.4 cu.ft. capacity with an oversized 12.75" glass turntable. Ten power levels and multi-stage cooking options allow you to set the proper conditions for virtually every meal. The auto cook feature makes for convenient cooking and reheating for almost any food or beverage with pre-programmed settings for pizza, popcorn, beverages, cheeses, ice cream, butter, meats, veggies, and reheating. Submenus for meats, reheat, and veggies allow users to select by item, such as pork, chicken, casserole, dinner plate, or fresh and frozen veggies. An auto cooking decal is affixed to the lower cabinet interior for easy reference. The kids meal setting lets you heat common meals such as chicken nuggets, hot dogs, fries, and frozen sandwiches. Defrost settings offer the choice of heating by time or weight, while the Add 30 seconds feature provides additional cook time for user convenience. The MHOTR242B also includes a time cook function, timer, and interior light for easy viewing of the interior. The MHOTR242B is equipped with a versatile ventiliation system that can be set up with a vertical duct, horizontal duct, or for recirculating (ductless) operation with two grease filters and a charcoal filter included. A two-speed exhaust fan, which begins automatically, assures a smoke and odor-free environment. Two LED lights offer efficient illumination for your cooking surface, while the child lock feature helps prevent unsupervised use by children for added safety. Eco Mode disables the display, outside lamp, and exhaust fan for power saving convenience; it is automatically turned on after one minute of inactivity or can be manually turned on or off by the user. We include a mounting plate, exhaust adapter for top or rear-venting, and the hardware required for installation, along with an installation booklet and a top cabinet and rear wall template. NOTE: This unit features a top vented system that must be clear for adequate ventilation. The depth from the rear to the vented area is 17". With its range of cooking options and convenient size, the MHOTR242B is the perfect finish for any small kitchen space. This unit is also available in white (see MHOTR241W) or stainless steel (see MHOTR243SS). Visit www.summitappliance.com to learn more. NOTE: If using this for recirculating operation, be sure to consult the installation instructions and rotate the motor before installing in your cabinet.

Overview
Nominal Height	18.0" (46 cm)
Height of Cabinet	17.5" (44 cm)
Nominal Width	24.0" (61 cm)
Width	24.0" (61 cm)
Width with Door Open	24.75" (63 cm)
Nominal Depth	17.0" (43 cm)
Depth	17.0" (43 cm)
Depth with door at 90°	38.75" (98 cm)
Capacity	1.4
Door	Black
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	13.5
Voltage/Frequency	115 V AC/60 Hz
Weight	51.0 lbs. (23 kg)
Parts & Labor Warranty	90 Days
UPC	761101076041
Microwave
Type	Over-the-Range
Wattage	1000.0
Controls	Digital
Digital Display	Yes
Turntable	Yes
Turntable Diameter	12.75" (32 cm)
Specialized Cooking Buttons	Yes
Interior Height	10.0" (25 cm)
Interior Width	14.5" (37 cm)
Interior Depth	14.38" (37 cm)
