Summit 7.2 CU.FT. Dipping Cabinet NOVA22PDC

SKU/Model #: NOVA22PDC
Summit 7.2 CU.FT. Dipping Cabinet
Authorized Reseller
SKU/Model #: NOVA22PDC
Summit 7.2 CU.FT. Dipping Cabinet
Summit 7.2 CU.FT. Dipping Cabinet
Summit 7.2 CU.FT. Dipping Cabinet
Summit 7.2 CU.FT. Dipping Cabinet
Summit 7.2 CU.FT. Dipping Cabinet
Free Shipping
List Price:
Instant Savings:
Additional 10% Savings In Cart

Product Details

  • UL-S listed to NSF-7 Standards for use in commercial establishments
  • Durable polycarbonate sneezeguard with light is pre-installed
  • Electronic controls for more precise temperature management

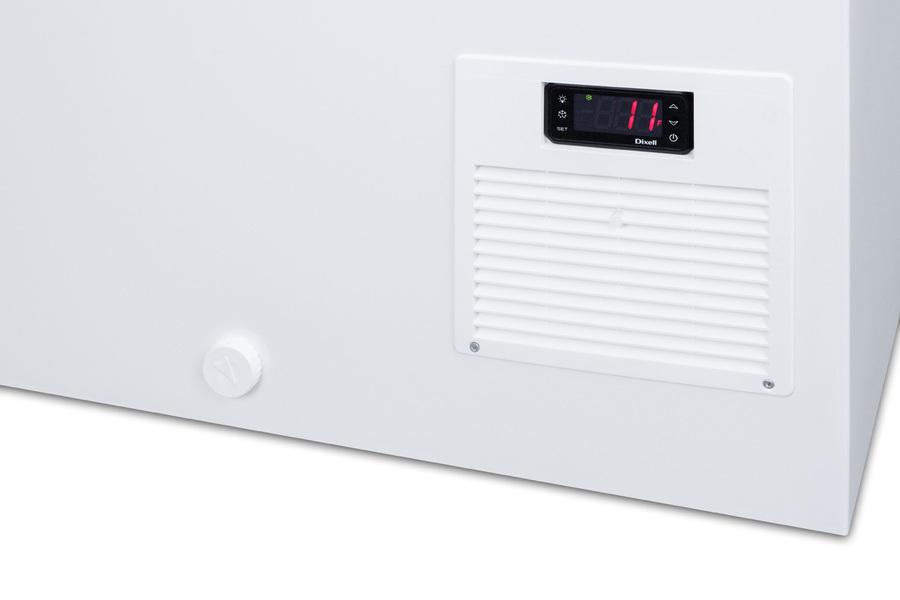

  • Digital thermostat can be set between -13 and +23 F to accommodate a variety of frozen treats

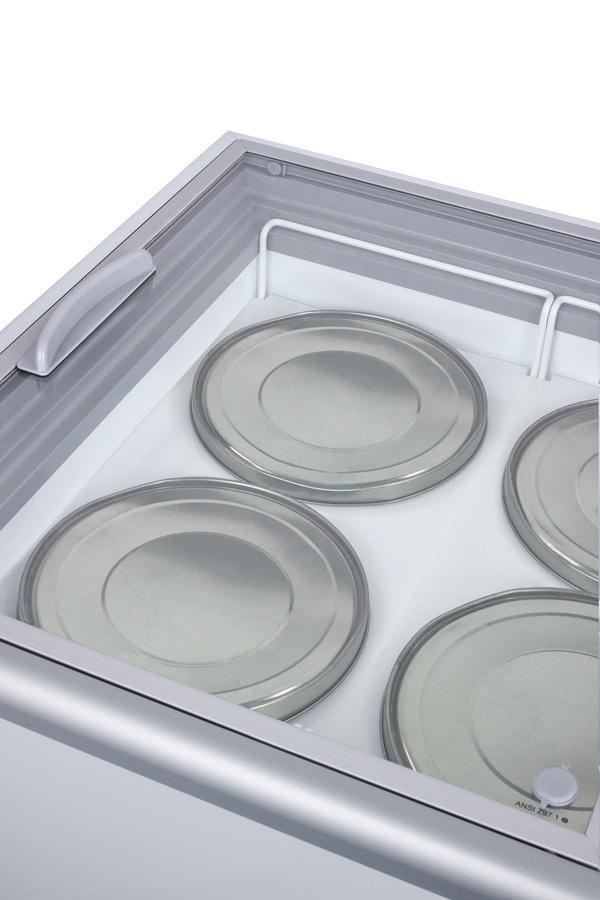

  • Two epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place
  • Unit can store 2 tubs on the floor and display an additional 4 using the provided baskets
  • Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
  • 3" thick insulation helps to ensure items stay cold
  • Static cooling system for improved temperature stability

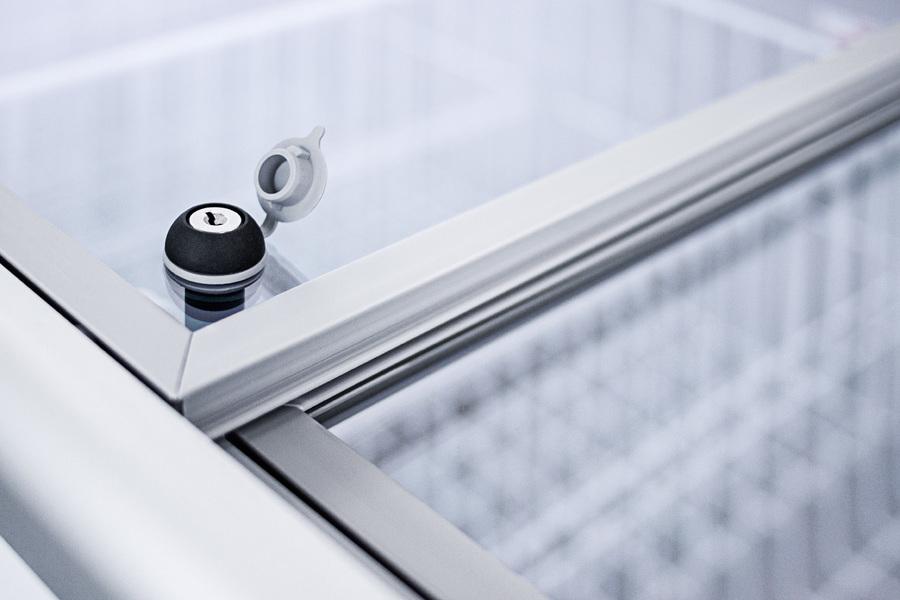

  • A keyed lock is included for optional use
  • Durable construction in a white finish for easy visibility
  • Heavy duty wheels for smooth mobility (ship unassembled)
  • Offers improved temperature performance throughout the interior
  • Front located for easier defrosting
  • Sneezeguard light for added visibility
  • Environmentally friendly design with no ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA22PDC is a 30" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23 F to accommodate a variety of desserts. We pre-set the unit to -4 F. Inside, the NOVA22PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 2 wire tub holder baskets with plastic lids to hold 4 11" round/3 gallon ice cream tubs, with room to store an additional 2 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA22PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.

Height of Cabinet 45.5" (116 cm)
Width 30.0" (76 cm)
Depth 27.25" (69 cm)
Capacity 7.2 cu.ft. (204 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064932
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 23.75" (60 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23 F
