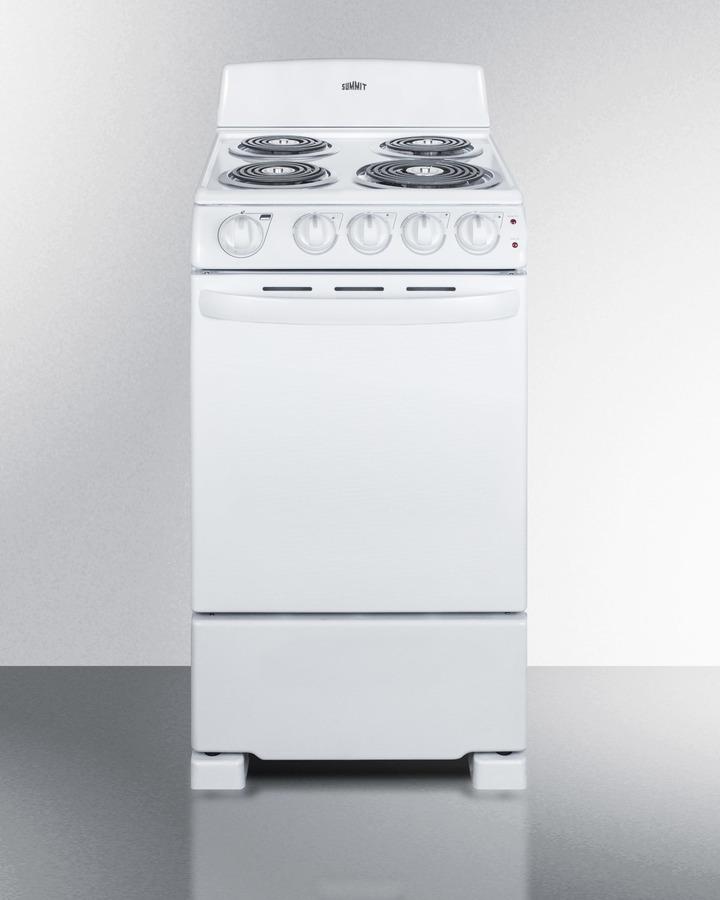

Summit RE203W 20" Wide Electric Coil Range RE203W
Summit RE203W 20" Wide Electric Coil Range
In Stock!
$562.00
When Will I Get My Order?
- Slim-fitting coil range perfectly sized for apartments and smaller home kitchens
- Perfectly sized for apartments and smaller home kitchens
- Broiler is located inside the oven, making it easier to use
- High backing prevents stovetop contents from splashing up or boiling over and staining back walls
- Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs
- Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking
- Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
- Each element includes a removable chrome pan for easier cleaning
- Fully finished white cabinet constructed from steel
- White-on-white design for an attractive look ideal for any kitchen
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Sliding racks will stay in your oven with special brake mechanism
- To prevent accidents, knobs require a small amount of force when turning
- Upfront controls and easy-to-operate knobs offer easier accessibility
- Compatible with standard 40 amp 3 or 4-wire range cords
- This electric range was made in North America and meets the TAA guidelines
SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 20" wide fits. Made in North America, the RE203W is a 220V electric range designed for 20" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the oven is in use. The RE203W features a large 2.3 cu.ft. oven made from durable porcelain, with two adjustable racks and a two-piece broiler pan. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The RE203W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and quality design, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 24" wide choices, browse our website. Note: this item replaces the RE201W.
| Overview | |
| Nominal Height | 42.0" (107 cm) |
| Height of Cabinet | 41.75" (106 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.5" (50 cm) |
| Nominal Depth | 26.0" (66 cm) |
| Depth | 25.13" (64 cm) |
| Depth with Handle | 27.38" (70 cm) |
| Depth with door at 90° | 46.38" (118 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | UL |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101058283 |
| Electric Range | |
| Oven Capacity | 2.3 cu.ft. (65 L) |
| Cooktop Surface | Metal |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1250.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1250.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1250.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 2400.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 15.25" (39 cm) |
| Oven Interior Width | 14.5" (37 cm) |
| Oven Interior Depth | 17.63" (45 cm) |
| Power Source | 220V |
| Broiler Location | Inside Oven |
