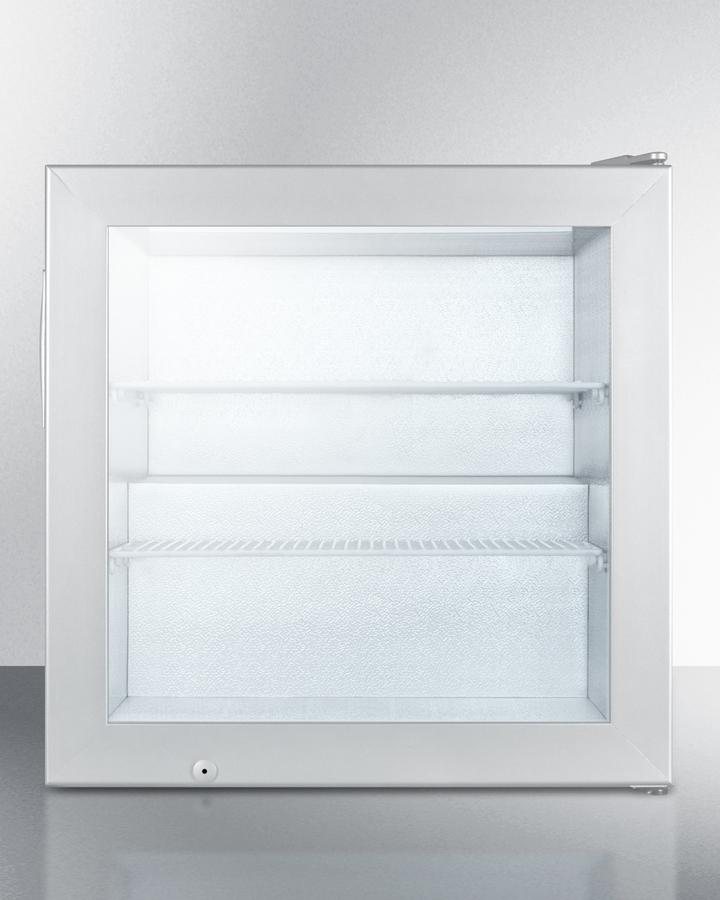

Summit SCFU386 Compact All-freezer SCFU386

SUMMIT SCFU386 is a compact display freezer specially designed to promote impulse sales of select frozen goods. This manual defrost unit comes fully featured for convenient use in commercial settings. A self-closing glass door helps to protect items from accidents, with an LED light providing an attractive presentation. Two wire shelves offer flexible storage and a factory installed lock offers security when needed. The SCFU386 is ETL-S listed to NSF standards for use in commercial settings. With its compact size and special display features, this model is ideal for storing and displaying sorbet, water ice, and other frozen treats ideally served at 0 F. For this unit with a stainless steel cabinet, see the SCFU386CSS.

Overview
Nominal Height	24.0" (61 cm)
Height of Cabinet	24.0" (61 cm)
Height to Hinge Cap	24.5" (62 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.63" (52 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	2.0 cu.ft. (57 L)
Defrost Type	Manual
Door	Glass
Cabinet	Gray
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	4.0
Voltage/Frequency	115 V AC/60 Hz
Weight	83.0 lbs. (38 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101022062
Freezer
Door Swing	RHD
Reversible	No
Interior Height	18.0" (46 cm)
Interior Width	18.75" (48 cm)
Interior Depth	15.38" (39 cm)
Shelf Type	Wire
Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.4 oz.
High Side PSI	280.0
Low Side PSI	90.0
Compressor Step Height	8.25" (21 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	7.0" (18 cm)
Temperature Range	-4 to 5°F
