Summit SDHW1532 15" Wide Built-in Wine Cellar SDHW1532
Summit SDHW1532 15" Wide Built-in Wine Cellar
- Single zone wine cooler for residential or commercial storage
- Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Elegant design offers a clear but protected view of your interior
- Glass is framed by with a flush one-piece stainless steel trim for an elevated look

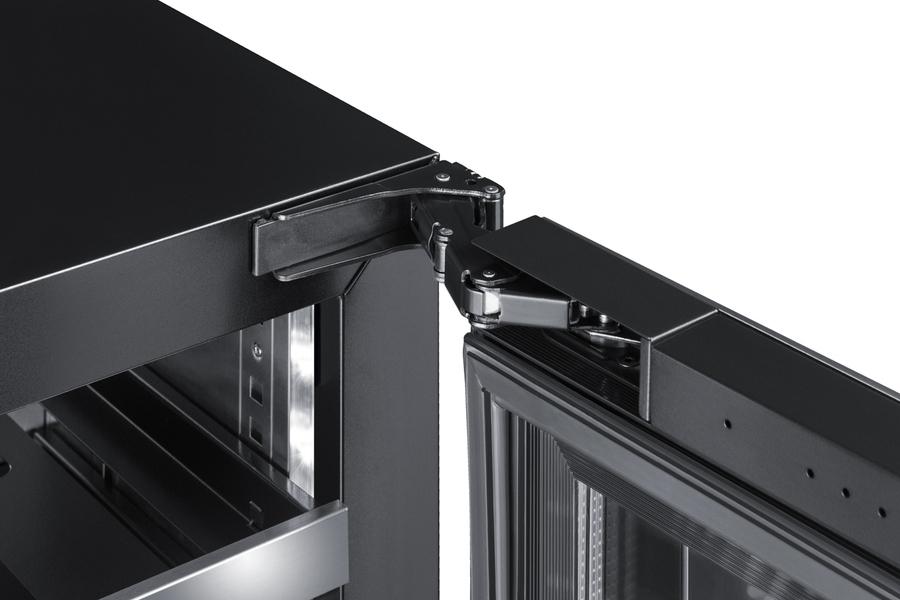

- Smoother opening and a better fit with an integrated European hinge
- Keyed lock for a secure interior (2 keys included)

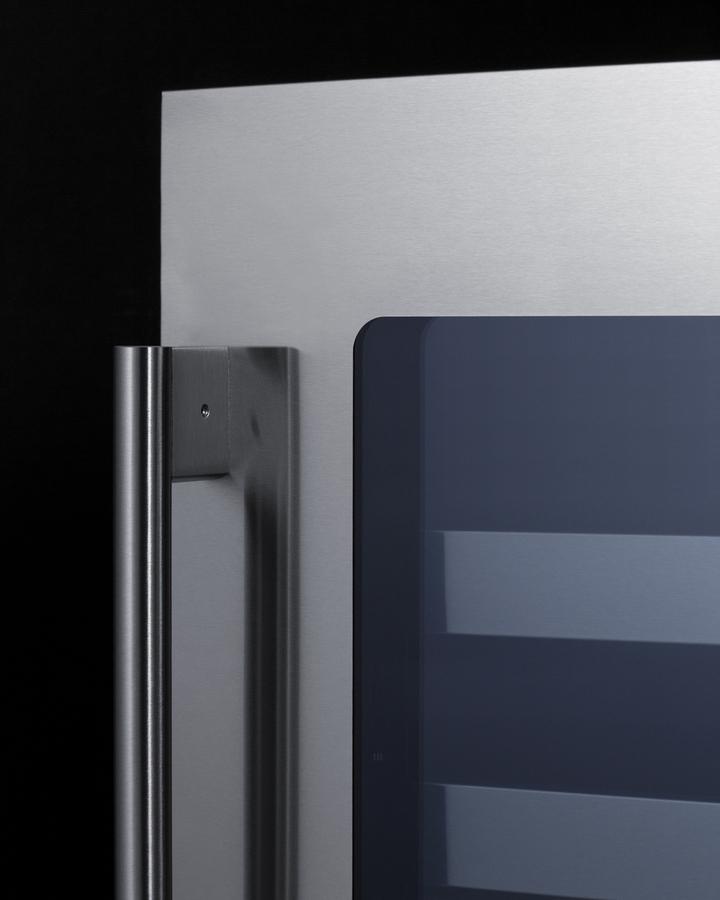

- Stainless steel handle completes the look
- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
- The unit's temperature range of 41 to 68 F is ideal for red, white, or sparkling wine bottles
- Alarm sounds if the door is left open for more than 60 seconds
- Audible alarm sounds if the interior temperature rises out of set range
- No-frost operation for minimum user maintenance
- Thermostat s unique and ergonomic position allows for more accessible temperature readings with zero bending required

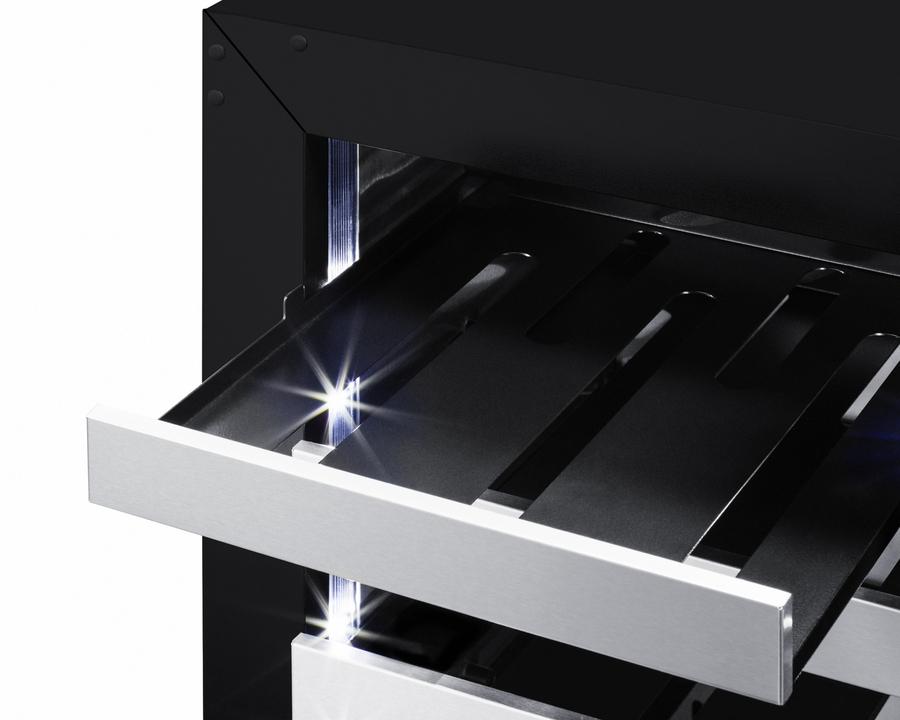

- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
- Unit will retain its last settings when power is restored in the event of power loss
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Allows the unit to be used freestanding
- Space-saving design with no exposed coils that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- User-reversible door swing for added flexibility to best accommodate your setting

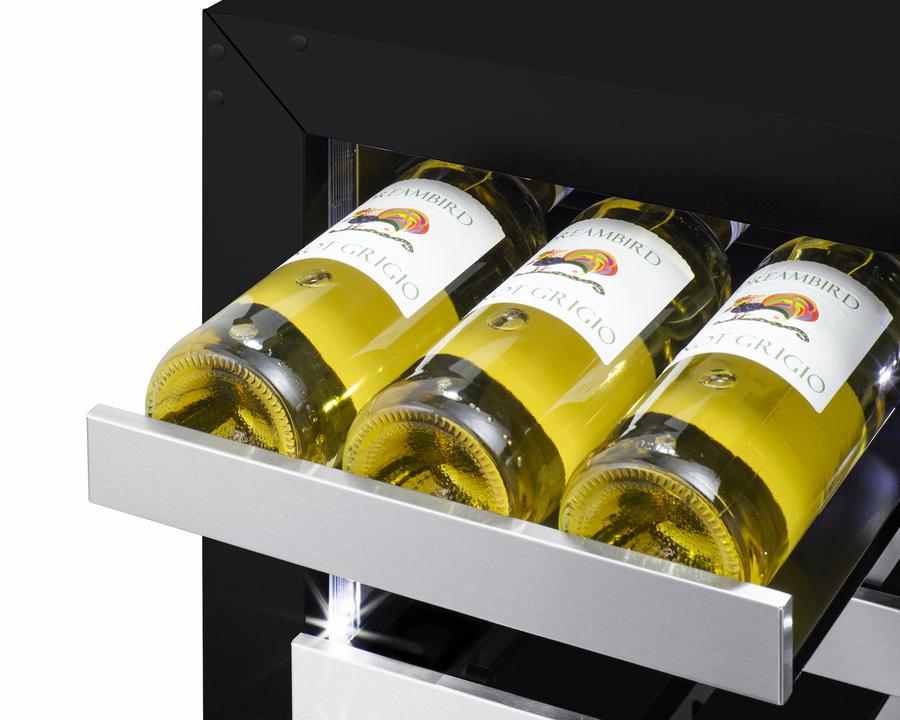

- 18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
- Runs under 34 dB for a quiet performance that won't interrupt your conversation
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHW1532 is a 15" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the reversible double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security. The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41 and 68 F to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. The SDHW1532 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHW1533 beverage center. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a panel-ready version, see model SDHW1532PNR. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.
| Overview | |
| Height of Cabinet | 33.75" (86 cm) |
| Width | 14.75" (37 cm) |
| Depth | 18.0" (46 cm) |
| Depth with Handle | 19.75" (50 cm) |
| Depth with door at 90° | 32.63" (83 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101106335 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 10.63" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 33.3 dB |
