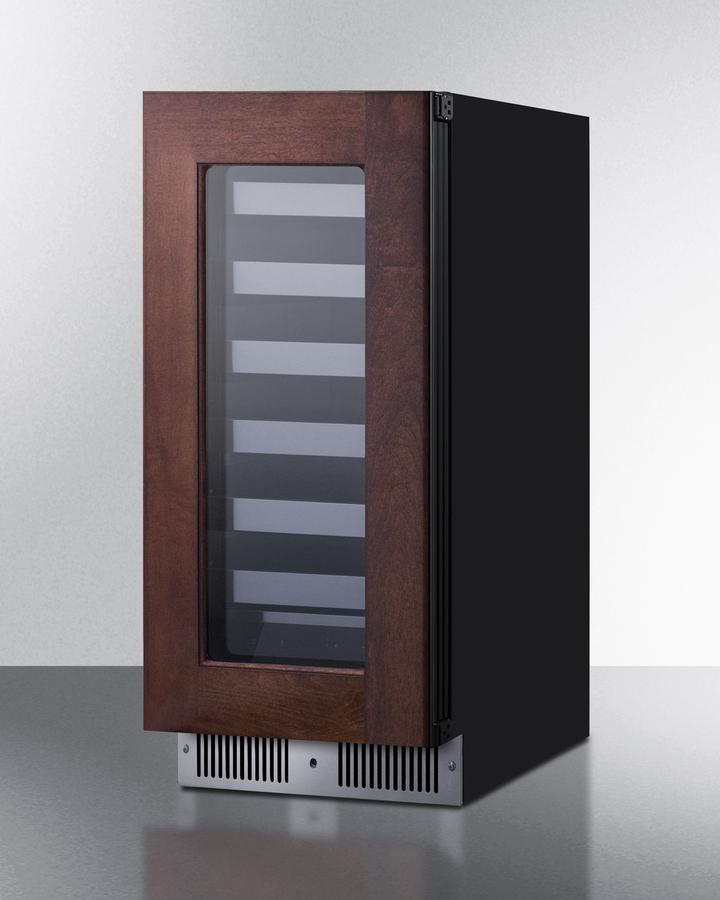

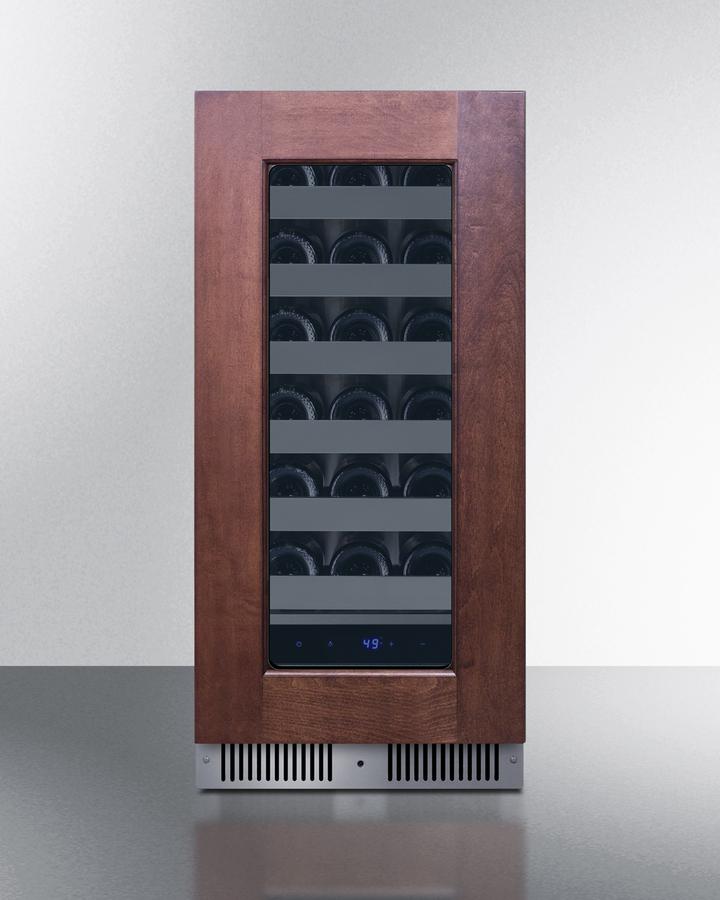

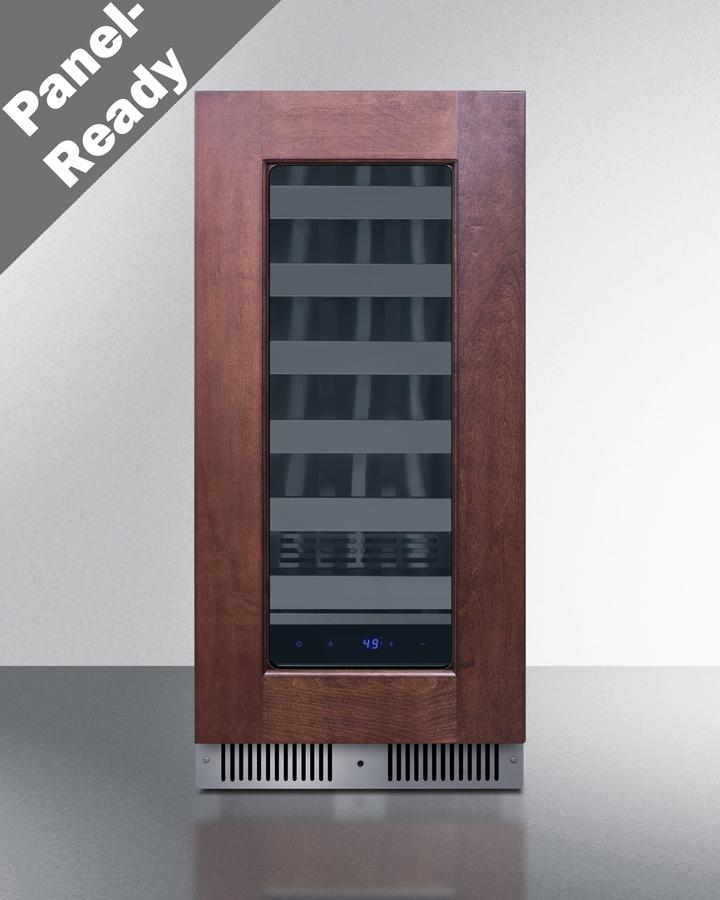

Summit SDHW1532PNRLHD 15" Wide Built-in Wine Cellar (panel Not Included) SDHW1532PNRLHD
Summit SDHW1532PNRLHD 15" Wide Built-in Wine Cellar (panel Not Included)
- Single zone wine cooler for residential or commercial storage
- Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- Front-breathing design lets you make the best use of space by installing your appliance under the counter

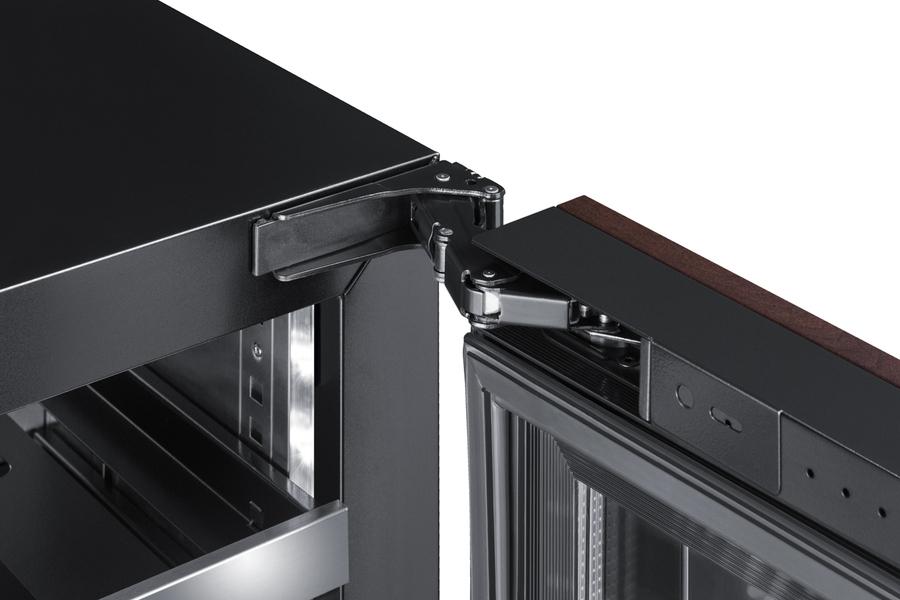

- European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame
- Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim
- Elegant design offers a clear but protected view of your interior
- Smoother opening and a better fit with an integrated European hinge
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- Keyed lock for a secure interior (2 keys included)
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- No-frost operation for minimum user maintenance

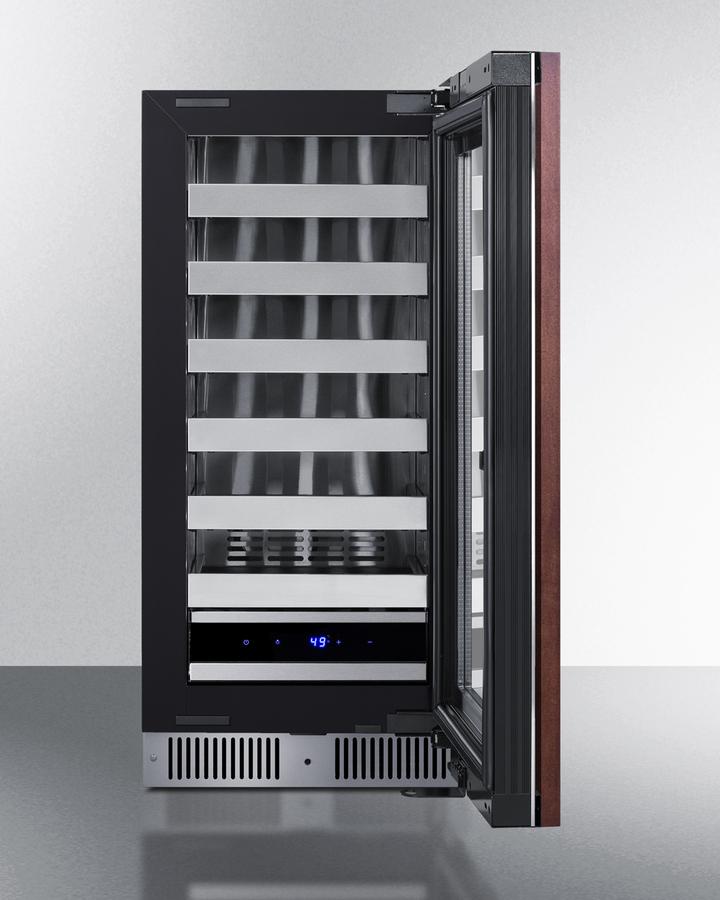

- Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
- The unit's temperature range of 41 to 68 F is ideal for red, white, or sparkling wine bottles
- Thermostat s unique and ergonomic position allows for more accessible temperature readings with zero bending required
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
- Alarm sounds if the door is left open for more than 60 seconds
- Audible alarm sounds if the interior temperature rises out of set range

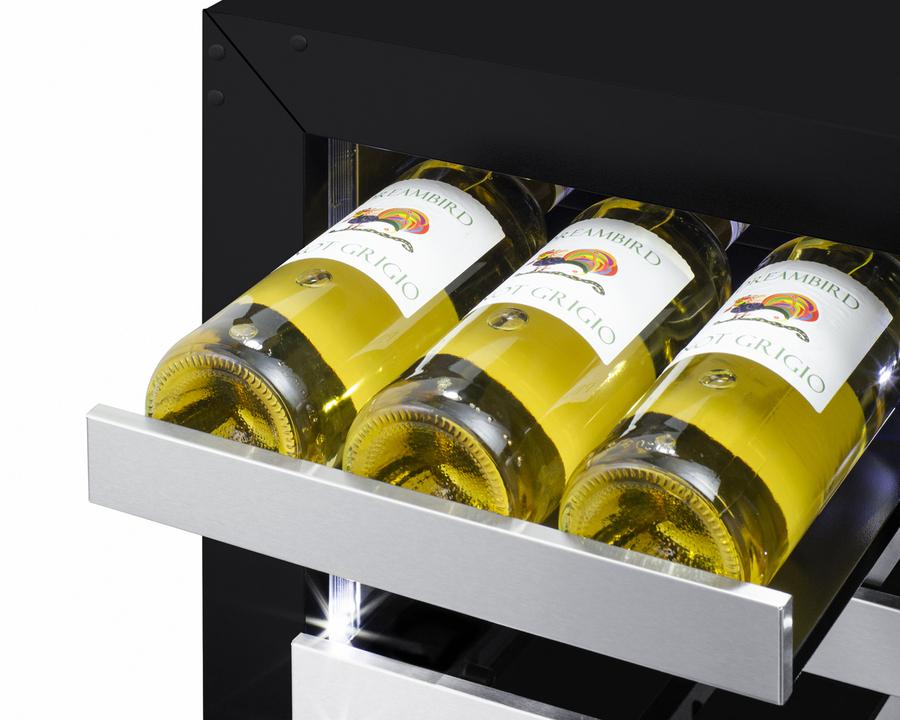

- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- Unit will retain its last settings when power is restored in the event of power loss
- 18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
- Allows the unit to be used freestanding
- Space-saving design with no exposed coils that offers easier cleanability
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- For this unit with a standard right-hand door swing, see model SDHW1532PNR
- Runs under 34 dB for a quiet performance that won't interrupt your conversation
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHW1532PNRLHD is a 15" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW1532PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHW1532PNR. The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41 and 68 F to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. The SDHW1532PNRLHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG1533PNRLHD beverage center. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.
| Overview | |

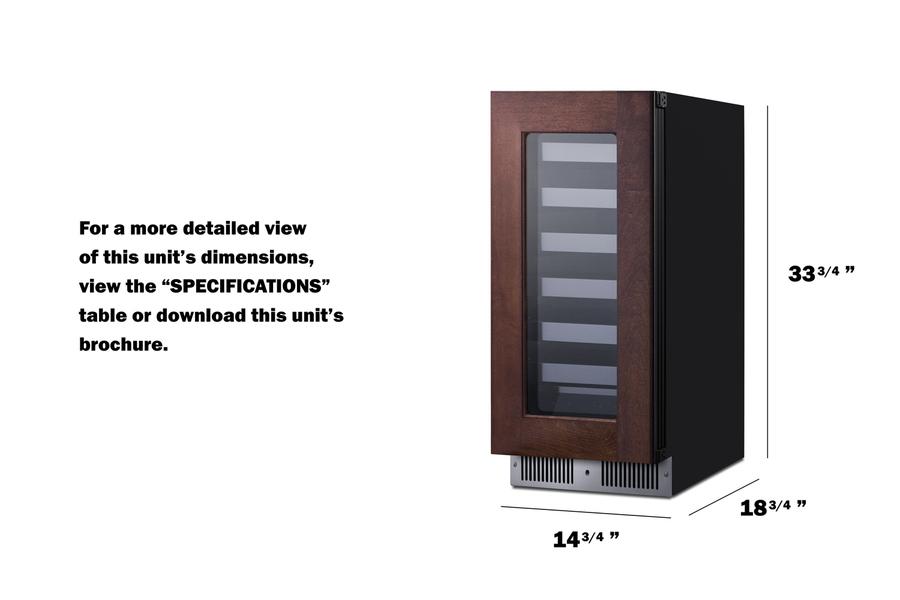

| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 18.0" (46 cm) |
| Depth with door at 90° | 32.63" (83 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145778 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | LHD |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 10.63" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 33.3 dB |
