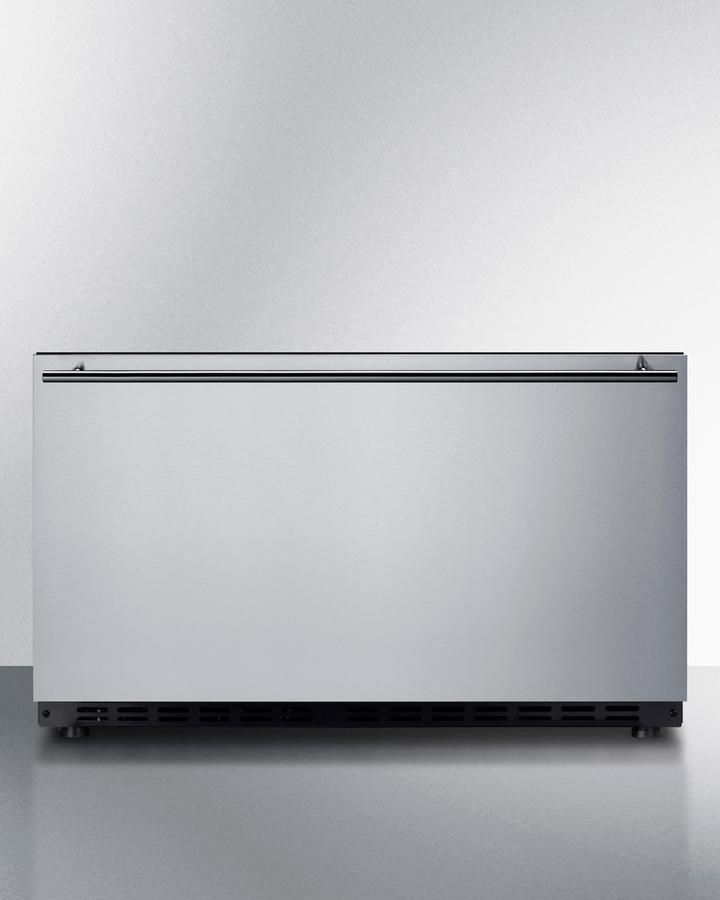

Summit SDR301OS 30" Wide Built-in Outdoor Drawer Refrigerator SDR301OS

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

Overview
Nominal Height	18.0" (46 cm)
Height of Cabinet	17.75" (45 cm)
Nominal Width	30.0" (76 cm)
Width	29.5" (75 cm)
Nominal Depth	22.0" (56 cm)
Depth	22.0" (56 cm)
Depth with Handle	23.5" (60 cm)
Depth with door at 90°	37.88" (96 cm)
Capacity	2.5 cu.ft. (71 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	280.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	77.0 lbs. (35 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101088990
Refrigerator Features
Sabbath Mode	Yes
Door Swing	Drawer
Reversible	No
Shelf Type	Glass
Shelf Qty	1
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.92oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43 F
Sound Level	34.3 dB
Dimensions
Interior Height	13.0" (33 cm)
Interior Width	23.63" (60 cm)
Interior Depth	15.5" (39 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	23.63" (60 cm)
Compressor Step Depth	4.5" (11 cm)
