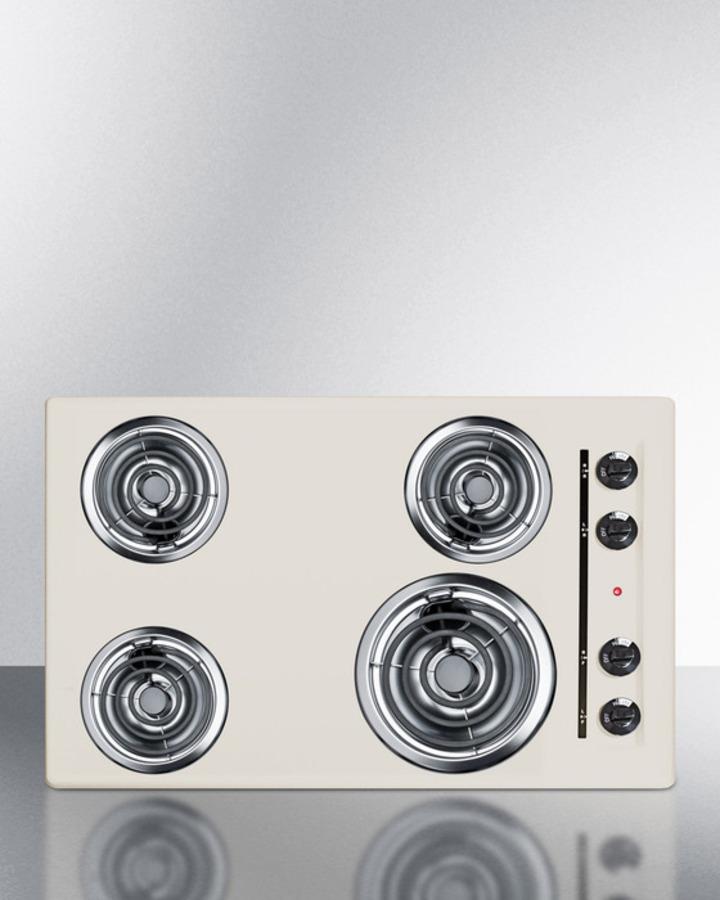

Summit 30" Wide 4-burner Coil Cooktop SEL05

SKU/Model #: SEL05
Summit 30" Wide 4-burner Coil Cooktop
Authorized Reseller
SKU/Model #: SEL05
Summit 30" Wide 4-burner Coil Cooktop
$470.00
List Price:
Instant Savings:

Product Details

  • Designed and constructed domestically
  • Fits 28 3/8" W x 18 5/8" D counter cutouts
  • Scratch-resistant top in a classic bisque finish
  • Traditional design offers reliable heating and strong durability for everyday use
  • Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
  • Larger element is ideal for heating wider pots and pans
  • Standard burners accommodate most heating needs
  • Each coil element includes a removable chrome pan to catch spills for easier cleanup
  • Curved design helps to contain spills on the surface
  • Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
  • Knobs require a small amount of force for added safety
  • Professional installation required
  • Compatible with standard 40 amp 3 or 4-wire range cords

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The SEL05 is a 30" wide 220-240V electric cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a retro bisque finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The SEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Overview
Height of Cabinet 3.75" (10 cm)
Width 29.75" (76 cm)
Depth 20.0" (51 cm)
Cabinet Bisque
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 220 V AC/60 Hz
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
UPC 761101000800
Electric Cooktop
Heating Type Radiant
Surface Painted
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 28.38" (72 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 675.0
Power Cord Included No
