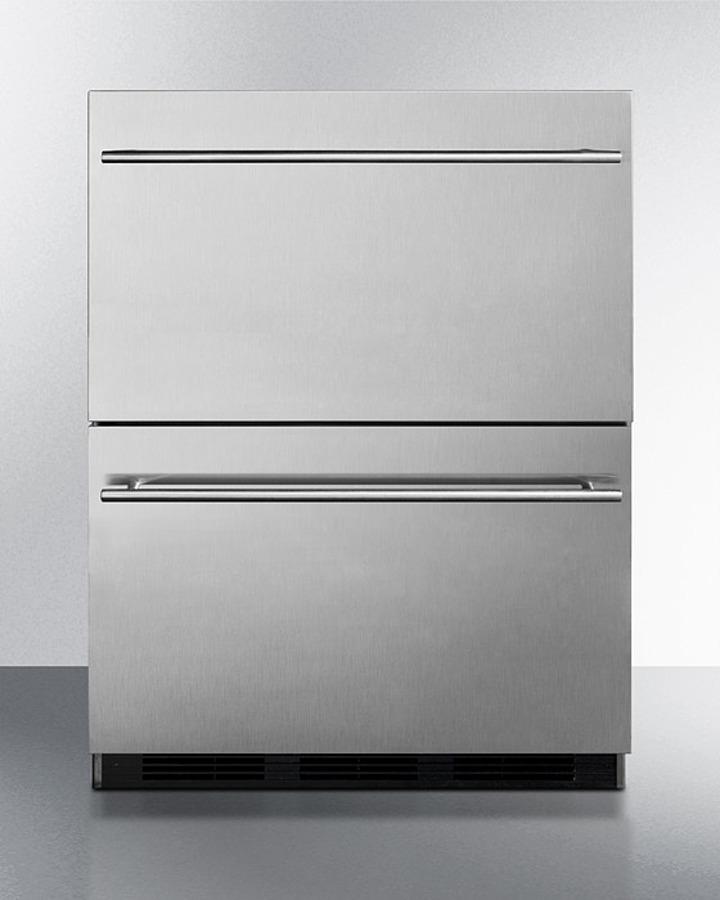

Summit SP6DBS2D7 24" Wide 2-drawer All-refrigerator SP6DBS2D7

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel. The SP6DBS2D7 is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. This unit includes an adjustable divider that lets you better organize your storage. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit). Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in lower ADA compliant height, see the SP6DBS2D7ADA.

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.25" (84 cm)
Nominal Width	24.0" (61 cm)
Width	23.75" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.88" (61 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	41.25" (105 cm)
Capacity	3.0 cu.ft. (85 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069500
Refrigerator Features
Height Adjustable	1
Thermostat Type	Dial
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Drawer Dimensions
Interior Height 1	9.5" (24 cm)
Interior Width 1	18.75" (48 cm)
Interior Depth 1	12.0" (30 cm)
Interior Height 2	12.63" (32 cm)
Interior Width 2	17.25" (44 cm)
Interior Depth 2	16.0" (41 cm)
Dimensions
Compressor Step Height	5.75" (15 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	4.0" (10 cm)
