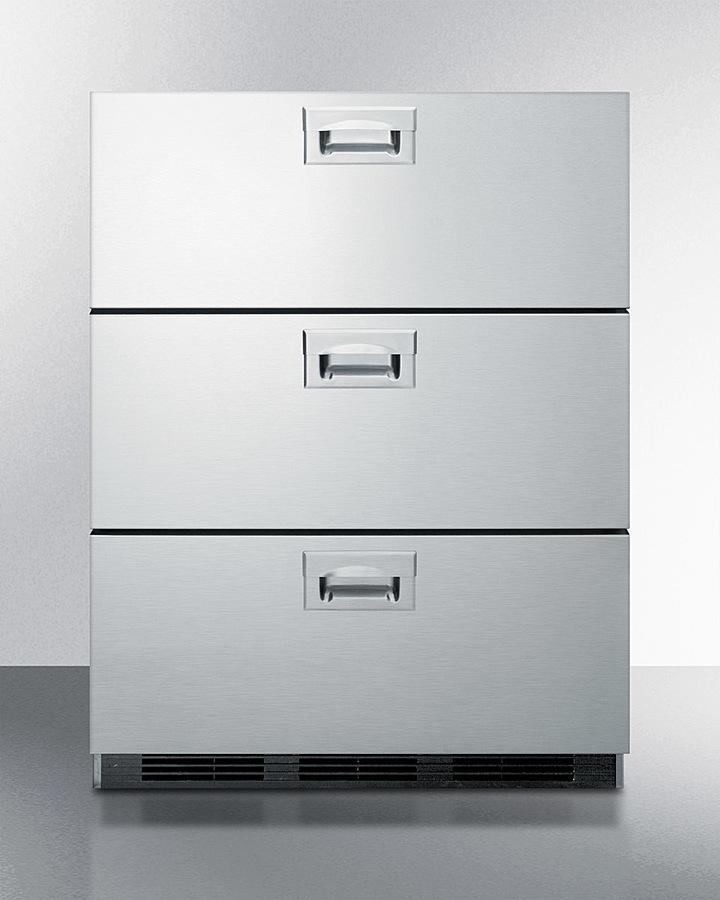

Summit SP6DBS7ADA 24" Wide 3-drawer All-refrigerator, ADA Compliant
Summit SP6DBS7ADA 24" Wide 3-drawer All-refrigerator, ADA Compliant
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- 32 inch height is designed to fit under ADA compliant counters
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Less than 24 inches wide to fit tight spaces
- Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Allows the unit to be used freestanding
- Built with solid durability, inside and out
- Reduced maintenance with auto defrost system
- Dial thermostat for easy temperature management
- Environmentally friendly design does not contain ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel. The SP6DBS7ADA is a 24" wide three-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Three sliding drawers feature recessed handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS7.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.75" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 23.63" (60 cm) |
| Depth with door at 90° | 39.25" (100 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.2 |
| Weight | 120.0 lbs. (54 kg) |
| Shipping Weight | 125.0 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069531 |
| Refrigerator Features | |
| Thermostat Type | Dial |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Drawer Dimensions | |
| Interior Height 1 | 6.25" (16 cm) |
| Interior Width 1 | 18.63" (47 cm) |
| Interior Depth 1 | 11.5" (29 cm) |
| Interior Height 2 | 6.25" (16 cm) |
| Interior Width 2 | 18.63" (47 cm) |
| Interior Depth 2 | 16.0" (41 cm) |
| Interior Height 3 | 6.25" (16 cm) |
| Interior Width 3 | 17.25" (44 cm) |
| Interior Depth 3 | 16.0" (41 cm) |
| Dimensions | |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 18.63" (47 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
