Summit SPRF2D5PNR 24" Wide Panel-ready 2-drawer Refrigerator-freezer (panel Not Included)
Summit SPRF2D5PNR 24" Wide Panel-ready 2-drawer Refrigerator-freezer (panel Not Included)
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?

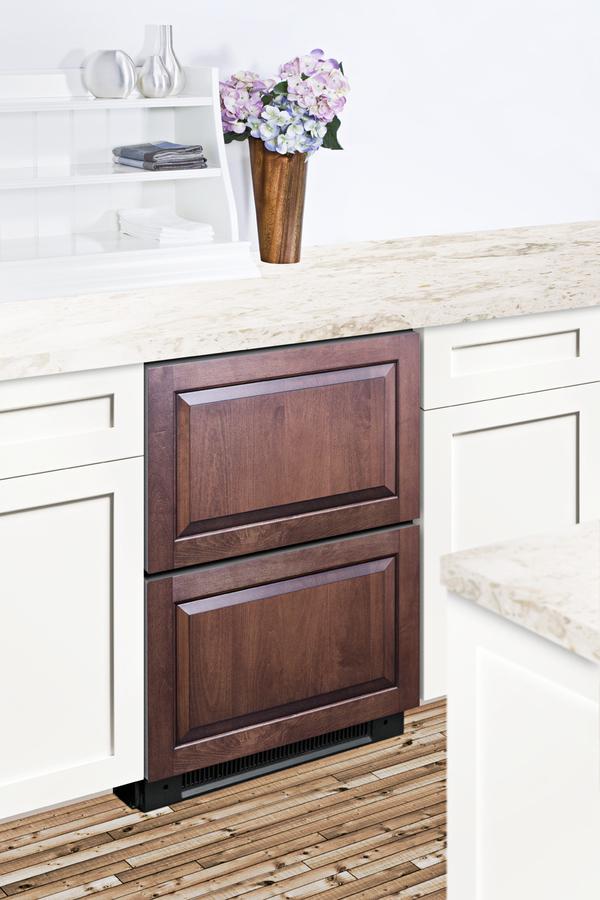

- Make the best use of space by installing this unit under the counter and flush with other cabinetry

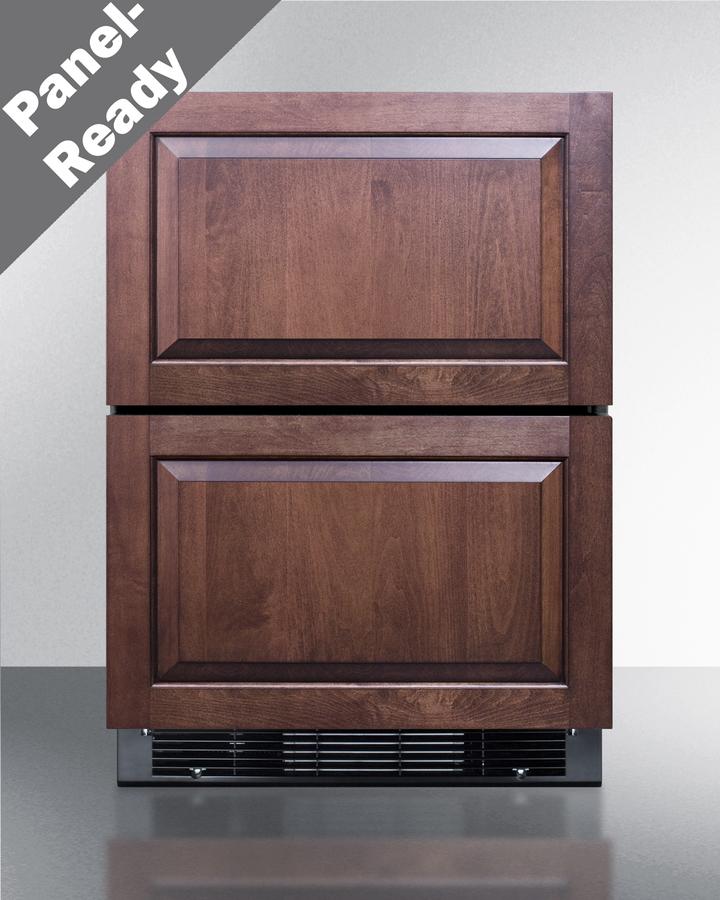

- Drawer fronts can be customized with a custom overlay panel (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness)
- Elegant style suits any setting
- Thin (14mm diameter) stainless steel handles finish the look
- Low maintenance design for easy operation

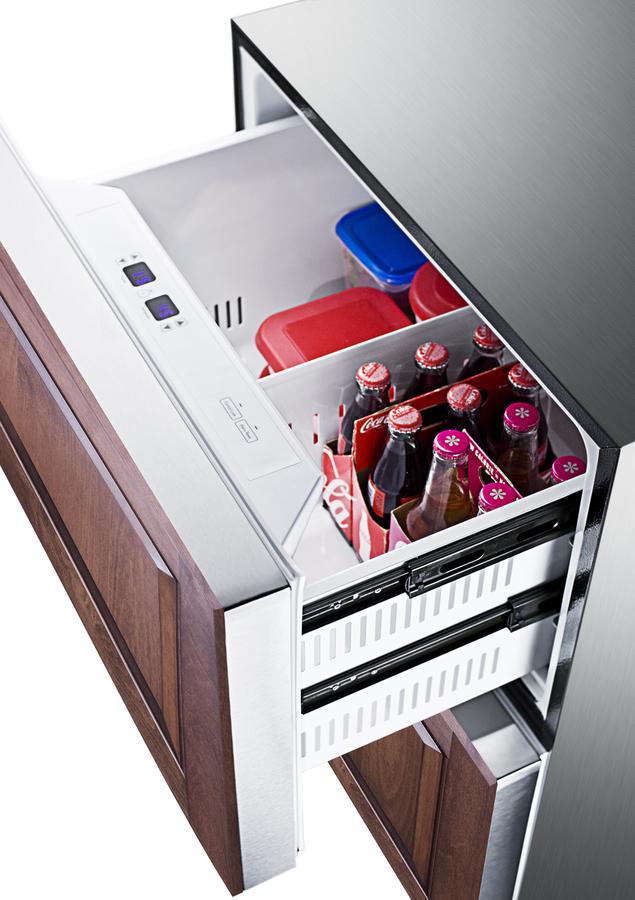

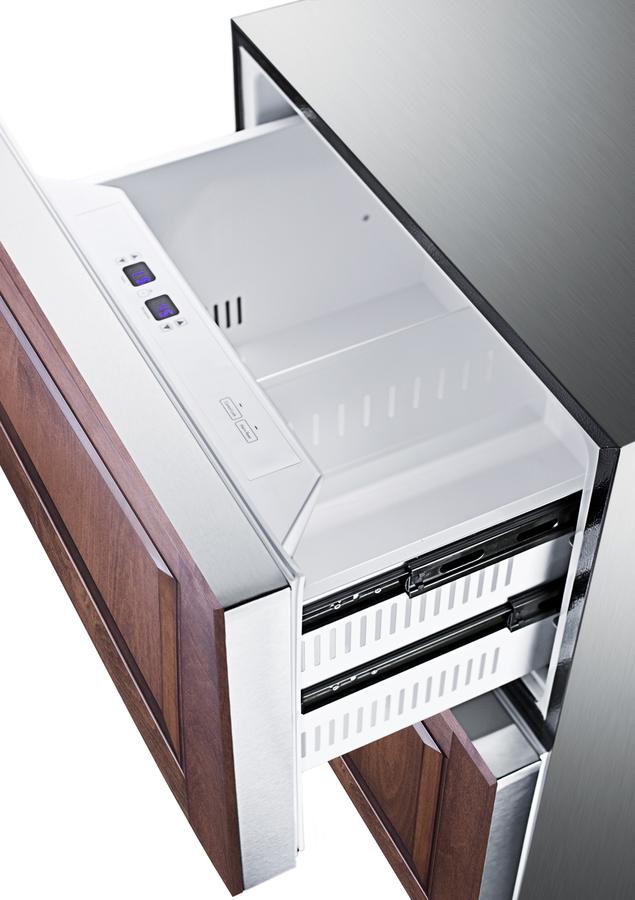

- Electronic controls ensure easy and intuitive temperature management of both the refrigerator and freezer sections
- Internal thermostat lets you view the set temperature in Fahrenheit or Celsius
- Thermostat includes a locking feature to prevent unintentional changes
- Audible alarm will sound if either drawer is left open for 10 minutes

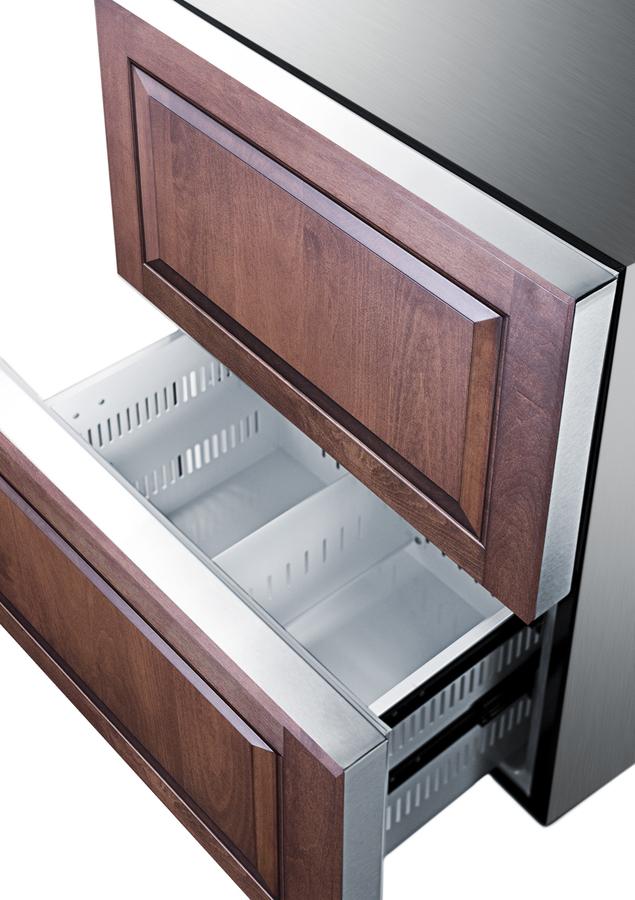

- Refrigerator section includes a center divider for easier storage
- Automatically illuminates when the top drawer is opened
- Fully finished exterior allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
Summit's extensive selection of built-in undercounter drawer refrigeration brings space-saving storage in a variety of stunning designs. The SPRF2D5PNR is a 2-drawer refrigerator-freezer designed and manufactured in North America. The front-breathing system enables built-in installation under counters, while the fully finished stainless steel cabinet also allows it to be used freestanding. It comes in a 24 inch wide fit, with panel-ready stainless steel drawer fronts that let you customize the look to best match adjacent cabinetry (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness). Pro-style handles complete the elegant look. Both the top drawer refrigerator and bottom drawer freezer utilize full frost-free operation, ensuring a low maintenance performance with reliable cooling. A digital thermostat ensures easy temperature management and an interior light provides a convenient view of stored items. With a unique design fully equipped for user convenience, the SPRF2D5PNR makes an attractive yet functional addition to any home. For this unit with a factory-installed icemaker, see the SPRF2D5IMPNR. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
| Overview | |
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.75" (60 cm) |
| Depth | 24.25" (62 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 4.94 cu.ft. (140 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Energy Usage/Year | 418.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 172.0 lbs. (78 kg) |
| Shipping Weight | 179.0 lbs. (81 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101081496 |
| Refrigerator-Freezer | |
| Interior Light | Yes |
| Refrigerator - Interior Height | 12.75" (32 cm) |
| Refrigerator - Interior Width | 20.0" (51 cm) |
| Refrigerator - Interior Depth | 15.63" (40 cm) |
| Refrigerator - Temperature Range | 34 to 45 F |
| Freezer - Interior Height | 12.75" (32 cm) |
| Freezer - Interior Width | 20.0" (51 cm) |
| Freezer - Interior Depth | 15.63" (40 cm) |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.8 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 140.0 |
| Freezer - Temperature Range | -5 to 5 F |
