Summit SWC1966CSS 24" Wide Wine Cellar SWC1966CSS

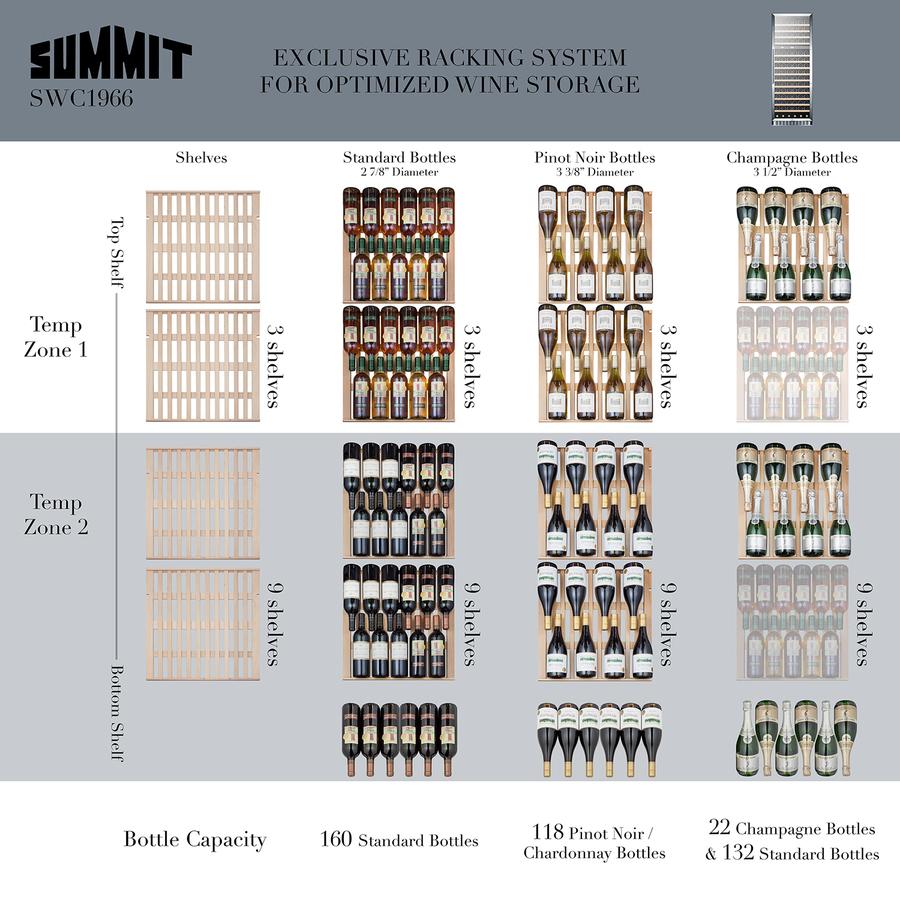

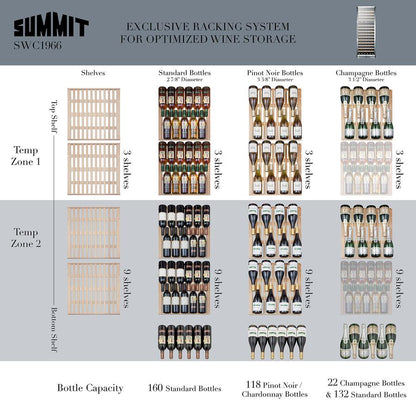

SUMMIT SWC1966CSS is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience. Sized at just under 24" wide and 27" deep, the SWC1966CSS can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55 and 72 F, while the upper zone is designed for white wine and champagne stored between 41 and 55 F. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection. The SWC1966CSS features a stainless steel wrapped cabinet cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information. With its ideal size and handy features, the SWC1966CSS is an elegant yet affordable wine cellar for full storage needs.

Overview
Nominal Height	70.0" (178 cm)
Height of Cabinet	69.75" (177 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	27.0" (69 cm)
Depth	26.63" (68 cm)
Depth with Handle	27.75" (70 cm)
Depth with door at 90°	48.75" (124 cm)
Capacity	15.9 cu.ft. (450 L)
Bottles	160 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	195.0 lbs. (88 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059242
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	14
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.91 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	29.5" (75 cm)
Interior Width 1	19.75" (50 cm)
Interior Depth 1	21.0" (53 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.75" (50 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2	31.0" (79 cm)
Interior Width 2	19.75" (50 cm)
Interior Depth 2	21.0" (53 cm)
Sound Level	33.7 dB
