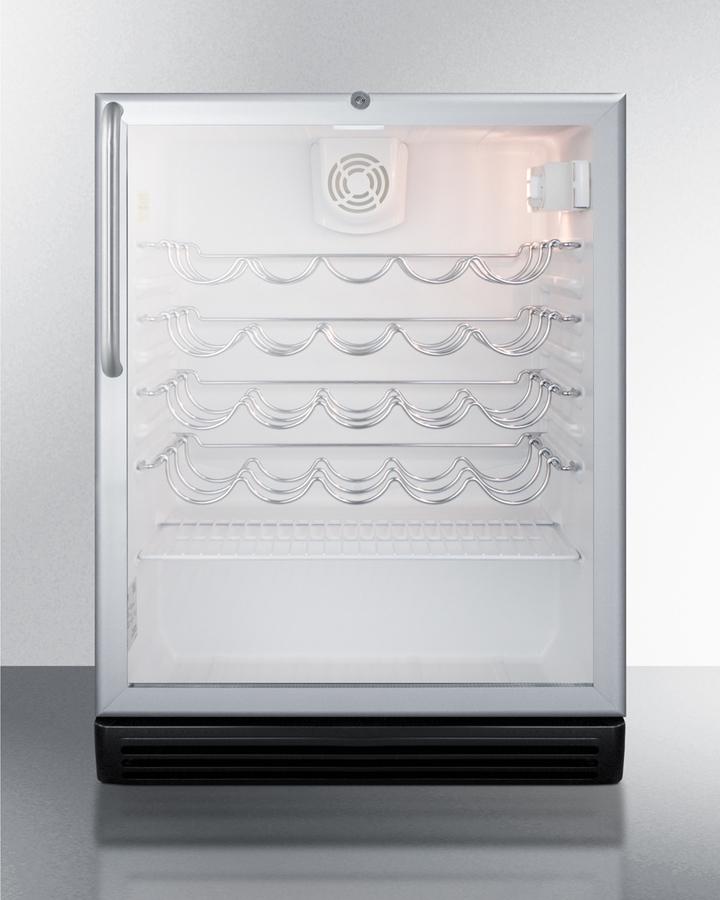

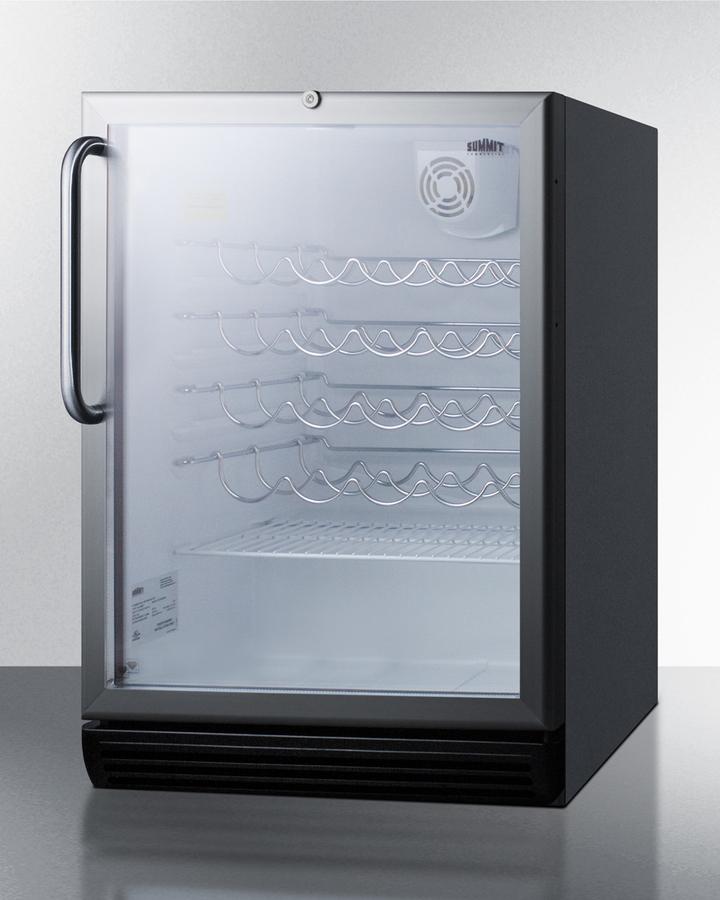

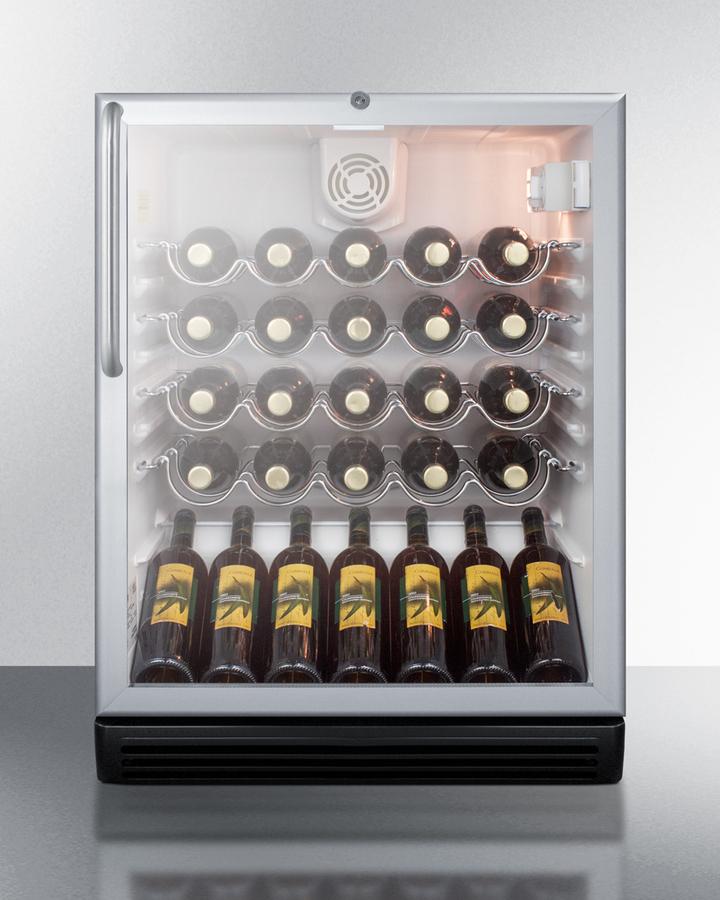

Summit SWC6GBLTBADA 24" Wide Wine Cellar, ADA Compliant SWC6GBLTBADA
Summit SWC6GBLTBADA 24" Wide Wine Cellar, ADA Compliant
- 32" high for use in ADA compliant settings
- ETL-S listed to NSF-7 for use in foodservice establishments
- Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
- A curved stainless steel handle provides generous room for a comfortable grip
- Keyed lock for secure interior, conveniently located at the top of the door
- Reduced maintenance with auto defrost system
- Fan-forced cooling helps to maintain a more evenly cooled interior
- Curved shelves designed for the ideal storage of wine bottles
- Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
- Illuminate your collection with an interior light controlled by a rocker on/off switch
- SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
- Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
- Allows the unit to be used freestanding
- Environmentally friendly design
- 5 C to 10 C/41 F to 50 F; To reach warmer temperatures, order with our red wine digital thermostat option (10 C to 18 C/50 F to 64 F range)
SUMMIT SWC6GBI series features ETL-S listed European wine cellars designed for commercial use. The SWC6GBLTBADA comes in a convenient 24" footprint, with a 32" height ideal for use in ADA compliant settings. The double pane tempered glass door offers a full view with added protection and includes our signature towel bar style handle in brushed stainless steel. The lock is located towards the top of the door for easier access. This unit has a black cabinet and is designed for freestanding use. Built-in versions are also available. Inside, the SWC6GBLTBADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat. The SWC6GBLTBADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available. NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022642 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
