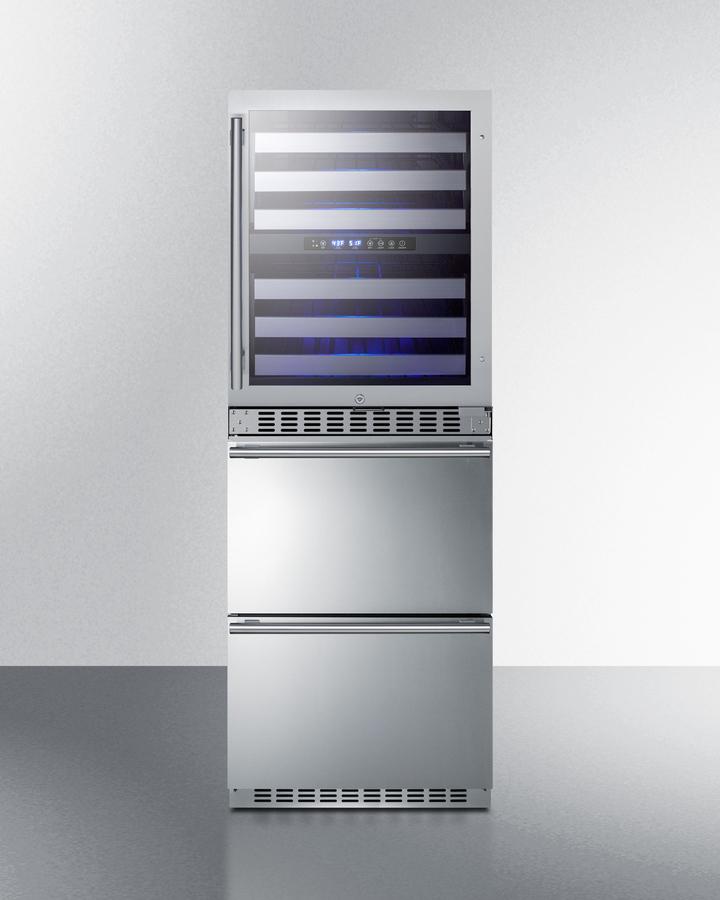

Summit SWCDRF24 24" Wide Combination Dual-zone Wine Cellar and 2-drawer Refrigerator-freezer SWCDRF24

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator-freezer - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDRF24 combines the 46 bottle capacity two-zone wine cellar (model ALWC532) with the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF34D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. Pro-style handles in brushed stainless steel complete the modern look, while the sealed back offers added space savings when placing the unit. The included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41(degree)F and 50 F for white wine, while the lower zone is designed to store red wine between 50(degree)F and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator-freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. Offering complete refrigeration convenience in a slim-fitting design, the SWCDRF24 is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. This unit can also be ordered to accept custom panels over the drawers and door frame (see model SWCDRF24PNR). Additional options are available with a bottom refrigerator (model SWCDAR24) or a bottom freezer (model SWCDAF24). Note: This unit comes with an anti-tip bracket which should be installed to prevent tipping forward.

Overview
Nominal Height	66.0" (168 cm)
Height of Cabinet	65.63" (167 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	45.75" (116 cm)
Capacity	3.9 cu.ft. (110 L)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/SS
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	380.0kWh/year
Other Energy Info	ALWC532: 1.25Ams; SPRF34D: 1.0 Amp
Amps	2.25
Voltage/Frequency	115 V AC/60 Hz
Weight	221.0 lbs. (100 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082844
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	11.88" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Interior Height - Drawer 1	10.0" (25 cm)
Interior Width - Drawer 1	18.75" (48 cm)
Interior Depth - Drawer 1	15.5" (39 cm)
Interior Height - Drawer 2	9.25" (23 cm)
Interior Width - Drawer 2	18.75" (48 cm)
Interior Depth - Drawer 2	15.5" (39 cm)
Temperature Range	ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F
Interior Height 2	11.63" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)
