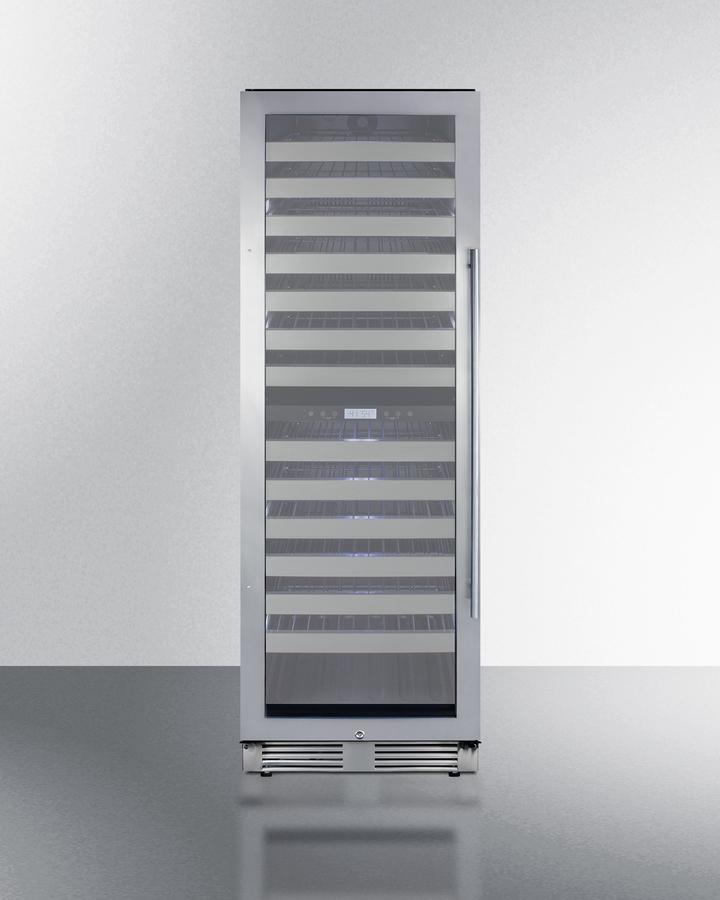

Summit SWCP2163CSSLHD 24" Wide Dual-zone Wine Cellar SWCP2163CSSLHD

Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use The SWCP2163CSSLHD is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished stainless steel cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. This unit comes with a left-hand door swing. (Note: the door is not user-reversible. For this unit with a right-hand door swing, see the SWCP2163CSS.) Inside, the SWCP2163CSSLHD includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163CSS can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range. With its convenient size, advanced features, and luxury design, the SWCP2163CSSLHD is perfect for restaurants, bars, wineries, homes seeking full capacity wine storage with a modern presentation.

Overview
Nominal Height	70.0" (178 cm)
Height of Cabinet	69.5" (177 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	27.0" (69 cm)
Depth	26.5" (67 cm)
Depth with Handle	28.25" (72 cm)
Depth with door at 90°	48.75" (124 cm)
Bottles	163 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	299.0 lbs. (136 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079295
Wine Cellar
Number of Zones	2
Door Swing	LHD
Reversible	No
Shelf Type	Wire
Shelf Qty	13
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.76 oz.
High Side PSI	320.0
Low Side PSI	120.0
Interior Height 1	31.0" (79 cm)
Interior Width 1	20.38" (52 cm)
Interior Depth 1	21.0" (53 cm)
Level Legs	2
Temperature Range	41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2	29.75" (76 cm)
Interior Width 2	20.38" (52 cm)
Interior Depth 2	21.0" (53 cm)
Sound Level	34 dB
