- FOUR HEATING ELEMENTS
- LARGE OVEN CAPACITY
- BLACK GLASS TOP
- LED DISPLAY SCREEN
- CONVECTION FAN
- LARGE OVEN WINDOWS
- HEAVY DUTY CONTROL KNOBS
- CHROME PLATED OVEN RACK

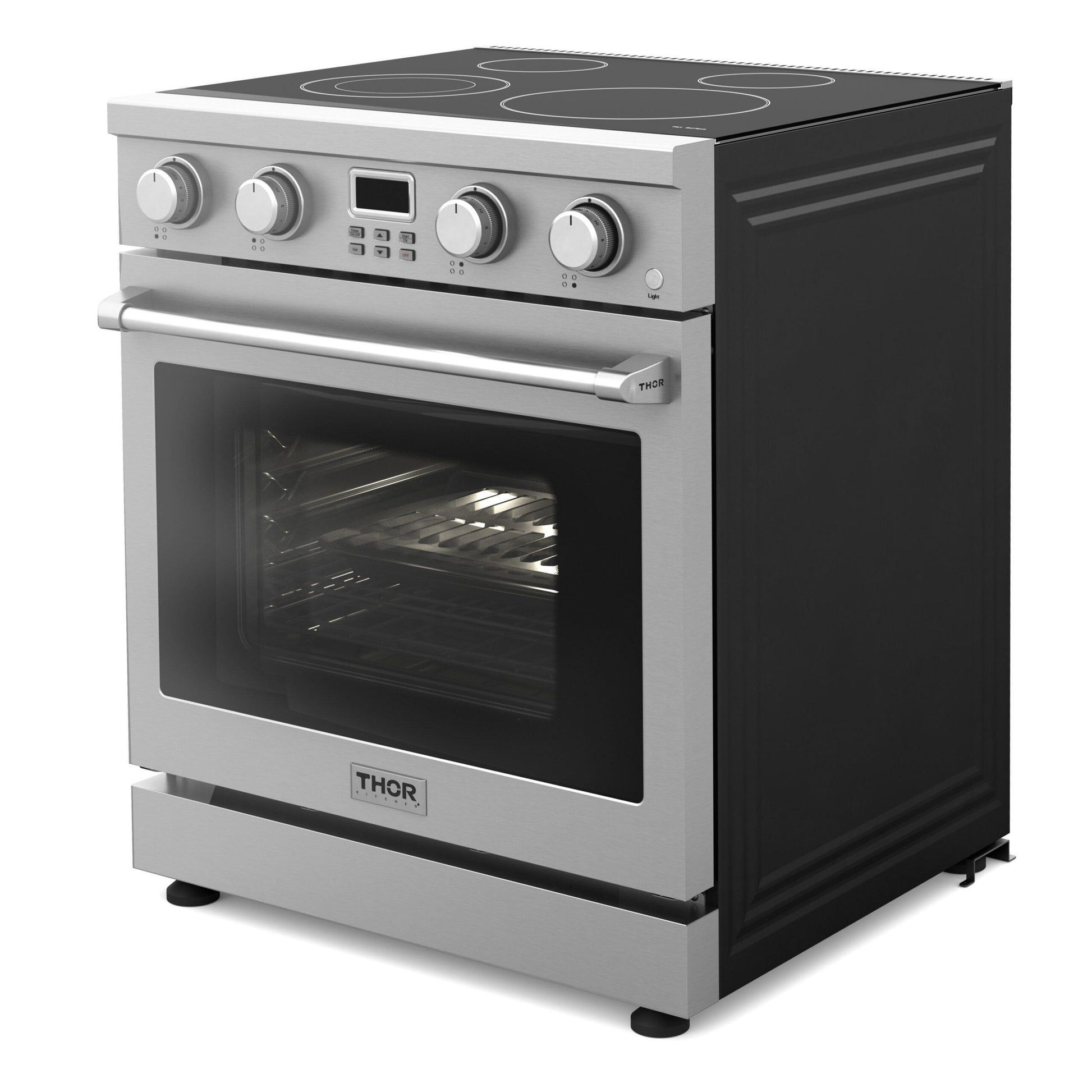

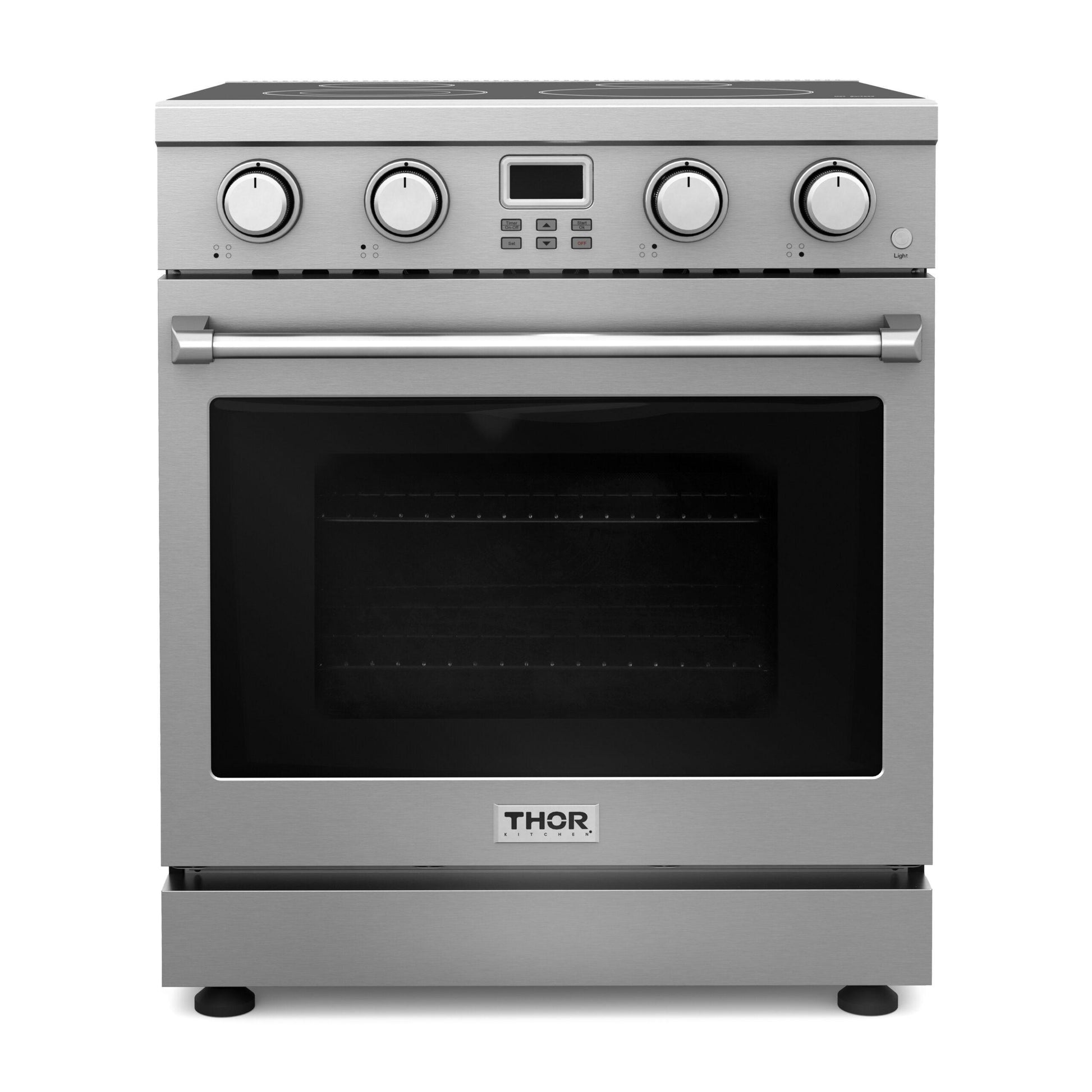

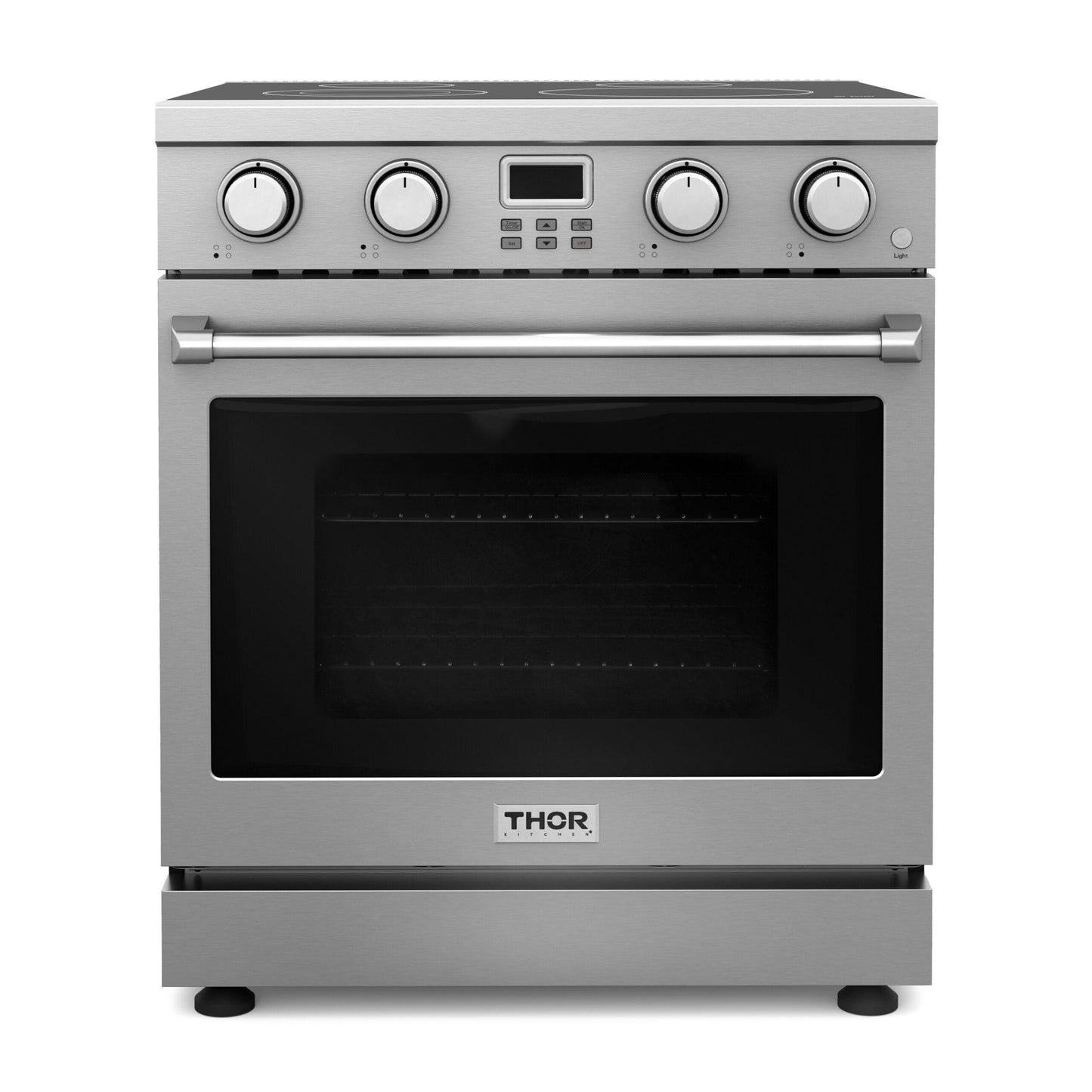

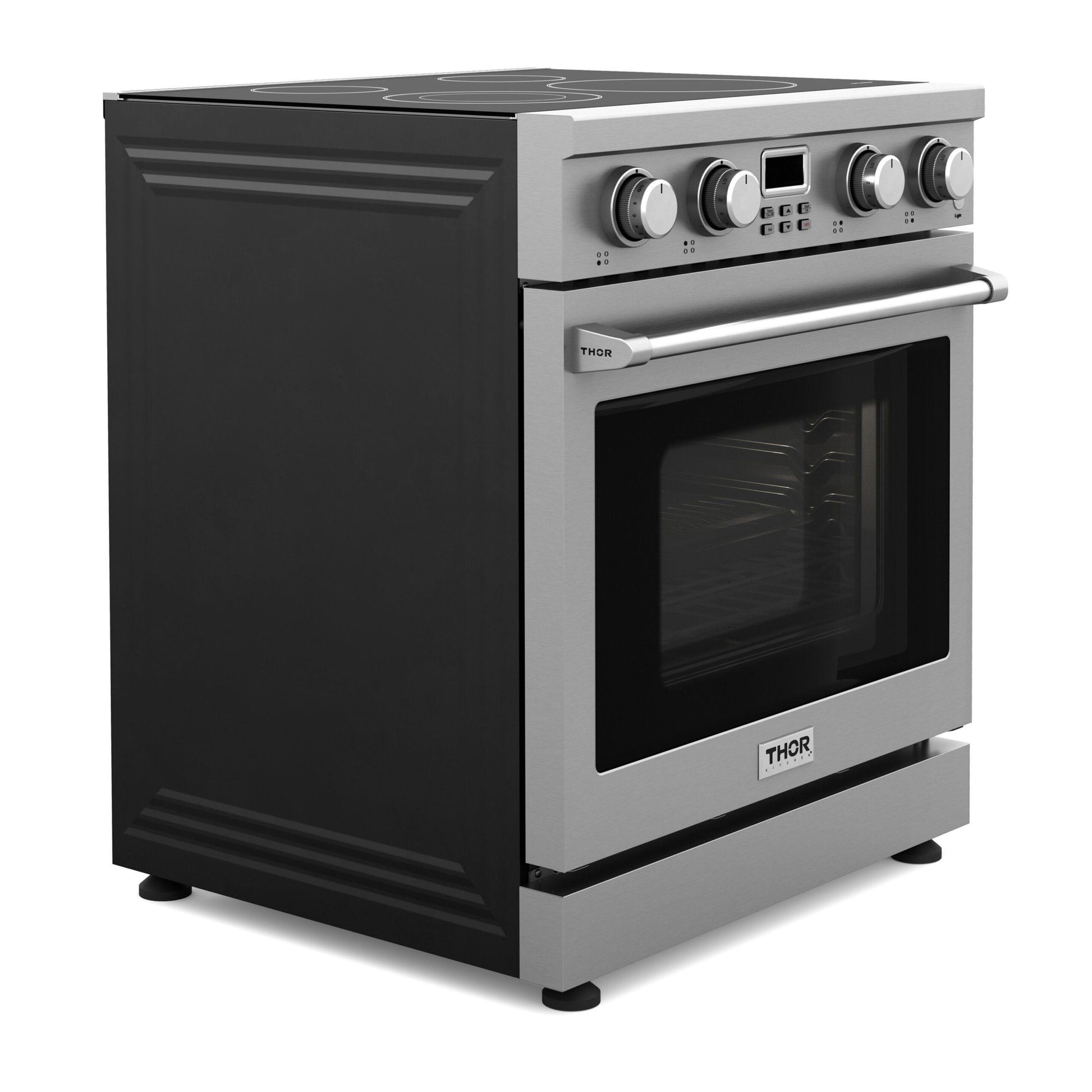

The THOR Kitchen 30 Inch A-Series Electric Range is a stainless-steel machine that is designed with powerful features and functionality. This range features a smooth glass top that is easy to clean and four radiant heating element zones that give you the ultimate cooking flexibility with a power radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this 30-inch electric range gives you the power to master any meal. #IgniteYourCulinaryCreativity
| Technical Details | |
| Fuel Type | Electric |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Voltage | 240 V |
| Circuit Breaker | 50 A |
| Frequency(Hz) | 60 Hz |
| Control Type | Oven Function Button + LED Panel Display |
| Hot Surface Indicator Light | Front Right Corner of Cooktop w/ Temp at 150 °F |
| Plug Type | 4-Prong 14-50R (not included) |

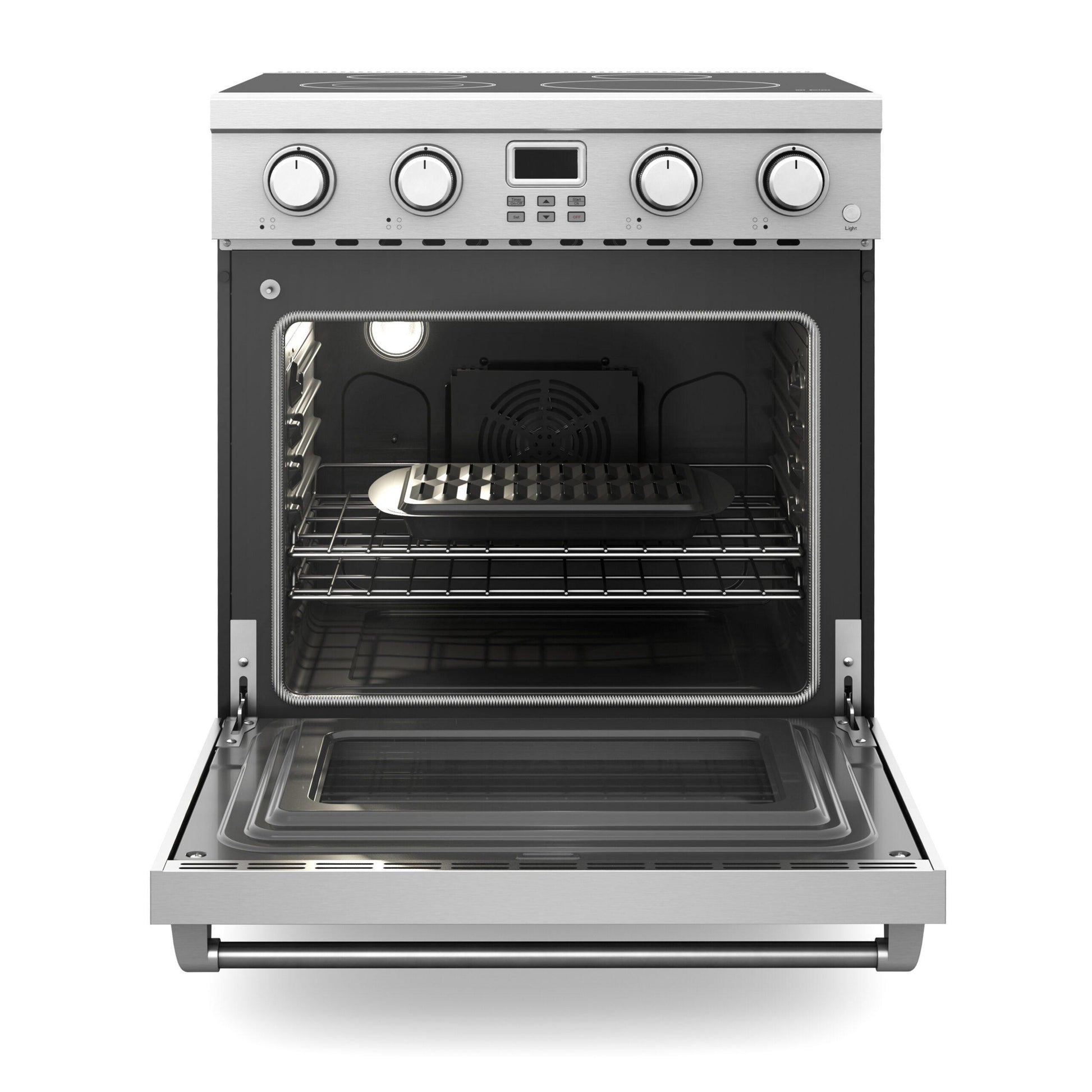

| Oven Performance | |
| Oven Capacity | 4.8 cu.ft. |
| Oven Color | Black |
| Oven Control Buttons | Start/Ok, Timer On/Off |
| Lower Heater Power | 3,000W |
| Top Heater Power | 3,500W |
| Convection | Convection Fan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Rack Positions | 6 |
| Oven Rack Material | Chrome Plated |
| Backing Sheet Size | Fits up to 22" x 14" Sheet |
| Cooktop Performance | |
| Cooktop | Black Polished Plate Glass |

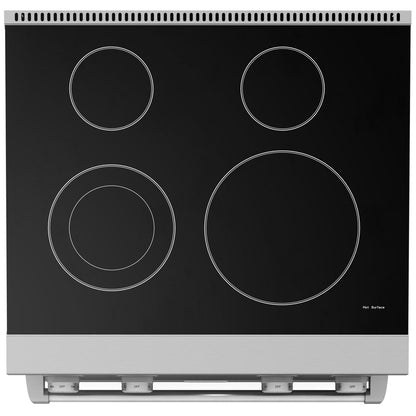

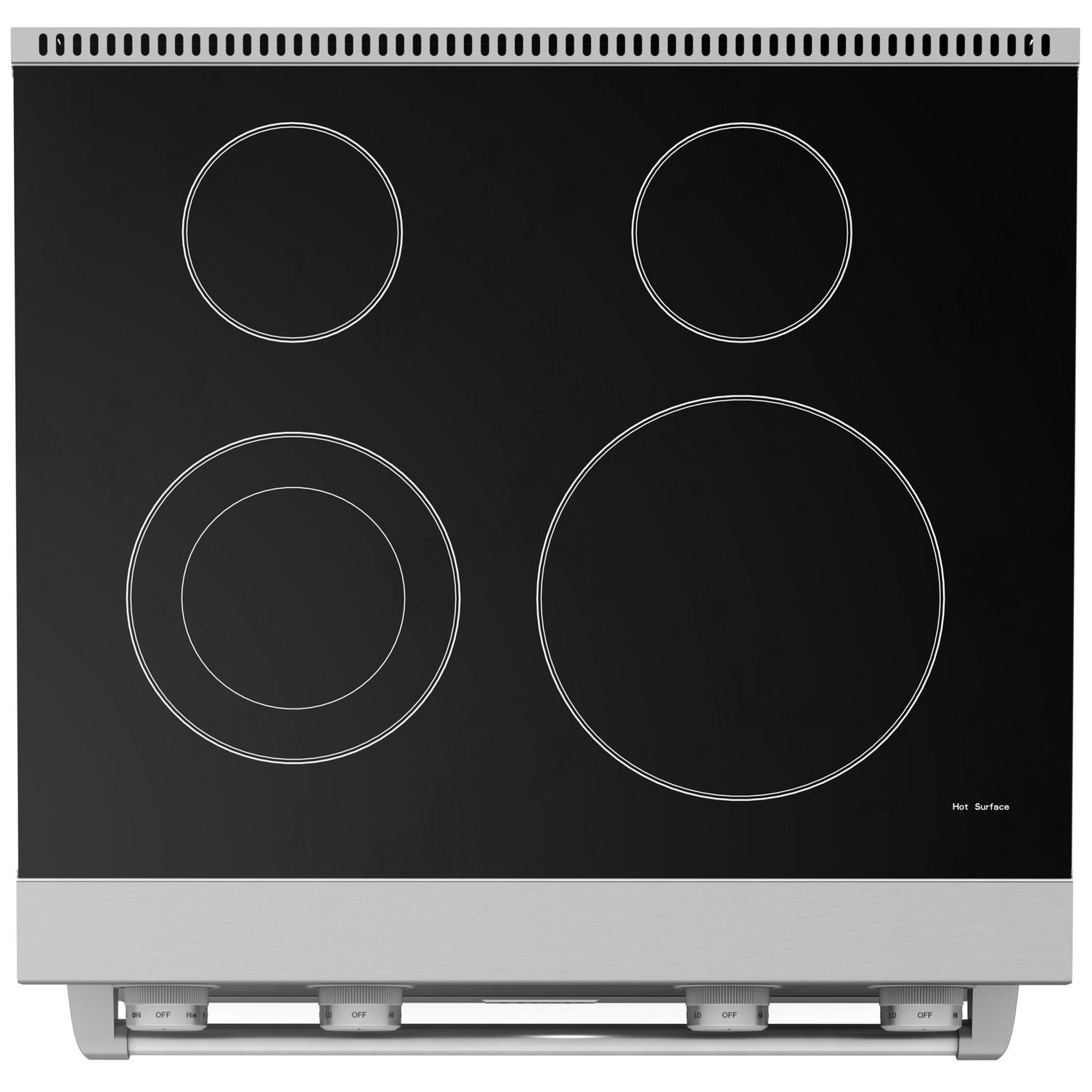

| Total Elements | 4 |
| [1] Front Left Element (Dual) | Outer Ring =1,500 W Inner Ring = 1,500 W Total = 3000 W |
| [2] Front Right Element (Single) | 3,000 W |
| [3] Rear Left Element (Single) | 1,200 W |
| [4] Rear Right Element (Single) | 1,200 W |
| Backing Sheet Size | Fits up to 22" x 14" Sheet |
| Dimensions | |
| Product Width | 29 7/8" |
| Product Height (from bottom to top of back splash) | 36" |
| Product Height (from bottom to top of side panel) | 34 3/4" |
| Product Depth (from back panel to bullnose) | 26 3/4" |
| Product Depth (from back panel to control board) | 26 1/4" |
| Product Depth (from back panel to side panel front) | 24" |
| Adjustable Leg Sizes | 3" Max. |
| Oven Height | 18" |
| Oven Width | 23.7" |
| Oven Depth | 19.5" |
| Weight | |
| Net weight | 176 lbs. |
| Gross weight | 203 lbs. |
| CUTOUT | |
| Cutout Height | 36 Inch |
| Cutout Width | 30 Inch |
| Cutout Depth | 24 Inch |
| ACCESSORIES INCLUDED | |
| 2 | Oven Racks |
| 1 | Broiler Pan |
| 1 | Bake Pan |
