Whirlpool UXD8630DYS 30" Retractable Downdraft System with Interior Blower Motor UXD8630DYS

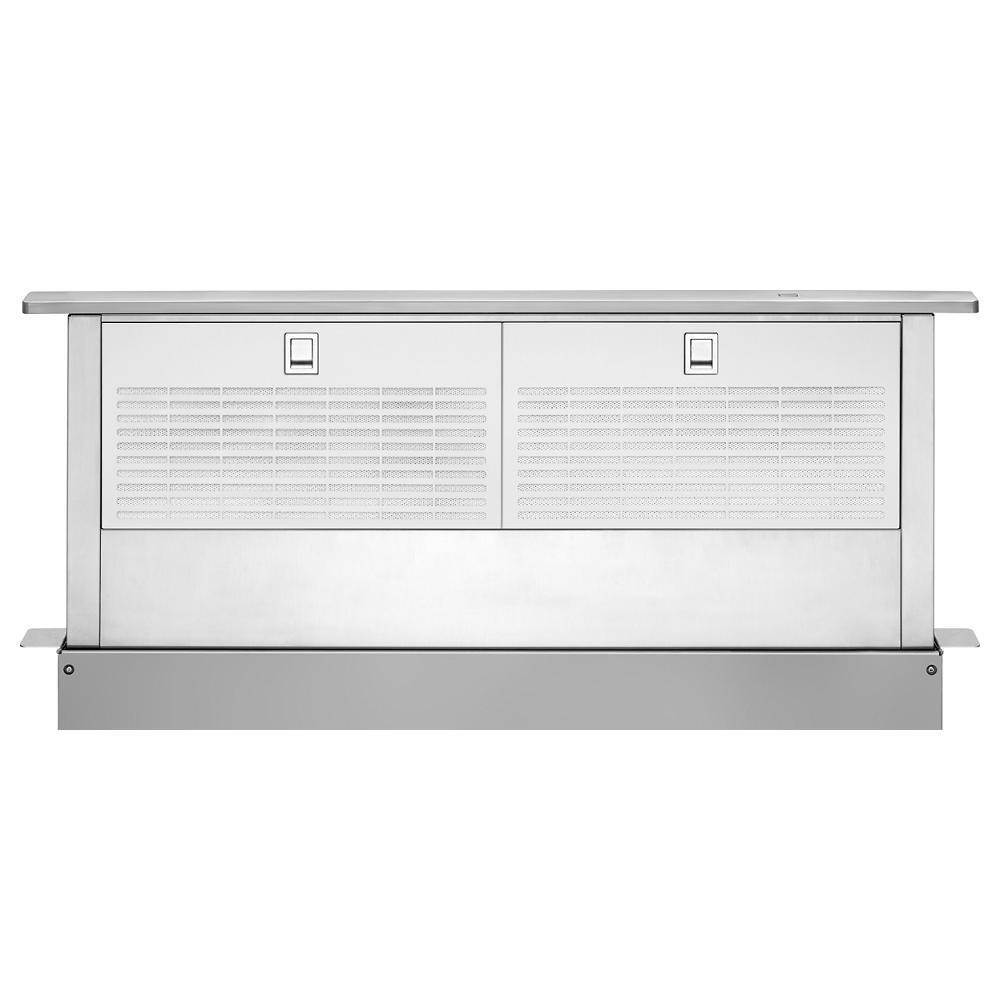

Whirlpool UXD8630DYS 30" Retractable Downdraft System with Interior Blower Motor
- Powerful 600 CFM Interior Blower Motor Included
- Touch-Activated Telescoping Operation
- Dual Centrifugal Blower
- 6.5 Vertical Sones (3-1/4" x 10")
- Auto Off When Retracted
Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.
| Certifications | |
| Prop65 | Standard |
| Controls | |
| Control Location | Hidden |
| Control Type | Manual |
| Details | |
| Hood Type | Retractable Downdraft |
| Material | Stainless Steel with Glass |
| Number of Vent Speeds | 3 |

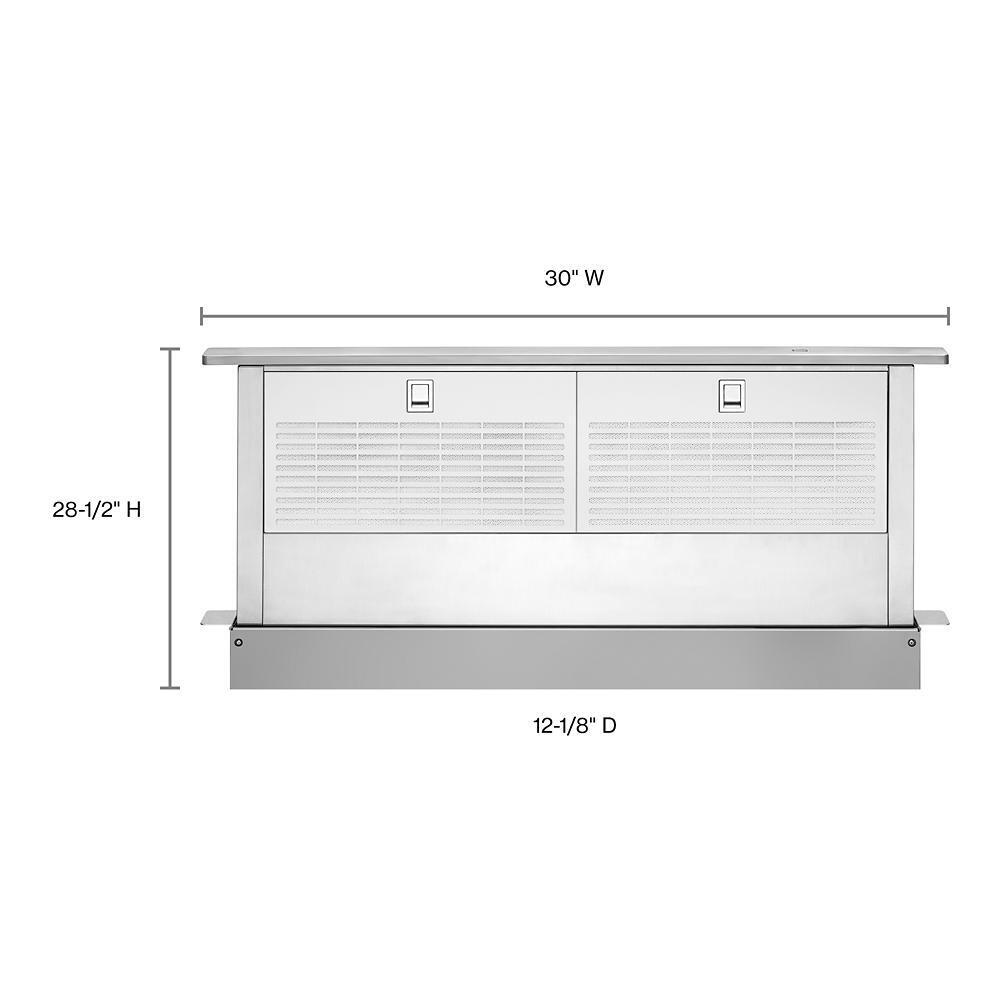

| Dimensions | |
| Product Height | 28.5 |
| Carton Height | 21 |
| Gross Weight | 93 |
| Carton Depth | 33.5 |
| Carton Width | 35 |
| Product Depth | 12.125 |
| Net Weight | 66.14 |
| Product Width | 30.0 |
| Ventilation Details | |
| Blower Type | Centrifugal |
| Cfm Motor Class | 585 |
| Duct Direction | Vertical |
| Duct Outlet Size | 3.25 W x 10 H |
| Duct Type | Round |
| Sound Max Speed | 7.9 |
| Sound Max Speed (sones) | 7.9 |
| Venting | Exterior |
