- Properly install with either a 30 or 40 amp hookup
- Enjoy added versatility with a fifth element
- Cook small dishes on a 6" Extra Element
- Meets ADA Standards for Accessible Design
- Wiping up spills is simple with the easy-to-clean cooktop
- ENERGY STAR Certified to help save money on your utility bills
- Get two elements in one with a FLEXHEAT dual radiant element
- See when the cooktop's still hot with a light that lets you know

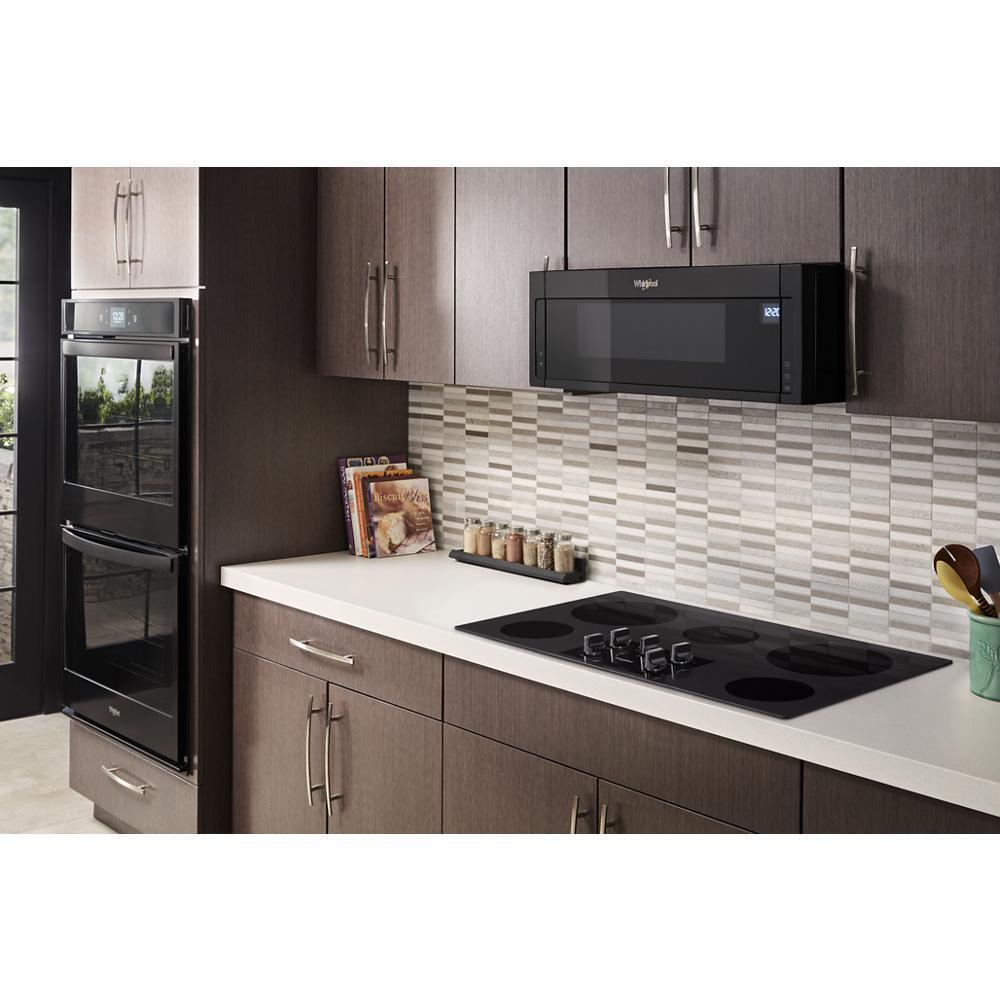

- Install this cooktop with a wall oven or on its own
- Keep food warm with the Warm Zone element

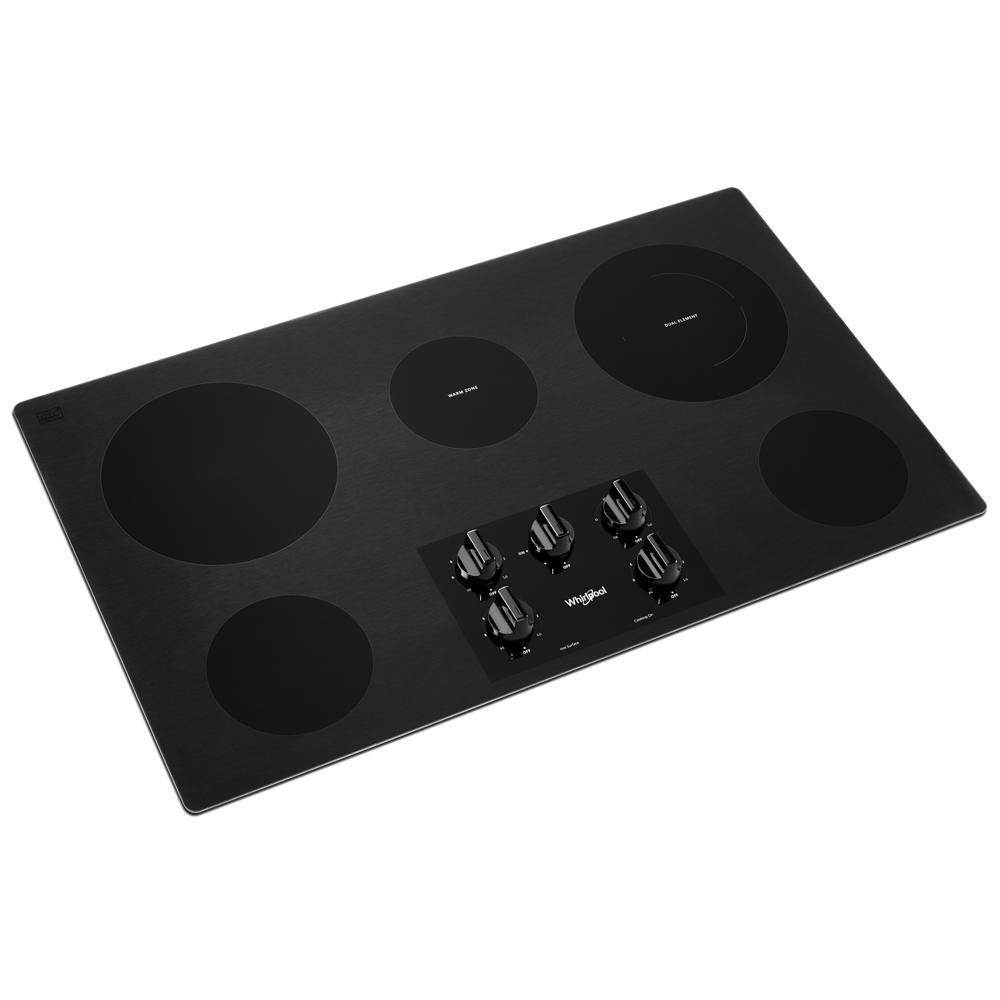

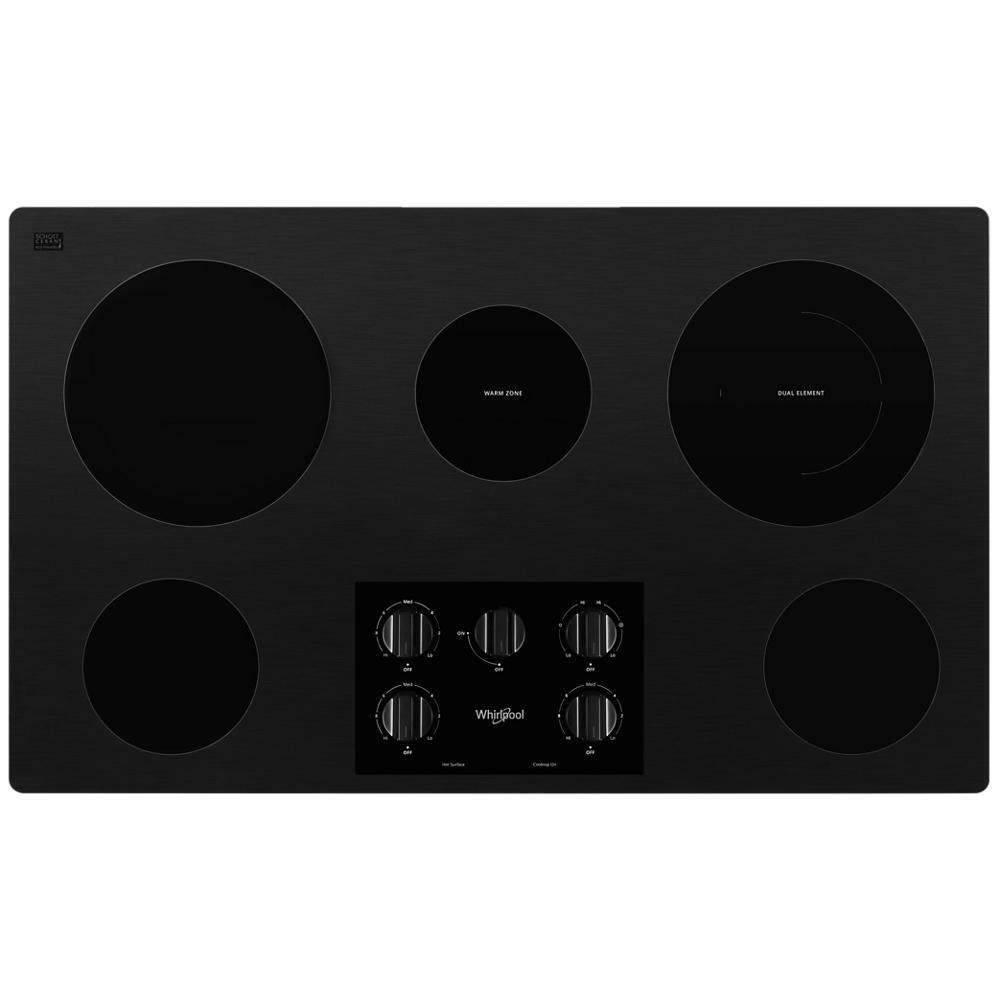

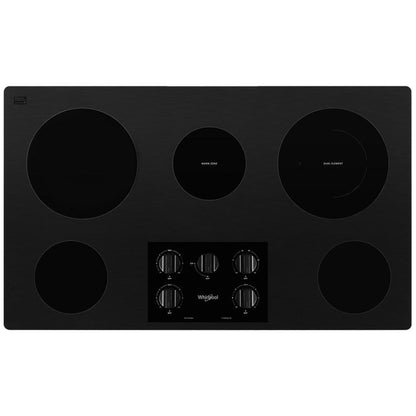

Cook all your family s favorites and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. The FlexHeat™ Dual Radiant Element gives you flexibility, while the Warm Zone Element keeps food warm while you finish cooking. When dinner s done, a ceramic glass cooktop makes it easy to wipe away messes.
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | Standard |
| Controls | |
| Control Location | Front |

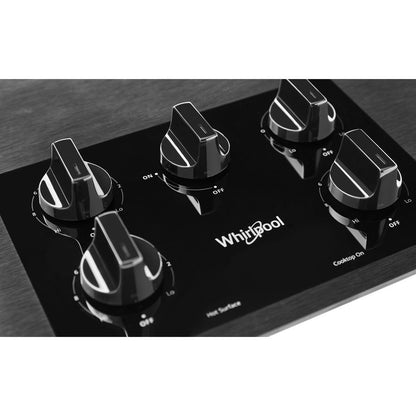

| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |
| Dimensions | |
| Product Height | 5.25 |
| Carton Height | 9.25 |
| Gross Weight | 50 |
| Carton Width | 40.75 |
| Product Depth | 21.75 |
| Cutout Depth Max | 20.563 |
| Cutout Width Min | 34.563 |
| Cutout Depth | 20.375 |
| Carton Depth | 25 |
| Cutout Width | 34.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width Max | 35.563 |
| Net Weight | 44 |
| Product Width | 36.3125 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | No |
| Element/burner Details | |
| Center Rear Element-burner Power | 100W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Warming |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 1,200W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Standard |
| Left Rear Element-burner Power | 2,500W |
| Left Rear Element-burner Size | 10in. |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 1200W |
| Right Front Element-burner Size | 6in. |
| Right Front Element-burner Type | Dual |
| Right Rear Element-burner Power | 3000/1900W |
| Right Rear Element-burner Size | 10in./6in. |
| Right Rear Element-burner Type | Standard |
| Exterior Details | |
| Knob Color | Black |
| Knob Type | Dishwasher-Safe Plastic |
| General | |
| Combination Match With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Cooktop Features | ADA Compliant |
| Oven Details | |
| Natural Gas Convertible | No |
| Ventilation Details | |
| Downdraft Vent | No |
